065-0089-04

BendixKing KAS 297C selector 065-0089-04

065-0089-04 is the exact BendixKing Part Number for this KAS 297C altitude and vertical-speed selector. The panel gives the crew a dedicated interface for entering a selected altitude and, when supported by the installed flight-control system, a desired climb or descent rate. It is a selector and display unit rather than a stand-alone air-data computer or autopilot.

The full -04 suffix must remain part of the identification. Other KAS 297C versions can share the same front-panel appearance while differing in internal configuration or modification status. Maintenance and purchasing decisions should be based on the aircraft equipment list and Part Number 065-0089-04, not on the model name alone.

Altitude and vertical-speed selection

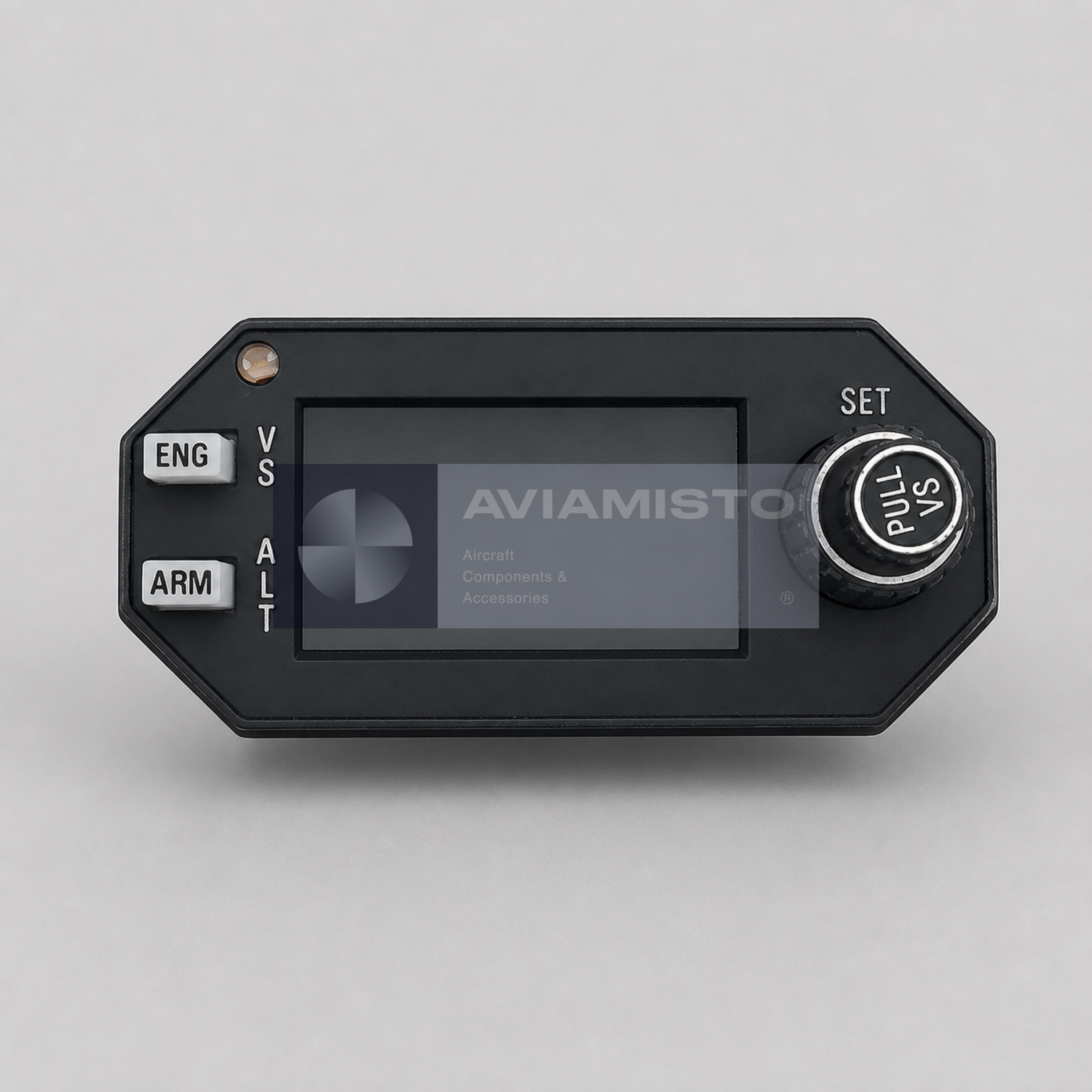

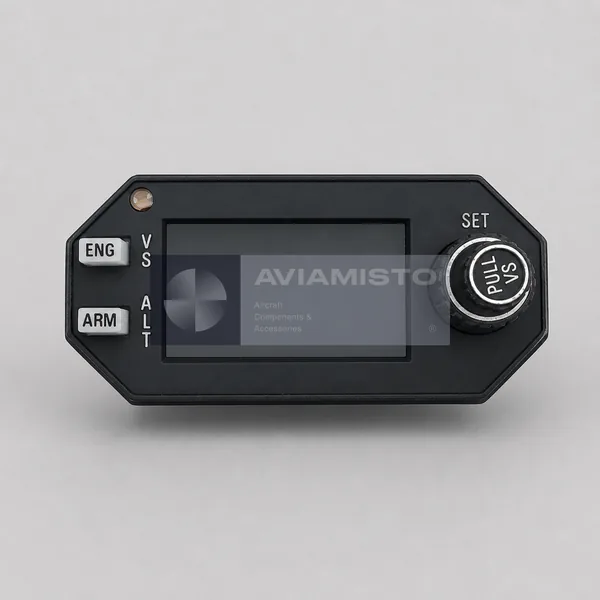

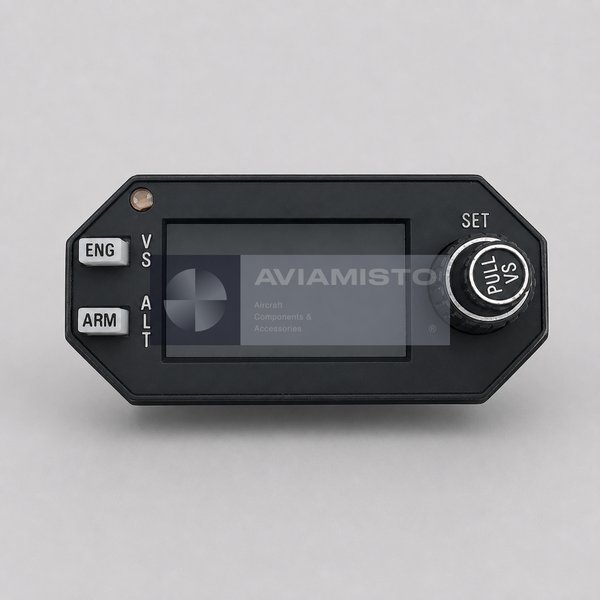

The SET control is used to change the displayed selection. The ENG and ARM controls support engagement and arming logic in an approved installation, while the PULL VS function changes the selector to the vertical-speed entry mode where applicable. The display provides the crew with a clear numeric reference for the value being selected.

Official BendixKing KFC 275/325 documentation lists the KAS 297C as the altitude/vertical-speed preselector used with that flight-control family. During an altitude capture sequence, the preselector works with the flight computer and compatible air-data source. The flight computer, not the KAS 297C alone, generates the aircraft control command and drives the appropriate servo.

Electrical and plate data for the -04 unit

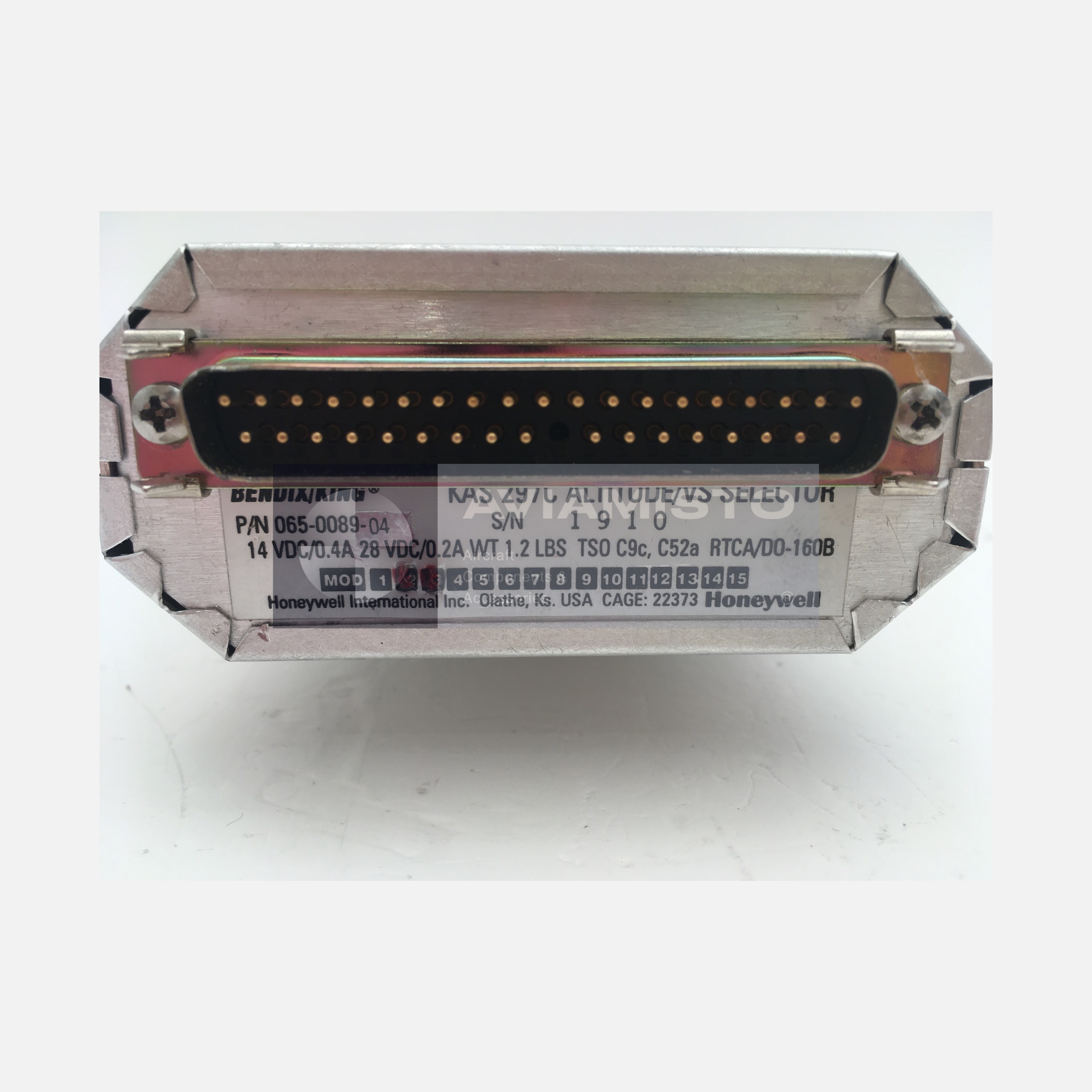

The exact photographed identification plate states 14 VDC at 0.4 A or 28 VDC at 0.2 A. It gives a weight of 1.2 lb, approximately 0.54 kg, and carries TSO C9c, TSO C52a and RTCA/DO-160B references. These figures are taken from the plate of 065-0089-04 and are not transferred from another KAS 297C suffix.

The photographed serial number is 1910. The rear view also shows the original multipin connector and modification-status marks. Connector pin assignments, allowable wiring, circuit protection and display-lighting requirements must still be checked in the installation data. A visible connector does not establish pin compatibility with another version.

System integration and installation checks

A simplified control chain is pilot entry at KAS 297C → altitude or vertical-speed selection supplied to the compatible flight-control system → processing by the flight computer using air-data and attitude inputs → command to the approved servo actuator. The KMC 321 mode controller and KCP 220 flight computer are associated units in documented KFC 275/325 configurations, but their inclusion depends on the aircraft installation.

Before installation, technicians should confirm the complete suffix, connector keying, mounting dimensions, display configuration, power supply, aircraft wiring and approved system version. A functional check should verify selection, arming, engagement, display response and altitude-capture behavior in accordance with the aircraft flight-manual supplement and maintenance data. No universal aircraft applicability is claimed for this suffix.

Selection and indication faults can also originate in the air-data source, mode controller, flight computer, wiring or display-lighting circuit. Bench replacement should therefore follow documented fault isolation. The selector should be evaluated together with the system symptoms rather than treated as the only possible cause.

\n

Serviceable supply and ordering information

This 065-0089-04 KAS 297C is offered in Serviceable condition from partner stock with a six-month warranty. The listed price uses the higher value required after comparison with the exact same-condition public position. The serial number, release certificate and current test status of the unit allocated to an order are confirmed in the quotation and dispatch documents.

For an inquiry, specify Part Number 065-0089-04, model KAS 297C, aircraft type, installed flight-control system, quantity and required certification. The flight computer, mode controller, sensors, connectors and mounting hardware are included only when expressly stated. Related avionics can be reviewed in the Garmin / BendixKing / Honeywell / Collins category; related products are not automatically interchangeable.

Product Type: Altitude and vertical-speed selector / preselector

Manufacturer: BendixKing / Honeywell

Model: KAS 297C

Designation: 065-0089-04

Alternative Designations: KAS297C; KAS-297C; 065008904; Bendix/King KAS 297C -04

Main Function: Crew entry and display of selected altitude and vertical-speed commands in a compatible flight-control installation

Visible Controls: ENG, ARM, SET and PULL VS

Associated System Family: Compatible BendixKing KFC 275 / KFC 325 flight control installations

Typical Signal Chain: KAS 297C selection → compatible flight computer with air-data inputs → approved servo actuator and aircraft linkage

DC Power Supply: 14 V DC / 0.4 A or 28 V DC / 0.2 A according to the exact plate

Weight: 1.2 lb / approximately 0.54 kg according to the exact plate

Qualification Markings: TSO C9c, TSO C52a and RTCA/DO-160B according to the exact plate

Photographed Serial Number: 1910

Connector: Multipin rear connector; exact pin assignment must be verified from approved installation data

Exact Dimensions: Refer to the installation drawing applicable to 065-0089-04

Interchangeability: Complete suffix, connector, modification status, wiring and aircraft approval must be verified

Condition: Serviceable

Warranty: 6 Months

Delivery Set: Flight computer, mode controller, sensors, connectors and mounting hardware only when expressly included

Technical Documentation: Applicable KAS 297C and BendixKing KFC 275 / KFC 325 installation and maintenance data
