065-0059-03

KS 270A pitch servo 065-0059-03

065-0059-03 is the exact BendixKing Part Number for this KS 270A pitch servo. The servo is an electromechanical actuator used in compatible automatic flight control installations to convert pitch-axis commands into movement at the aircraft control system. The -03 suffix forms part of the technical identity and must be checked against the approved equipment list rather than omitted during ordering.

The KS 270A does not sense aircraft attitude or calculate a flight path by itself. It receives commands from the compatible autopilot computer and applies controlled mechanical torque through its output assembly and the aircraft linkage. The complete installation also includes disconnect and clutch logic, circuit protection, wiring, mounting structure and properly rigged control cables or chains. Each of these elements affects system performance.

Pitch-axis function in an autopilot system

When the autopilot requests an elevator correction, the flight-control computer sends an electrical command to the pitch servo. The KS 270A motor and transmission then move the connected linkage in the required direction. Feedback and clutch arrangements within the approved system allow the computer to control the response and permit disengagement according to the aircraft installation design.

A simplified chain is aircraft sensors and pilot-selected mode → compatible autopilot computer → KS 270A pitch servo → aircraft pitch-control linkage. A separate trim servo may relieve sustained pitch forces in installations that provide automatic electric trim. The KS 270A pitch servo and a trim servo perform different jobs and should not be presented as substitutes for one another.

Exact -03 electrical ratings

The original identification plate on the photographed unit gives Part Number 065-0059-03 and identifies the equipment as a KS 270A Pitch Servo. It specifies maximum DC input of 14 V / 5 A or 28 V / 5 A. The plate also lists a weight of 2.6 lb, approximately 1.18 kg, and carries TSO C9c and DO-138 references.

These values belong to the exact -03 unit shown in the gallery and are preferable to generic family data. They do not establish aircraft circuit-breaker size, wire gauge, connector pinout or permissible duty cycle. Those installation values must be taken from the current BendixKing manual and aircraft-specific approval. Applying family figures without suffix confirmation can lead to incorrect replacement selection.

Identification and installation inspection

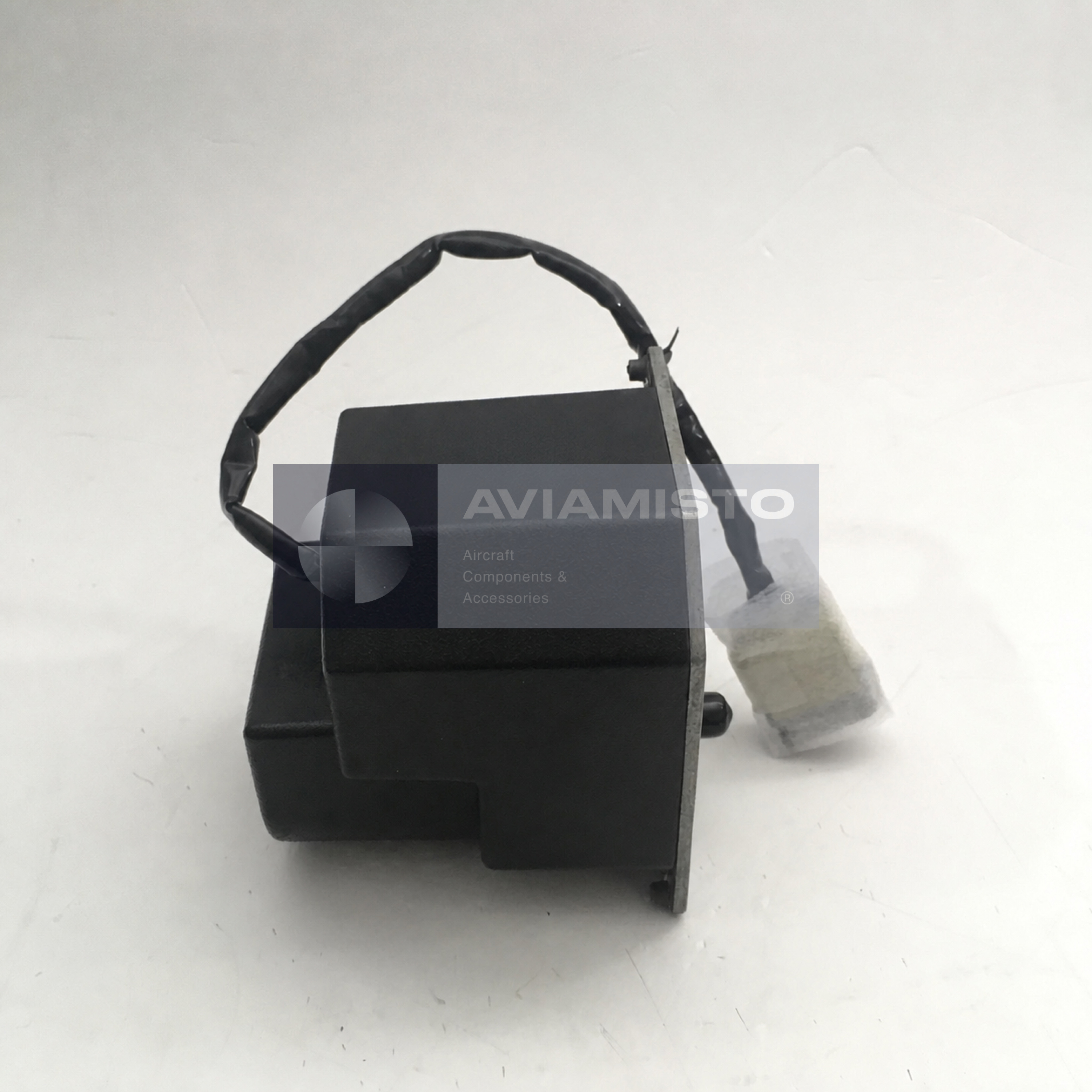

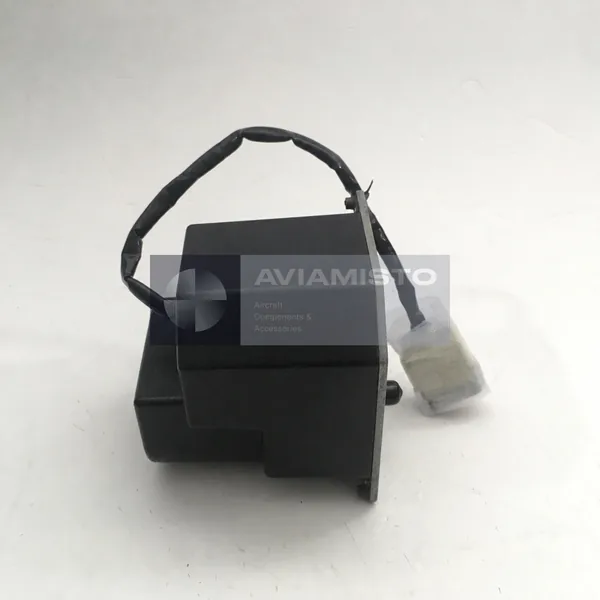

The photographed serial number is 29150. The main image shows the housing, mounting flange, output side, wiring lead and connector, while the gallery image records the original label. The images preserve the authentic configuration and do not substitute a -23 servo. This distinction matters because the -03 and -23 variants are separate catalogued Part Numbers even when the basic model name is the same.

Before installation, maintenance personnel should verify the mounting arrangement, output coupling, cable or chain condition, connector security, clutch function, mechanical travel and autopilot rigging. A system fault can originate in external wiring, control linkage, trim equipment, sensors or the computer, so servo replacement should follow documented troubleshooting. Exact dimensions and connector details are intentionally referred to approved data where dependable -03 figures were not available in the reviewed public material.

Serviceable condition and controlled ordering

This 065-0059-03 KS 270A is offered in Serviceable condition from partner stock with a six-month warranty. The commercial value follows the confirmed offer list; no higher exact same-condition public comparison was available for this suffix. Release paperwork, test status and the serial number allocated to an order are confirmed in the quotation and shipping documents.

For a quotation, specify Part Number 065-0059-03, model KS 270A, required quantity, aircraft application and document requirement. Autopilot computer, trim servo, mounting hardware, linkage parts and mating connector are included only if expressly listed. Related system units can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Related equipment may share an aircraft system but does not constitute an approved interchangeable replacement.

Product Type: Autopilot pitch-axis servo actuator

Manufacturer: BendixKing / Honeywell

Model: KS 270A

Designation: 065-0059-03

Alternative Designations: KS270A; KS-270A; 065005903; Bendix/King KS 270A -03

Main Function: Converts compatible autopilot pitch commands into mechanical movement at the aircraft pitch-control linkage

Installation Type: Remotely mounted pitch-axis autopilot servo

Typical Signal Chain: Aircraft sensors and pilot mode selection → autopilot computer → KS 270A pitch servo → aircraft pitch-control linkage

Maximum DC Input at 14 V: 14 V DC / 5 A according to the exact identification plate

Maximum DC Input at 28 V: 28 V DC / 5 A according to the exact identification plate

Weight: 2.6 lb / approximately 1.18 kg according to the exact identification plate

Qualification Markings: TSO C9c and DO-138 according to the exact plate

Photographed Serial Number: 29150

Associated Equipment: Compatible autopilot computer and installation-specific trim equipment where approved

Exact Dimensions: Refer to the installation drawing applicable to 065-0059-03

Connector and Pin Assignment: Verify through the applicable KS 270A installation and maintenance data

Interchangeability: Not automatically interchangeable with 065-0059-23 or other KS 270A suffixes

Condition: Serviceable

Warranty: 6 Months

Delivery Set: Computer, trim servo, mounting hardware, linkage parts, connector and documentation only when expressly included in the quotation

Technical Documentation: KS 270A installation and maintenance data applicable to 065-0059-03
