064-1015-00

BendixKing KTR 953 receiver/exciter 064-1015-00

064-1015-00 is the exact BendixKing Part Number for the KTR 953 HF receiver/exciter shown in this product card. The remote unit is one of the principal components of a compatible KHF 950 high-frequency communication system. It receives HF radio signals and generates the low-power transmitter excitation that is amplified and coupled to the aircraft antenna by the associated power-amplifier and antenna-coupler equipment.

The KTR 953 is not a complete stand-alone HF radio. It requires the correct control unit, power-amplifier/antenna coupler, antenna installation, wiring and aircraft approval. Its role is best understood as the central receiver and exciter in the signal chain, while other KHF 950 components provide crew control, high-power RF amplification and antenna matching.

Functional role in the KHF 950 system

BendixKing documentation describes a basic KHF 950 system as the KCU 951 control unit, KAC 952 power-amplifier/antenna coupler and KTR 953 receiver/exciter. A KFS 594 miniature control unit with a KA 594 bus adapter can be used in documented alternative installations. The crew selects frequency and operating mode at the controller, and those commands are passed to the KTR 953.

On receive, the KTR 953 processes the selected HF signal and supplies audio through the aircraft communication interface. On transmit, its exciter produces a very low-power signal at the selected frequency. That signal is sent to the KAC 952, where it is amplified and matched to the connected antenna. The practical chain is control unit to KTR 953 receiver/exciter, then KAC 952 power amplifier and coupler, followed by the approved HF antenna.

Frequency coverage and system performance

Published KHF 950 documentation identifies system operation from 2.0 to 29.9999 MHz with 100 Hz tuning resolution and a nominal 150 W peak-envelope-power voice output at the system level. These are capabilities of the assembled KHF 950 installation, not direct output ratings of the KTR 953 exciter alone. Antenna type, coupler configuration, control equipment and approval data determine the usable aircraft installation.

The exact 064-1015-00 suffix is important. BendixKing documentation states that only selected KTR 953 suffixes, including -01, -11, -41 and -53, support a standard external SELCAL decoder. The -00 configuration must therefore not be advertised as automatically SELCAL-compatible. A later suffix or a visually similar KTR 953 cannot be treated as an interchangeable replacement without checking system wiring, features and approval status.

Identification plate and electrical requirements

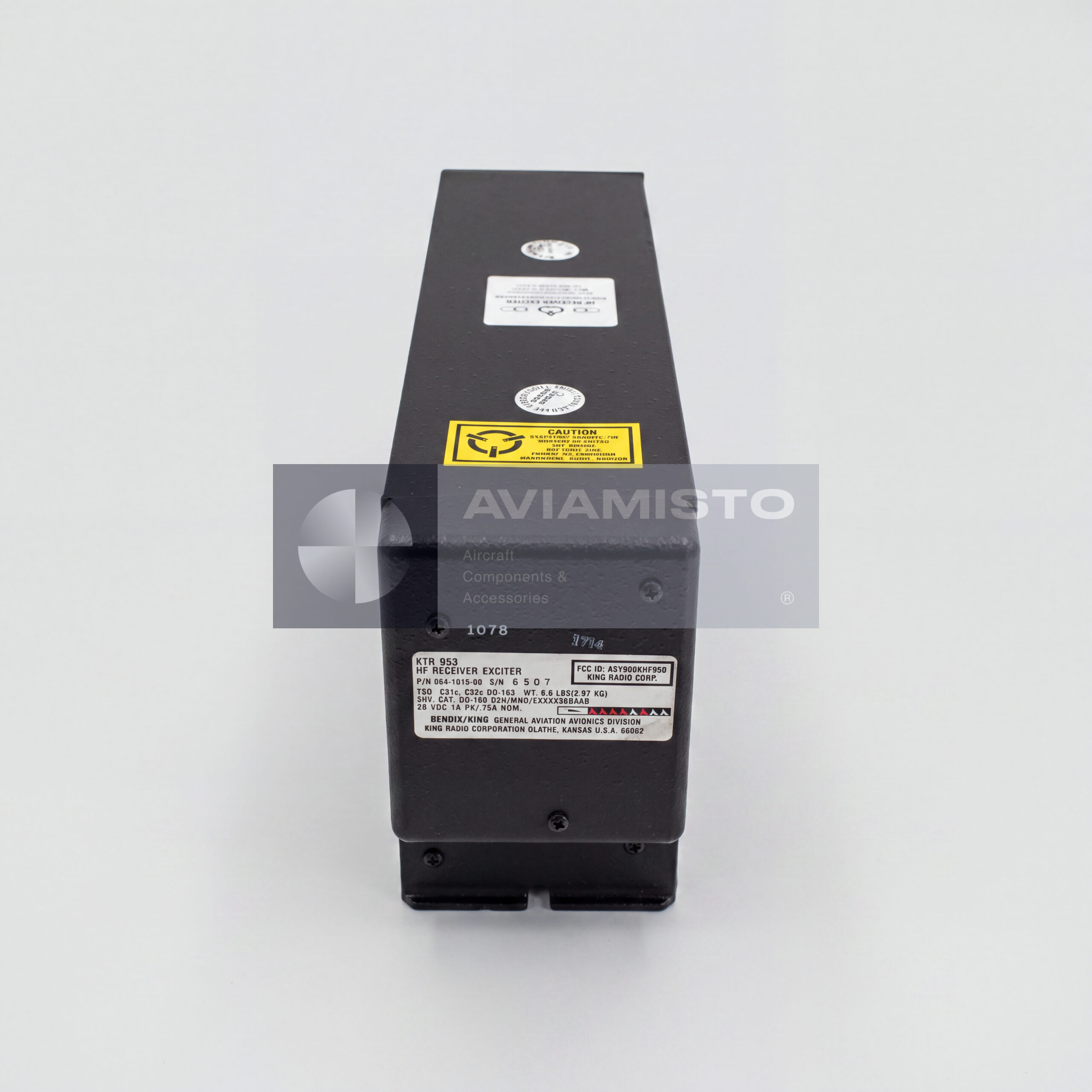

The original plate on the photographed unit identifies model KTR 953, Part Number 064-1015-00 and serial number 6507. It states 28 V DC, 1 A peak and 0.75 A nominal for this exact unit. A system installation manual may show a larger supply allowance when power for an associated control unit is included; the product plate value is retained here as the direct rating of the exact photographed receiver/exciter.

The same plate gives a weight of 6.6 lb, approximately 2.97 kg, and lists TSO C31c and C32c qualification markings together with DO-163 and DO-160 environmental references. Connector type, pin assignment and exact mounting dimensions were not independently confirmed from the reviewed open documentation, so they must be taken from the applicable KHF 950 installation manual before wiring or installation.

Serviceable condition and ordering requirements

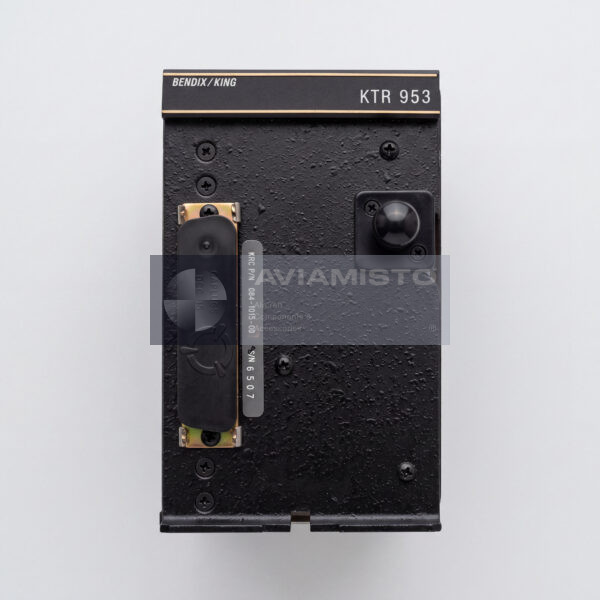

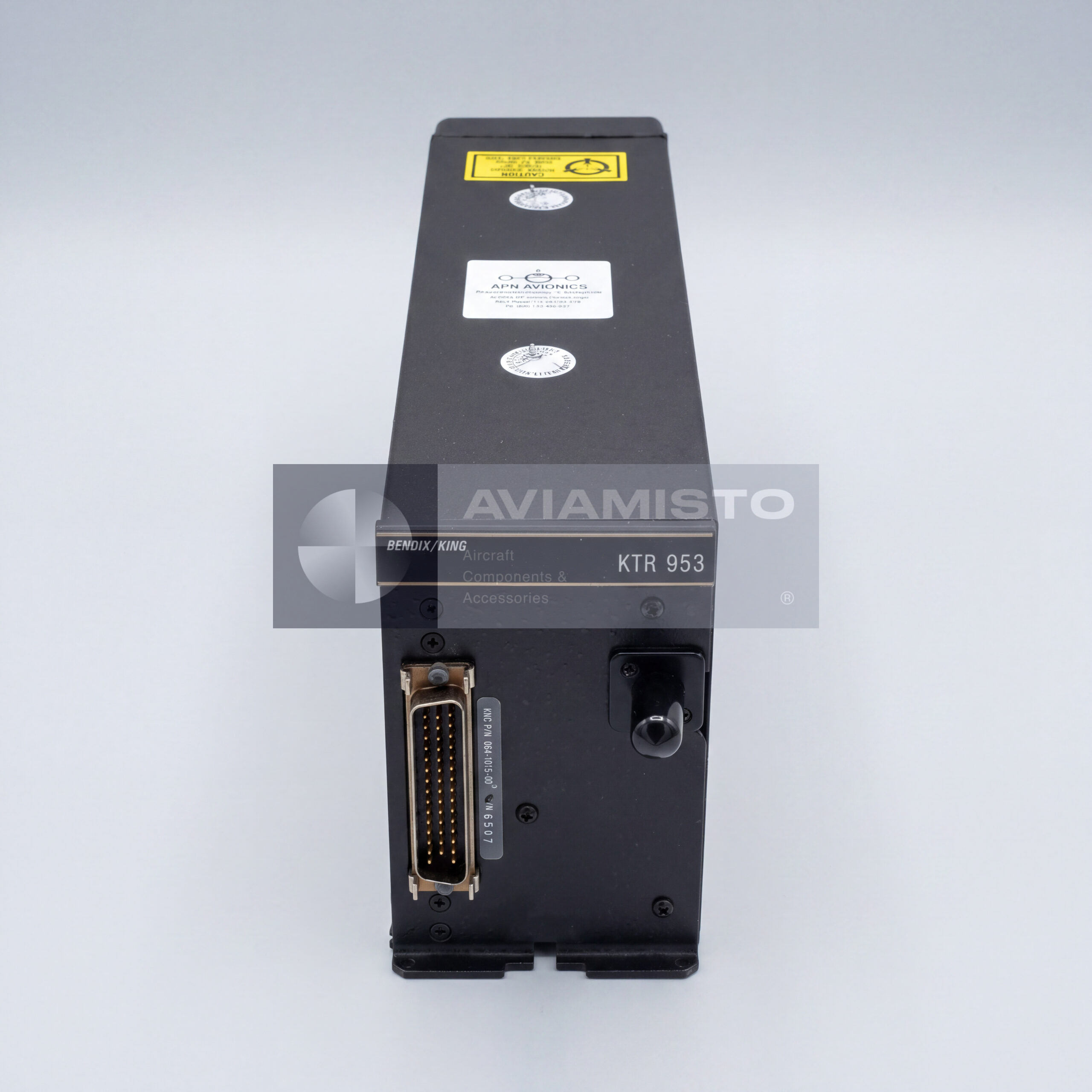

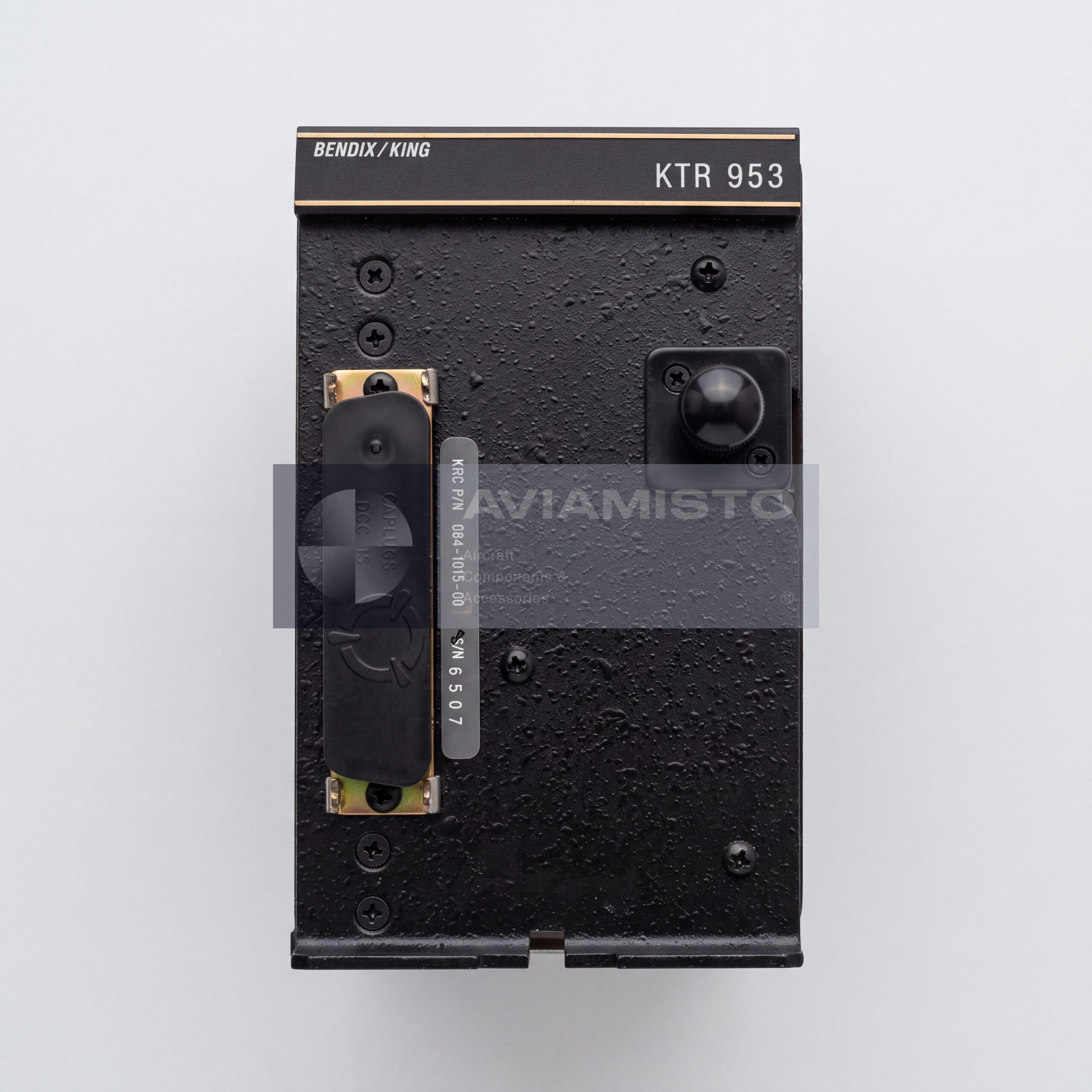

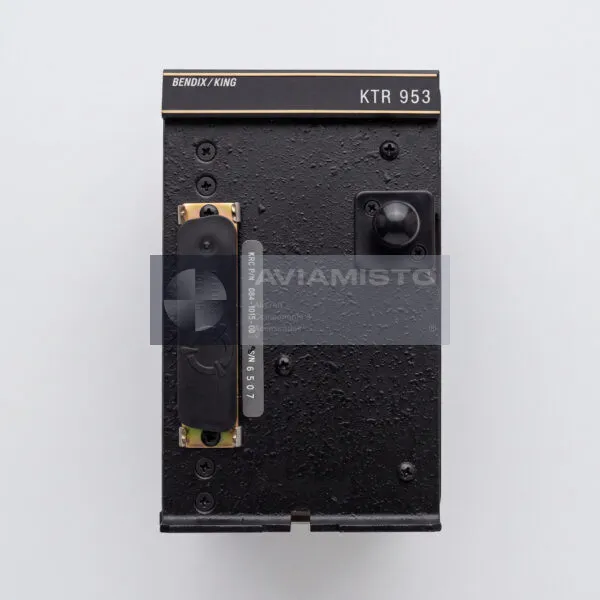

This 064-1015-00 KTR 953 is offered in Serviceable condition from partner stock with a six-month warranty. The two product photographs preserve the authentic Bendix/King and King Radio markings, exact Part Number, serial number, front connector arrangement, case construction and identification plate. No photograph from another KTR 953 suffix has been substituted.

For a quotation, specify Part Number 064-1015-00, model KTR 953, required quantity, aircraft installation and documentation requirements. The exact included rack, mating connectors, release paperwork and test records are confirmed before order acceptance. KHF 950 controllers, couplers and other related avionics may be reviewed in the Garmin / BendixKing / Honeywell / Collins category. They may be functionally associated in one system, but related does not mean interchangeable.

Product Type: HF receiver/exciter

Manufacturer: BendixKing / King Radio

Model: KTR 953

Designation: 064-1015-00

Alternative Designations: KTR953; KTR-953; 064101500; Bendix/King KTR 953

Main Function: HF signal reception and generation of the low-power transmitter excitation signal

Associated System: BendixKing KHF 950 HF/SSB communication system

Basic System Composition: KCU 951 control unit; KTR 953 receiver/exciter; KAC 952 power-amplifier/antenna coupler

Alternative Control Arrangement: KFS 594 control unit with KA 594 bus adapter where approved

Signal Chain: KCU 951 or approved alternative controller → KTR 953 receiver/exciter → KAC 952 power amplifier/antenna coupler → approved HF antenna

System Frequency Range: 2.0 to 29.9999 MHz

System Tuning Resolution: 100 Hz

System Transmit Output: 150 W PEP nominal for the complete compatible KHF 950 system

DC Power Supply: 28 V DC according to the exact identification plate

Peak Current: 1 A according to the exact identification plate

Nominal Current: 0.75 A according to the exact identification plate

Weight: 6.6 lb / approximately 2.97 kg according to the exact identification plate

Qualification Markings: TSO C31c and C32c

Environmental References: DO-163 and DO-160 shown on the exact identification plate

Photographed Serial Number: 6507

SELCAL Note: The -00 configuration is not among the suffixes documented for standard external SELCAL decoder compatibility

Exact Dimensions: Reliable exact dimensions for 064-1015-00 were not confirmed in the reviewed open sources

Connector and Pin Assignment: Confirm through the applicable KHF 950 installation manual

Interchangeability: Suffix-specific features and system compatibility must be verified before replacement

Condition: Serviceable

Warranty: 6 Months

Delivery Set: Rack, mating connectors, controller, coupler and documentation are included only when expressly stated in the quotation

Technical Documentation: BendixKing KHF 950 installation, maintenance and operating data applicable to KTR 953 Part Number 064-1015-00
