064-01084-0201

BendixKing KY 196B transceiver 064-01084-0201

064-01084-0201 is the exact BendixKing Part Number for this KY 196B VHF communications transceiver. The unit provides two-way voice communication in the civil aviation VHF band and supports both 25 kHz and 8.33 kHz channel spacing. This suffix is a specific CNI 5000 common-bezel version and must not be confused with the externally similar 064-01084-0101 configuration.

The transceiver combines VHF reception and transmission functions in one rack-mounted unit. It receives the selected communication frequency, routes recovered audio to the aircraft audio system and accepts microphone and push-to-talk inputs for transmission. The KY 196B is not an audio panel or antenna system by itself; correct operation depends on approved wiring, antenna and coaxial installation, audio interfaces, control configuration and aircraft power.

Communication coverage and channel spacing

The KY 196B installation manual identifies a frequency range of 118.000 to 136.9916 MHz for Part Number 064-01084-0201. The receiver supports 8.33 kHz and 25 kHz selectivity, allowing operation in installations that require the narrower European channel plan as well as conventional 25 kHz channels. Actual use remains subject to the aircraft radio approval and the communication regulations of the operating region.

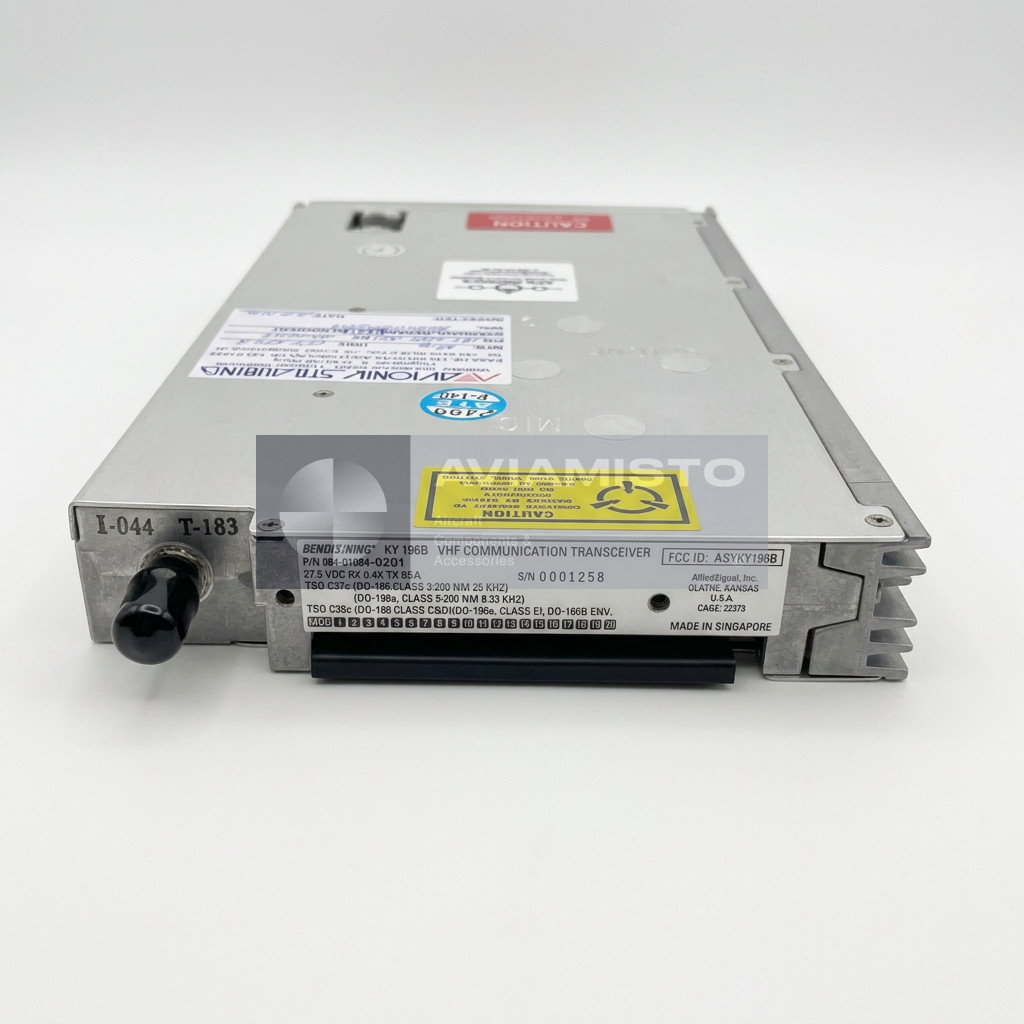

The exact manufacturer plate identifies the equipment as a VHF communication transceiver and lists TSO C37c and C38c qualification references. It also records DO-186 Class 3 operation for 25 kHz channels and DO-186A Class 5 operation for 8.33 kHz channels, each with the 200 NM classification shown on the plate. These markings apply to the exact photographed configuration rather than to every KY-series radio.

CNI 5000 common-bezel version

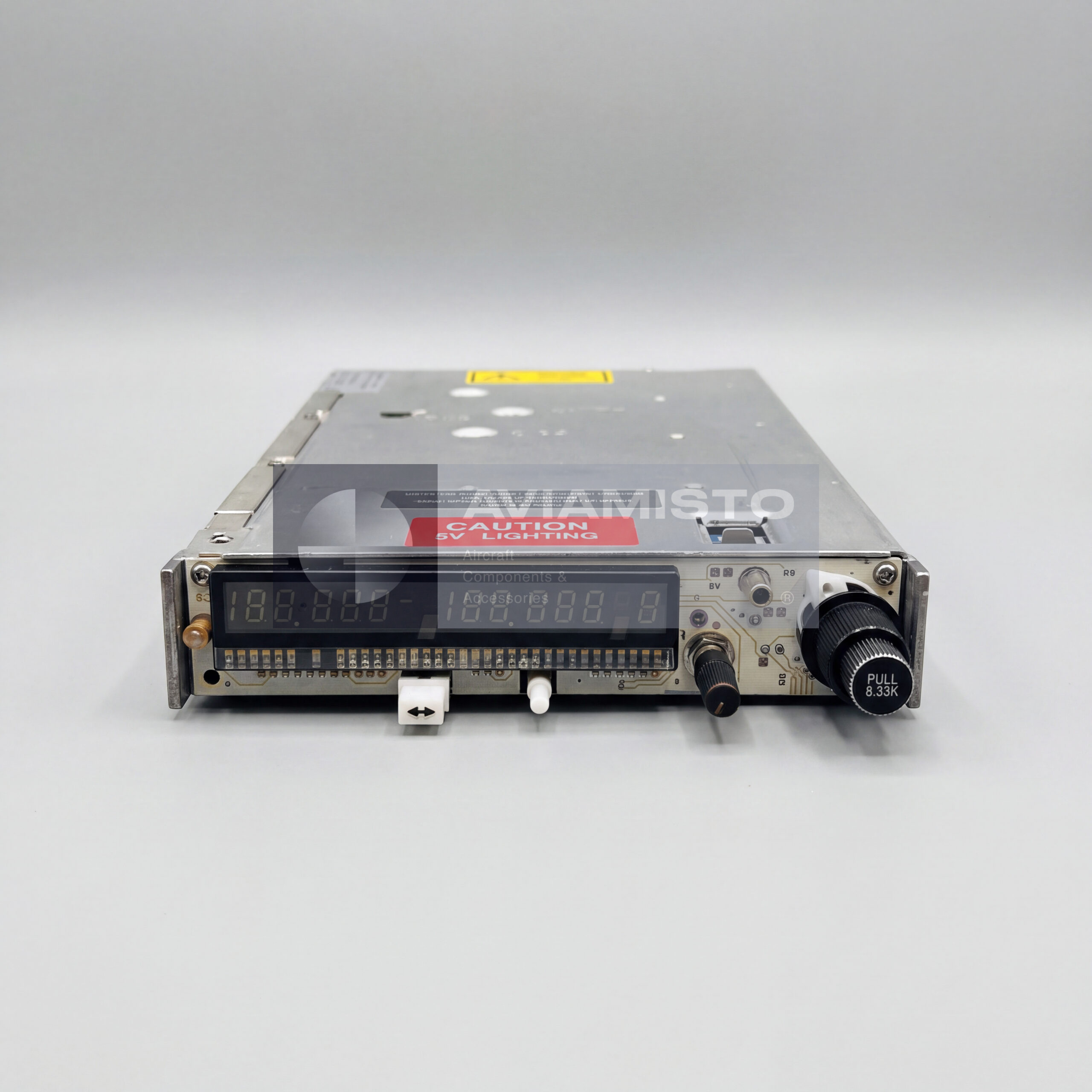

The -0201 suffix has a particularly important installation difference. BendixKing documentation states that this version uses 5 V panel lighting and is supplied without the individual bezel because it is intended for common-bezel applications such as the CNI 5000. The authentic front image therefore shows the radio module and controls in this configuration rather than a conventional standalone KY 196B faceplate.

The installation manual warns that 064-01084-0201 is not directly compatible with other KY 96A, KY 196A or KY 197A installations because of the bezel arrangement and 5 V lighting. A similar rack profile or control layout does not establish interchangeability. Before replacement, the maintenance organization must verify the exact Part Number, common-bezel assembly, lighting supply, connector wiring, audio system and aircraft approval.

Power requirements, mounting and identification

The exact product plate specifies a nominal 27.5 V DC supply, with 0.4 A receive current and 6.5 A transmit current. Published installation data gives an approximate weight of 3.0 lb without the rack and 3.2 lb with the rack, corresponding to about 1.36 kg and 1.45 kg. These figures cover the KY 196B family outline; the exact CNI 5000 mounting arrangement must be checked in its applicable installation documentation.

The photographed unit carries serial number 0001258 and states that it was manufactured by AlliedSignal in Olathe, Kansas, with final marking indicating manufacture in Singapore. The serial number identifies the pictured example. Serial number, modification status, included rack, mating connector and documentation for the unit allocated to a customer order are confirmed before shipment.

Serviceable supply and ordering control

This 064-01084-0201 KY 196B is offered in Serviceable condition from partner stock with a six-month warranty. Its photographs preserve the exact product plate, CNI 5000 module configuration, original controls and manufacturer markings. Because the front configuration is distinctive, no image of the -0101 bezel version has been substituted for the exact -0201 product.

For a quotation, specify Part Number 064-01084-0201, model KY 196B, required quantity, aircraft installation and documentation requirements. Included rack, connector kit, common bezel and release records are confirmed in the quotation. Other identified communication, navigation and flight-control units are available in the Garmin / BendixKing / Honeywell / Collins category. Related products may operate in the same aircraft but are not replacements for this transceiver unless approved data confirms compatibility.

Product Type: VHF communications transceiver

Manufacturer: BendixKing / AlliedSignal / Honeywell

Model: KY 196B

Designation: 064-01084-0201

Alternative Designations: KY196B; KY-196B; 064010840201; Bendix/King KY 196B CNI 5000

Main Function: VHF voice communication reception and transmission

Installation Version: CNI 5000 common-bezel configuration

Frequency Range: 118.000 to 136.9916 MHz

Channel Spacing: 8.33 kHz and 25 kHz

Receiver Selectivity: 8.33 kHz / 25 kHz

DC Power Supply: 27.5 V DC nominal according to the exact identification plate

Receive Current: 0.4 A according to the exact identification plate

Transmit Current: 6.5 A according to the exact identification plate

Panel Lighting: 5 V lighting for the -0201 common-bezel version

Bezel Configuration: Individual bezel removed for common-bezel installations such as CNI 5000

Weight Without Rack: Approximately 3.0 lb / 1.36 kg

Weight With Rack: Approximately 3.2 lb / 1.45 kg

Qualification Markings: TSO C37c and C38c according to the exact identification plate

25 kHz Standard: DO-186 Class 3, 200 NM marking on the exact plate

8.33 kHz Standard: DO-186A Class 5, 200 NM marking on the exact plate

Environmental Reference: DO-160B shown on the exact identification plate

Photographed Serial Number: 0001258

Installation Kit Reference: 050-02600-0000; inclusion must be confirmed in the quotation

Compatibility Warning: 064-01084-0201 is not a direct replacement for other KY 96A / KY 196A / KY 197A installations because of its lighting and bezel configuration

Condition: Serviceable

Warranty: 6 Months

Delivery Set: Rack, common bezel, connector kit and release documentation to be confirmed in the quotation

Technical Documentation: KY 196B and CNI 5000 installation data applicable to Part Number 064-01084-0201
