060-0015-01 BendixKing KG 102A directional gyro

060-0015-01 is the exact Part Number for this BendixKing KG 102A remote directional gyro. The unit forms the stabilized heading reference at the centre of a compatible KCS 55A compass system. It is installed away from the instrument panel and works with the aircraft magnetic sensing, slaving and cockpit indication equipment. The KG 102A is not a complete compass system, an HSI or a direct replacement for any visually similar gyro.

The complete -01 suffix identifies the KG 102A configuration fitted with an RFI filter and without the tumble-detection function documented for the later -02 version. That distinction matters during replacement because a common model name does not prove identical filtering, monitoring or approved installation status. The aircraft equipment list, wiring data and modification record should therefore be compared with 060-0015-01 before the unit is ordered.

Heading stabilization in a KCS 55A installation

In a compatible KCS 55A installation, the KMT 112 magnetic azimuth transmitter senses the earth's magnetic field and sends magnetic-heading information into the compass chain. The KG 102A combines that information with its directional-gyro reference, smoothing short-term heading changes while the slaving circuit applies controlled correction toward magnetic north. The resulting stabilized heading is presented to the crew through a compatible KI 525 or KI 525A horizontal situation indicator.

A KA 51A or KA 51B slaving accessory may be used in the approved configuration to select manual or automatic slaving and show the direction of heading correction. A simplified relationship is KMT 112 magnetic sensing → KG 102A gyro stabilization and control → KI 525/525A heading presentation, with the KA 51-series accessory supporting slaving control and indication. These units are related system components, not substitutes for 060-0015-01.

The directional gyro supplies a stable short-term reference when magnetic information is disturbed by aircraft manoeuvre or local field variation. The slaving loop then corrects accumulated gyro drift at a controlled rate. Correct indication depends on the transmitter location, compass calibration, wiring condition, gyro health and HSI alignment; replacing the KG 102A alone will not correct a fault elsewhere in this signal path.

Electrical supply and supported interfaces

Published KG 102A specifications list operation from either a 14 VDC aircraft supply at up to 3 A or a 28 VDC supply at up to 1.5 A. The internal power supply provides 26 VAC at 400 Hz for gyro and flux-sensor excitation, together with regulated positive and negative 15 VDC references, an unregulated positive 15 VDC output and a positive 5 VDC supply used by compatible connected equipment. Aircraft-side protection and pin allocation must follow the approved installation drawing.

The documented KMT 112 excitation reference is 7.2 V RMS at 400 Hz. System inputs and outputs include the magnetic slaving-error path, heading-loop drive, slaving-meter information and compass-valid logic used by the compatible indicator and accessory. These are dedicated avionics interfaces rather than general-purpose power outputs. Bench connections should never be inferred from wire colours, connector appearance or another suffix.

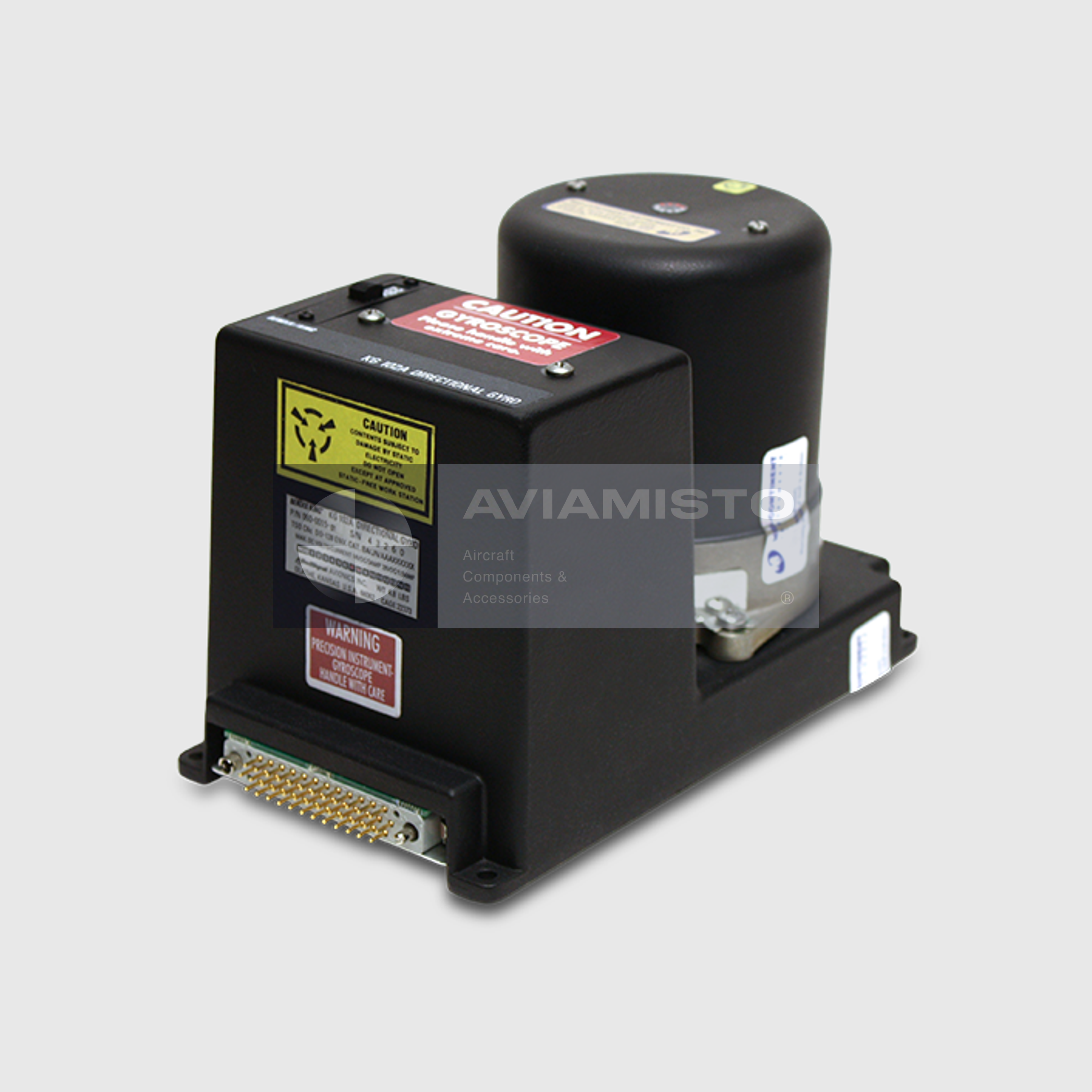

The photographed assembly includes the remote housing, gyro section, electrical interface and mounting structure. Connector condition, shock-mount serviceability, bonding, cable support and cooling clearance should all be inspected before installation. Any test setup must use the current KG 102A maintenance data because an incorrect excitation source or load can damage the gyro or the connected compass components.

Dimensions, environment and suffix control

Published overall dimensions are approximately 5.370 inches wide, 7.790 inches long and 4.290 inches high, equivalent to about 136.4 × 197.9 × 109.0 mm. The published equipment weight is approximately 4.3 lb, or 1.95 kg. The listed operating temperature range is −55 °C to +55 °C. Actual aircraft installation space must also allow for the approved shock mount, connector and service loop.

The KG 102A family includes 060-0015-00 without the documented RFI filter, 060-0015-01 with the RFI filter and 060-0015-02 with both the RFI filter and tumble detection. These suffixes describe meaningful configuration differences. No automatic interchangeability is claimed, and an installer should verify the approved system revision, connector wiring, gyro-can configuration and any required aircraft modification before substitution.

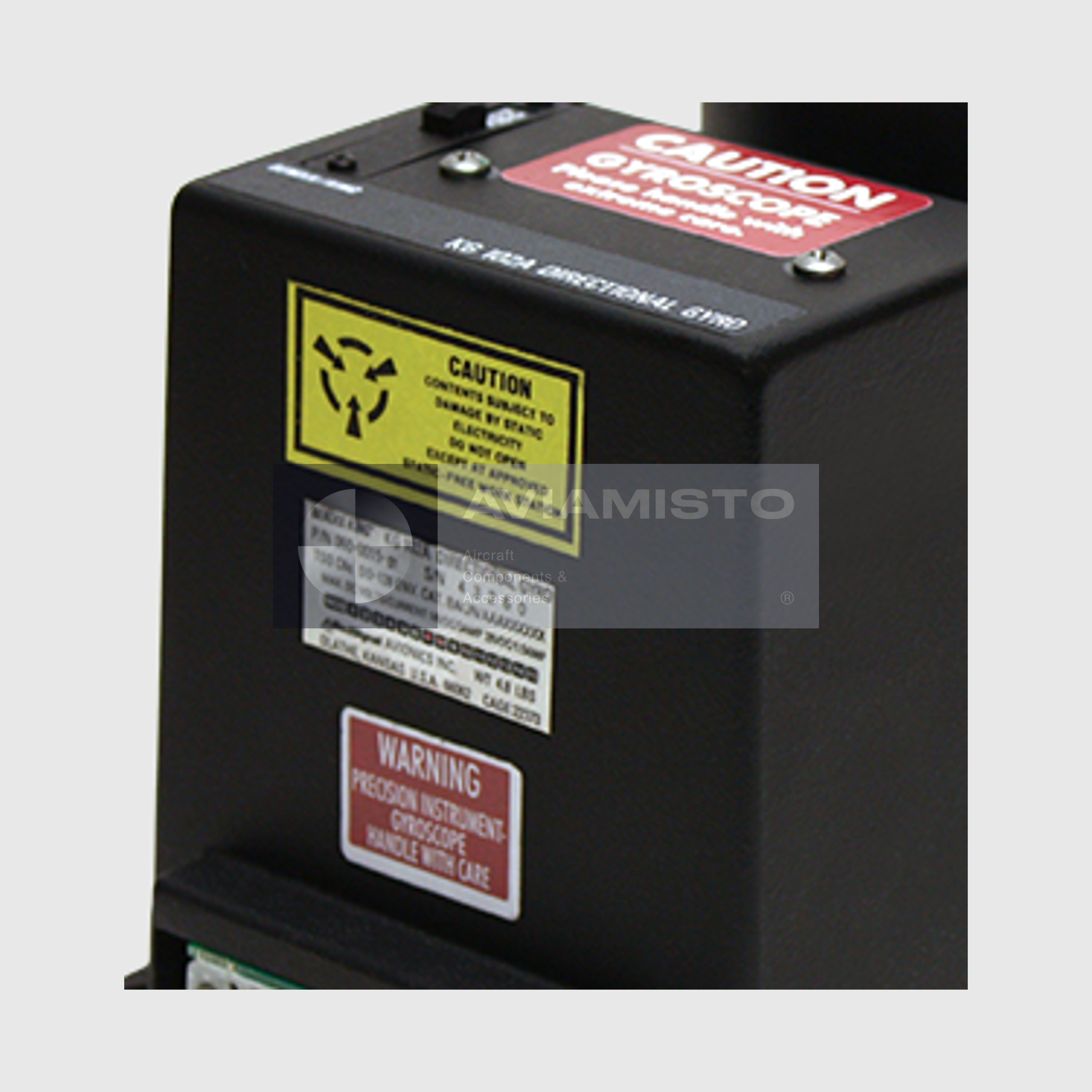

Receiving inspection should confirm model KG 102A, exact Part Number 060-0015-01, manufacturer plate, serial number, modification markings, enclosure condition and the supplied mounting hardware. The authentic photographs retain the component's real construction and original labels; they do not promise the serial number of a future allocated unit unless that serial is confirmed in the quotation.

Serviceable partner-stock supply and ordering

This 060-0015-01 KG 102A is offered in Serviceable condition from partner stock with a six-month warranty. Serviceable is the stated supply condition and does not by itself define the release authority, repair history or included paperwork. Exact serial number, tag date, modification status, traceability, test records, shock mount and mating connector are confirmed for the available unit before order acceptance.

For an inquiry, specify Part Number 060-0015-01, model KG 102A, aircraft type and serial number, installed KCS 55A configuration, supply voltage, documentation requirement and quantity. Related compass and navigation products can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Components displayed together there may operate in the same avionics system, but they are not represented as interchangeable replacements.

Product Type: Remote directional gyro

Manufacturer: BendixKing

Model: KG 102A

Designation: 060-0015-01

Alternative Designations: 060001501; KG102A; KG-102A; Bendix/King KG 102A

Primary Function: Gyro stabilization and control of magnetic-heading information in a compatible compass system

Associated System: BendixKing KCS 55A compass system

Associated Magnetic Transmitter: KMT 112

Associated Indicators: KI 525 / KI 525A horizontal situation indicator, subject to approved configuration

Associated Slaving Accessories: KA 51A / KA 51B, subject to approved configuration

Typical Signal Chain: KMT 112 magnetic sensing → KG 102A stabilization and control → KI 525/525A heading presentation

Exact-Suffix Configuration: RFI filter fitted; tumble detection not included according to published version data

Power Supply Option 1: 14 VDC, maximum 3 A

Power Supply Option 2: 28 VDC, maximum 1.5 A

Internal AC Supply: 26 VAC, 400 Hz for compatible gyro and flux-sensor excitation circuits

Internal DC References: +15 VDC; −15 VDC; unregulated +15 VDC; +5 VDC

KMT 112 Excitation Reference: 7.2 V RMS, 400 Hz

Installation: Remote shock-mounted avionics installation

Width: Approximately 5.370 in / 136.4 mm

Length: Approximately 7.790 in / 197.9 mm

Height: Approximately 4.290 in / 109.0 mm

Published Weight: Approximately 4.3 lb / 1.95 kg

Operating Temperature Range: −55 °C to +55 °C

Related Version 060-0015-00: KG 102A without the documented RFI filter

Related Version 060-0015-02: KG 102A with RFI filter and tumble detection

Interchangeability: No cross-suffix interchangeability claimed; verify approved system, wiring and modification status

Condition: Serviceable

Warranty: 6 Months

Technical Documentation: Applicable KG 102A and KCS 55A installation and maintenance data
