Garmin GI 106A indicator 013-00049-01

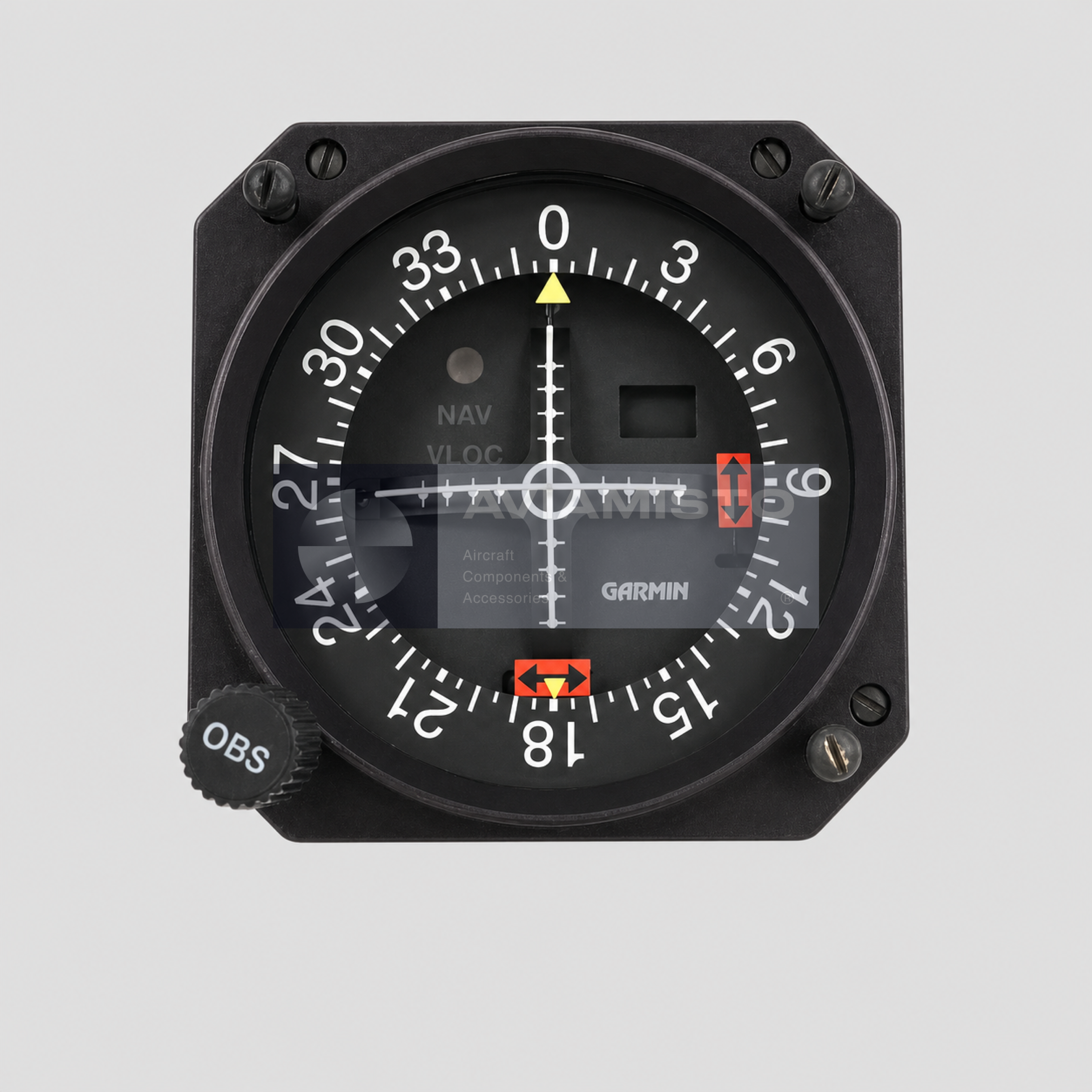

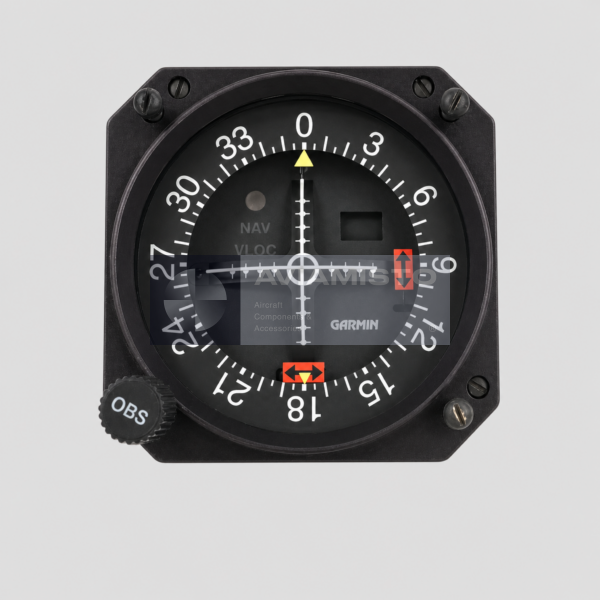

013-00049-01 is the exact Garmin Part Number for the GI 106A course deviation indicator represented in this product card. The instrument is also identified by the Mid-Continent manufacturing model MD200-206. It is a panel-mounted navigation indicator designed to present course guidance received from compatible external VHF navigation, GPS or flight-management equipment.

The GI 106A combines left/right course deviation, TO/FROM information, an OBS course selector, navigation warning flags and up/down glideslope guidance in a conventional 3-1/8-inch instrument format. It does not contain an independent VOR, localizer, glideslope or GPS receiver. All guidance displayed by the instrument is generated by the connected navigation source and must be wired and approved for the particular aircraft installation.

VOR, localizer, GPS and glideslope presentation

The horizontal deviation needle presents left/right guidance for VOR, localizer or GPS operation. The vertical needle presents glideslope information when the MD200-206 receives compatible up/down and vertical-flag signals from an approved receiver. TO/FROM indication and navigation warning flags allow the pilot to interpret the validity and direction of the selected course. The OBS knob rotates the course card so the desired inbound course or bearing can be selected.

NAV, GPS and VLOC annunciations identify the type of information being displayed when the corresponding external control inputs are active. Their brightness is adjusted automatically by a photocell, with an additional dimming adjustment provided on the instrument housing. The GI 106A configuration provides glideslope presentation; course-datum output is associated with the MD200-207 version and must not be assumed for this MD200-206 unit.

Interfaces and compatible navigation equipment

The instrument uses a 25-pin D-sub connector identified as J1 for resolver, deviation, flag, annunciator, power and lighting connections. A 9-pin D-sub connector identified as J2 carries the glideslope-related interface. Published wiring for the MD200-206 includes left/right deviation, TO/FROM, navigation flags, up/down guidance, glideslope flags, OBS resolver signals and NAV, GPS and VLOC annunciator inputs.

Garmin installation documentation lists the GI 106A as a compatible resolver-type indicator for approved 400W and 500-series navigation installations, including configurations associated with the GNS 430W and GNS 530W. Compatibility does not mean that every navigator can be connected without engineering review. Pin assignments, output type, lighting voltage, annunciation logic, software and aircraft approval must all be confirmed from the applicable installation manual.

Electrical, environmental and physical data

The exact photographed identification plate specifies operation from 14 or 28 V DC. Published operating current for the MD200-2XX family is 0.30 A. The standard unit uses the aircraft lighting connections defined in the wiring diagram; separate 5 V lighting versions are identified by a 5V suffix and should not be confused with this exact Part Number. The indicator is an all-solid-state design apart from its electromechanical display movements and OBS mechanism.

Environmental data specify an operating temperature range from −55 °C to +70 °C, humidity up to 95% and an altitude range from 0 to 55,000 ft. The instrument is designed for rigid panel mounting and is qualified for 6 g operational shock and 15 g crash safety according to the applicable documentation. Its nominal panel size is 3-1/8 in round, overall height is approximately 3.25 in and depth is approximately 4.75 in. The photographed manufacturer plate states a weight of 1.25 lb.

Serviceable condition and ordering

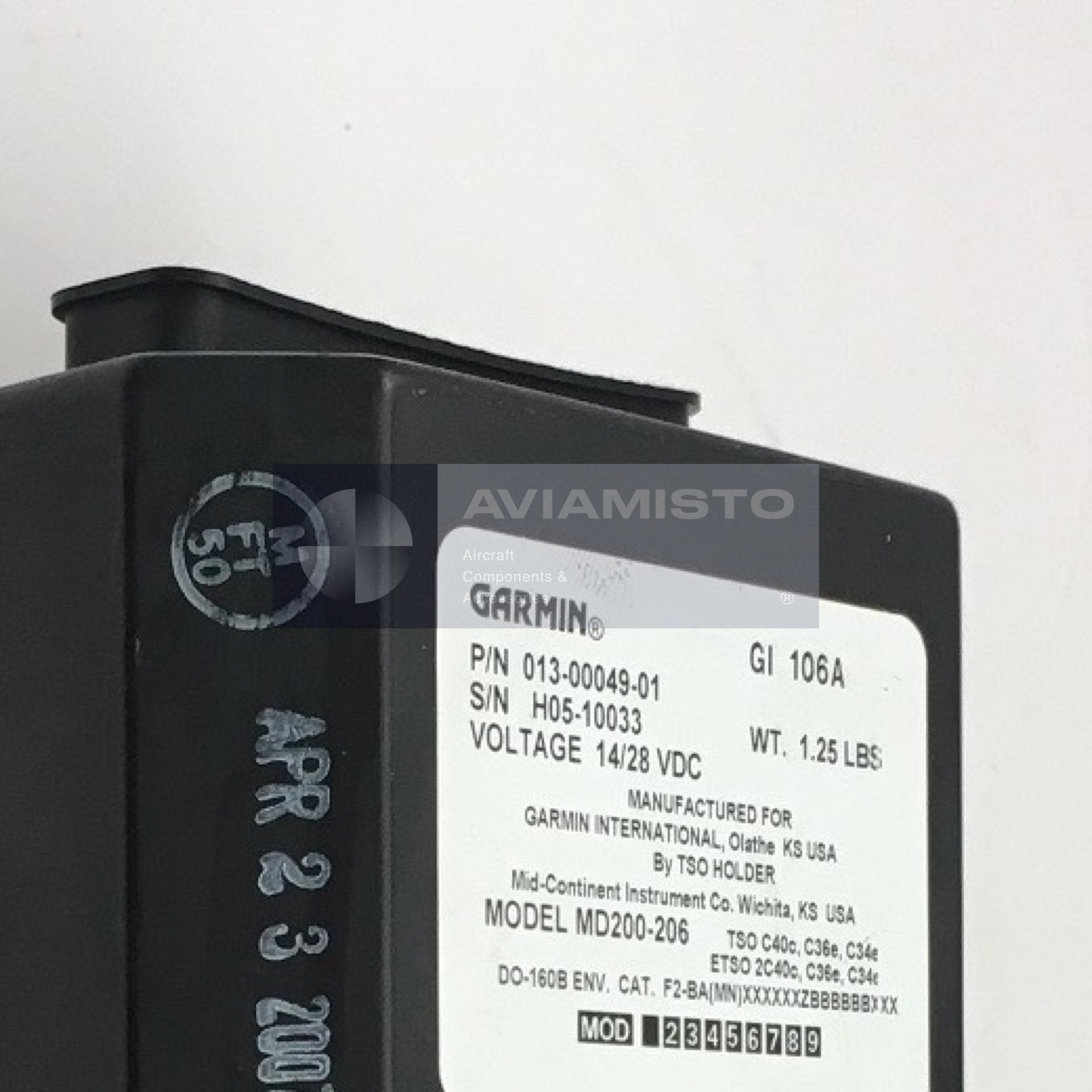

This 013-00049-01 GI 106A is offered in Serviceable condition from partner stock with a six-month warranty. The authentic gallery photograph preserves the original Garmin label showing Part Number 013-00049-01, serial number H05-10033, model GI 106A, manufacturing model MD200-206, 14/28 V DC supply and 1.25 lb weight. Current traceability, test status, modification status and available release documentation are reconfirmed before order acceptance.

For a quotation, specify MPN 013-00049-01, model GI 106A, quantity, destination and documentation requirements. Confirm whether the mating connector kit, mounting screws, wiring or installation documentation is required. Related identified avionics can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Products grouped there may operate together within a navigation installation but are not interchangeable unless approved technical data explicitly authorizes the substitution.

Product Type: VOR/LOC/GPS course deviation and glideslope indicator

Manufacturer: Garmin

Manufacturing Model: Mid-Continent MD200-206

Model: GI 106A

Designation: 013-00049-01

Alternative Designations: Garmin GI 106A; GI-106A; MD200-206; 0130004901

Main Function: Visual presentation of VOR, localizer, GPS and glideslope course guidance from compatible external navigation equipment

Displayed Guidance: Left/right deviation; up/down glideslope; TO/FROM; navigation and glideslope flags

Annunciations: NAV; GPS; VLOC with photocell dimming

OBS Function: Rotating course card for selected course or bearing

Course Datum: Not provided on MD200-206; offered on MD200-207 configuration

Power Supply: 14/28 V DC

Operating Current: 0.30 A

VOR/LOC/GPS Full-Scale Sensitivity: ±150 mV ±10%

Deviation Input Impedance: 1 kΩ ±10%

OBS Resolver Electrical Zero: 300° ±1° ORZ

Main Connector: J1, 25-pin D-sub

Glideslope Connector: J2, 9-pin D-sub

Operating Temperature Range: −55 °C to +70 °C

Relative Humidity: Up to 95%

Qualified Altitude Range: 0 to 55,000 ft

Operational Shock: 6 g, rigid mounting

Crash Safety: 15 g

Panel Size: 3-1/8 in round

Overall Height: Approximately 3.25 in

Depth: Approximately 4.75 in

Weight: 1.25 lb according to the photographed manufacturer plate

Condition: Serviceable

Warranty: 6 Months

Delivery Set: Exact included mating connectors, mounting hardware and documentation to be confirmed in the quotation

Technical Documentation: Mid-Continent MD200-2XX Installation and Operating Manual 8017702; applicable Garmin navigator installation data
