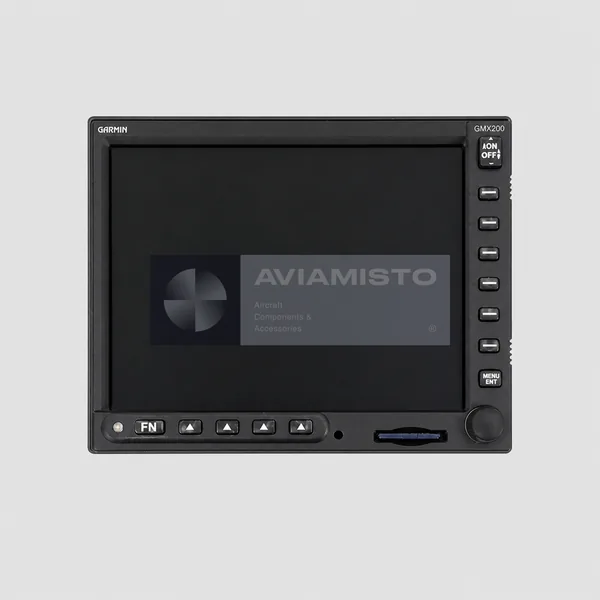

Garmin GMX 200 I/O Traffic/Radar 011-01467-00

011-01467-00 is the exact Manufacturer Part Number for the black-bezel Garmin GMX 200 I/O Traffic/Radar multifunction display. Garmin distinguishes this configuration from both the standard GMX 200 and the 011-01465-00 I/O Traffic version. The full Part Number is therefore essential when selecting a replacement for an aircraft equipped with approved traffic and radar-related interfaces.

The GMX 200 integrates information supplied by external avionics and presents it on a large color cockpit display. It is not an independent GPS navigator, weather radar transmitter, traffic sensor or primary flight instrument. Traffic, radar, terrain and other pages are available only when the required external equipment, interfaces, software, databases and approved aircraft configuration support them.

Traffic, radar and navigation presentation

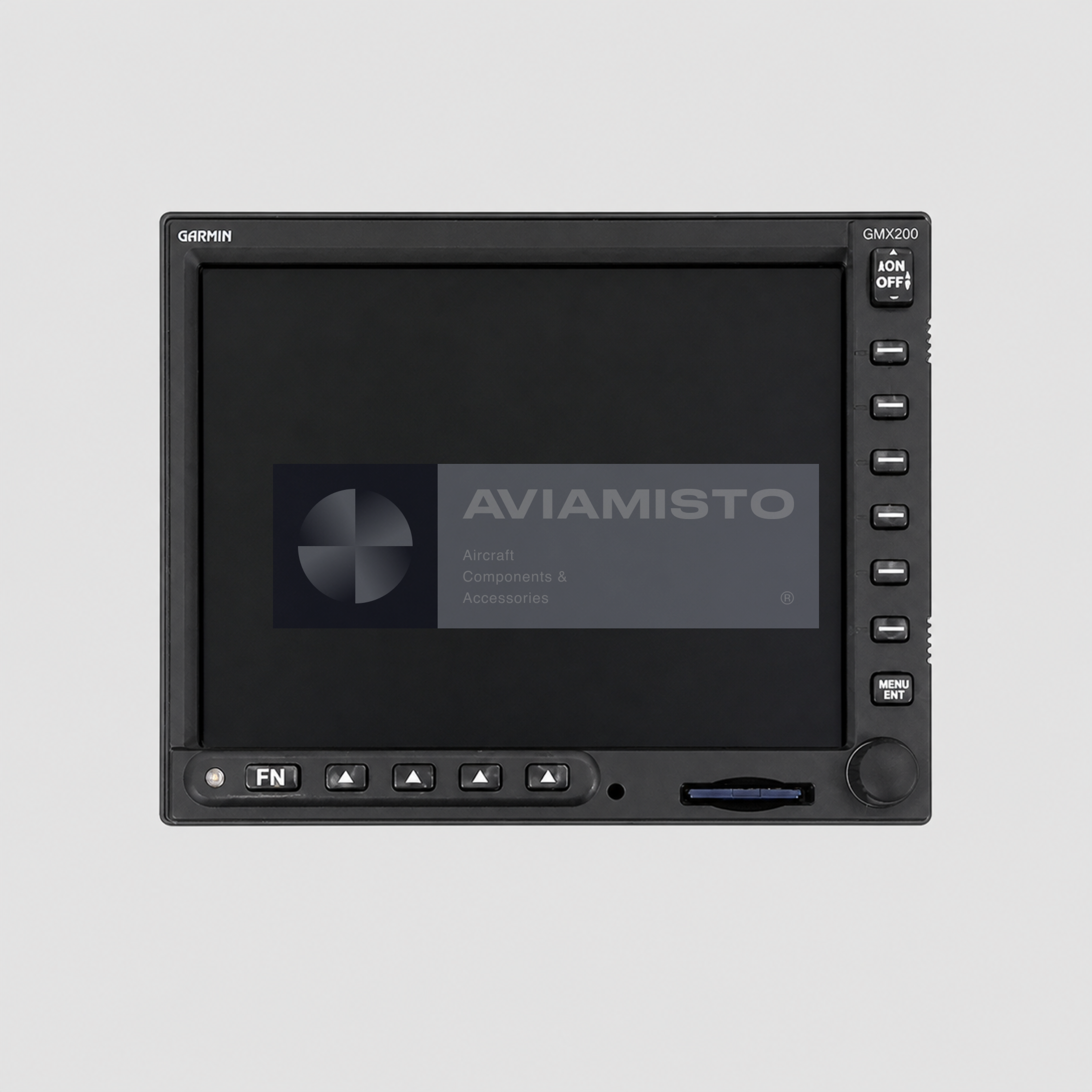

The unit uses a 6.5-inch diagonal active-matrix LCD with 640 × 480-pixel resolution. It can present moving-map, route, waypoint, airport, airspace and terrain information from compatible sources. In the correct installation, this I/O Traffic/Radar configuration can also display traffic information and weather-radar data supplied by approved external equipment. Bezel keys, function keys, a menu key and rotary control provide access to pages and display selections.

The GMX 200 does not create radar returns or independently detect traffic. It receives and processes data from compatible connected systems. For that reason, the displayed functions and limitations must be evaluated as part of the complete aircraft installation. A visually similar GMX 200 with another Part Number may not have the same interface configuration.

Expanded interfaces and system integration

The I/O configuration provides five RS-232 ports and one RS-422 port, with RS-422 and serial port 4 mutually exclusive. It additionally provides two ARINC 429 inputs, two ARINC 429 outputs, two ARINC 453 inputs and three active-low discrete outputs. These interfaces support approved integration with external navigation, traffic, datalink, storm-detection and radar-related equipment.

Garmin family documentation identifies examples such as GTX 33 and GTX 330 transponders, GDL 69 or GDL 69A datalink units, GDL 90 traffic equipment, WX 500 storm detection equipment and selected Honeywell traffic or weather-radar systems. Every interface still requires confirmation by Part Number, software level, wiring diagram and approved installation data. The I/O connector kit is 011-01283-01, the mounting tube is 115-00746-00 and the configuration module is 011-00979-02.

Electrical, environmental and physical data

The published input range is 10 to 40 V DC. Maximum current for the I/O version is 2.56 A at 14 V DC or 1.39 A at 28 V DC. The operating temperature range is −20 °C to +55 °C. Qualification data state up to 95% relative humidity without condensation and an altitude range from −1,500 ft to 55,000 ft, subject to the controlling aircraft limitations.

The bezel measures approximately 6.27 in wide × 5.04 in high, while the body measures approximately 6.25 in wide × 5.00 in high. Published depth behind the panel with connectors is 9.82 in; additional cable clearance is normally required. The I/O unit weighs approximately 4.6 lb, or about 5.4 lb with the mounting tube. The active screen area is 5.2 × 3.9 in.

Overhauled condition and ordering

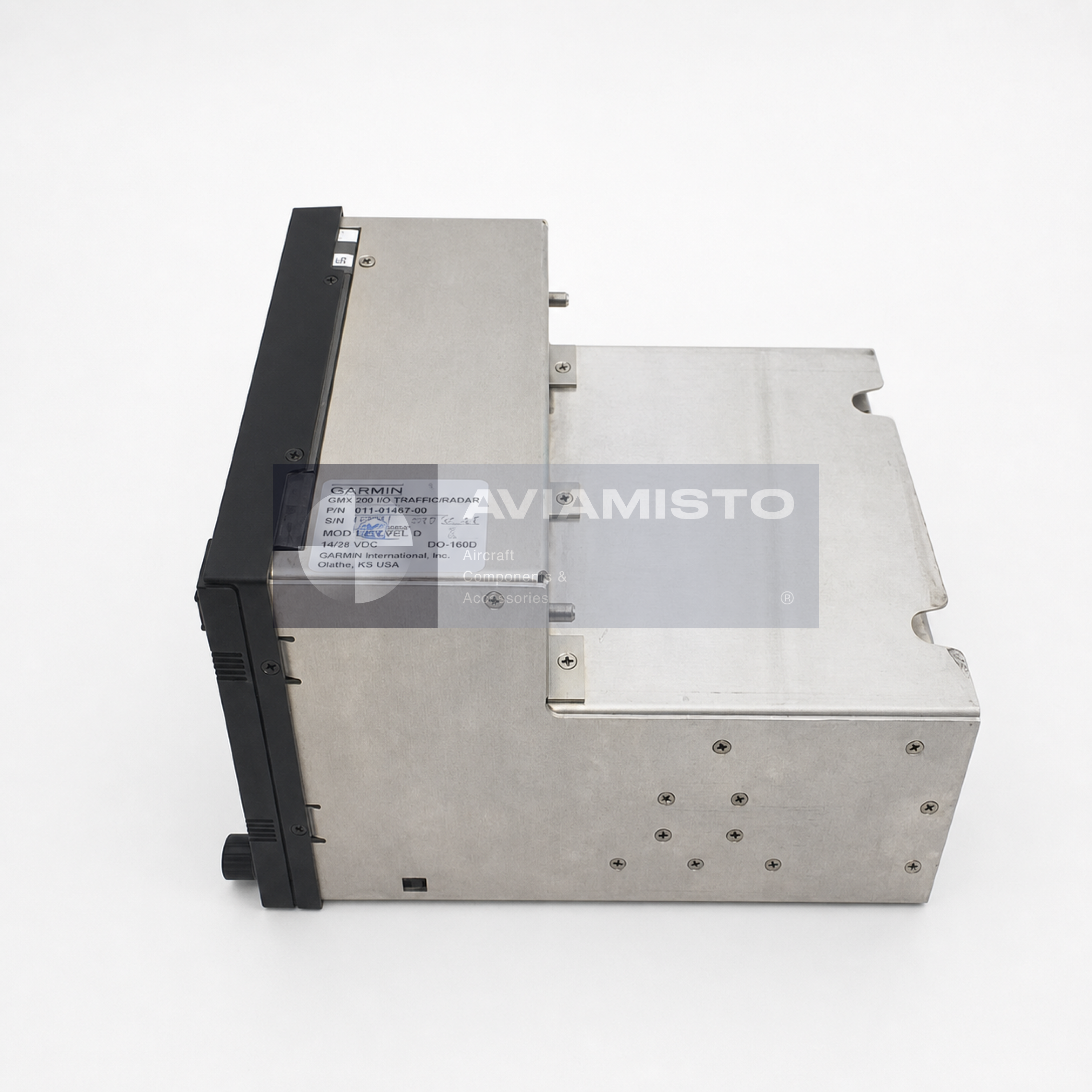

This 011-01467-00 position is offered in Overhauled condition from partner stock with a six-month warranty. The photographed identification label confirms the GMX 200 I/O Traffic/Radar designation, exact Part Number and serial number of the represented unit. Overhaul traceability, modification status, current test status, included accessories and available release documentation are reconfirmed before order acceptance.

For a quotation, specify MPN 011-01467-00, model GMX 200 I/O Traffic/Radar, quantity, destination and documentation requirements. Confirm whether the I/O connector kit, mounting tube, configuration module or other installation hardware is required. Related positions can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. They may be associated within an avionics system, but no interchangeability is claimed without approved technical evidence.

Product Type: Multifunction cockpit display with expanded traffic and radar I/O

Manufacturer: Garmin

Model: GMX 200 I/O Traffic/Radar

Designation: 011-01467-00

Alternative Designations: Garmin GMX 200 I/O Traffic/Radar; GMX-200; 0110146700

Configuration: GMX 200 I/O Traffic/Radar, black bezel

Main Function: Moving-map, navigation and compatible traffic and radar-data presentation

Display Type: Active-matrix color LCD

Display Size: 6.5 in diagonal

Active Display Area: 5.2 in W × 3.9 in H

Resolution: 640 × 480 pixels

Input Voltage: 10–40 V DC

Maximum Current: 2.56 A at 14 V DC; 1.39 A at 28 V DC

Serial Interfaces: Five RS-232 ports and one RS-422 port; RS-422 and port 4 mutually exclusive

Additional I/O: Two ARINC 429 inputs; two ARINC 429 outputs; two ARINC 453 inputs; three active-low discrete outputs

Operating Temperature Range: −20 °C to +55 °C

Relative Humidity: Up to 95%, non-condensing

Qualified Altitude Range: −1,500 ft to 55,000 ft

Bezel Dimensions: 6.27 in W × 5.04 in H

Body Dimensions: 6.25 in W × 5.00 in H

Depth Behind Panel: 9.82 in with connectors; allow approximately 2 in additional cable clearance

Unit Weight: 4.6 lb

Installed Weight with Mounting Tube: Approximately 5.4 lb

I/O Connector Kit: 011-01283-01

Mounting Tube: 115-00746-00

Configuration Module: 011-00979-02

Condition: Overhauled

Warranty: 6 Months

Delivery Set: Exact included rack, connector kit, configuration module and documentation to be confirmed in the quotation

Technical Documentation: Garmin GMX 200 Installation Manual 190-00607-04 and aircraft-approved installation data
