Garmin GMX 200 I/O Traffic display 011-01465-00

011-01465-00 is the exact Manufacturer Part Number for the black-bezel Garmin GMX 200 I/O Traffic multifunction display. This version combines the standard GMX 200 display functions with the expanded I/O hardware identified by Garmin for traffic-capable installations. It must not be confused with the standard 011-01271-00 configuration or the separate 011-01467-00 I/O Traffic/Radar version.

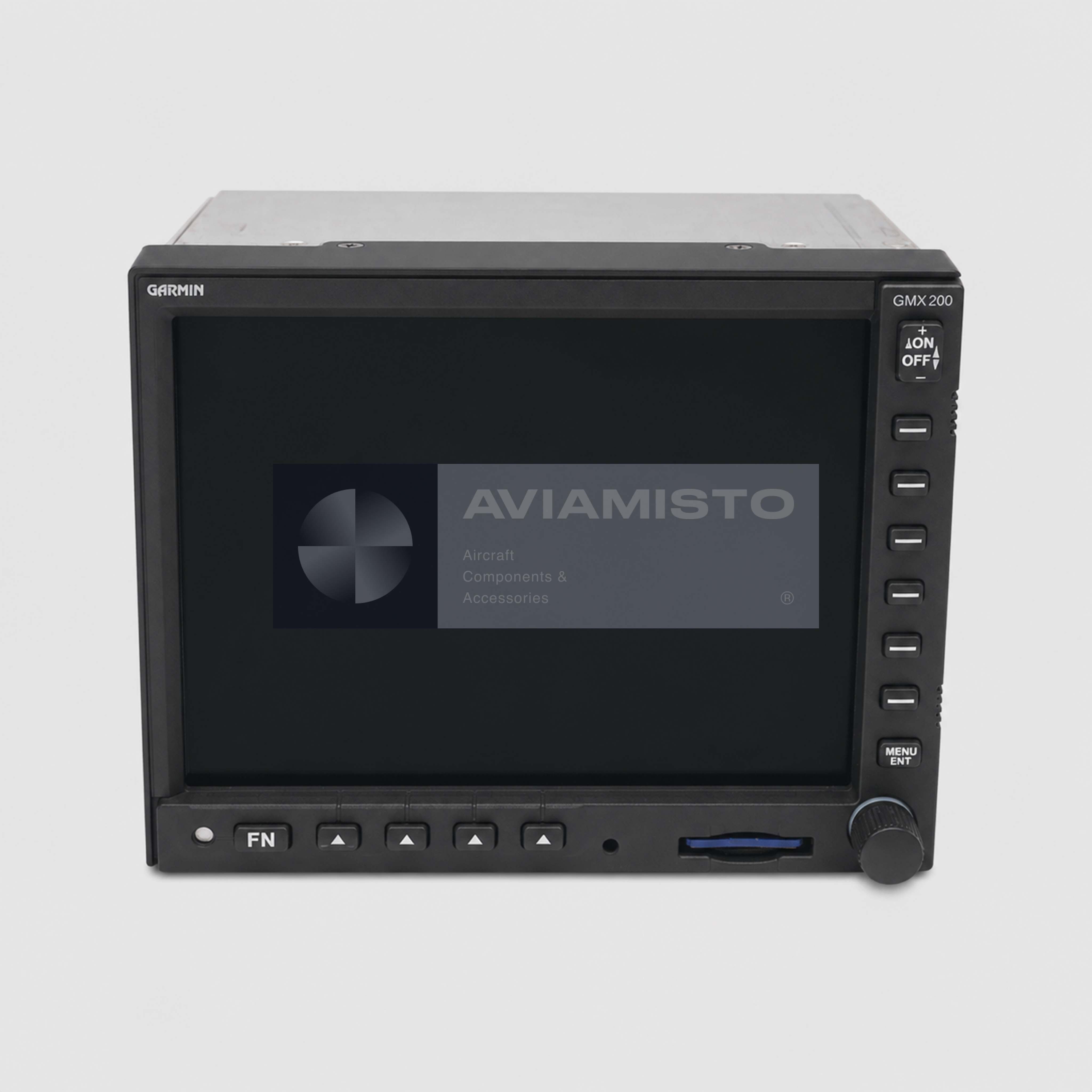

The panel-mounted display integrates information from approved external navigation and aircraft systems into a color cockpit presentation. It is not an independent GPS navigator, traffic sensor or primary flight instrument. The pages available to the crew depend on the connected equipment, approved interfaces, software, databases and aircraft installation data. The full Part Number and configuration should therefore be verified before replacement.

Navigation and traffic presentation

The GMX 200 uses a 6.5-inch diagonal active-matrix LCD with 640 × 480-pixel resolution. Moving-map, flight-plan, waypoint, airport, airspace, terrain and supplemental navigation information can be displayed when compatible data sources are installed. Bezel buttons, function keys, the menu key and the rotary control provide direct access to display pages, range changes and related selections.

In an approved traffic installation, the 011-01465-00 I/O Traffic configuration can present traffic information received from compatible external equipment. The display does not itself interrogate nearby aircraft or replace the traffic sensor. Traffic availability and the meaning of displayed symbols depend on the connected traffic system, interface format and approved operational configuration.

Expanded I/O interfaces and associated equipment

In addition to the serial interfaces used by the GMX 200 family, the I/O configuration adds two ARINC 429 inputs, two ARINC 429 outputs, two ARINC 453 inputs and three active-low discrete outputs. These connections support approved integration with compatible avionics. Garmin documentation for the family identifies possible sources such as GTX 33 or GTX 330 transponders, GDL 69 or GDL 69A datalink equipment, GDL 90 traffic equipment, WX 500 storm detection equipment and selected Honeywell traffic systems.

Actual compatibility must be established from the aircraft wiring diagram, software level and approved installation data. Related equipment is not automatically included with the display and is not interchangeable with it. The I/O connector kit is identified as 011-01283-01, the mounting tube as 115-00746-00 and the configuration module as 011-00979-02. Supply of these items is confirmed in the quotation.

Electrical, environmental and dimensional data

The published power input is 10 to 40 V DC. Maximum operating current for the I/O configuration is 2.56 A at 14 V DC or 1.39 A at 28 V DC. The qualified operating temperature range is −20 °C to +55 °C. Published environmental data also specify up to 95% relative humidity without condensation and an altitude range from −1,500 ft to 55,000 ft.

The front bezel is approximately 6.27 in wide × 5.04 in high, and the equipment body is approximately 6.25 in wide × 5.00 in high. Depth behind the panel with connectors is approximately 9.82 in, with additional space normally required for cable bends. Published I/O unit weight is 4.6 lb, while installed weight with the mounting tube is approximately 5.4 lb. The active display area is 5.2 × 3.9 in.

Condition and ordering of 011-01465-00

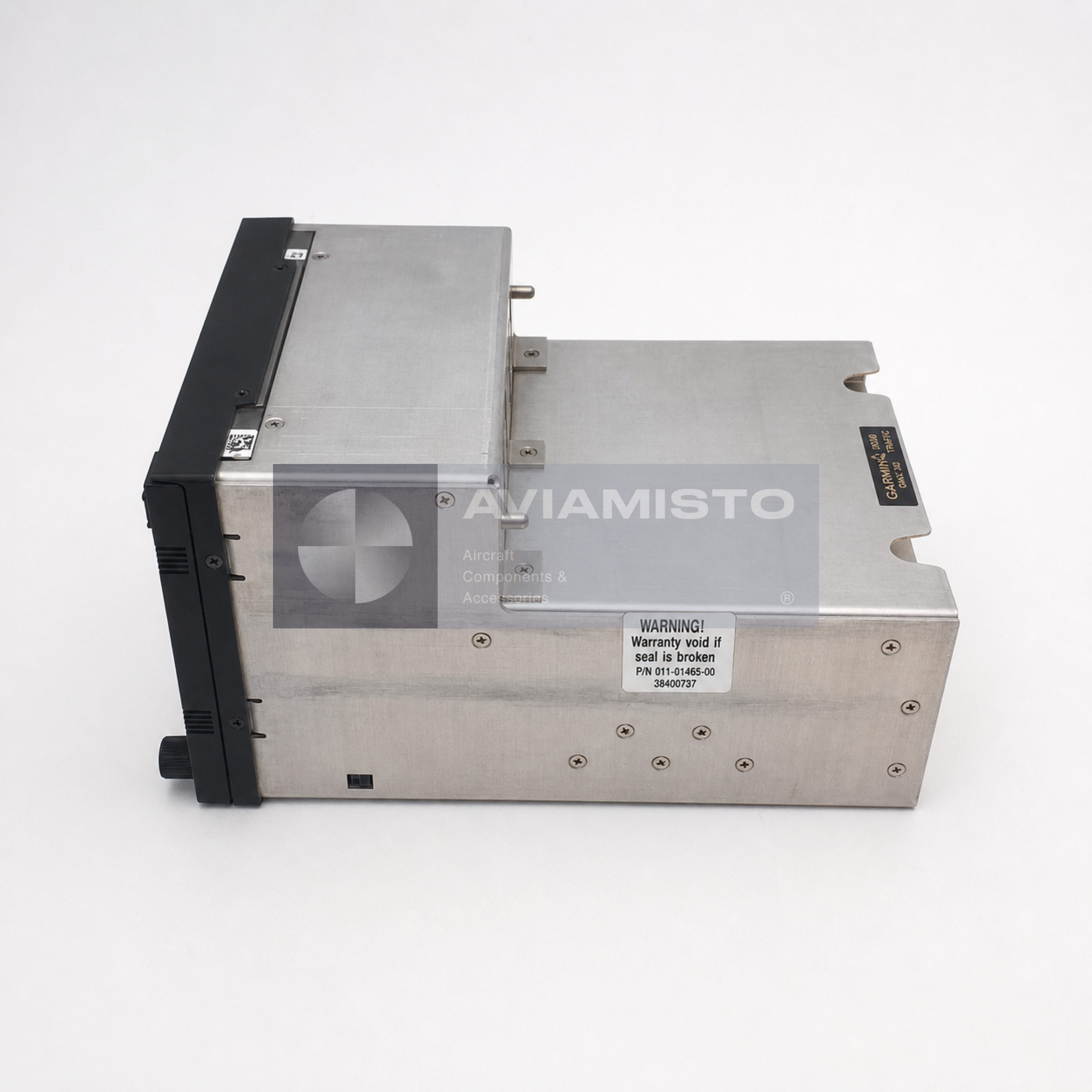

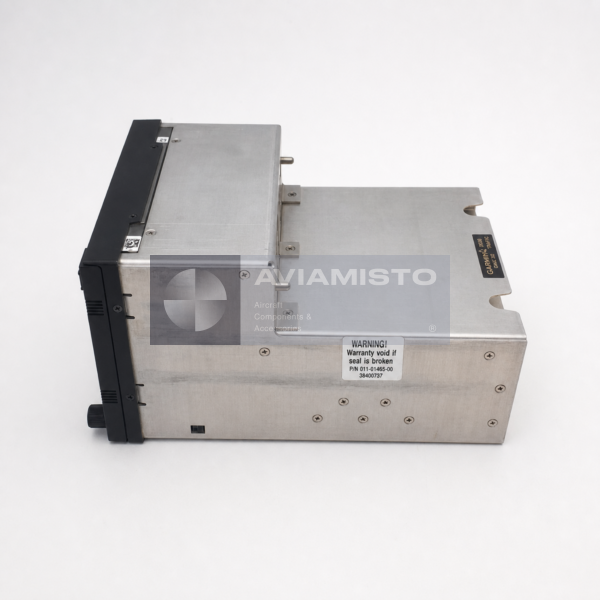

This 011-01465-00 position is offered in Serviceable condition from partner stock with a six-month warranty. The photographed housing label confirms the exact GMX 200 I/O Traffic Part Number and the serial number of the represented unit. Traceability, modification status, current test status, included accessories and available release documentation are reconfirmed before order acceptance.

When requesting a quotation, specify MPN 011-01465-00, GMX 200 I/O Traffic, quantity, destination and documentation requirements. Confirm whether the mounting tube, I/O connector kit, configuration module or installation hardware is required. Other identified avionics are available in the Garmin / BendixKing / Honeywell / Collins category. Category links identify related system products only; they do not state that one Part Number can replace another.

Product Type: Multifunction cockpit display with expanded traffic I/O

Manufacturer: Garmin

Model: GMX 200 I/O Traffic

Designation: 011-01465-00

Alternative Designations: Garmin GMX 200 I/O Traffic; GMX-200; 0110146500

Configuration: GMX 200 I/O Traffic, black bezel

Main Function: Moving-map, navigation and compatible traffic information presentation

Display Type: Active-matrix color LCD

Display Size: 6.5 in diagonal

Active Display Area: 5.2 in W × 3.9 in H

Resolution: 640 × 480 pixels

Input Voltage: 10–40 V DC

Maximum Current: 2.56 A at 14 V DC; 1.39 A at 28 V DC

Serial Interfaces: Five RS-232 ports and one RS-422 port; RS-422 and port 4 mutually exclusive

Additional I/O: Two ARINC 429 inputs; two ARINC 429 outputs; two ARINC 453 inputs; three active-low discrete outputs

Operating Temperature Range: −20 °C to +55 °C

Relative Humidity: Up to 95%, non-condensing

Qualified Altitude Range: −1,500 ft to 55,000 ft

Bezel Dimensions: 6.27 in W × 5.04 in H

Body Dimensions: 6.25 in W × 5.00 in H

Depth Behind Panel: 9.82 in with connectors; allow approximately 2 in additional cable clearance

Unit Weight: 4.6 lb

Installed Weight with Mounting Tube: Approximately 5.4 lb

I/O Connector Kit: 011-01283-01

Mounting Tube: 115-00746-00

Configuration Module: 011-00979-02

Condition: Serviceable

Warranty: 6 Months

Delivery Set: Exact included rack, connector kit, configuration module and documentation to be confirmed in the quotation

Technical Documentation: Garmin GMX 200 Installation Manual 190-00607-04 and aircraft-approved installation data
