011-01271-00

Garmin GMX 200 multifunction display 011-01271-00

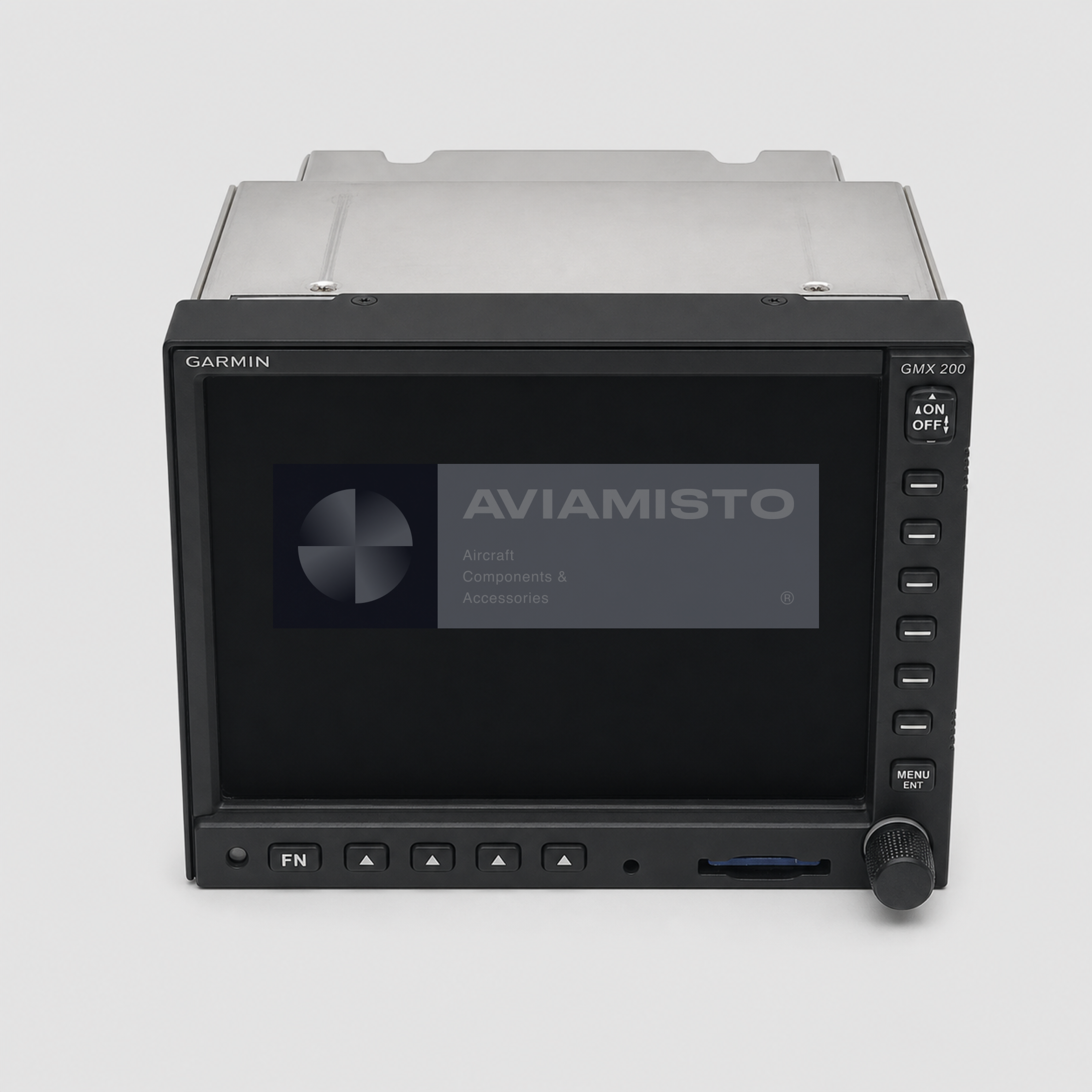

011-01271-00 is the exact Manufacturer Part Number for the standard black-bezel Garmin GMX 200 multifunction display. The panel-mounted unit gives the flight crew a large color display for navigation, moving-map and supplemental situational-awareness information received from approved external avionics. This specific position is the standard GMX 200 configuration and must be identified by its complete Part Number rather than by the model name alone.

The GMX 200 is a display and data-integration unit, not an independent GPS navigator or primary flight instrument. Its available pages and functions depend on the sensors, navigation receivers, traffic equipment, weather sources, terrain database, wiring and software approved for the aircraft installation. Before replacement, the exact aircraft configuration and interface requirements should be checked against the applicable installation data.

Moving-map and navigation presentation

The 6.5-inch diagonal active-matrix display provides a 640 × 480-pixel image. It can present a moving map, route and waypoint information, airspace, airports, terrain and other navigation data when compatible sources and databases are installed. Dedicated bezel keys, function keys, a menu key and a rotary control allow the crew to change range, select pages and manage the information shown without relying on a touchscreen.

Because the display receives navigation information from external equipment, it does not replace the approved GPS or navigation sensor. Altitude information used by internal terrain functions must also come from an approved GPS source or altitude encoder. The exact operational capability therefore follows the completed installation, not simply the appearance of the GMX 200 front panel.

Interfaces and associated avionics

The standard 011-01271-00 version provides five RS-232 serial interfaces and one RS-422 interface; the RS-422 connection and serial port 4 are mutually exclusive in the published installation data. These interfaces can support compatible navigation, traffic, weather and other data sources when the aircraft wiring and approved configuration permit them. Examples documented for the GMX 200 family include Garmin GTX 33 and GTX 330 transponders, GDL 69 or GDL 69A datalink equipment, GDL 90 traffic equipment and WX 500 storm detection equipment.

Related avionics are system components, not automatic substitutes for the GMX 200. Interface compatibility, software level, data format and approved aircraft configuration must be confirmed before installation. The standard connector kit is identified as 011-01283-00, the mounting tube as 115-00746-00 and the configuration module as 011-00979-02. Their inclusion in a supply is confirmed separately.

Electrical, environmental and physical data

The published input range is 10 to 40 V DC. For the standard configuration, maximum operating current is 2.29 A at 14 V DC or 1.19 A at 28 V DC. The unit is qualified for operation from −20 °C to +55 °C, up to 95% relative humidity without condensation, and from −1,500 ft to 55,000 ft altitude according to the Garmin installation data. Aircraft-specific limitations remain controlling.

The display bezel measures approximately 6.27 in wide × 5.04 in high, while the equipment body is approximately 6.25 in wide × 5.00 in high. Depth behind the panel with connectors is approximately 9.82 in, with additional clearance normally required for cables. Published unit weight is 4.3 lb, increasing to approximately 5.1 lb with the mounting tube. The display has a 5.2 × 3.9 in active area.

Condition and ordering of 011-01271-00

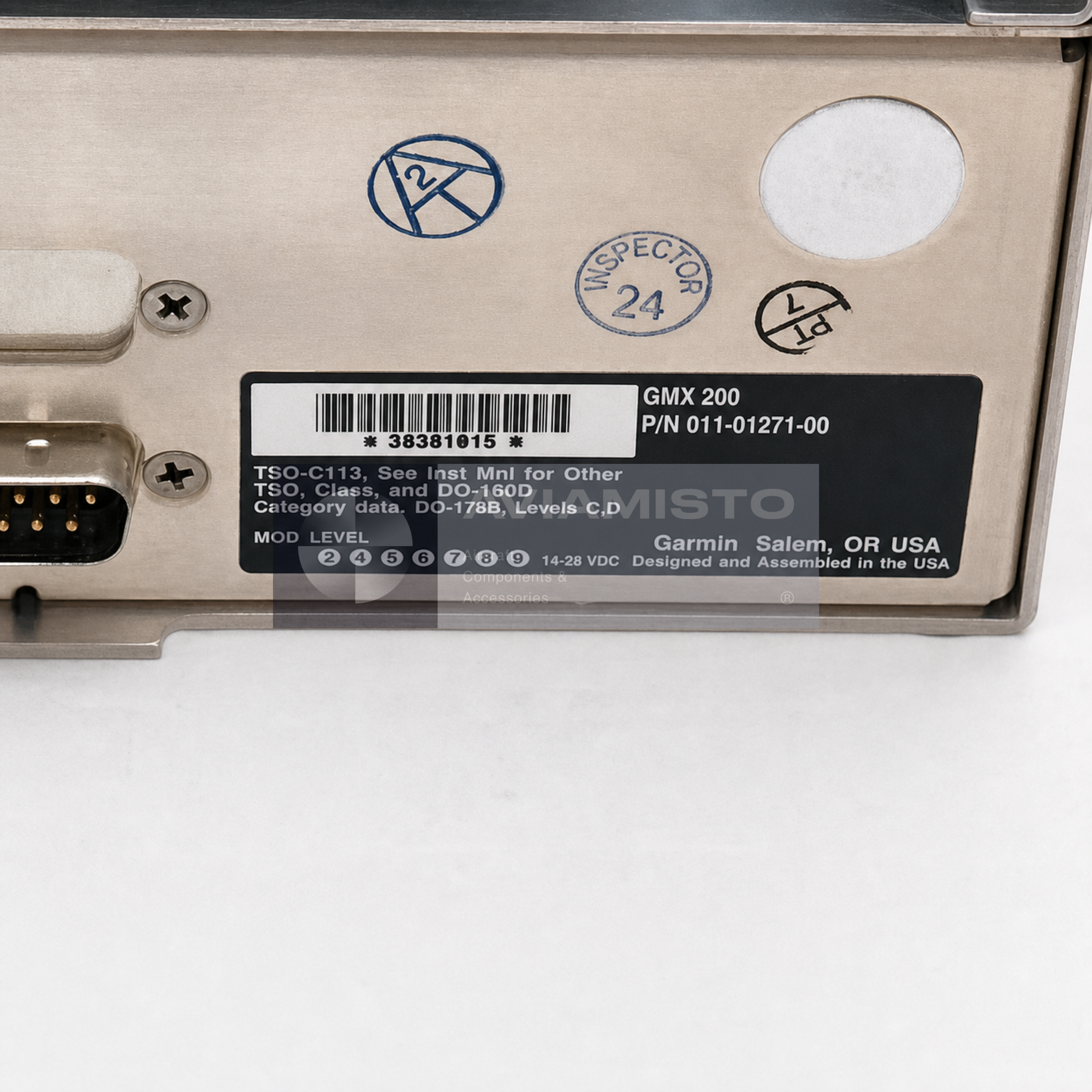

This 011-01271-00 position is offered in Serviceable condition from partner stock with a six-month warranty. The photographed identification plate confirms the GMX 200 designation, exact Part Number and serial number of the represented unit. Before order acceptance, current traceability, modification status, test status, supplied accessories and available release documentation are reconfirmed.

For a quotation, specify MPN 011-01271-00, model GMX 200, quantity, destination and documentation requirements. State whether the connector kit, mounting tube, configuration module or other installation hardware is required. Other related positions can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Products linked within that category may operate in the same avionics architecture but are not interchangeable unless approved technical documentation expressly confirms the substitution.

Product Type: Multifunction cockpit display

Manufacturer: Garmin

Model: GMX 200

Designation: 011-01271-00

Alternative Designations: Garmin GMX 200; GMX-200; 0110127100

Configuration: Standard GMX 200, black bezel

Main Function: Moving-map, navigation and supplemental situational-awareness presentation

Display Type: Active-matrix color LCD

Display Size: 6.5 in diagonal

Active Display Area: 5.2 in W × 3.9 in H

Resolution: 640 × 480 pixels

Input Voltage: 10–40 V DC

Maximum Current: 2.29 A at 14 V DC; 1.19 A at 28 V DC

Serial Interfaces: Five RS-232 ports and one RS-422 port; RS-422 and port 4 mutually exclusive

Operating Temperature Range: −20 °C to +55 °C

Relative Humidity: Up to 95%, non-condensing

Qualified Altitude Range: −1,500 ft to 55,000 ft

Bezel Dimensions: 6.27 in W × 5.04 in H

Body Dimensions: 6.25 in W × 5.00 in H

Depth Behind Panel: 9.82 in with connectors; allow approximately 2 in additional cable clearance

Unit Weight: 4.3 lb

Installed Weight with Mounting Tube: Approximately 5.1 lb

Standard Connector Kit: 011-01283-00

Mounting Tube: 115-00746-00

Configuration Module: 011-00979-02

Condition: Serviceable

Warranty: 6 Months

Delivery Set: Exact included rack, connector kit, configuration module and documentation to be confirmed in the quotation

Technical Documentation: Garmin GMX 200 Installation Manual 190-00607-04 and aircraft-approved installation data
