011-01257-00

GMA 1347D G1000 audio panel and marker-beacon receiver 011-01257-00

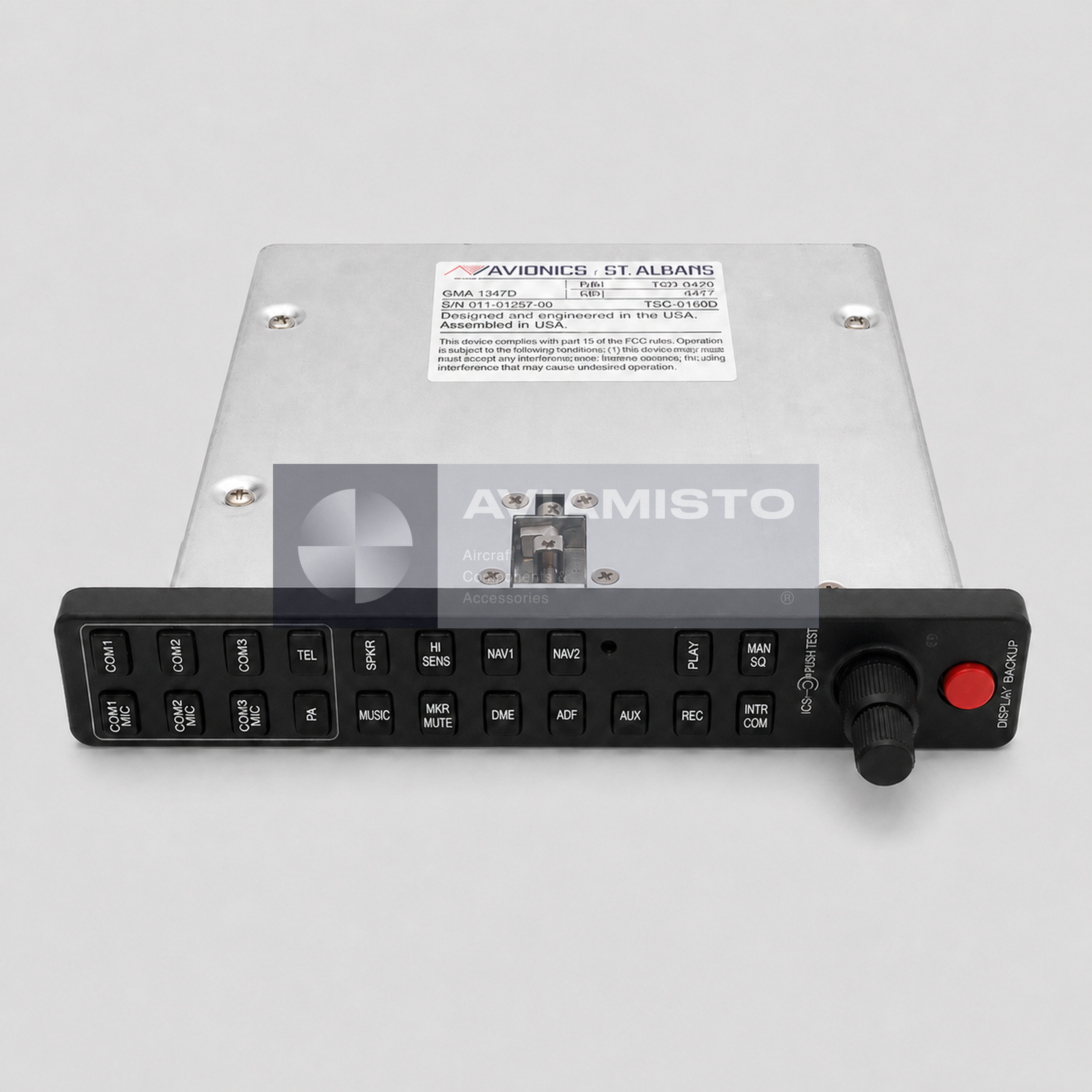

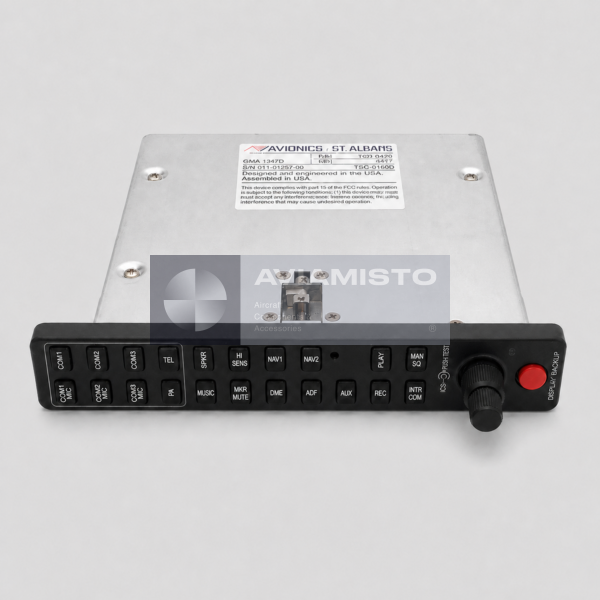

011-01257-00 is the exact Part Number for this Garmin GMA 1347D G1000 audio panel and marker-beacon receiver. The unit manages cockpit audio and intercom functions while providing integrated marker-beacon reception and digital recording with playback. This card is tied to the photographed configuration and complete suffix, rather than serving as a generic listing for every GMA 1347D version or a visually similar member of the same family.

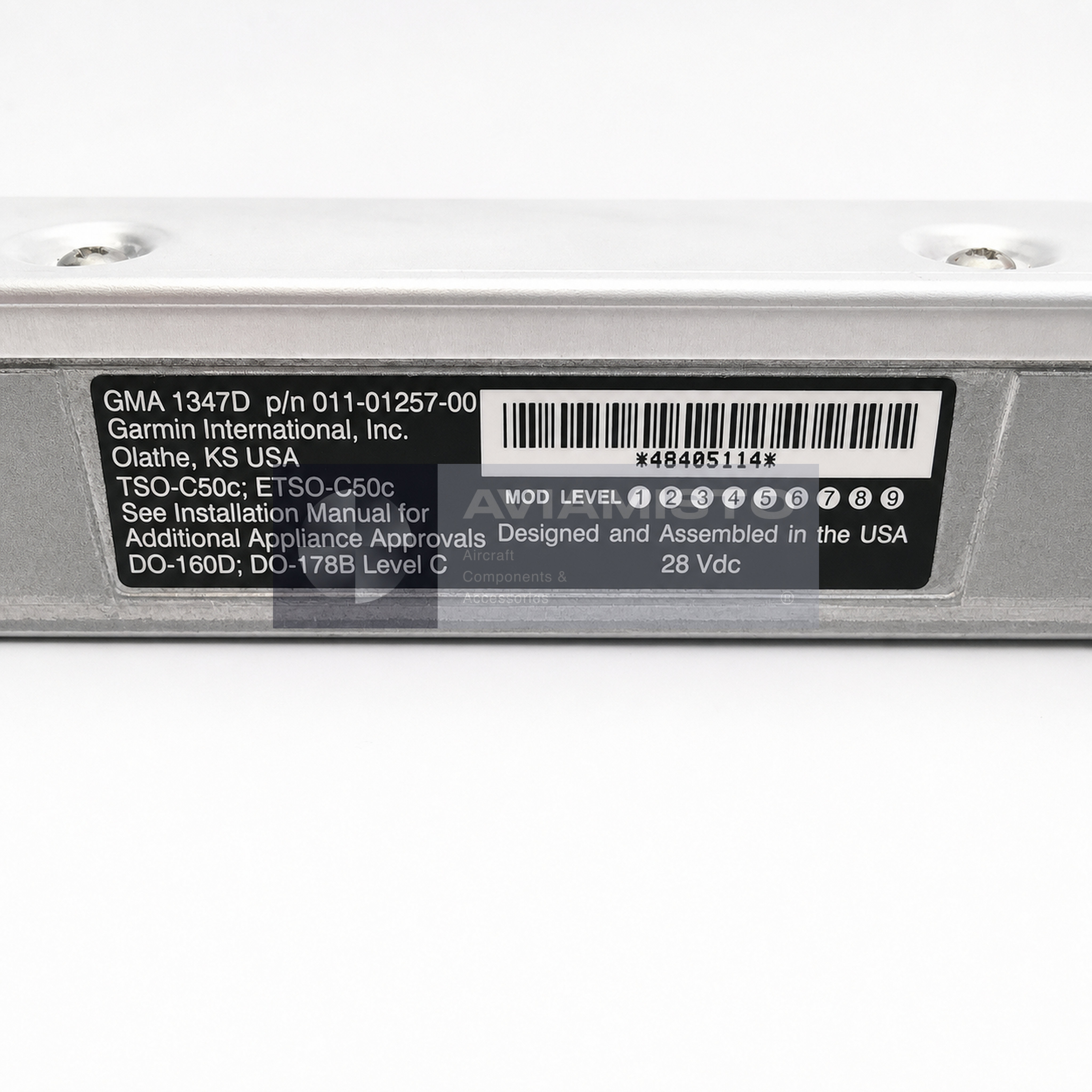

The source listing identifies Part Number 011-01257-00 as a serviceable GMA 1347D audio panel with marker beacon and digital recorder playback. The original plate confirms the model, exact Part Number, photographed serial number 48405114, 28 V DC supply, TSO-C50c / ETSO-C50c status and DO-160D / DO-178B Level C references. The identification information is important because voltage, lighting, software, hardware options, certification and connector configuration can differ across related versions. The complete Part Number and the approved technical record must be checked together before purchase or installation.

Operational role and system function

The GMA 1347D operates within an approved Garmin G1000 installation and provides the audio interface for crew radio selection, microphone routing, intercom, passenger audio, speaker, music and marker-beacon functions. Garmin documentation states that valid outputs depend on completing the aircraft-specific post-installation configuration through the G1000 system. In service, the unit depends on the integrity of its associated sensors, antennas, transceivers, control panels, displays, data buses, wiring, power and grounding. A reported fault at the unit can therefore originate elsewhere in the connected chain, and troubleshooting should follow the approved aircraft and equipment procedures.

The practical role of GMA 1347D is to perform its defined function while exchanging required signals with compatible equipment. It cannot replace missing system components and should not be evaluated as an isolated consumer device. Controls or connectors visible in photographs do not prove that every possible function is enabled in a particular aircraft installation.

Installation and connected equipment

The panel requires the approved G1000 installation, aircraft-specific configuration data, rack and two rear connector assemblies. It can interface with three transceiver inputs, five receiver inputs, unswitched audio, microphone and headset circuits, speaker, music sources and the marker-beacon antenna and indication circuits described by the installation manual. A rack, backplate, connector kit, antenna, wiring, cooling hardware or other accessories are not assumed to be included unless they are expressly listed in the quotation. Similar panel dimensions or family names do not prove electrical or approval compatibility.

Before installation, technicians should compare 011-01257-00 with the removed unit, aircraft equipment list, wiring diagrams, installation manual and modification records. Panel space, mounting depth, connector keying, pin allocation, circuit protection, lighting, ventilation, data format and configuration settings all require confirmation. Any substitution must be supported by approved data.

Configuration checks for 011-01257-00

The suffix in 011-01257-00 is part of the product identity. Software level, modification status, database requirements, embedded options, voltage and certification can affect compatibility even when two units look alike. These checks are especially important in aircraft that have accumulated supplemental approvals, avionics upgrades or wiring changes over time.

Incoming inspection should verify the manufacturer plate, housing, connectors, locking features, controls, display or indicator face, fasteners and evidence of unauthorized modification. Functional testing should use the approved bench procedure for the exact model and suffix. Installation and return to service remain the responsibility of appropriately authorized personnel.

Serviceable condition, ordering and support

This 011-01257-00 GMA 1347D is offered in Serviceable condition from partner stock with a six-month warranty. Partner stock should be reconfirmed at quotation because allocation can change. The available serial number, current test status and release documentation for the specific unit are confirmed before order acceptance.

For an inquiry, specify Part Number 011-01257-00, model GMA 1347D, required quantity, destination and documentation requirements. Including the aircraft type and removed-unit Part Number helps prevent configuration errors. Related avionics can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Products shown there are related catalog positions, not interchangeable replacements unless approved technical data explicitly says so.

Product Type: G1000 audio panel and marker-beacon receiver

Designation: 011-01257-00

Manufacturer: Garmin

Model: GMA 1347D

Function: G1000 cockpit audio management, intercom, marker-beacon reception and digital recording with playback

Associated System: Garmin G1000 with aircraft-specific approved configuration data

Power Supply: 28 V DC

Maximum Operating Current: 1.75 A at 27.5 V

Operating Temperature: −45 °C to +70 °C

Maximum Qualified Altitude: 55,000 ft

Marker-Beacon Frequency: 75 MHz crystal controlled

Recorder Capacity: Up to 2.5 minutes of selectable COM recording

Speaker Output: 10 W into 4 Ω or 8 Ω

Photographed Serial Number: 48405114

Condition: Serviceable

Warranty: 6 Months

Installation Note: Confirm the exact Part Number, suffix, software or modification status, rack, connectors, wiring and aircraft approval before installation

Technical Documentation: Applicable manufacturer installation and maintenance data plus aircraft wiring and approval documentation
