Garmin GDU 1500 display 011-01108-10

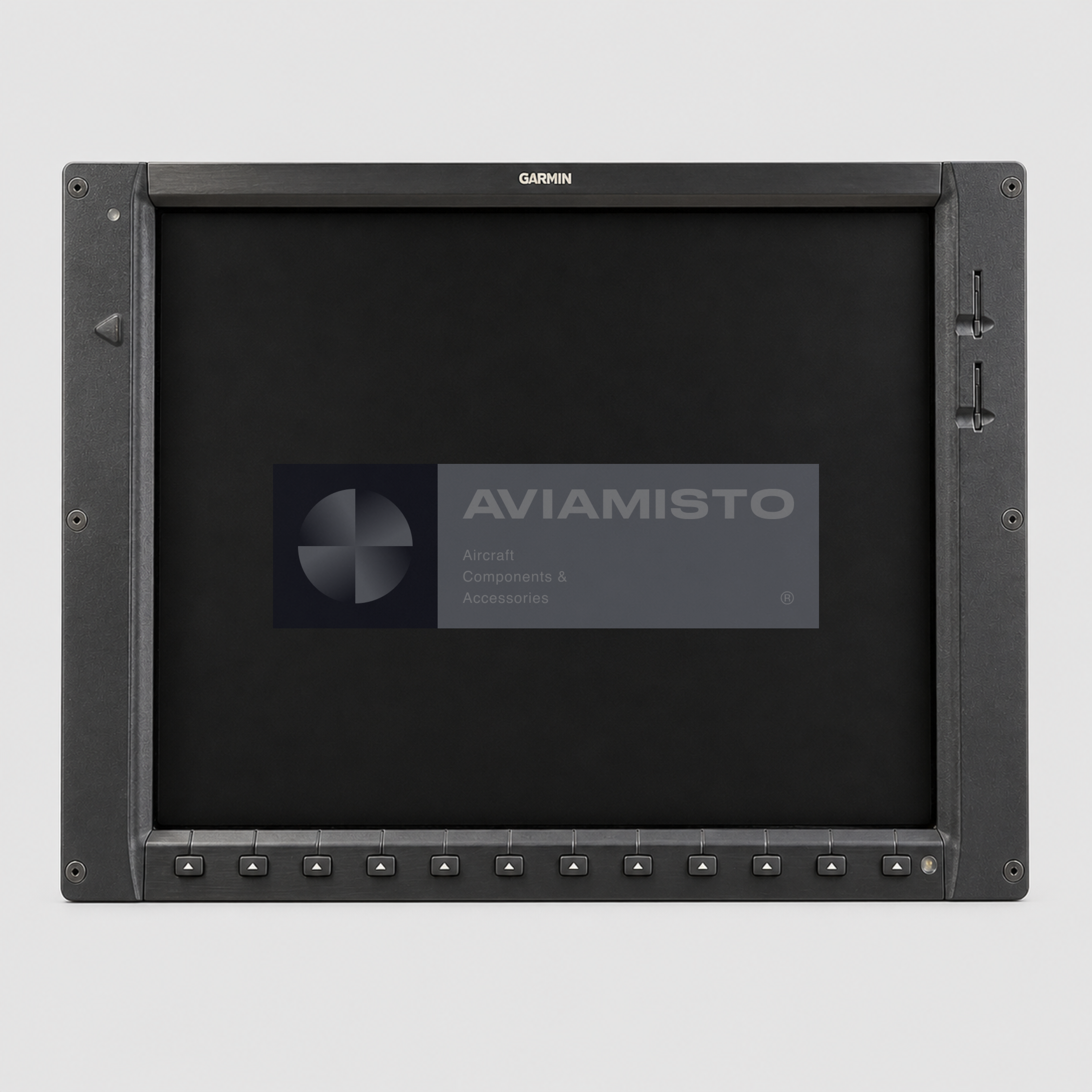

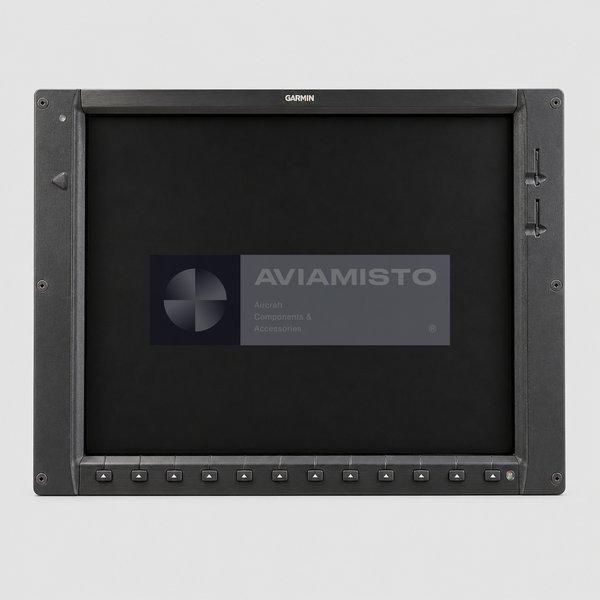

011-01108-10 is the exact Part Number for this Garmin GDU 1500 multifunction display unit. The panel-mounted unit provides a large-format crew interface within an approved G1000 integrated flight deck. Garmin maintenance data identify the GDU 1500 as a 15-inch color LCD with 1024 × 768 pixel resolution, configured primarily as the multifunction display rather than as an independent flight sensor.

The GDU 1500 presents navigation information together with engine and airframe instrumentation when the required computers, sensors and data sources are installed and valid. It does not measure attitude, airspeed, altitude, engine parameters or position on its own. Those values are produced by associated line-replaceable units and transmitted to the display through the approved aircraft architecture.

Multifunction display role in the G1000 system

In a typical installation, the GDU 1500 works beside compatible GDU 1040-series primary flight displays. The PFDs concentrate the pilot's primary attitude, air-data and navigation references, while the larger GDU 1500 supports map, flight-plan, engine, systems and optional weather or traffic pages. Available pages depend on the aircraft type, software, enabled features and connected equipment.

Garmin system documentation describes high-speed data-bus communication between the GDU 1500, compatible GDU 1040 displays and a GDL 69A data-link unit. It also identifies an RS-232 link with a GCU 475 flight-management controller in applicable installations. These units are associated system components, not part of this display delivery and not direct substitutes for the GDU 1500.

The lower row of soft keys changes function with the active page. Two right-side card slots support approved database and service functions. Database cards, software loads, unlocks and subscriptions can be tied to an aircraft configuration, so their inclusion and currency must be confirmed separately.

Electrical load, cooling and exact suffix

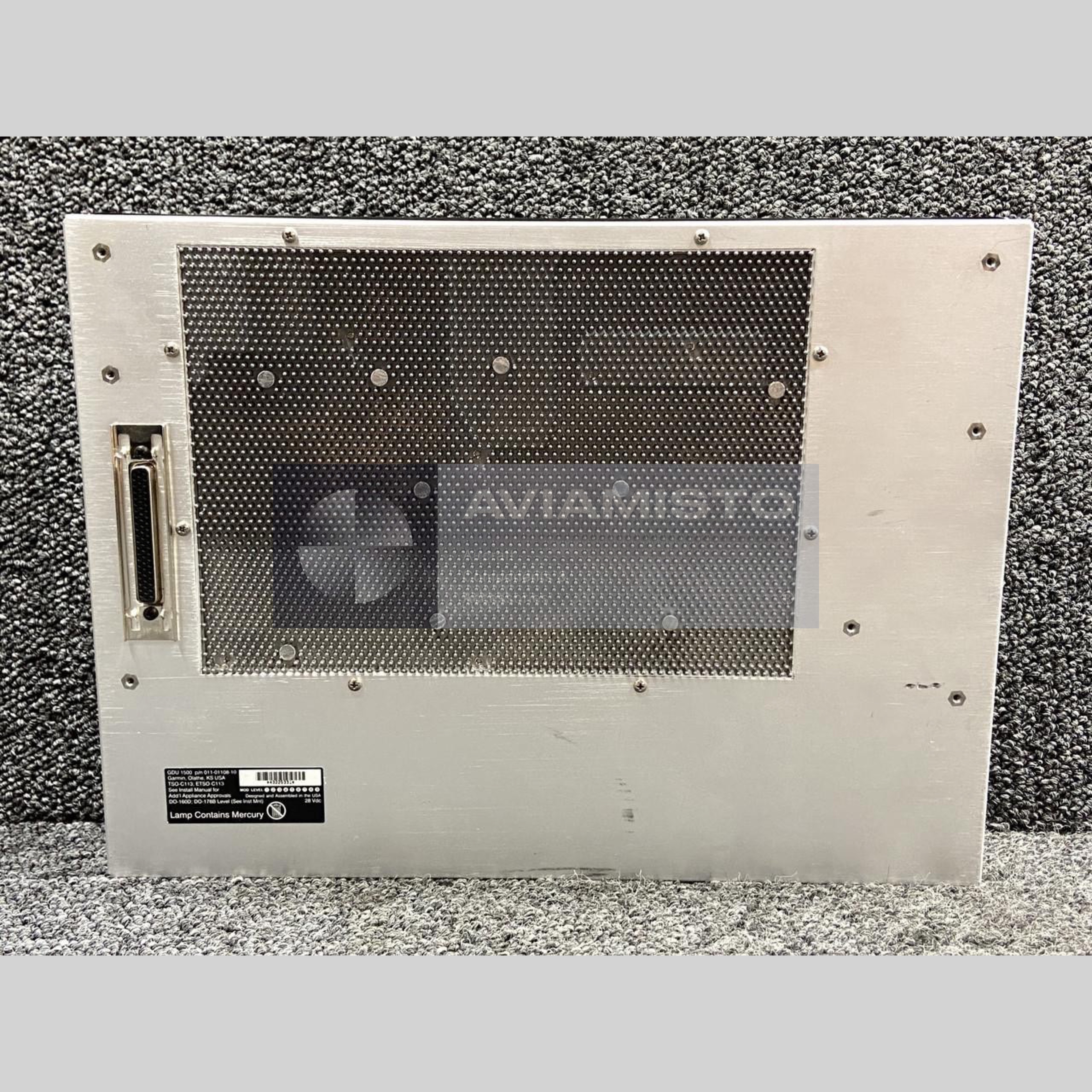

The authentic identification view shows GDU 1500, P/N 011-01108-10 and 28 VDC input. Garmin maintenance data for an exact-suffix installation list a nominal current of 2.0 A when the unit temperature is above −15 °C and up to 3.2 A below −15 °C. The same installation provides a separate MFD cooling fan, demonstrating that airflow and cooling provisions are part of the approved aircraft design.

The complete suffix is important. GDU 1500 units with different Part Numbers can vary by hardware, software, aircraft approval or installed options even when their front appearance is similar. A display must therefore be selected by the full 011-01108-10 designation and checked against the aircraft maintenance manual, wiring data, equipment list and approved software configuration.

Installation and receiving inspection

The identification plate references TSO C113 and ETSO C113 display qualifications, together with applicable environmental and software compliance data. Installation requires the correct panel structure, rear connector arrangement, circuit protection, bonding, cooling, data-bus wiring and configuration procedures. Connector kits, data cards and mounting hardware are not assumed to be included unless they appear in the quotation.

Receiving inspection should verify the exact Part Number, serial number, modification marks, display glass, bezel, soft keys, card slots, rear connector area and release paperwork. After replacement, an approved technician should complete the required software, configuration and functional checks. Testing should confirm display operation, dimming, soft-key response, database access, communication with the PFDs and all connected navigation, engine and airframe sources.

New Surplus supply and ordering information

This 011-01108-10 GDU 1500 is offered in New Surplus condition from partner stock with a six-month warranty. New Surplus describes a never-used unit from surplus inventory; it does not by itself establish storage history, current software, database currency, aircraft eligibility or the scope of release documentation. These points should be defined before purchase.

For an inquiry, specify Part Number 011-01108-10, model GDU 1500, aircraft model and serial number, G1000 configuration, required software and modification status, database or card requirements, connector and mounting needs, documentation and quantity. Related displays, controllers and sensors can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. They may operate in the same system but are not represented as interchangeable products.

Product Type: Integrated multifunction display unit

Manufacturer: Garmin

Model: GDU 1500

Designation: 011-01108-10

Alternative Designations: 0110110810; GDU1500; GDU-1500; Garmin GDU 1500

System: Compatible Garmin G1000 integrated flight deck installations

Primary Function: Multifunction presentation of navigation, engine and airframe information as configured

Display Type: Color LCD

Display Size: 15 in

Display Resolution: 1024 × 768 pixels

DC Power According to Plate: 28 VDC

Current Above −15 °C: 2.0 A in the referenced exact-suffix installation

Maximum Current Below −15 °C: 3.2 A in the referenced exact-suffix installation

Typical Data Interfaces: High-Speed Data Bus Ethernet and RS-232 as configured

Associated Displays: Compatible GDU 1040-series primary flight displays

Associated Data-Link Equipment: GDL 69A where installed

Associated Controller: GCU 475 where installed

Typical Signal Chain: Aircraft sensors and remote LRUs → G1000 data buses → GDU 1500 MFD presentation

Front Controls: Twelve context-sensitive soft keys and two right-side card slots

Qualification According to Plate: TSO C113 / ETSO C113

Cooling Note: Use the approved aircraft cooling and fan provisions

Interchangeability: Verify exact suffix, aircraft approval, software, modification status, connector and wiring

Condition: New Surplus

Warranty: 6 Months

Technical Documentation: Applicable Garmin GDU 1500 and aircraft-specific G1000 installation and maintenance data

All shipments are carried out from our international warehouse in Dubai (UAE), as well as from our partners’ remote warehouses.

In Stock — items available in stock at the Dubai warehouse are dispatched within 5–10 business days after receiving 100% prepayment.

Remote Stock — items available at our partners’ remote warehouses are supplied within an average of 30–45 business days after receiving 100% prepayment.

Pre-Order — made-to-order products are manufactured and delivered within an average of 45–60 business days. Payment terms: 50% advance payment to start production, with the remaining 50% paid before dispatch from the Dubai warehouse after full readiness for shipment.

Returns & Changes (Restocking Fee)
For selected items, a RESTOCKING FEE of 10% may apply in case of return, order cancellation, or changes to the order specifications. This condition applies only to certain products and is confirmed at the order approval stage.

Warranty
All products are covered by a standard 6-month warranty.
Extended warranty is available upon request and is agreed individually; it may affect the final product price.
