GPS 500W TAWS WAAS GPS navigator with TAWS capability 011-01063-50

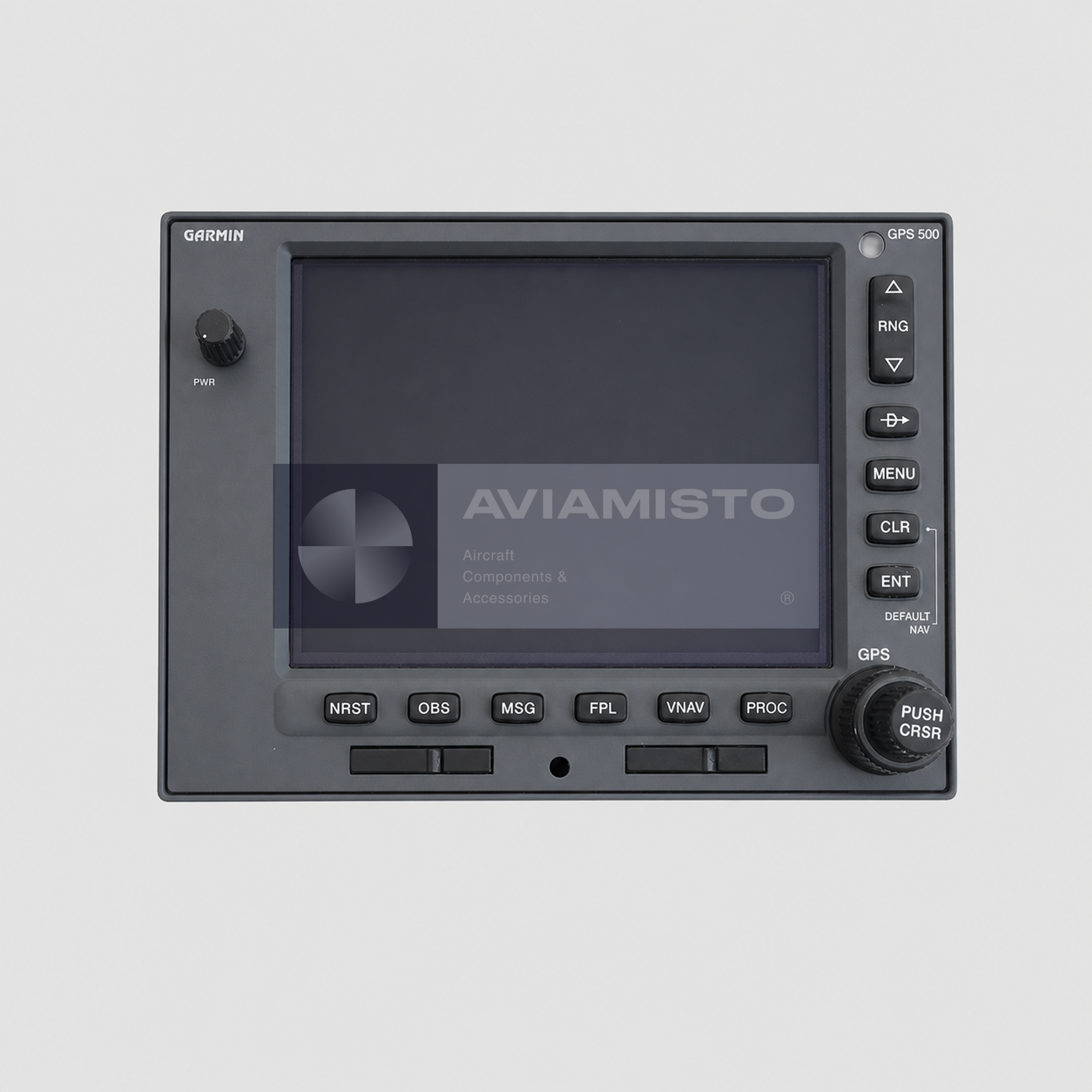

011-01063-50 is the exact Part Number for this Garmin GPS 500W TAWS WAAS GPS navigator with TAWS capability. The unit provides IFR GPS navigation, moving-map presentation and the TAWS option identified for this exact configuration. This card is tied to the photographed configuration and its exact suffix; it is not a generic listing for every GPS 500W TAWS variant or for a visually similar member of the same product family.

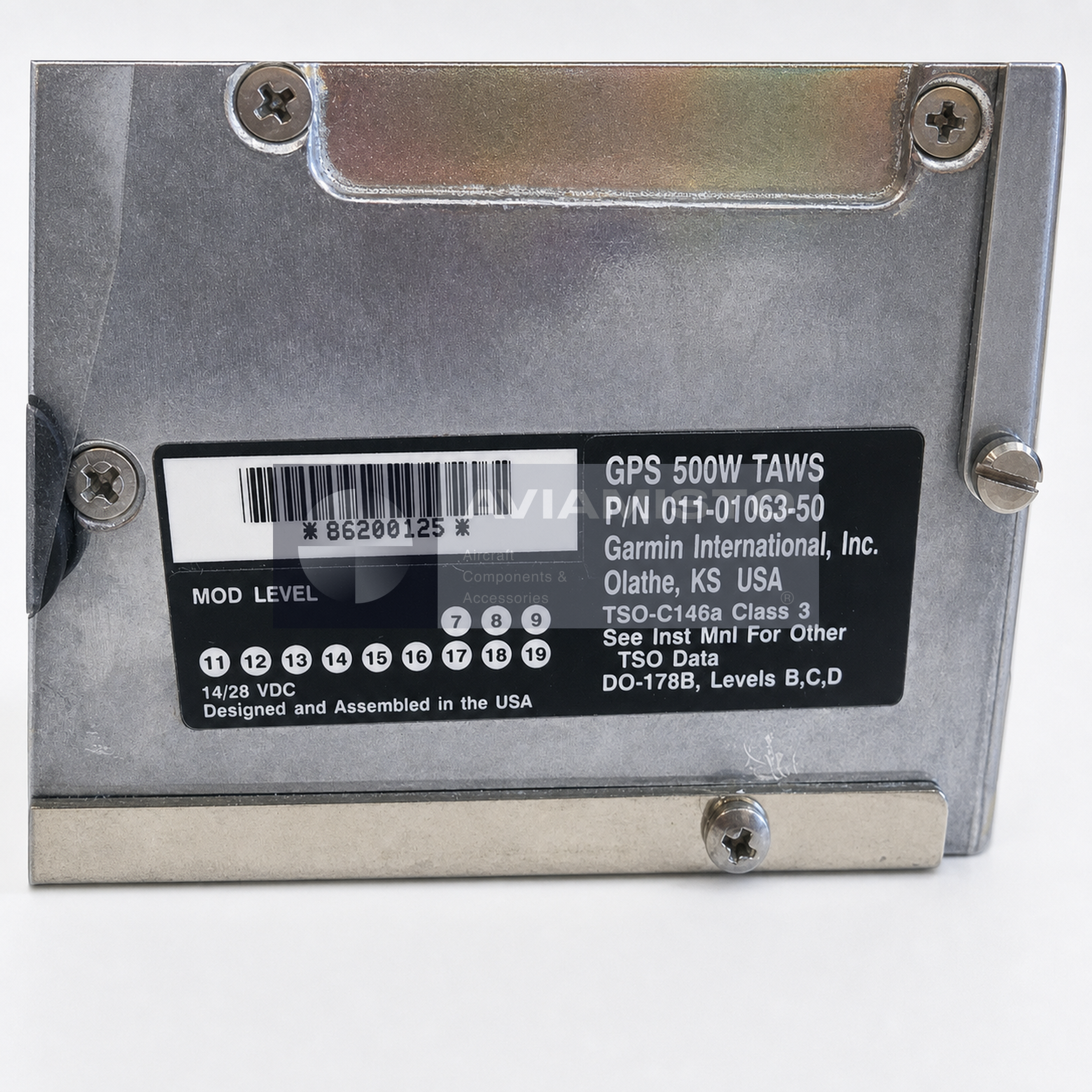

The source listing identifies Part Number 011-01063-50 as a GPS 500W with WAAS upgrade, Jeppesen database capability, TAWS option, 14/28 V operation and a grey bezel. The genuine plate in the gallery confirms the exact GPS 500W TAWS designation, Part Number 011-01063-50, 14/28 V DC marking and the photographed serial number. These identification details are retained because software level, voltage, bezel, lighting, options and certification can vary across related versions. The Part Number, installed configuration and approved technical data should therefore be checked together before purchase or installation.

Operational role and capabilities

The GPS 500W supplies approved GPS/WAAS navigation information to the pilot and can exchange guidance, position, altitude and annunciation data with compatible indicators and other installed avionics. TAWS-related operation depends on the approved software, databases, aircraft configuration and required external inputs. The unit must operate as part of a complete approved avionics installation. It cannot replace missing antennas, sensors, data sources, indicators, control equipment or aircraft wiring, and the availability of a feature on the faceplate does not by itself prove that the feature is enabled in a particular aircraft.

The practical value of GPS 500W TAWS is its ability to place the required function within direct reach of the crew while exchanging the necessary signals with compatible equipment. Correct operation depends on serviceable power, grounds, antennas, data buses, circuit protection, cooling where required and configuration settings. A fault reported at the unit can also originate elsewhere in that connected chain, so troubleshooting should follow approved maintenance procedures.

Installation and connected equipment

The 500W-series installation architecture can include GPS antenna, aircraft power, lighting, altitude data, external annunciators, compatible CDI or HSI equipment, serial or ARINC 429 interfaces and optional traffic, weather or autopilot connections. Every interface must be approved and configured for the particular airframe. The rack, backplate, connector kit, antenna, wiring and accessories are not assumed to be included unless they are expressly identified in the quotation. Even when two units share a common panel size, their connector keying, pin allocation, software, power requirements and approval basis can differ.

Before installation, technicians should compare 011-01063-50 with the removed unit, aircraft equipment list, wiring diagrams, installation manual and modification records. They should also confirm available panel space, mounting depth, connector condition, antenna compatibility, circuit protection, lighting, cooling and interface configuration. Any substitution requires approved data; similarity of model names or photographs is not evidence of interchangeability.

Configuration checks for 011-01063-50

The complete suffix in 011-01063-50 is an essential part of the product identity. Database status, embedded options, software level, modification status and certification may affect compatibility even when the hardware looks unchanged. These points are especially important when replacing legacy avionics in an aircraft that has accumulated field modifications or multiple supplemental approvals during its service life.

Incoming inspection should verify the manufacturer plate, housing, connectors, locking mechanism, controls, display or indicator face, cooling provisions and evidence of unauthorized modification. Functional testing should use the approved bench procedure for this model. Installation and return to service remain the responsibility of appropriately authorized personnel working to the aircraft and equipment documentation.

Repairable condition, ordering and support

This 011-01063-50 GPS 500W TAWS is offered in Repairable condition from partner stock with a six-month warranty. Stock status means that availability is based on a partner-held position and should be reconfirmed when a quotation is requested. The allocated serial number, current test status and documentation available for the specific unit are confirmed before order acceptance.

For an inquiry, specify Part Number 011-01063-50, model GPS 500W TAWS, required quantity, destination and any installation or documentation requirements. Include the aircraft type and the Part Number of the unit being replaced when possible. Related avionics can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Products shown together there may be functionally connected, but they are not presented as interchangeable unless approved technical data explicitly authorizes the substitution.

Product Type: Waas gps navigator with taws capability

Designation: 011-01063-50

Manufacturer: Garmin

Model: GPS 500W TAWS

Function: IFR GPS/WAAS navigation, map presentation and TAWS capability for an approved configuration

GPS Channels: 15 channels: 12 GPS and 3 GPS/WAAS/SBAS according to the Garmin 500W installation manual

GPS Frequency: 1575.42 MHz L1 C/A code

Position Update Rate: 5 Hz / 0.2 s interval

Input Voltage Range: 10–33.2 V DC for the 500W-series main connector

Maximum Current: 1.6 A at 14 V DC or 0.8 A at 28 V DC for GPS 500W

Display: 5.0 in diagonal sunlight-readable LCD; 320 × 234 pixels

Operating Temperature: −20 °C to +55 °C

Weight: 3.08 kg / 6.8 lb with rack and back plate

Condition: Repairable

Warranty: 6 Months

Installation Note: Confirm the exact Part Number, suffix, software or modification status, rack, connectors, wiring and aircraft approval before installation

Technical Documentation: Applicable manufacturer installation and maintenance data plus aircraft wiring and approval documentation
