011-00831-00

Garmin GEA 71 identified by MPN 011-00831-00

011-00831-00 is the exact Manufacturer Part Number for this Garmin GEA 71 engine and airframe unit. The GEA 71 is a microprocessor-based input/output Line Replaceable Unit used within a compatible Garmin Integrated Flight Deck. It gathers electrical signals from engine and airframe sensors, processes them according to the aircraft-specific configuration, and passes the resulting information to the integrated avionics system for display and annunciation.

The unit is not a stand-alone cockpit indicator. Its valid functions depend on approved aircraft wiring, compatible sensors, the correct Garmin system components and configuration data prepared for the particular airframe. Garmin documentation states that a GEA 71 installation must follow the applicable type-certificate or supplemental type-certificate data. The exact 011-00831-00 number should therefore be matched against the installed equipment list before purchase.

Engine and airframe monitoring functions

The GEA 71 can accept signals associated with exhaust-gas temperature, cylinder-head temperature, oil pressure, oil temperature, fuel flow, fuel quantity, manifold pressure, engine speed, electrical current and voltage, doors, pitot heat and other configured aircraft indications. These examples describe the unit's interface capability; they do not mean that every installation uses every input.

Garmin identifies 18 differential analog inputs, 12 engine-temperature analog inputs, 23 discrete inputs and 12 digital inputs. Four analog channels can support high-side current monitoring. The unit also provides four discrete annunciator outputs and sensor-excitation outputs at +5, +10 and +12 V DC within the published current limits. The final set of monitored parameters is established by the approved configuration for the aircraft.

Connection with the Garmin integrated flight deck

Two RS-485 channels connect the GEA 71 with compatible GIA 63 or GIA 63W Integrated Avionics Units. The GIAs carry the processed engine and airframe information to Garmin display units. In a typical installation the multifunction display presents the main engine-instrument page, while primary flight displays can show alerts and selected engine or airframe data, including during an approved reversionary mode.

All electrical connections are made through two 78-pin D-subminiature connectors. Garmin lists a dedicated rack, backplate, connector kits, configuration module and optional thermocouple kit as separately identified installation items. These accessories are not assumed to be included with this product unless they are specifically stated in the quotation. Harness construction and pin assignments must follow the approved installation drawings.

Electrical and physical characteristics of 011-00831-00

The GEA 71 operates from a 14 or 28 V DC aircraft supply. Garmin publishes maximum normal current of 0.30 A at 14 V DC or 0.15 A at 28 V DC, rising to 1.00 A or 0.50 A respectively when the transducer power outputs are fully loaded. A short additional current occurs during the first seconds after power-up while internal backup capacitors charge.

With its rack, the unit is 1.23 in (3.12 cm) wide and 6.30 in (16.0 cm) high. Rack depth with connectors is 8.73 in (22.17 cm). Unit mass is 1.75 lb (0.79 kg); the rack, nutplate and connector kit add approximately 0.83 lb (0.38 kg). Mounting requires proper structural support, electrical bonding, cable clearance and the installation-specific cooling provisions defined by Garmin.

Condition and ordering of Garmin GEA 71

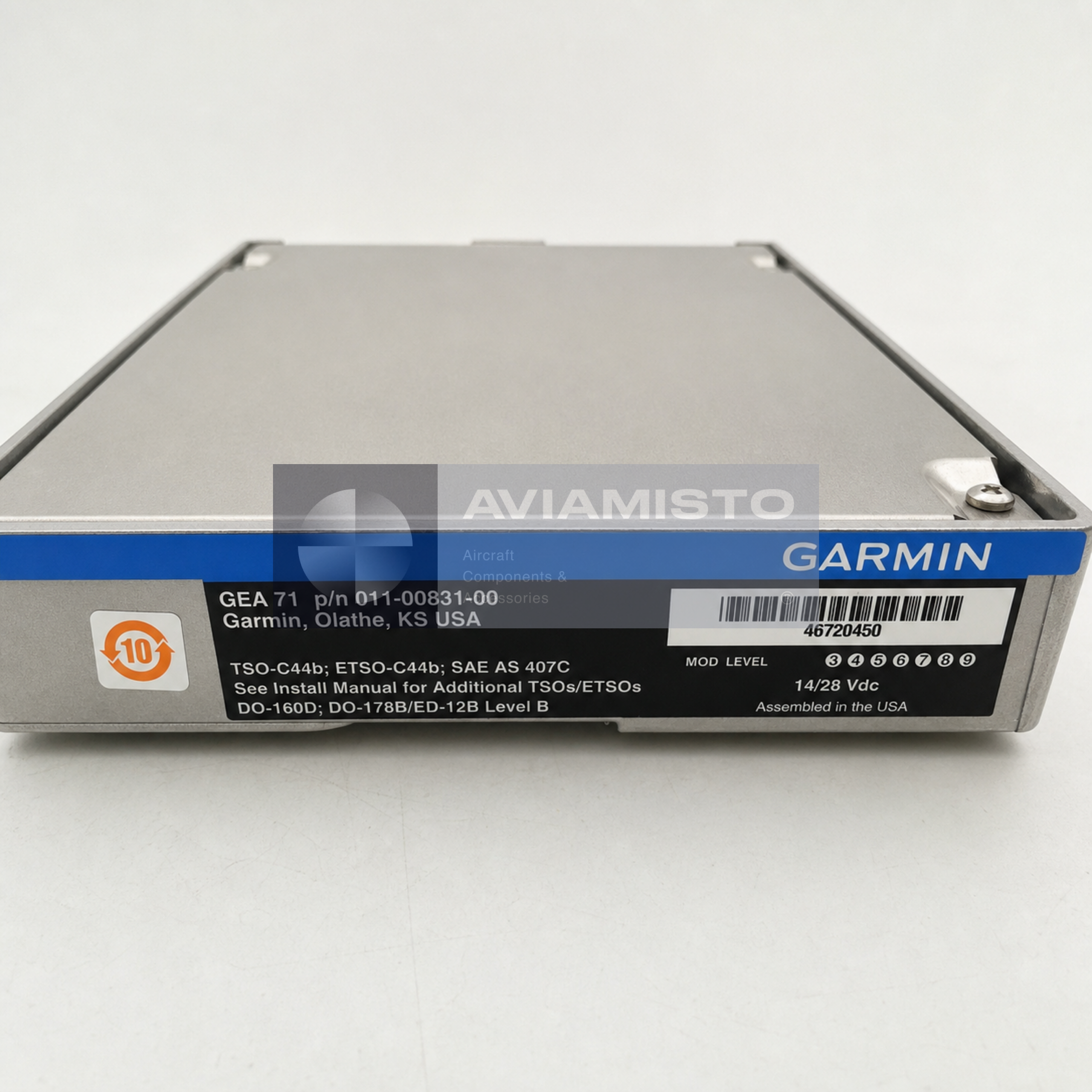

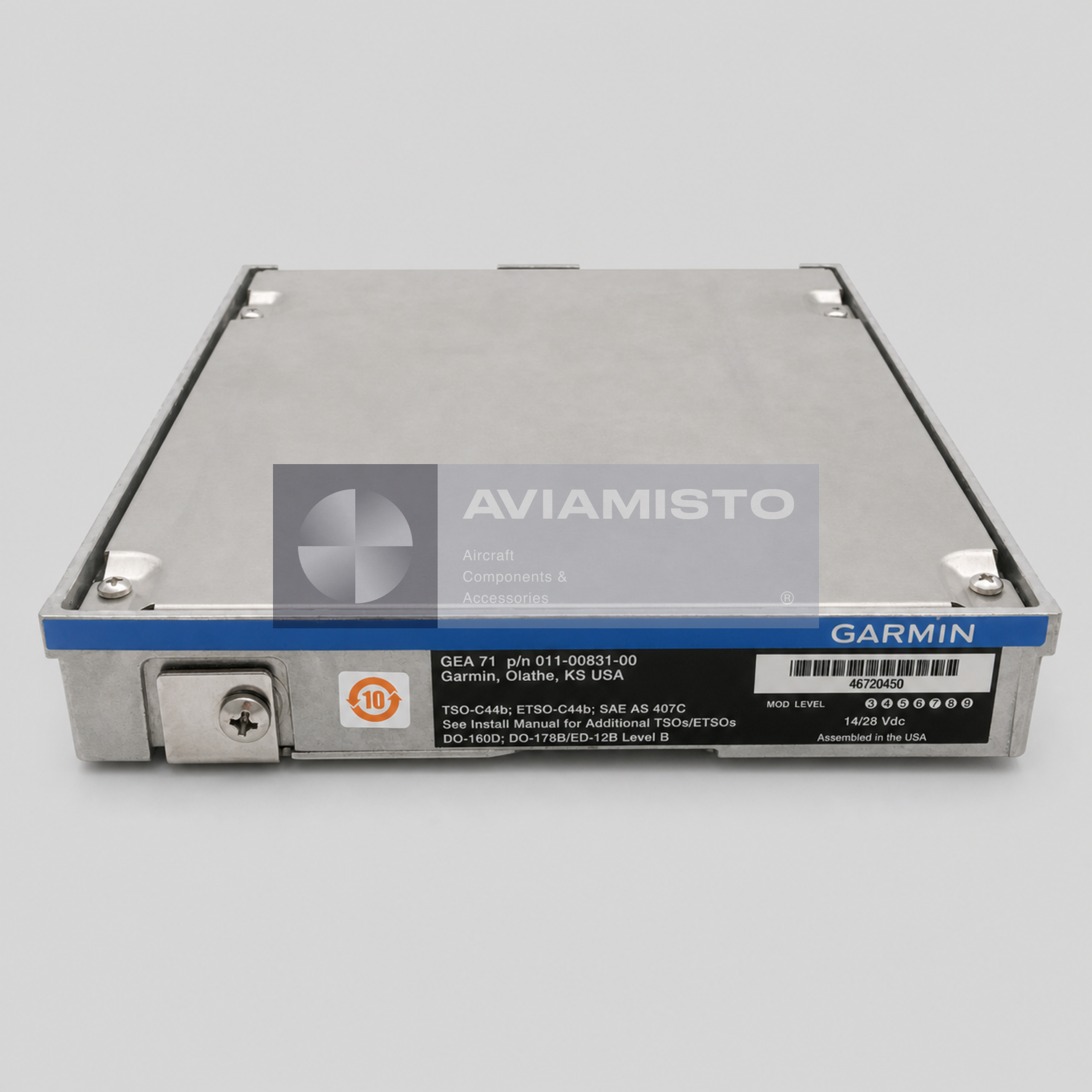

This 011-00831-00 position is offered in Serviceable condition from partner stock with a six-month warranty. The price follows the agreed comparison rule for the matching public partner position. Availability, serial number, traceability, release documentation and included accessories are reconfirmed before order acceptance because the product photographs identify a specific unit while stock can change.

For a quotation, provide MPN 011-00831-00, model GEA 71, quantity, destination and certification requirements. Confirm whether the rack, connector kit, configuration module or thermocouple accessories are required. Related identified avionics are available in the Garmin / BendixKing / Honeywell / Collins category. Products grouped there may work within related avionics architectures, but they are not automatically interchangeable.

Product Type: Engine and airframe input/output unit / Line Replaceable Unit

Manufacturer: Garmin

Model: GEA 71

Designation: 011-00831-00

Alternative Designations: Garmin GEA 71; GEA71; 0110083100

Main Function: Monitoring configured engine and airframe sensor inputs and driving annunciator outputs

System: Compatible Garmin Integrated Flight Deck installation

System Communication: Two RS-485 channels to compatible GIA 63 / GIA 63W Integrated Avionics Units

Analog Inputs: 18 differential inputs, including four current-monitor-capable inputs

Engine Temperature Inputs: 12 differential analog inputs

Discrete Inputs: 23

Digital Inputs: 12; configurable as discrete inputs where applicable

Discrete Annunciator Outputs: 4

Sensor Excitation Outputs: +5 V DC and +10 V DC at up to 125 mA; +12 V DC at up to 300 mA

Power Supply: 14/28 V DC

Maximum Current, Normal On: 0.30 A at 14 V DC; 0.15 A at 28 V DC

Maximum Current, Full Transducer Load: 1.00 A at 14 V DC; 0.50 A at 28 V DC

Connectors: Two 78-pin D-subminiature connectors

Dimensions with Rack: 1.23 in W × 6.30 in H × 8.73 in D (3.12 × 16.0 × 22.17 cm), depth including connectors

Unit Weight: 1.75 lb (0.79 kg)

Rack, Nutplate and Connector Kit Weight: 0.83 lb (0.38 kg)

Condition: Serviceable

Warranty: 6 Months

Delivery Set: Exact included rack, backplate, connector kits, configuration module, thermocouple accessories and documentation to be confirmed in the quotation

Technical Documentation: Garmin GEA 71 Installation Manual 190-00303-40 and aircraft-approved installation data
