MS-61

MS-61 aircraft wire tape recorder

MS-61 is an aircraft wire tape recorder designed for recording speech signals from onboard radio receivers and aircraft intercom systems, as well as for autonomous recording from laryngophones and crew headsets on aircraft. The recorder operates as part of onboard voice recording systems and is used to capture crew speech, radio communication and time-related information during flight.

Speech recording through MS-61

The MS-61 records audio signals received from aircraft radio receivers, aircraft intercom circuits and crew microphone sources. It can record speech information from laryngophones and headsets, allowing the system to capture cockpit voice communication and radio exchange during operation. The recorded information may be used for subsequent playback, technical review, maintenance analysis or investigation, depending on aircraft procedures and recorder configuration.

Magnetic wire recording principle of MS-61

The MS-61 performs magnetic recording on a steel wire recording medium. Recording is carried out with high-frequency bias, while previous recordings are automatically erased by a high-frequency magnetic field in the erase head gap. The recorder uses a thin wire medium and provides continuous recording for not less than 5.5 hours. This wire recording principle is typical for earlier aircraft voice recorders before the transition to tape and solid-state recording systems.

MS-61 system composition

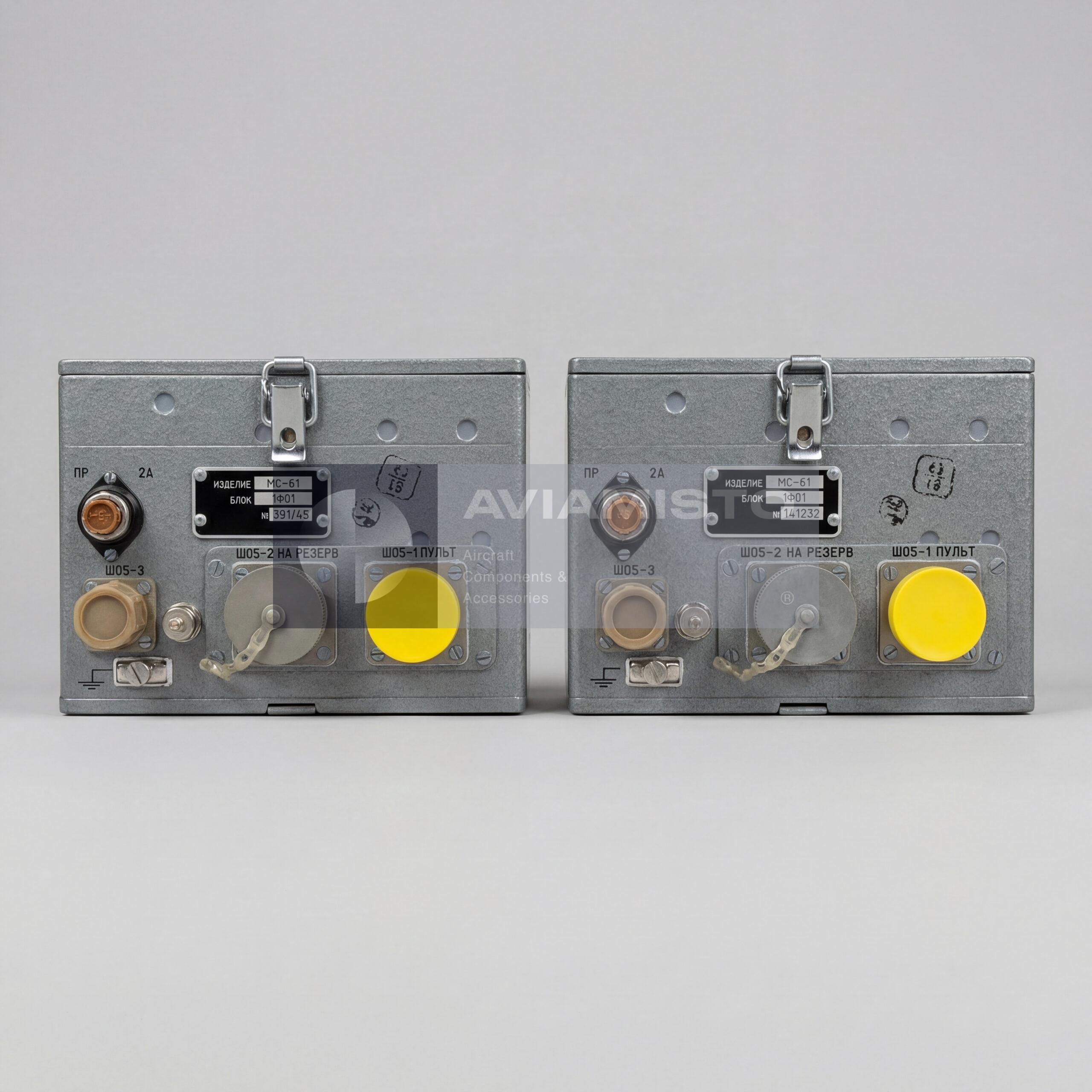

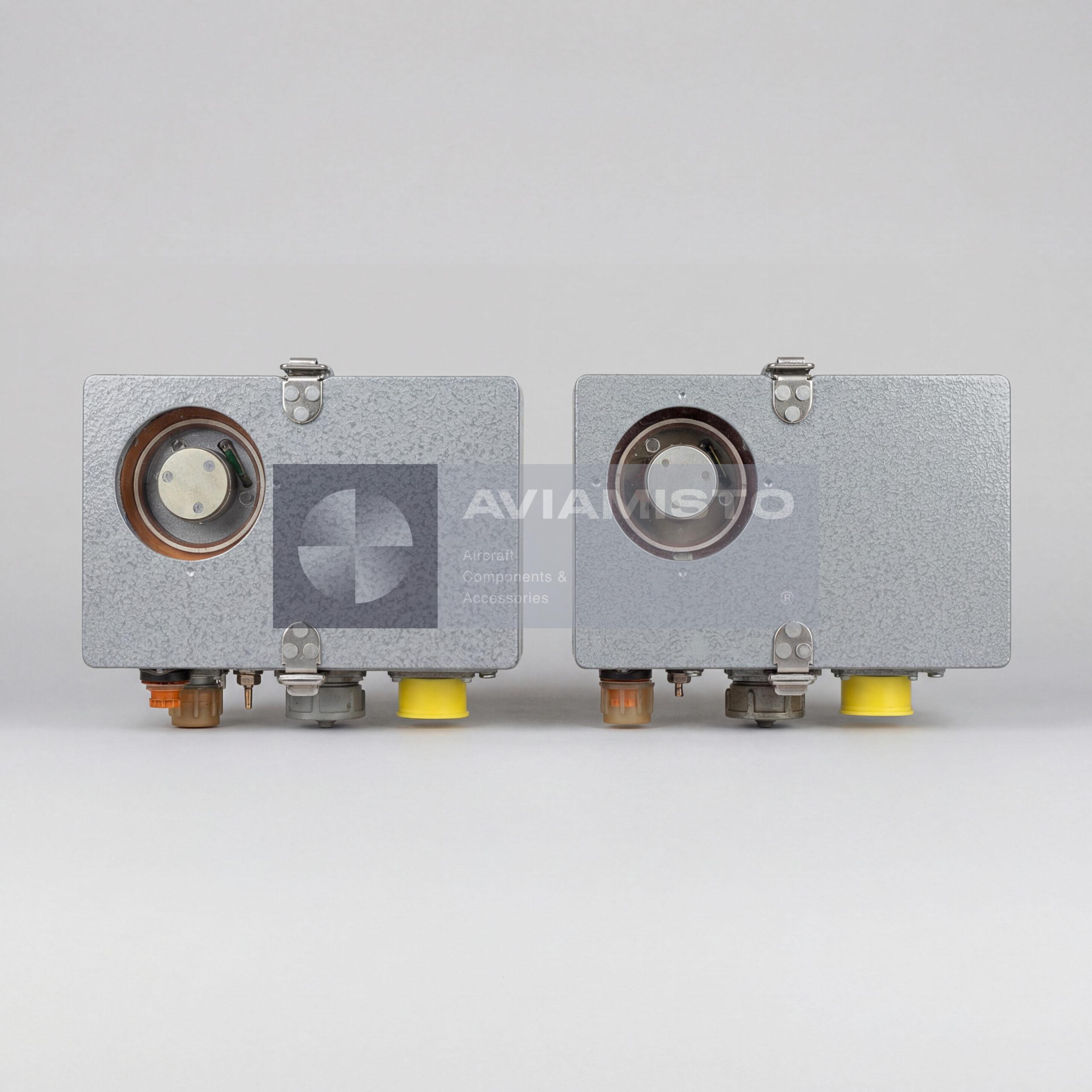

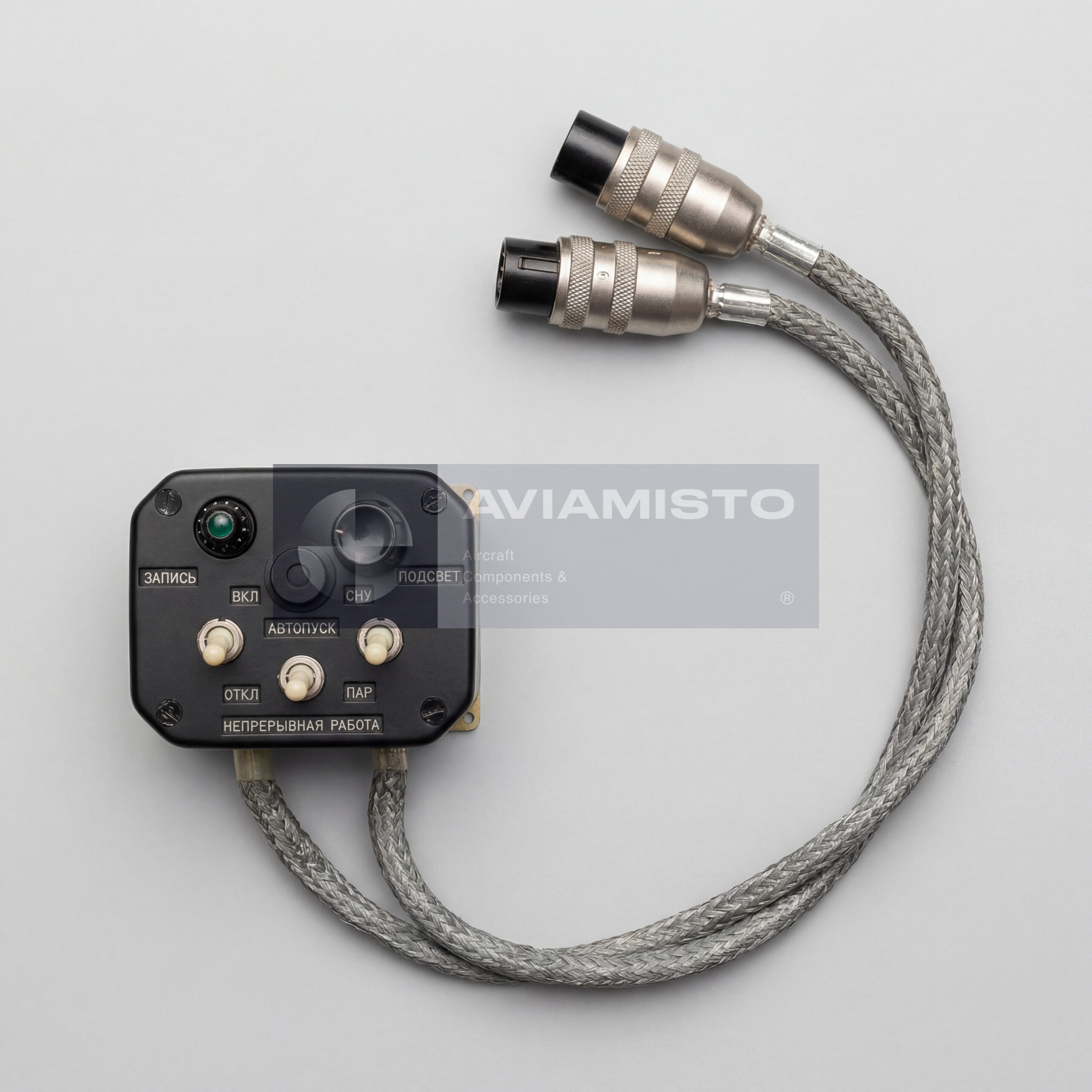

The MS-61 system consists of a recording unit, control panel and connecting cables. The recording unit performs the magnetic wire recording process, while the control panel provides operational control of the recorder. The cable set connects the recording unit with the control panel and aircraft communication circuits. The system is intended for integration with aircraft radio receivers and SPU / intercom equipment according to aircraft documentation.

Automatic start and stop function of MS-61

The MS-61 supports automatic start and stop depending on input signal levels. The recorder can begin operation when a signal from a laryngophone or aircraft intercom circuit reaches the required threshold. After the input signal ends, the automatic stop delay allows recording to continue for a defined period before stopping. These functions help the system record useful speech information while reducing unnecessary operation during silence or inactive communication periods.

Identification and ordering of MS-61

The product may be referenced as MS-61, МС-61, MS-61B or МС-61Б. These names may appear in documentation and supply lists for aircraft wire tape recorder systems. For correct supply, it is useful to specify the aircraft type, installed recorder configuration, required condition, documentation set and whether the request concerns the complete MS-61 recorder or separate components, such as the recording unit, control panel, connecting cables or related accessories.

Product Type: Aircraft wire tape recorder
Designation: MS-61
Alternative Designations: МС-61, MS-61B, МС-61Б
Function: Recording of speech signals and time information
Purpose: Recording of speech from radio receivers, intercom systems, laryngophones and crew headsets
Application / Where Used: Aircraft onboard voice recording systems
System / Installation Area: Onboard communication and recording system
Compatible Aircraft / Equipment: Aircraft equipped with SPU and radio receivers
Part of System / Included in Set: Recording unit; control panel; connecting cables
Recording Principle: Magnetic wire recording with high-frequency bias and automatic erasure of previous recordings
Recording Medium: Steel wire
Recording Medium Diameter: 0.05 mm
Operating Voltage: 27 V DC ±10%
Power Consumption: Not more than 20 W
Frequency Range: 0.3 to 3.4 kHz
Linear Speed: 145 to 195 mm/s
Continuous Recording Duration: Not less than 5.5 h
Recording Current: 1.7 to 2.5 mA
Automatic Start Threshold, Laryngophone: 150 to 300 mV
Automatic Start Threshold, SPU / Intercom: 5 to 8 V
Automatic Stop Delay: 5 to 25 s
Adjustment Range of Auto-Start, Laryngophone: 100 to 500 mV
Adjustment Range of Auto-Start, SPU / Intercom: 3 to 15 V
Total Harmonic Distortion: Not more than 18%
Operating Temperature Range: −60 °C to +50 °C
Relative Humidity: 95 to 98% at +40 °C
Vibration Resistance: 10 to 80 Hz, up to 8.5 g
Shock Resistance: Up to 12 g
Weight: Not more than 4 kg
Condition: As applicable
Technical Documentation: Passport MS-61
