Filter Element
340.044A
Price on request
Filter Element
Partner Stock
Description

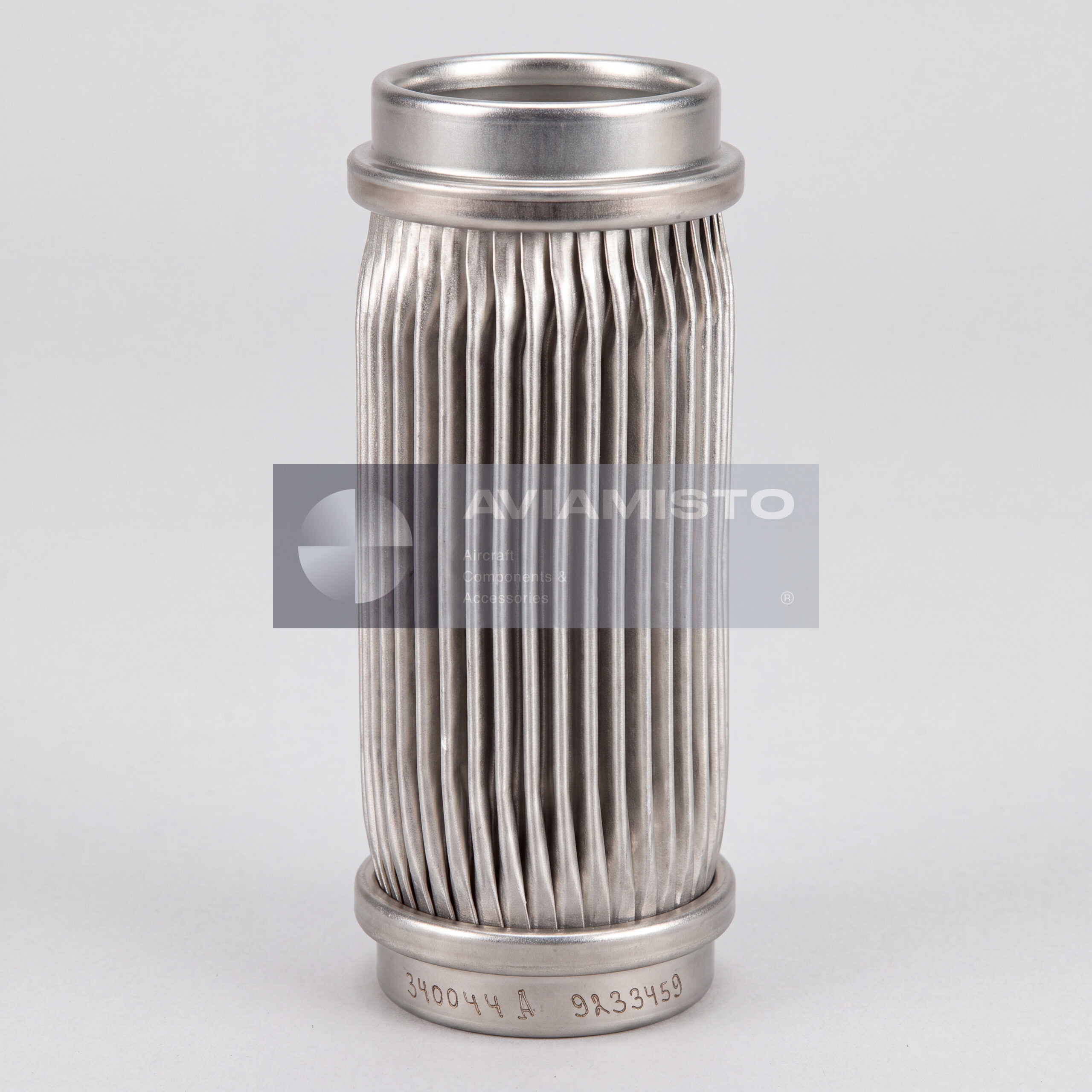

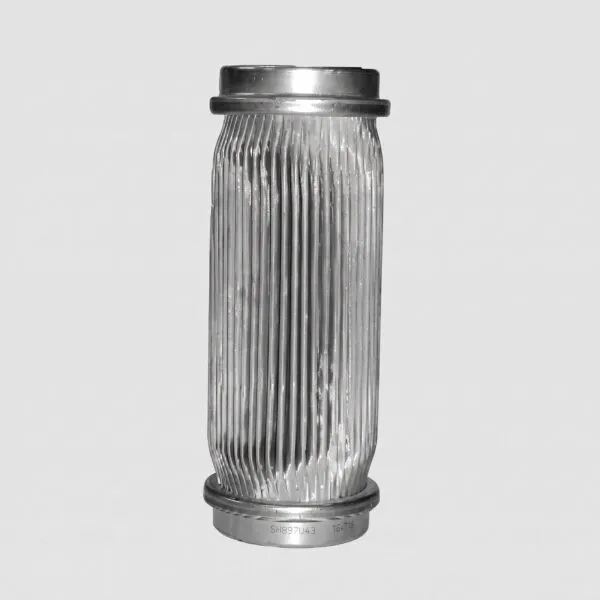

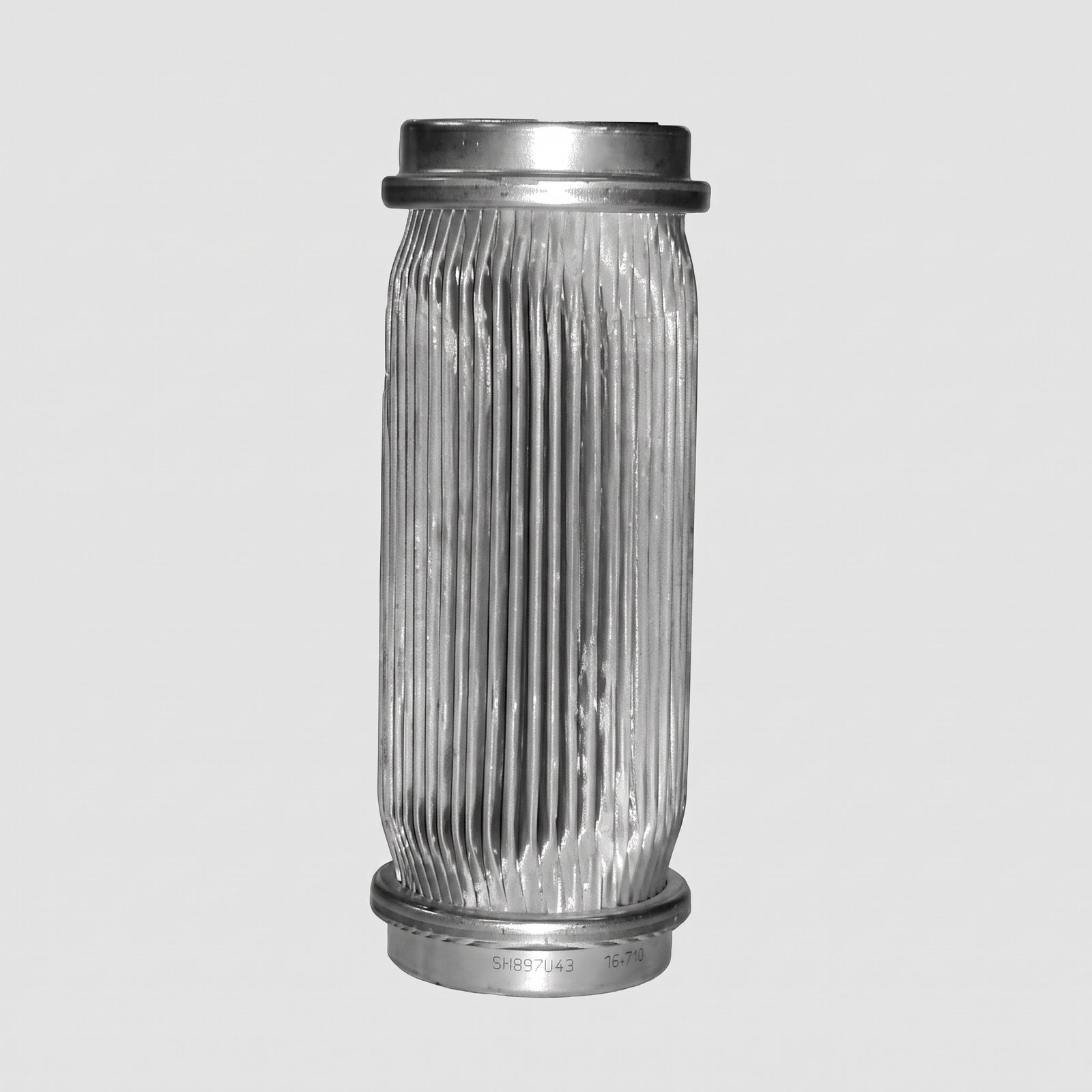

340.044A filter element for aircraft fluid systems
The 340.044A is a regenerable cylindrical filter element designed for fine filtration of working fluids in aircraft, airfield and special equipment. The element is installed inside filter housings used in hydraulic and fuel systems. Its task is to retain mechanical contaminants while allowing the required flow of working fluid through the system. In service, the 340.044A is treated as a reusable filter element, which can be cleaned and returned to operation according to the applicable maintenance procedure.
Fine filtration function of the 340.044A element
The 340.044A filter element provides filtration of hydraulic fluid, aviation kerosene and fuel from solid particles. It is used where reliable fluid cleanliness is required to protect pumps, valves, actuators, metering units and other downstream components. Mechanical contamination can lead to wear, unstable operation, sticking of precision parts or blockage of internal channels. For this reason, the filter element should be checked not only by appearance, but also by cleanliness, integrity of the filtering surface and hydraulic resistance.
340.044A in hydraulic and fuel filters
The filter element is installed inside aircraft and airfield hydraulic or fuel filter assemblies. It is associated with hydraulic filters such as 13GF6 and 13GF6SN, as well as fuel filters such as FG11BN, FG11BN-1, FG11SN-1 and FG11SN-T. Depending on the filter assembly, the same element may work with hydraulic oil or aviation fuel. Before replacement, the filter housing, working medium, element designation and maintenance documentation should be checked to avoid incorrect installation.
Regenerable design of the 340.044A
The 340.044A is a regenerable filter element, which means it is designed for repeated use after proper cleaning and inspection. This is useful in aviation maintenance, but it also requires careful handling. The element should not be reused if the filtering surface is damaged, deformed, clogged beyond acceptable limits or if the sealing areas are not serviceable. Incorrect cleaning or rough handling can reduce filtration quality, increase pressure drop or allow contaminants to bypass the filtering surface.
Working fluids for 340.044A
The 340.044A element is suitable for use with AMG-10 hydraulic oil and aviation fuels including T-1, T-2, TS-1 and RT. This makes it applicable in both hydraulic and fuel filter assemblies, depending on the system design. Since these fluids are used in different circuits, the element should be handled with attention to cleanliness and compatibility. A filter element removed from one medium should not be installed into another system without following the required cleaning, inspection and maintenance rules.
Application of 340.044A on aircraft and ground equipment
The 340.044A is used in onboard aircraft systems and airfield ground support equipment. It is associated with aviation systems installed on Mi-8 family helicopters and with ground service equipment where hydraulic fluid or aviation fuel filtration is required. Exact applicability depends on the filter assembly, not only on the aircraft type. For procurement, the filter element designation should be matched with the filter housing and the system documentation.
Supply and inspection of 340.044A
For procurement or replacement, the full designation 340.044A should be specified. Before installation, the filter element should be checked for cleanliness, deformation, corrosion, damage to the filtering surface, condition of sealing areas and compatibility with the filter housing. Since the element is regenerable, its previous use and cleaning condition matter. For aircraft use, product passport, quality documents or applicable filter maintenance documentation should be confirmed where available.
Details
Product Type: Regenerable filter element
Designation: 340.044A
Function: Fine filtration of working fluids from mechanical contaminants
Application / Where Used: Aircraft, airfield and special equipment fluid systems
System / Installation Area: Inside hydraulic and fuel filter housings
Design: Cylindrical regenerable / reusable filter element
Working Media: AMG-10 hydraulic oil; aviation kerosene and fuels T-1, T-2, TS-1, RT
Filtration Fineness, Nominal / Absolute: 16 / 25 µm
Nominal / Maximum Flow Rate: 40 L/min
Hydraulic Resistance of Clean Element: Not more than 0.02 MPa / 0.2 kgf/cm²
Maximum Pressure Differential: Up to 1 MPa / 10 kgf/cm²
Dry Weight: Approximately 0.19 kg
Associated Hydraulic Filters: 13GF6, 13GF6SN
Associated Fuel Filters: FG11BN, FG11BN-1, FG11SN-1, FG11SN-T
Compatible Aircraft / Equipment: Mi-8 family helicopters, onboard aircraft systems and airfield ground support equipment depending on filter assembly
Inspection / Testing: Filtering surface check, sealing area inspection, cleanliness check, deformation check and hydraulic resistance verification
Condition: As applicable
Technical Documentation: Product passport, quality documents and filter maintenance documentation as applicable
