Fuel filter
11TF30M
Price on request
Fuel filter
Available on back-order
Description

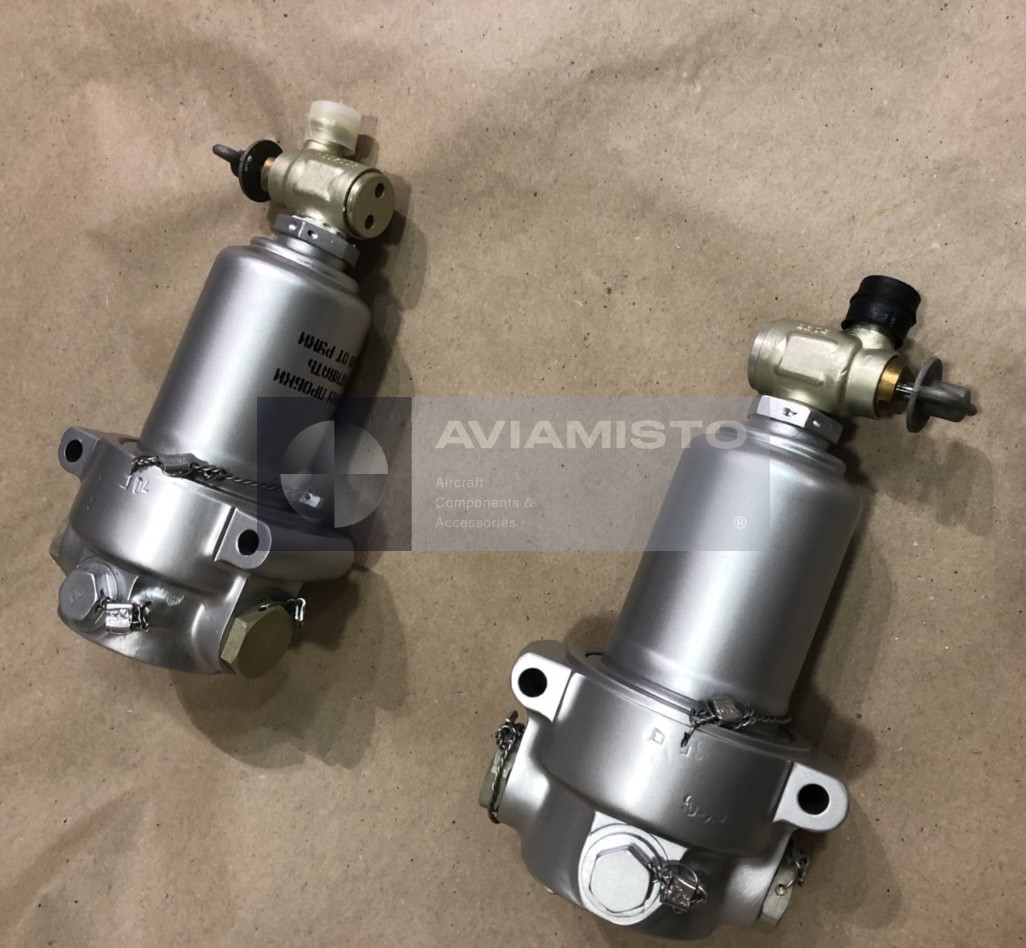

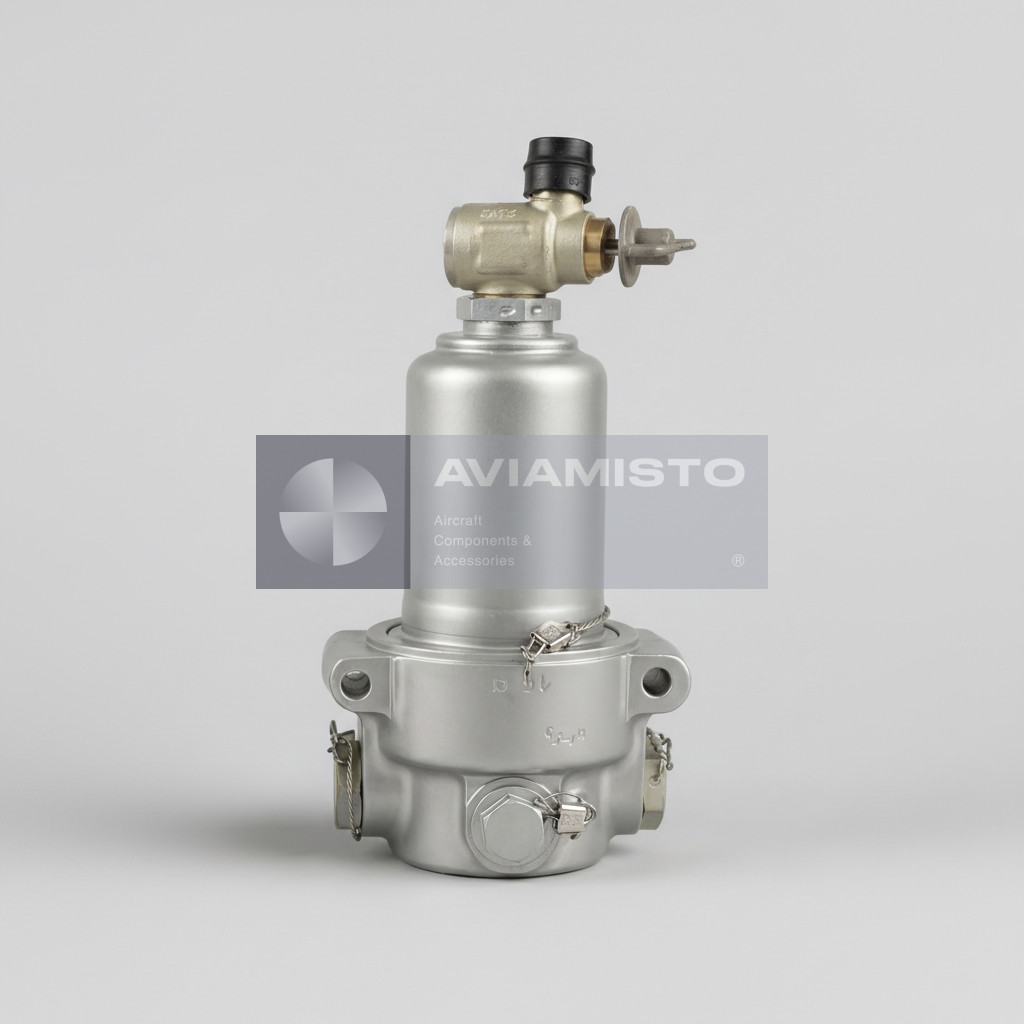

The 11TF30M is an aircraft fuel filter designed for fine filtration of aviation fuel in onboard fuel systems of internal combustion engines.
Within the fuel system, the filter is installed upstream of the main fuel system units and performs removal of fine mechanical contaminants from the fuel, protecting engine components and ensuring stable combustion.
The filter is used in aircraft fuel systems where fine fuel purification is required to prevent ingress of solid particles and condensed water into the combustion chamber.
The product is also known under alternative designations 11TF30M, 11TF-30M, which refer to the same product type.
Details
Product Type: Fuel filter
Function: Fine filtration of aviation fuel
Application / Where Used: Aircraft fuel systems
Working Medium: Aviation fuel
Filter Element Designation: 340.030
Filtration Fineness (Nominal): 10 µm
Nominal Operating Pressure: 0.3 MPa
Maximum Flow Rate: 10 L/min
Hydraulic Resistance of Clean Filter: Not more than 0.015 MPa
Bypass Valve Opening Pressure Differential: 0.05 ± 0.02 MPa
Operating Temperature Range: −60 to +60 °C
Weight: Not more than 0.75 kg
Scope of Supply: Filter assembly with non-regenerable filter element, bypass valve, drain valve
Technical Documentation: Technical documentation for fuel filter 11TF30M
Payment & delivery
All shipments are carried out from our international warehouse in Dubai (UAE), as well as from our partners’ remote warehouses.
In Stock — items available in stock at the Dubai warehouse are dispatched within 5–10 business days after receiving 100% prepayment.
Remote Stock — items available at our partners’ remote warehouses are supplied within an average of 30–45 business days after receiving 100% prepayment.
Pre-Order — made-to-order products are manufactured and delivered within an average of 45–60 business days. Payment terms: 50% advance payment to start production, with the remaining 50% paid before dispatch from the Dubai warehouse after full readiness for shipment.
Returns & Changes (Restocking Fee)
For selected items, a RESTOCKING FEE of 10% may apply in case of return, order cancellation, or changes to the order specifications. This condition applies only to certain products and is confirmed at the order approval stage.
Warranty
All products are covered by a standard 6-month warranty.
Extended warranty is available upon request and is agreed individually; it may affect the final product price.
