M7B

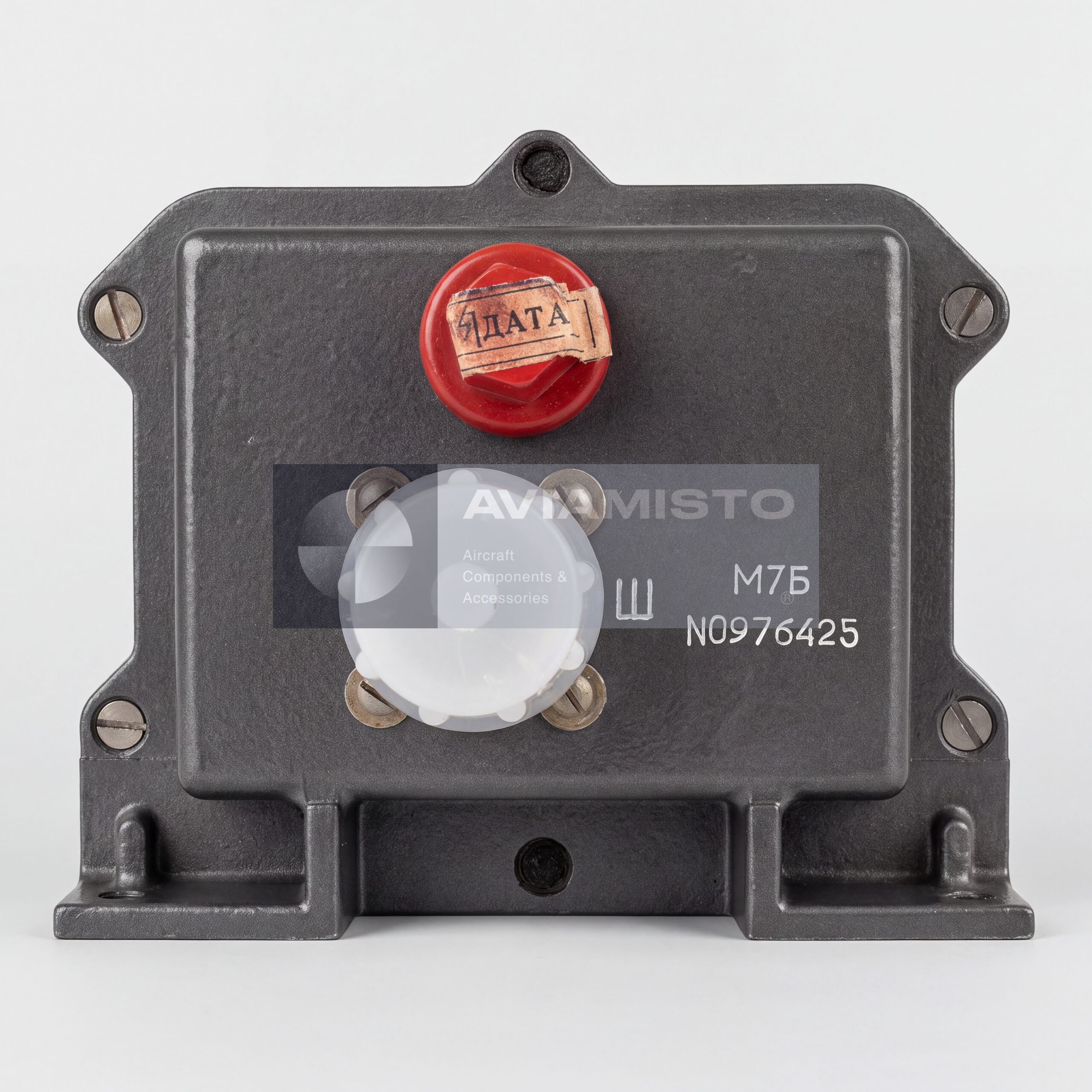

M7B aviation electronic module

M7B is a specialized aviation electronic module used in onboard equipment of Mi-26 heavy transport helicopters, according to the supplied source context. The unit belongs to aviation technical property and is referenced in technical documentation related to Mi-26 onboard systems. Open civil sources provide limited information about the internal electrical characteristics of this module, so identification, applicability and inspection should be confirmed through the original technical documentation, product passport and aircraft equipment records.

Function and system role of M7B

The M7B module is described as a signal interface / signal conversion component used in onboard avionics and flight data recording equipment. In the supplied context, it is associated with automated onboard monitoring systems such as Tester-U3 and related Mi-26 equipment documentation. The module may be involved in receiving, converting or coordinating electrical signals between aircraft systems and recording / monitoring channels. Exact signal paths, input levels, output circuits and channel logic should be checked only through the applicable operating manual and wiring documentation.

M7B in Mi-26 onboard equipment

The module is connected with onboard systems of the Mi-26 heavy multipurpose transport helicopter. It may appear in maintenance inventories, repair base lists and technical documentation sets for Mi-26 aircraft equipment. Since Mi-26 onboard systems include different avionics, control, monitoring and recording units, the exact installation location of M7B should be confirmed by aircraft configuration, equipment list and maintenance documentation. The module should not be treated as a universal electronic unit without verifying its system role on the specific aircraft.

Documentation for M7B

The supplied context references technical specifications TU 8I3.687.011TU and operating documentation 8I3.687.011 RE for the M7B module. Full technical characteristics, internal channel diagrams, connector pinout, control points and bench-test procedures are not normally available in general public catalogues. These details are usually contained in the original operating manual, maintenance cards, test equipment documentation and product passport / label. For procurement, the documentation set should be agreed before shipment, especially if the item is intended for repair or installation.

Storage and supply context

M7B modules may be encountered as stored aviation inventory, including older production batches preserved in individual packaging. According to the supplied context, the unit may be supplied with an individual passport, label and form record depending on availability and stock condition. Before purchase, it is important to verify production year, preservation status, storage conditions, completeness, seal condition and documentation. For electronic modules from long-term storage, bench testing or inspection records are especially important before installation in aircraft equipment.

Identification and ordering of M7B

Before ordering M7B, the customer should confirm the exact aircraft type, system application, required quantity, condition category and documentation requirements. It is also useful to clarify whether related modules, such as M11 or other Tester-U3 / Mi-26 avionics components, are required together with M7B. The module may be needed for onboard monitoring system repair, flight data recording equipment support, replacement of a defective unit or spare parts stock. Since public technical data is limited, the safest procurement path is by exact designation and documentation reference.

Product Type: Aviation electronic module / signal interface module
Designation: M7B
Russian Designation: М7Б
Alternative Product Names: Electronic module, signal interface module, signal conversion module, aviation instrument equipment module
Function: Signal interface / signal conversion in onboard avionics or monitoring equipment, according to source context
Application / Where Used: Mi-26 onboard systems
System / Installation Area: Aircraft avionics, monitoring or flight data recording equipment according to aircraft configuration
Compatible Aircraft / Equipment: Mi-26 heavy transport helicopter according to source context and documentation
Associated Recording / Monitoring System: Tester-U3 automated onboard monitoring / flight data recording system, according to source context
Associated Related Module: M11 module, according to source context
Technical Specifications: TU 8I3.687.011TU
Operating Manual Reference: 8I3.687.011 RE
Documentation Availability: Full internal electrical data should be confirmed through original technical documentation
Known Documentation Set: Product passport / label and form record, depending on supply condition
Storage / Supply Context: Individual sealed packaging and long-term storage batches may be available depending on stock
Condition: New / As-Stored / Overhauled / Serviceable, depending on availability
Technical Documentation: Product passport, label, form record, Mi-26 equipment documentation, Tester-U3 documentation, wiring diagrams and bench-test records if available
