M45204 integral microwave module

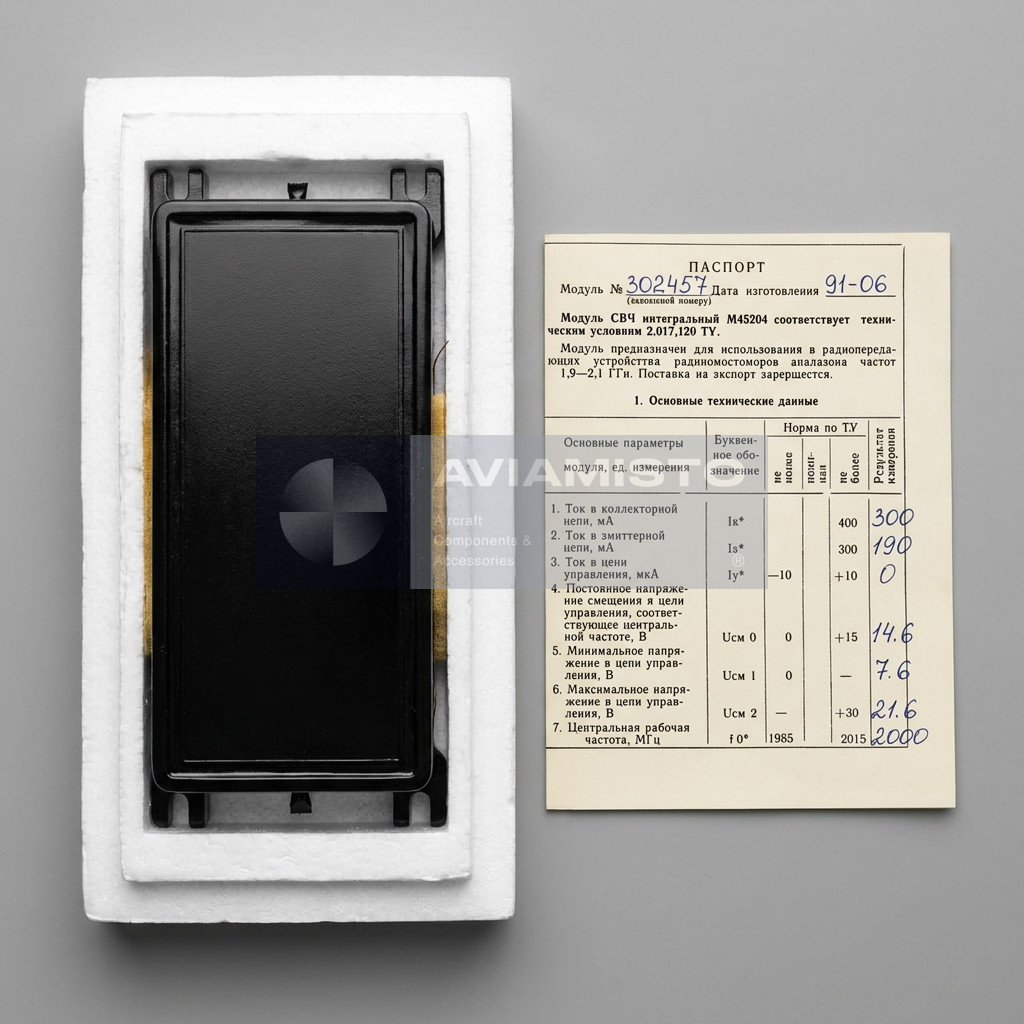

M45204 is an integral microwave module used in specialized onboard radio-electronic and aviation equipment. The module belongs to high-frequency / microwave components and may be used in receiver, generator or amplifier circuits of aircraft radio systems. In the supplied context, M45204 is associated with radio altimeter and radio-navigation equipment, including RV-3, RV-4 and RV-5 system references depending on documentation. It should be identified by exact marking, technical specifications and product passport before supply or installation.

Function of M45204 in radio-electronic equipment

The M45204 module is intended for operation in microwave signal paths where generation, preliminary amplification or processing of high-frequency signals is required. In onboard systems, such modules can be used in receiving or transmitting sections of radar, radio-navigation, altimeter or communication equipment. According to the supplied context, M45204 works in the L-band frequency area and may be installed in the receiver section of RV-3 radio equipment. The exact circuit role depends on the parent unit and system documentation.

M45204 in radio altimeter equipment

M45204 is referenced as a component used in aircraft radio altimeter systems, including RV-3, RV-4 and RV-5 context references. In such equipment, microwave modules are used in the radio-frequency chain to form, receive, amplify or process signals related to height measurement. The module may support the operation of the receiver path or RF section of the radio altimeter. Since radio altimeter versions and internal block structures differ, applicability must be confirmed by the specific equipment manual, wiring diagram and installed unit configuration.

Frequency range and microwave construction

The supplied context indicates that M45204 operates in the 1.9–2.1 GHz frequency range, which belongs to the decimeter / L-band microwave region. The product is described as a hybrid-integrated microwave module manufactured in a sealed metal-ceramic or metal housing. This type of construction is used to protect sensitive high-frequency circuitry from vibration, humidity, contamination and mechanical stress. The module is associated with technical specifications bSh2.017.120 TU and production by NEVZ-Soyuz according to the source context.

Operating and storage context

As an aviation microwave component, M45204 is intended for demanding operating conditions typical of onboard radio-electronic equipment. The source context indicates resistance to vibration and linear loads, operation over a wide temperature range and use under reduced atmospheric pressure conditions. M45204 may be found as first-category or long-term stored aviation inventory, including Soviet and post-Soviet production batches. Before use, inspection of packaging, seal condition, passport data, production year and bench-test records is strongly recommended.

Identification and ordering of M45204

Before ordering M45204, the buyer should confirm the exact designation, parent equipment, required condition, quantity and documentation set. It is especially important to clarify whether the module is required for RV-3, RV-4, RV-5 or another radio-electronic system. The item may be needed for repair of a radio altimeter receiver, restoration of microwave signal paths, replacement of a failed RF module or spare parts stock. For acceptance, the product passport, technical specifications reference, serial number and test documentation should be checked.

Product Type: Integral microwave module / RF electronic component
Designation: M45204
Russian Designation: М45204
Alternative Product Names: Microwave module, integral microwave module, RF module, high-frequency module, hybrid-integrated microwave module
Function: Generation, preliminary amplification or processing of microwave signals in onboard radio-electronic equipment according to source context
Application / Where Used: Aircraft radio-electronic, radio-navigation, radio altimeter or communication equipment
System / Installation Area: Receiver / RF signal path of parent radio equipment according to configuration
Associated Equipment: RV-3 receiver according to source note; RV-4 / RV-5 radio altimeter equipment according to source context
Frequency Range: 1.9–2.1 GHz according to source context
Frequency Band: Decimeter wave / L-band microwave range
Technical Specifications: bSh2.017.120 TU
Russian Technical Specifications: бШ2.017.120 ТУ
Manufacturer Reference: NEVZ-Soyuz / Novosibirsk Electrovacuum Plant, according to source context

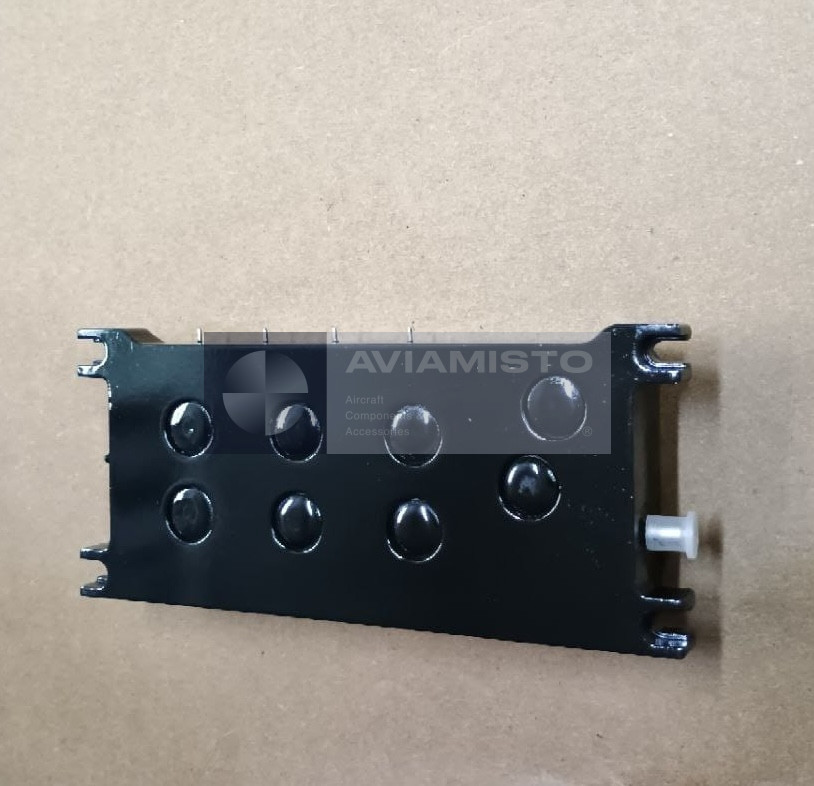

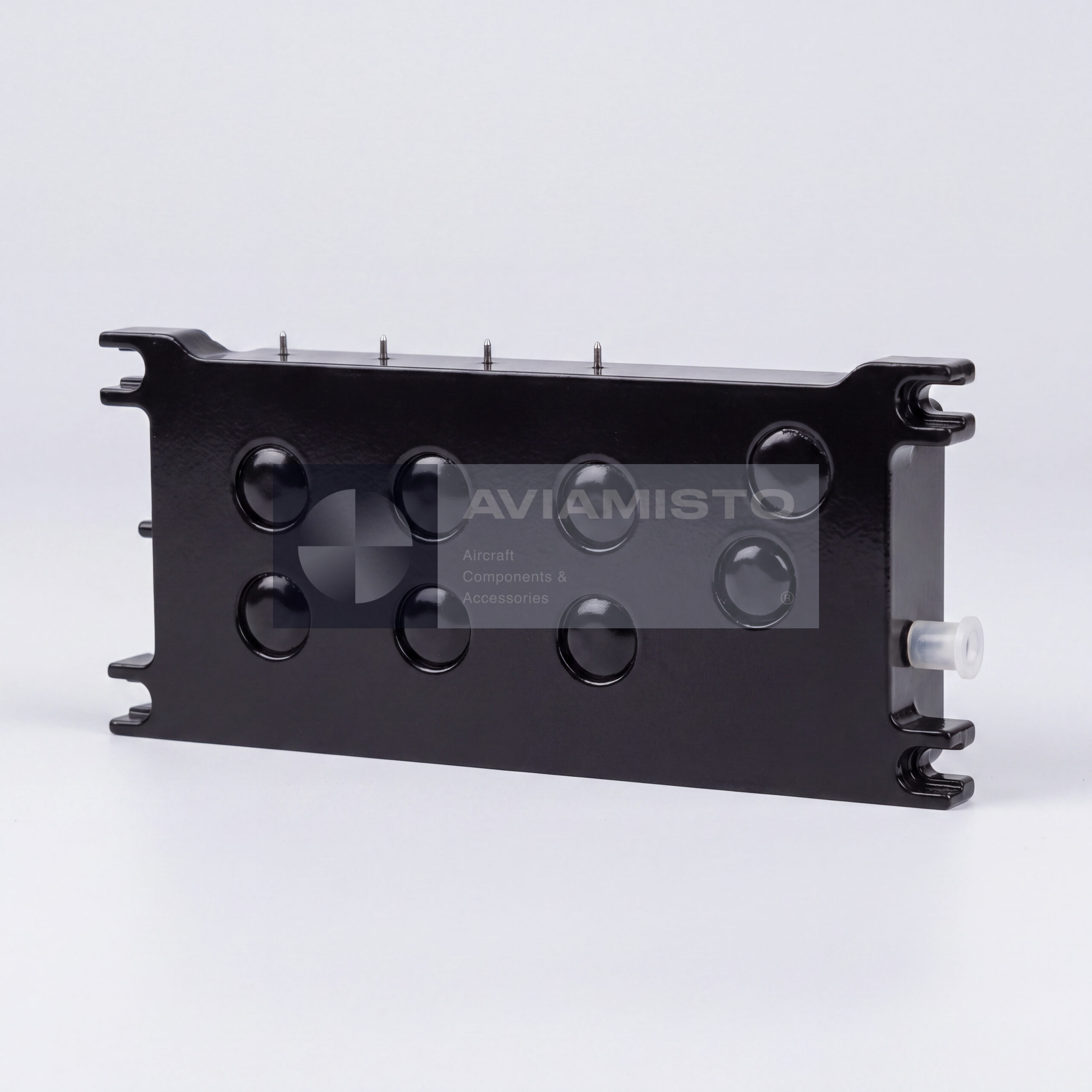

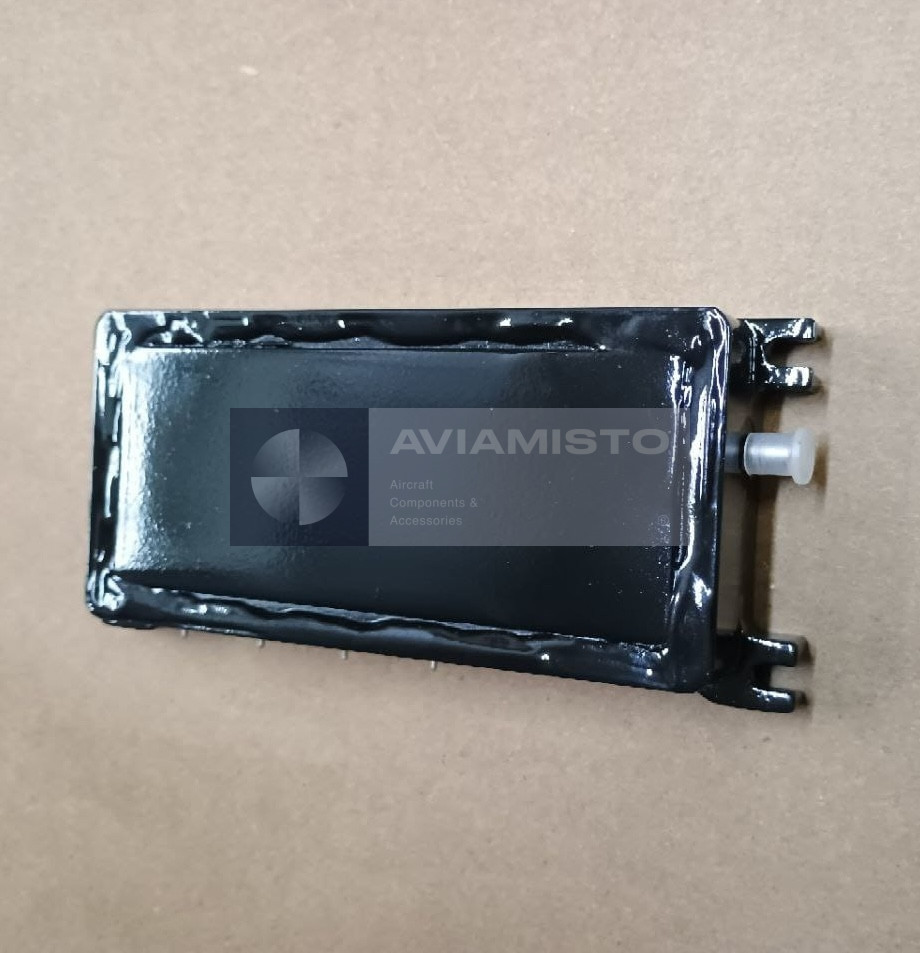

Construction: Hybrid-integrated microwave circuit in sealed metal-ceramic or metal housing
Operating Environment: Aircraft vibration, linear loads and climatic conditions according to aviation equipment requirements
Operating Temperature Reference: Typically −60 °C to +85 °C for aviation microwave components, according to source context
Altitude / Pressure Context: Operation under reduced atmospheric pressure conditions according to source context
Storage / Supply Context: First-category or long-term stored aviation inventory may be available depending on stock
Condition: New / first-category stored item / As-Stored / Overhauled / Serviceable, depending on availability
Technical Documentation: Product passport, technical specifications reference, parent equipment documentation, bench-test records and inspection documents if available
