1UI03-4/06-1

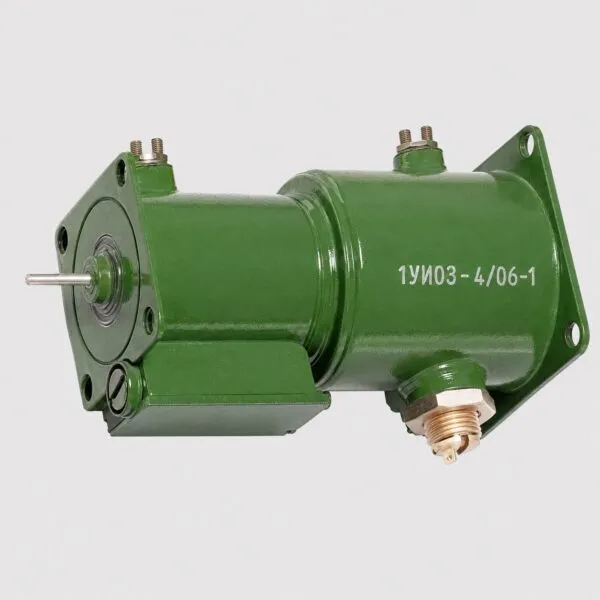

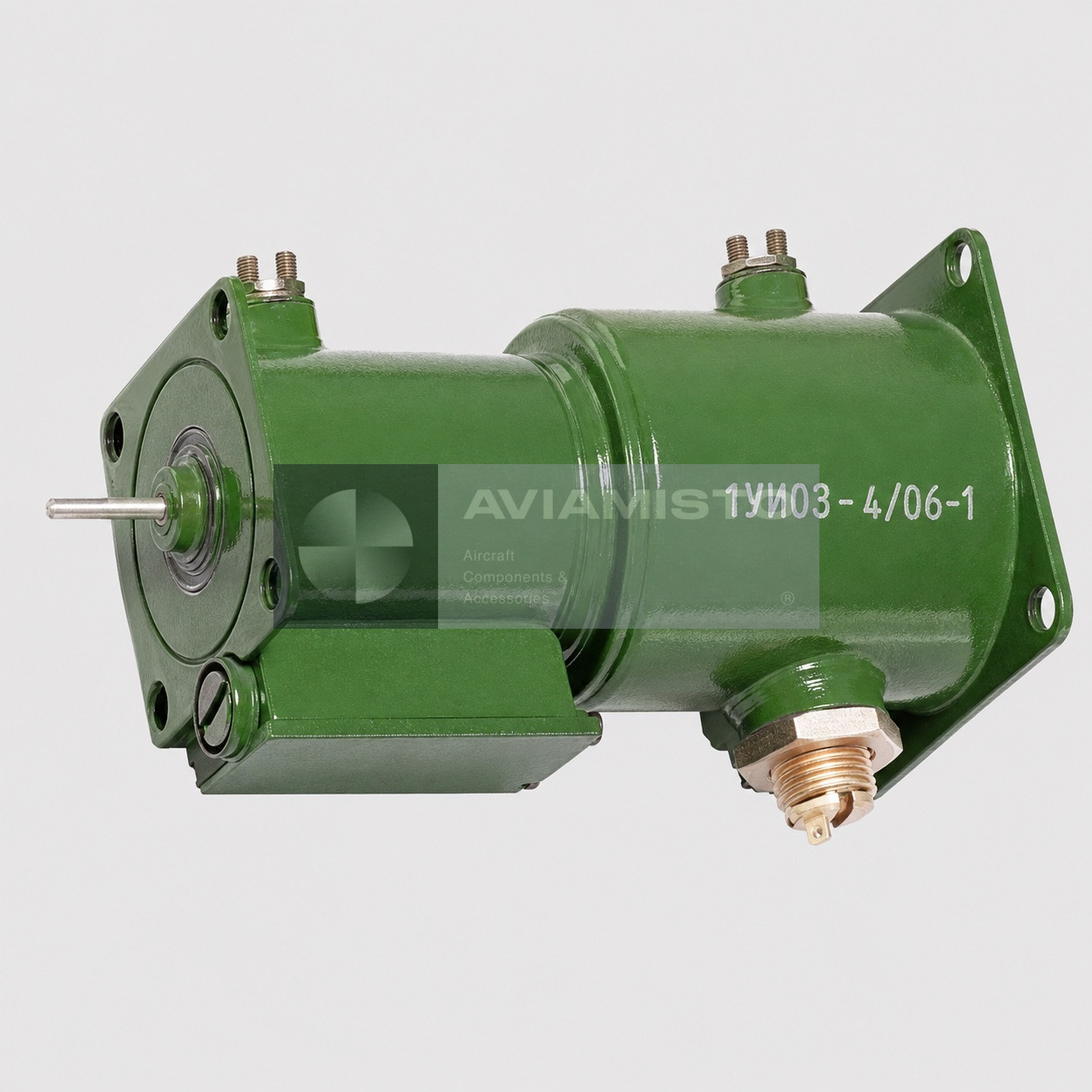

1UI03-4/06-1 microwave module purpose

1UI03-4/06-1 is a pulsed microwave amplifier module intended for amplification of pulsed microwave signals at fixed frequencies in decimeter-wave equipment. It operates inside a matched radio-frequency path and is not a complete stand-alone transmitter.

The slash code and execution index identify the specific modification. The full 1UI03-4/06-1 designation should be stated in an inquiry because neighbouring family variants may have different electrical performance and tuning.

Operating principle and equipment role

The module operates in pulsed mode in the decimeter-wave part of the microwave spectrum. It accepts a pulsed input signal and raises its power within the bandwidth specified for this execution.

The RF path, load and power-supply mode must be matched to the installed equipment. Connector pinout and supply voltages are defined by the product passport and system diagram and are not transferred from visually similar modules.

Confirmed 1UI03-4/06-1 performance

Published data for this modification specify output pulse power 350 W, 3 dB bandwidth 30 MHz, VSWR ≤ 2.0, mass 150 g. The applicable technical specification is ЖТ0.203.002 ТУ. These values belong to the exact 1UI03-4/06-1 execution.

The numerical values are repeated in Technical Details without condition, warranty, year of manufacture or stock status. Those commercial fields describe the individual unit and are shown separately on the product page.

Installation, compatibility and inspection

Selection checks the complete designation, technical specification, frequency execution, permissible output power, VSWR, mounting dimensions and interface. A similar housing or a matching base index does not establish interchangeability.

Incoming inspection covers the housing, terminals and marking and is followed by testing on suitable RF bench equipment. Operating conditions must be taken from the documentation for the exact module and connected system.

Identification and ordering of 1UI03-4/06-1

An inquiry should include the 1UI03-4/06-1 designation, quantity, required documentation and the equipment in which the module is installed. A clear nameplate photograph or logbook reference should be supplied when available.

Other executions are listed under Electronic Modules. Four related products are selected from the same functional family for navigation only and do not represent a statement of interchangeability.

Product Name: Pulsed microwave amplifier module 1UI03-4/06-1
Part Number: 1UI03-4/06-1
Cyrillic Designation: 1УИ03-4/06-1
Product Class: Fixed-frequency microwave amplifier
Function: Amplification of pulsed microwave signals at fixed frequencies in decimeter-wave equipment
Output Pulse Power: 350 W
3 dB Bandwidth: 30 MHz
VSWR: ≤ 2.0
Mass: 150 g
Technical Specification: ЖТ0.203.002 ТУ
Selection: By complete designation, technical specification and installed-equipment documentation
