1GI06-1/01-3

1GI06-1/01-3 role in the RF path

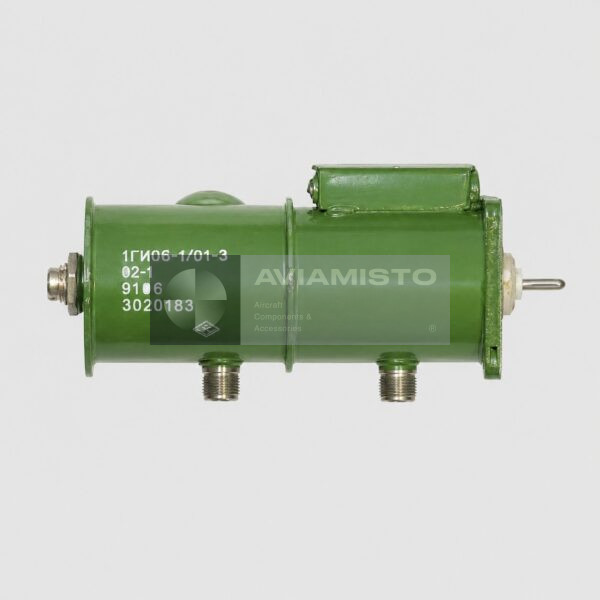

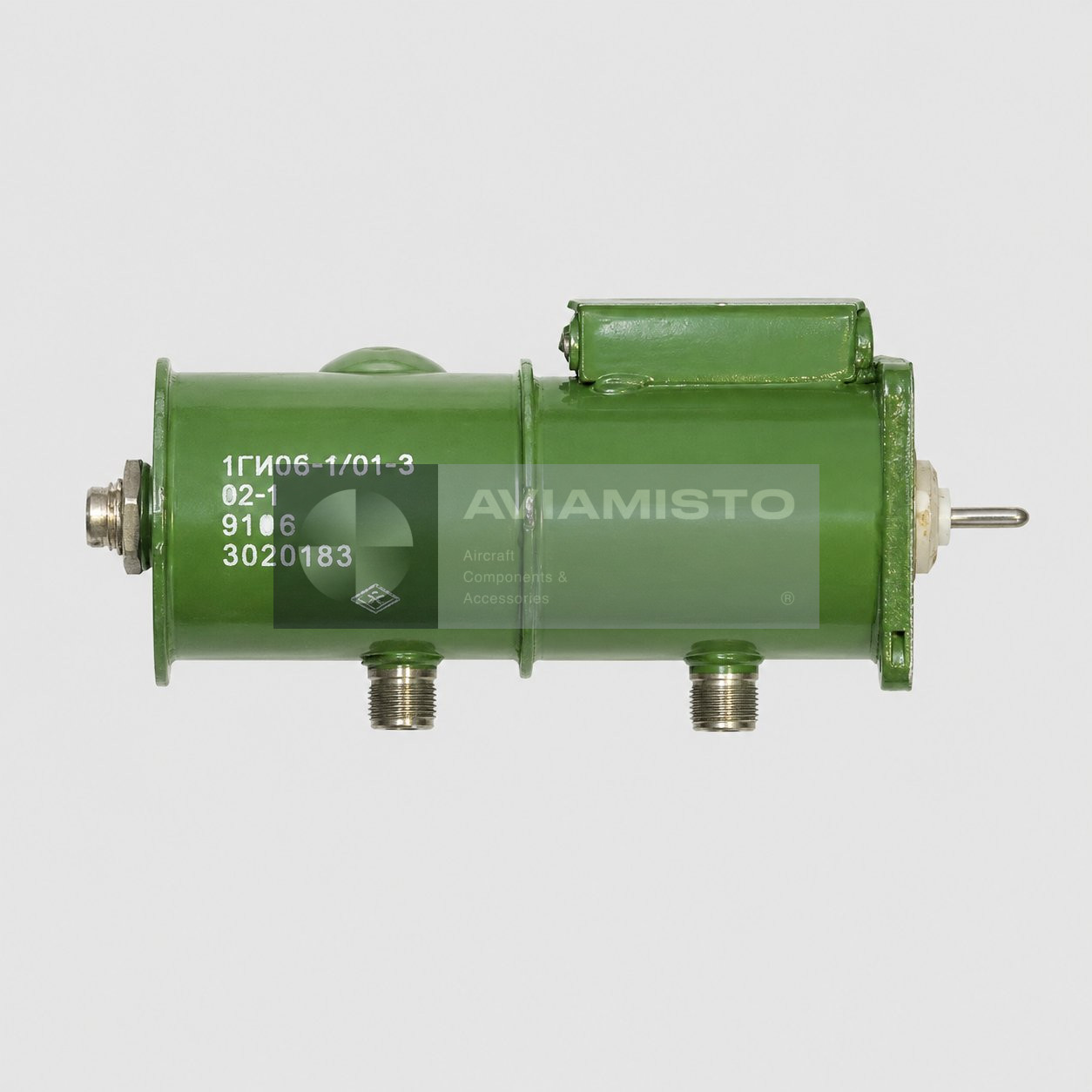

In the installed equipment the module produces high-frequency oscillations in pulsed operation and feeds them into a matched radio-frequency path. Its published purpose relates to pulsed operation in the decimeter-wave part of the microwave spectrum.

Correct integration requires confirmation of the frequency execution, permitted load, connectors, mounting arrangement and power-supply conditions. Pin assignments, voltages and start-up procedures must be taken from the product passport and the diagram for the installed equipment, not copied from a neighbouring modification.

Confirmed 1GI06-1/01-3 characteristics

The public catalogue confirms the following data for this modification: frequency execution Fixed frequencies in the decimeter-wave range, mass 350 g, technical specification ЖТ2.081.010 ТУ. Values absent from the source have not been invented, so unconfirmed supply voltages, dimensions and aircraft applicability are not presented as factory specifications.

Numerical and specification data are collected in Technical Details below. Condition, warranty, year of manufacture and stock status describe the offered unit and are intentionally kept outside the technical-data section.

Identification, inspection and compatibility

Before installation, verify the full 1GI06-1/01-3 marking against the equipment documentation, inspect the housing and terminals, and test the unit on suitable RF bench equipment. A matching housing or partial family number does not establish interchangeability.

A replacement for installed equipment must be checked against the logbook, equipment specification or circuit diagram. A unit carrying a different execution suffix should be treated as a separate product until documentary compatibility has been confirmed.

Ordering and selection of 1GI06-1/01-3

An inquiry should include the complete 1GI06-1/01-3 designation, quantity, required documentation and information about the equipment from which the module was removed. A clear nameplate photograph or logbook reference helps prevent a selection error.

Other microwave components are listed under Electronic Modules. Related products are provided for navigation within the functional family and do not imply automatic interchangeability.
