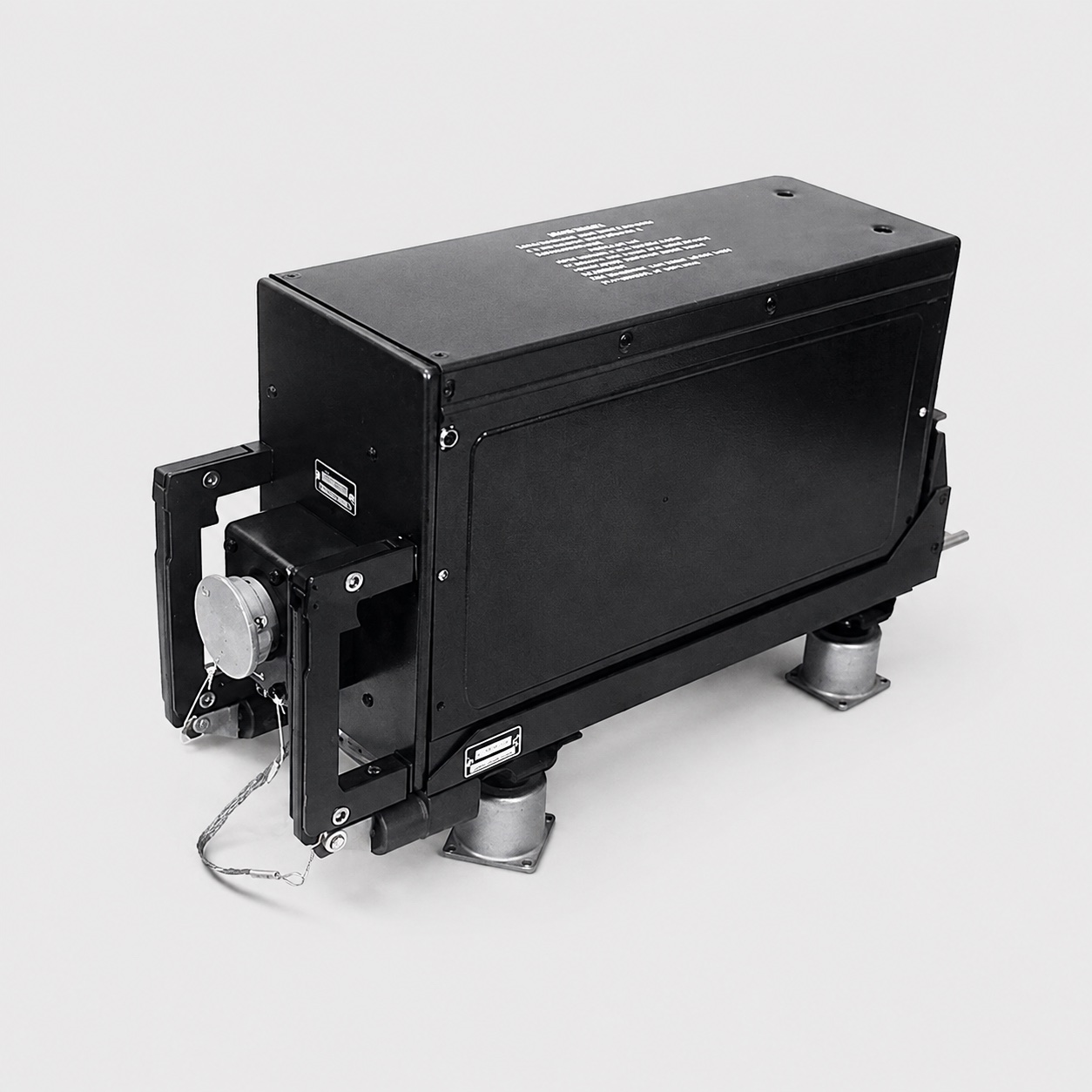

BUKZ-400
Flap and Slat Control Unit
Description
BUKZ-400 — verified identity and purpose
BUKZ-400 is a flap and slat control and monitoring unit. BUKZ-400 provides remote follow-up control and monitoring of two standard flap and slat channels. It commands hydraulic pressure and retraction valves, removes commands with or without a time delay, controls anti-retraction brakes and supplies signals to the test connector and onboard automated monitoring system. The unit is documented in the An-74 flight-control chain.
Full descriptionCollapse description
Function in the installed system
The block must be treated as one element of an installed aircraft system, working with the sensors, command circuits, indicators, actuators or power sources stated in that system documentation. A category label alone does not define pinout or interchangeability. General context is available under aircraft and avionics equipment.
Technical data and system interfaces
The Technical Details below separate confirmed values from points that still require the exact passport. Existing technical values were retained where they were specific to this designation. No voltage, aircraft type, mass or compatibility was copied from a similarly named product.
Identification and compatibility
Confirm the complete designation, suffix, series, drawing number, connector keying and aircraft or system effectivity. Related variants are not automatic substitutes. Photographs of the data plate and connectors are required when the execution cannot be established from the order line alone.
Inspection and ordering
Inspect the housing, mounting points, connectors, seals and markings before testing. Use only the approved procedure for the exact execution. State the full designation, aircraft or system, quantity, condition, delivery set and document requirements in the enquiry. Related items are listed under Electronic Control Units.
Technical details
- Product Type
- Flap and slat control and monitoring unit
- Primary Designation
- BUKZ-400
- Original Cyrillic Designation
- БУКЗ-400
- Verified Purpose
- BUKZ-400 provides remote follow-up control and monitoring of two standard flap and slat channels. It commands hydraulic pressure and retraction valves, removes commands with or without a time delay, controls anti-retraction brakes and supplies signals to the test connector and onboard automated monitoring system. The unit is documented in the An-74 flight-control chain.
- Documented Aircraft
- An-74 flight-control system; effectivity must be checked
All specificationsCollapse specifications
- Controlled Channels
- Two standard flap/slat channels
- DC Supply
- 27 V nominal; recorded range 24–29.4 V
- Current Consumption
- Not more than 5 A
- Potentiometer Sensor Supply
- 9.4–10.3 V
- Sensor Input Range
- 0.5–9.5 V
- Power per Standard Channel
- Not more than 100 W
- Duty
- Continuous
- Operating Temperature
- −60 to +60 °C
- Recorded Dimensions
- 378 × 196 × 131 mm in the earlier card; another specialist listing gives 400 × 258 × 139 mm, so verify by execution
- Mass
- Not more than 6.1 kg
- Alternative Designations
- BUKZ-400; BUKZ400; БУКЗ-400
- Interchangeability
- Only after matching the complete nameplate, execution, connectors and system documentation
- Documentation
- Product passport and applicable aircraft/system maintenance documentation
