Description

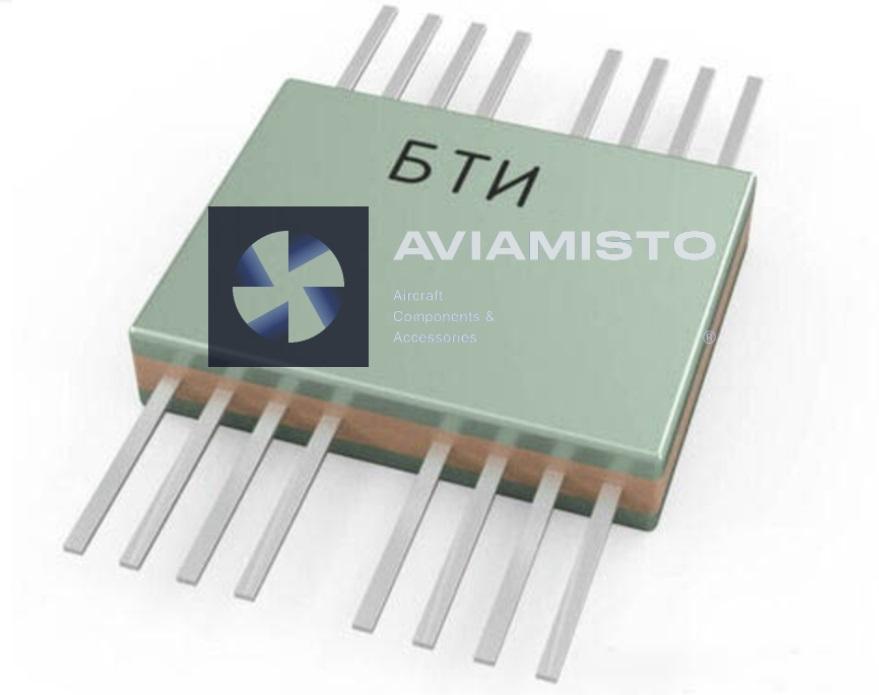

BTI6-73V pulse transformer
BTI6-73V is a miniature pulse transformer for low-voltage electronic equipment. The existing product record states that it is intended for microelectronic circuits with an operating voltage up to 24 V and a pulse-duration-by-voltage product from 0.1 to 50.0 µs·V. These values describe the component family and should be confirmed against the marking of the supplied execution.
Full descriptionCollapse description
Function in electronic circuits
A pulse transformer provides galvanically separated transfer of short control or information pulses between circuit stages. Within aircraft avionics, such components can be installed inside control, conversion, protection or signal-processing assemblies. BTI6-73V is therefore a component rather than a complete replaceable avionics system; the containing block determines the final application.
Electrical characteristics
The retained technical record specifies a 150 V DC insulation-strength test voltage, insulation resistance of at least 500 MΩ when tested at 100 V and magnetizing current not exceeding 10 mA. The operating temperature range is −60 to +100 °C. These are the verified catalogue values for this position; winding connection, turns ratio and pulse shape limits still require the detailed datasheet or product passport.
Identification and selection
The Russian marking is БТИ6-73В, where the final Cyrillic “В” is normally transliterated as V. Do not replace it with another BTI6 index solely because the package is similar: the suffix identifies the winding and electrical execution. Confirm the full marking, terminal layout, circuit designation and the drawing or specification referenced by the repair documentation.
Inspection and ordering
Inspect the body, leads, insulation, marking and evidence of overheating or mechanical damage. Electrical tests should follow the component specification and avoid exceeding the stated insulation-test conditions. An enquiry should include quantity, exact marking, required acceptance category, documentation and packaging requirements. Related transformer and protection units are available under Electronic Control Units.
Technical details
- Product Name
- Pulse Transformer
- Primary Designation
- BTI6-73V
- Original Cyrillic Designation
- БТИ6-73В
- Product Type
- Miniature pulse transformer for electronic assemblies
- Maximum Operating Voltage
- Up to 24 V
All specificationsCollapse specifications
- Pulse Duration × Operating Voltage
- 0.1–50.0 µs·V
- DC Insulation Test Voltage
- 150 V
- Insulation Resistance
- At least 500 MΩ at a 100 V test voltage
- Magnetizing Current
- Not more than 10 mA
- Operating Temperature
- −60 to +100 °C
- Application
- Pulse transfer and galvanic separation inside microelectronic equipment
- Installation Context
- Component inside an electronic block; final aircraft effectivity follows the containing assembly
- Alternative Designations
- BTI6-73V; BTI6 73V; БТИ6-73В; БТИ6 73В
- Interchangeability
- Only after matching winding, terminal and electrical data
- Documentation
- Component datasheet, product passport or repair specification
