BS-02
RSBN-7S System Unit
Description

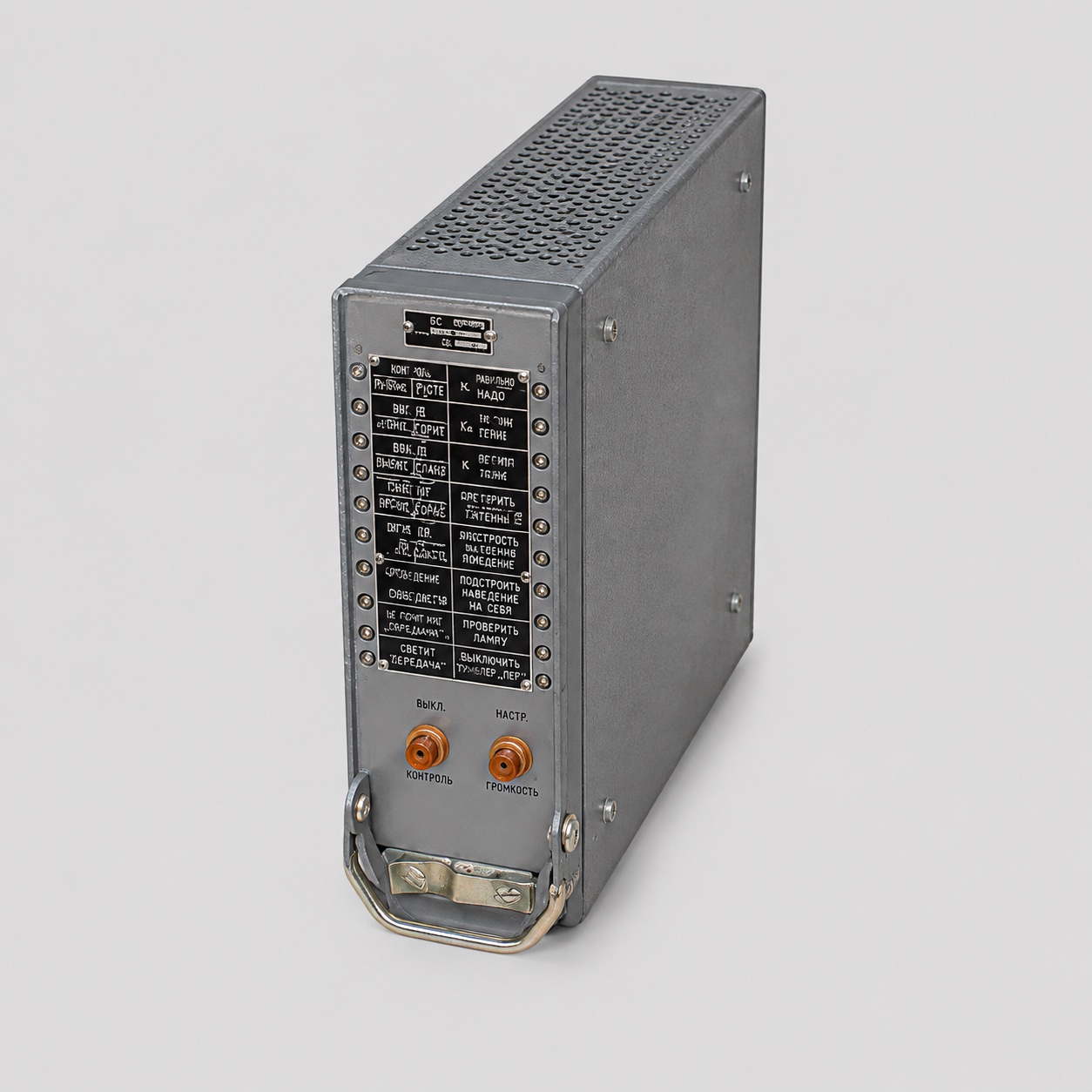

BS-02 unit of the RSBN-7S system
BS-02 is the Latin catalogue form of the aviation block marked БС-02. A documented aviation-parts listing identifies it as a unit of the RSBN-7S short-range radio-navigation set together with BIAD-04, a BO unit and SZD-PM. One aviation inventory also records drawing number НВ2.598.001.
Full descriptionCollapse description
BS-02 role in radio navigation
Its confirmed context is the RSBN-7S radio-navigation equipment set. The exact circuit function of BS-02 must still be taken from the RSBN-7S technical description; it should not be guessed from the abbreviation. The earlier generic interface-unit wording has therefore been replaced with the documented system relationship.
Cooperating RSBN-7S equipment
BIAD-04 performs azimuth and range processing in the RSBN family, while SZD-PM belongs to the range-response channel. Their appearance in the same set is useful for system identification and cross-referencing, but they remain separate devices. BS-02 must be matched to the exact RSBN-7S execution, mounting frame, connector arrangement and aircraft installation.
Identification and false matches
Use the Cyrillic plate, drawing НВ2.598.001 when present, connectors and mounting to distinguish the aviation product. BS-02 / БС-02 search results can refer to gas-detection gateways, fuel-station interfaces, railway equipment or tape mechanisms. Their RS-485, 230 V and enclosure data do not belong to this aircraft unit and have been excluded.
Inspection and enquiry
Inspect the housing, connectors, contacts, mounting and nameplate before testing. Do not apply power until the RSBN-7S circuit and pin assignment are known. An enquiry should include photographs of all markings and connectors, drawing number, aircraft or system reference, condition and documents. Related units are listed under Electronic Control Units.
Technical details
- Product Type
- Electronic unit of the RSBN-7S short-range radio-navigation set
- Confirmed System
- RSBN-7S
- Cooperating Equipment
- BIAD-04, BO and SZD-PM documented in the same set
- Functional Scope
- Exact circuit function requires the RSBN-7S technical description
- Recorded Drawing Number
- НВ2.598.001 in an aviation inventory
All specificationsCollapse specifications
- Aircraft Applicability
- Verify by the RSBN-7S execution and aircraft parts catalogue
- Primary Designation
- BS-02
- Original Cyrillic Designation
- БС-02
- Alternative Designations
- BS-02; BS02; БС-02; БС02; НВ2.598.001
- Excluded False Match
- Industrial RS-485 / 230 V BS-02 specifications do not apply
- Electrical Ratings
- Use the aviation product passport and RSBN-7S circuit
- Connector and Pinout
- Verify by the exact execution documentation
- Interchangeability
- Not established with other BS-family units
- Selection Basis
- Plate, drawing, connectors, mounting and documented RSBN-7S execution
