BRZU115V-2S
Generator control unit
Description

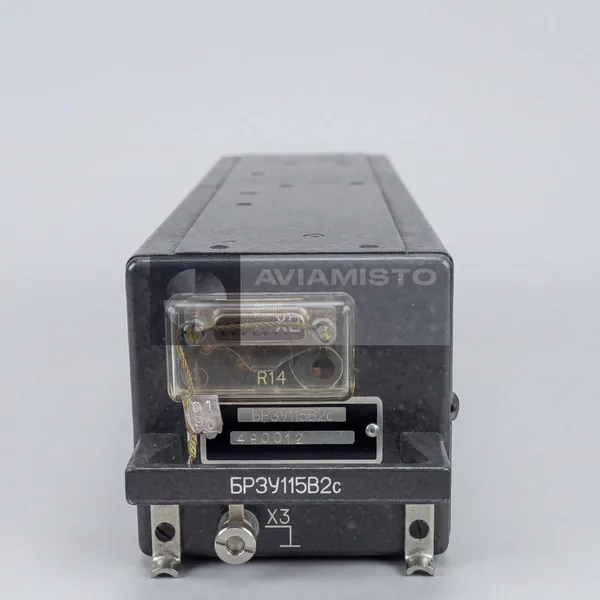

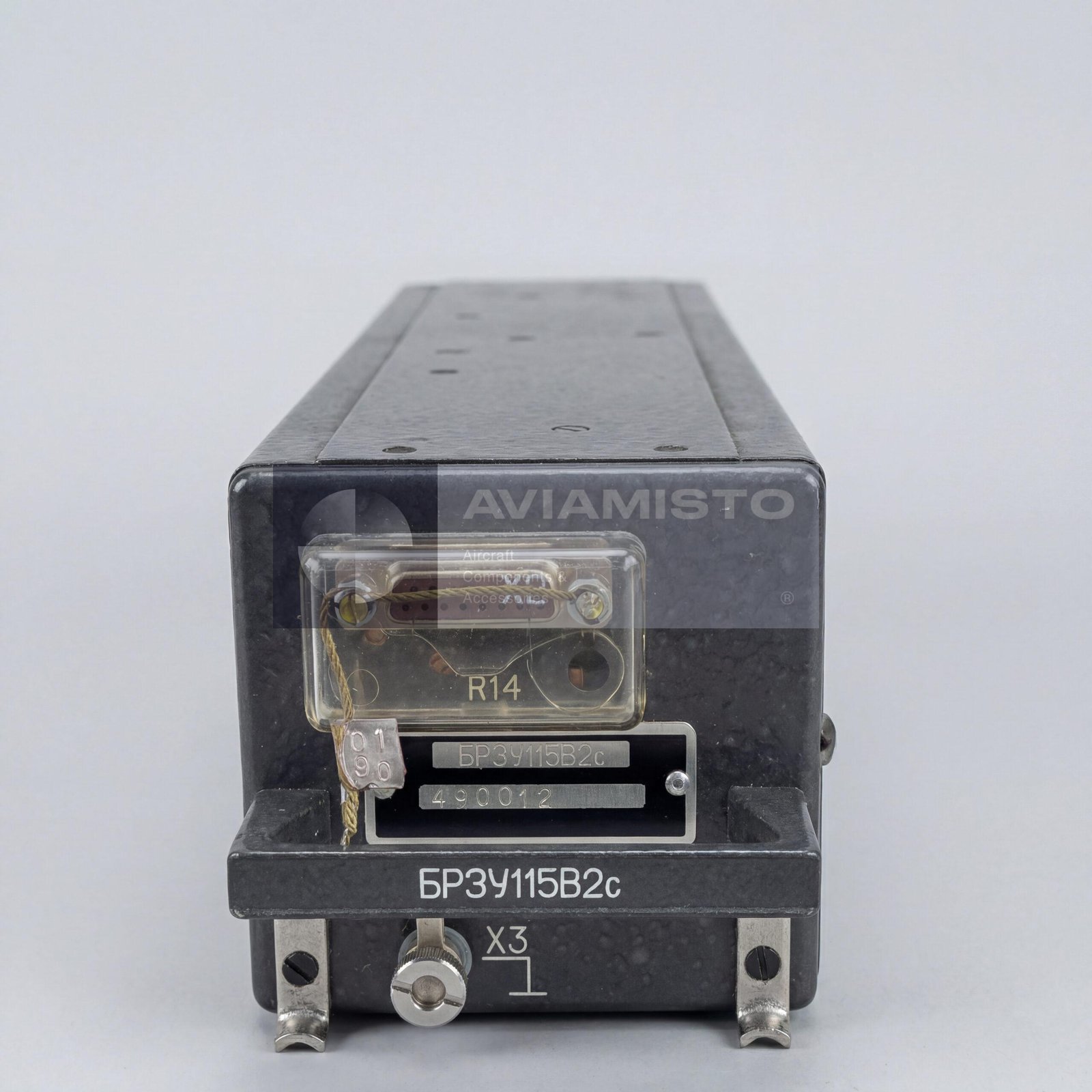

BRZU115V-2S regulation, protection and control unit
BRZU115V-2S is an aircraft electrical control unit used in an AC power-generation channel. It combines voltage regulation, protective supervision and generator-control functions in one assembly. The unit does not generate electrical power itself; it works with the generator, excitation circuit, switching equipment and onboard network. Its exact operating law is determined by the execution identified by the complete suffix, so closely related BRZU units must be treated as separate products until documentation confirms compatibility.
Full descriptionCollapse description
Operating role of BRZU115V-2S
BRZU115V-2S regulates voltage in the onboard electrical network and provides protective control when operating conditions deviate from the permitted range. The confirmed data identifies a 29 V DC operating supply and a 115 V AC network. Because the available documentation for this card does not state every protection threshold, those values are not inferred from related BRZU models. The unit must be tested against the limits specified in its own passport.
Integration with aircraft electrical equipment
The unit belongs to the electronic control equipment of the aircraft electrical system. Reliable operation depends on correct DC supply, generator or exciter inputs, serviceable wiring and the specified contactor or protection circuits. During troubleshooting, the block should be checked as part of the complete generation channel rather than replaced solely because the bus voltage is abnormal. Bench testing and adjustment require the approved passport or repair documentation for this exact execution.
Aircraft-system application
Known catalogue application includes Mi-28, Tu-204, An-140, Be-200 and Il-96-300 electrical systems. The external reference to Antonov An-140 is provided for aircraft context; it is not an interchangeability statement. Installation on a particular airframe depends on its modification, generator set and approved electrical-system configuration.
Identification and ordering
Confirm the full BRZU115V-2S marking, Cyrillic designation, series or suffix, connector arrangement and passport before ordering. Similar BRZU115V, BRZU115VA and BRZU115VO names can describe different regulation channels, supply interfaces or protection settings. An enquiry should include the aircraft type, installed generator or system designation, required condition and available data-plate photo. Replacement is accepted only after comparison with the aircraft illustrated-parts catalogue and maintenance documentation.
Technical details
- Product Type
- Regulation, protection and control unit
- Function
- Voltage regulation and protection in an aircraft electrical network
- Application / Where Used
- Aircraft electrical power-supply systems
- System / Installation Area
- Onboard AC electrical network
- Compatible Aircraft / Equipment
- Mi-28, Tu-204, An-140, Be-200, Il-96-300; exact modification to be confirmed
All specificationsCollapse specifications
- Operating Supply
- 29 V DC
- Controlled Network
- 115 V AC
- Operating Mode
- Continuous
- Alternative Designations
- BRZU115V-2S; BRZU-115V-2S; BRZU115V Series 2; БРЗУ115В-2С
- Selection Requirement
- Confirm generator channel, connectors and passport
- Technical Documentation
- Product passport / approved aircraft documentation
