Axial Cooling Fan
380VO-18-2A
Price on request
Axial Cooling Fan
Available on back-order
Description

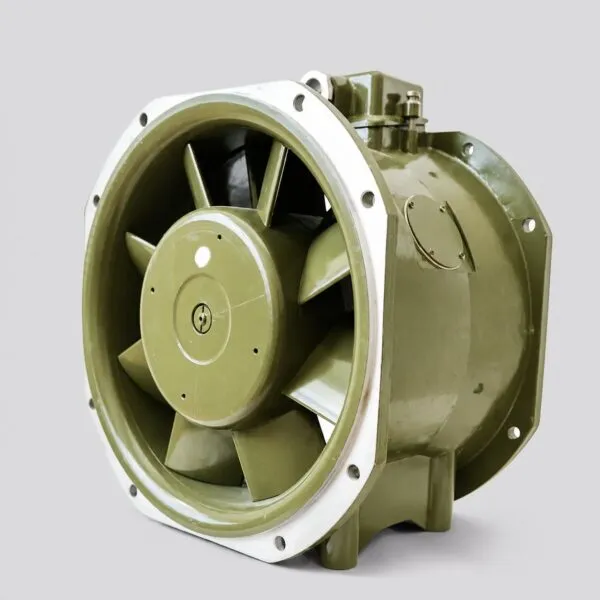

380VO-18-2A axial cooling fan
380VO-18-2A is an axial fan identified in the manufacturer catalogue under AMIV.630250.024 TU. It is intended for forced-air cooling of radio-electronic equipment. The product must be selected by its complete marking, electrical data and installation geometry; a visually similar fan or a neighbouring suffix is not automatic proof of interchangeability.
The original Cyrillic designation and practical Latin search variants are recorded in Technical Details. The stable product URL is retained. No aircraft type is assigned without a confirmed installation catalogue, because the same equipment-cooling family can be used in different assemblies.
Cooling function and operating principle
An axial fan moves air mainly parallel to the rotation axis. In an equipment installation, the airflow removes heat from electronic assemblies and passes it through the designed duct, enclosure or ventilation path. Actual system performance depends on intake and outlet resistance, mounting clearances, rotation direction and the condition of the impeller.
For 380VO-18-2A, the confirmed catalogue airflow is 3,800 m³/h and full pressure is 180 kgf/m². These are model-specific values, not generic figures borrowed from another member of the VO family. This is the highest-airflow execution in the present batch. The documented 5,000-hour minimum is specified within a 12-year service life and includes operation under elevated-temperature and reduced-pressure test conditions.
Electrical supply and rated performance
The documented supply is 220 ±11 V AC at 400 Hz (+10/−20 Hz). Rated power consumption is Not more than 3,200 W, current consumption is Not more than 10.5 A, and rotational speed is Not less than 7,400 rpm. The sound level is Not more than 96 dBA. The complete electrical circuit, phase sequence, protective devices and connector arrangement must be checked in the applicable passport or equipment documentation before power is applied.
The listed dimensions are 209 × 302 × 342 mm. They are included for exact identification and installation planning, but they do not replace a dimensional drawing. The catalogue records an operating-time figure of Minimum 5,000 h and a service-life figure of 12 years.
Installation and maintenance checks
Before installation, inspect the housing, impeller, mounting points, electrical terminals or connector, protective elements and all markings. Confirm free rotation without energising the unit and check that the intended airflow direction matches the equipment duct. Never apply the supply values of a similar-looking model when the full designation has not been verified.
During maintenance, typical checks include contamination, unusual noise, vibration, overheating, current consumption and reduced airflow. Acceptance limits and test methods are determined by the product passport and the documentation for the serviced equipment. Disassembly, lubrication or replacement of an internal component is performed only where the approved maintenance data permits it.
Identification and ordering
Search and identification forms include 380VO-18-2A; 380VO18-2A; 380 VO 18 2A; 380ВО-18-2А. Cyrillic and Latin letters can look identical, but they are different characters in databases and search systems. The nameplate should therefore be compared character by character, including suffixes, punctuation and the technical-standard reference.
An enquiry should state the exact execution, required condition, delivery set and documentation. If available, add photographs of the nameplate, connector and mounting face. This prevents selection based only on airflow, voltage or body size and helps distinguish related products that have similar ratings.
Related cooling equipment
Other equipment-cooling products are listed in the Cooling and Ventilation Fans category. Closely related catalogue positions include 250VO-18-2TS and 320VO-16-2. These links support navigation within the same functional group and do not claim that the products are interchangeable.
For a supply request, Aviamisto can confirm the offered unit’s marking, available documentation, delivery set and current commercial terms. Final suitability remains subject to the applicable equipment manual, installation drawing and product passport.
Technical Details
Product Name: Axial Cooling Fan
Part Number: 380VO-18-2A
Original Designation: 380ВО-18-2А
Product Type: Axial equipment-cooling fan
Function: Forced-air cooling of radio-electronic equipment
Technical Standard: AMIV.630250.024 TU
Current Type: Alternating current
Supply Voltage: 220 ±11 V AC
Supply Frequency: 400 Hz (+10/−20 Hz)
Power Phases: Three-phase
Airflow: 3,800 m³/h
Full Pressure: 180 kgf/m²
Power Consumption: Not more than 3,200 W
Rotational Speed: Not less than 7,400 rpm
Current Consumption: Not more than 10.5 A
Weight: Not more than 15.1 kg
Sound Level: Not more than 96 dBA
Overall Dimensions: 209 × 302 × 342 mm
Operating-Time Figure: Minimum 5,000 h
Service-Life Figure: 12 years
Alternate Designations: 380VO-18-2A; 380VO18-2A; 380 VO 18 2A; 380ВО-18-2А
Documentation: Product passport and applicable equipment documentation
Selection Note: Confirm complete marking, electrical data, dimensions and passport before installation.
