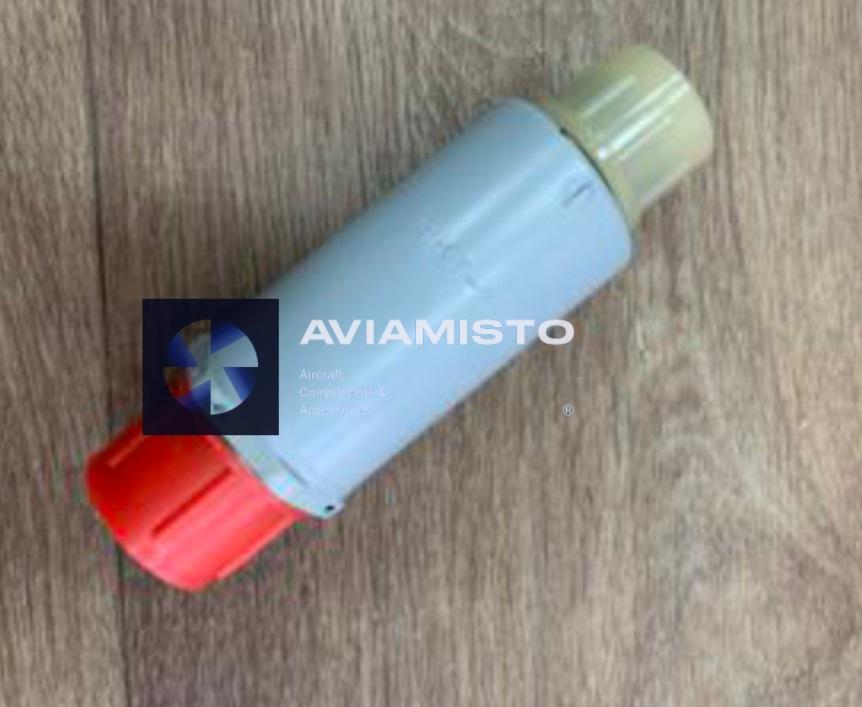

MKT-210A
fuel solenoid valve
Description
MKT-210A Normally closed solenoid valve without fuel body
MKT-210A is a normally closed solenoid valve without fuel body that opens and closes an engine fuel-system passage by electrical command. The unit is an independent functional component of its onboard system. Selection should be based on the complete designation, normal state, controlled medium and installation diagram rather than appearance alone.
Full descriptionCollapse description
Operating principle of MKT-210A
The electromagnetic unit is installed with its compatible fuel-system body. Energizing the 27 VDC-class coil moves the shutoff element to open the passage; removing power returns it to the normally closed position. Serviceability depends on the moving element, seat, seals and electrical section where fitted. Contamination, reversed connections or an incorrect supply can alter the intended response.
Role in the aircraft system
Engine fuel system; exact engine and valve-body pairing must be confirmed from the installation documentation. The valve works with pipelines, a pressure source, downstream equipment and the control circuit of the applicable system. These items are functionally related but must not be described as interchangeable components.
Installation and maintenance checks
Before installation, verify the nameplate, ports, connector, internal cleanliness and seal condition. Pressure, voltage, polarity, operating temperature and the prescribed functional test must come from the passport and maintenance documentation. Adjustment without approved instructions is not permitted.
Identifying MKT-210A for ordering
Existing technical data states 27 ±2.7 VDC, current consumption not more than 1.2 A at 27 V and 20 °C, and mass approximately 0.64–0.75 kg. Other related products are listed in the valves category. An enquiry should state the complete designation, execution, condition, delivery set and required supporting documents.
Technical details
- Product Type
- Normally closed solenoid valve without fuel body
- Designation
- MKT-210A
- Russian Designation
- МКТ-210А
- Normal State / Action
- Normally closed
- Working Medium
- Engine fuel in the compatible external valve body
All specificationsCollapse specifications
- Function
- opens and closes an engine fuel-system passage by electrical command
- System / Applicability
- Engine fuel system; exact engine and valve-body pairing must be confirmed from the installation documentation.
- Electrical Supply
- According to the exact execution passport; do not apply a typical value without confirmation
- Operating Pressure
- According to the exact execution passport and system diagram
- Operating Temperature
- According to the product passport and aircraft or engine documentation
- Installation
- According to flow direction, port assignment and the electrical diagram of the specific installation
- Ordering Check
- Existing technical data states 27 ±2.7 VDC, current consumption not more than 1.2 A at 27 V and 20 °C, and mass approximately 0.64–0.75 kg.
- Documentation
- Product passport, illustrated parts catalogue, system diagram and available test records
- DC Power Supply
- 27 ±2.7 V
- Current Consumption
- Not more than 1.2 A at 27 V and 20 °C
- Mass
- Approximately 0.64–0.75 kg in the available data
