MKT-193
fuel solenoid valve
Description

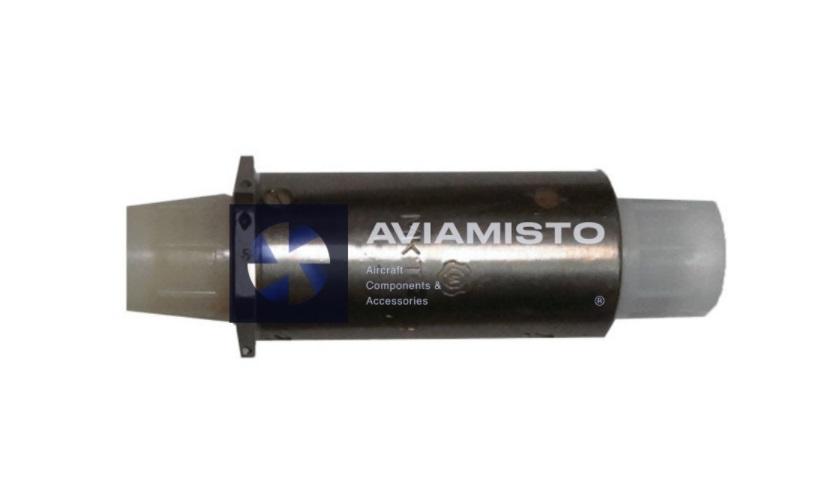

MKT-193 Normally closed fuel-body solenoid valve
MKT-193 is a normally closed fuel-body solenoid valve that opens a controlled fuel passage under electrical command and isolates it after power is removed. The unit is an independent functional component of its onboard system. Selection should be based on the complete designation, normal state, controlled medium and installation diagram rather than appearance alone.
Full descriptionCollapse description
Operating principle of MKT-193
A spring maintains the closed condition when the coil is not energized. Applied voltage produces magnetic force, moves the armature and opens the fuel passage within the compatible engine or aircraft circuit. Serviceability depends on the moving element, seat, seals and electrical section where fitted. Contamination, reversed connections or an incorrect supply can alter the intended response.
Role in the aircraft system
Aircraft or engine fuel system; exact installation position and equipment configuration require confirmation from the parts catalogue. The valve works with pipelines, a pressure source, downstream equipment and the control circuit of the applicable system. These items are functionally related but must not be described as interchangeable components.
Installation and maintenance checks
Before installation, verify the nameplate, ports, connector, internal cleanliness and seal condition. Pressure, voltage, polarity, operating temperature and the prescribed functional test must come from the passport and maintenance documentation. Adjustment without approved instructions is not permitted.
Identifying MKT-193 for ordering
Fuel-body construction and normally closed state are confirmed. The valve remains a separate designation from MKT-174 and MKT-210A and is not automatically interchangeable. Other related products are listed in the valves category. An enquiry should state the complete designation, execution, condition, delivery set and required supporting documents.
Technical details
- Product Type
- Normally closed fuel-body solenoid valve
- Designation
- MKT-193
- Russian Designation
- МКТ-193
- Normal State / Action
- Normally closed
- Working Medium
- Fuel compatible with the documented installation
All specificationsCollapse specifications
- Function
- opens a controlled fuel passage under electrical command and isolates it after power is removed
- System / Applicability
- Aircraft or engine fuel system; exact installation position and equipment configuration require confirmation from the parts catalogue.
- Electrical Supply
- According to the exact execution passport; do not apply a typical value without confirmation
- Operating Pressure
- According to the exact execution passport and system diagram
- Operating Temperature
- According to the product passport and aircraft or engine documentation
- Installation
- According to flow direction, port assignment and the electrical diagram of the specific installation
- Ordering Check
- Fuel-body construction and normally closed state are confirmed. The valve remains a separate designation from MKT-174 and MKT-210A and is not automatically interchangeable.
- Documentation
- Product passport, illustrated parts catalogue, system diagram and available test records
