KR-6
hydraulic lock
Description

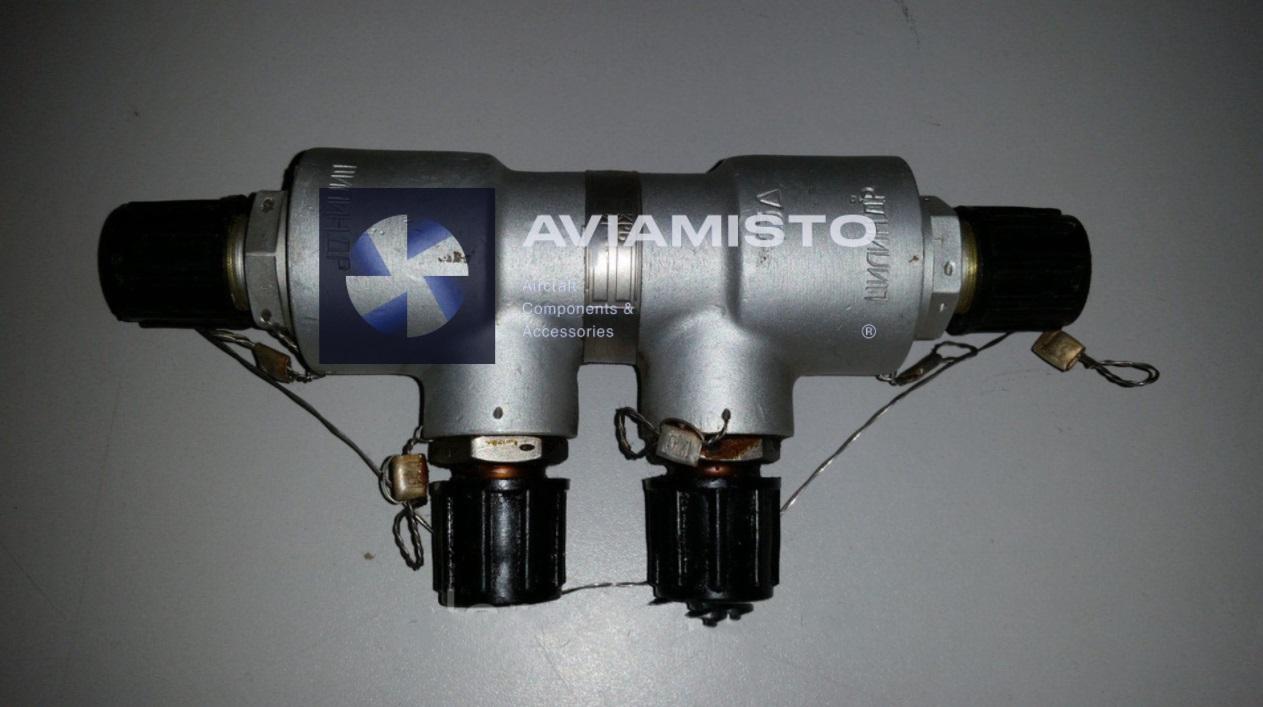

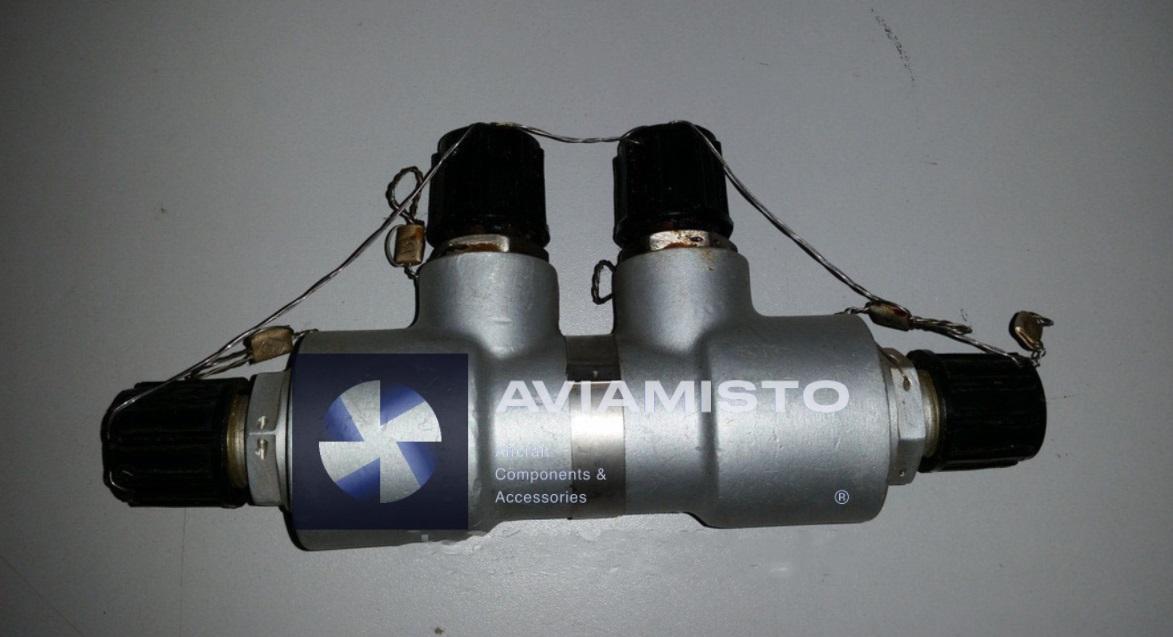

KR-6 Double-cavity hydraulic lock with thermal valves
KR-6 is a double-cavity hydraulic lock with thermal valves that locks working fluid in both cavities of a power cylinder when supply pressure stops and protects the cylinder against thermal pressure rise. The unit is an independent functional component of the applicable onboard system. Selection should be based on the complete designation, working medium, setting and installation diagram rather than appearance alone.
Full descriptionCollapse description
Operating principle of KR-6
Check-valve elements hold both actuator lines closed without pilot pressure. When control pressure is supplied, the required path opens for cylinder movement; integrated thermal valves relieve expansion pressure above their setting. Reliable operation depends on clean working fluid, the moving element, seat, springs and seals. Contamination, reversed connections or an unsuitable pressure can prevent the intended response.
Role in the aircraft system
High-pressure hydraulic power-cylinder circuits in aviation and compatible special-purpose equipment. The exact actuator and installation geometry require the system drawing. The valve works with pipelines, a pressure source, downstream equipment and the control elements of its circuit. These products are functionally related but must not be described as interchangeable merely because they operate in the same system.
Installation and maintenance checks
Before installation, verify the nameplate, ports, flow direction, internal cleanliness and seal condition. Working pressure, temperature, fluid and the prescribed functional test must come from the passport and maintenance documentation. Adjustment without approved instructions is not permitted. Incoming-inspection results should remain with the product records.
Identifying KR-6 for ordering
Confirm KR-6 as the hydraulic-lock execution with 40 L/min capacity and 27 MPa thermal-valve setting. Do not confuse it with similarly named KR-series detachable line couplings. Other related products are listed in the valves category. An enquiry should state the complete designation, execution, condition, delivery set and required supporting documents.
Technical details
- Product Type
- Double-cavity hydraulic lock with thermal valves
- Designation
- KR-6
- Russian Designation
- КР-6
- Function
- locks working fluid in both cavities of a power cylinder when supply pressure stops and protects the cylinder against thermal pressure rise
- Operating Principle
- Check-valve elements hold both actuator lines closed without pilot pressure. When control pressure is supplied, the required path opens for cylinder movement; integrated thermal valves relieve expansion pressure above their setting.
All specificationsCollapse specifications
- System / Applicability
- High-pressure hydraulic power-cylinder circuits in aviation and compatible special-purpose equipment. The exact actuator and installation geometry require the system drawing.
- Working Medium
- AMG-10 hydraulic oil
- Operating Pressure
- Nominal 25 MPa / 250 kgf/cm²; thermal-valve opening pressure 27 MPa / 270 kgf/cm²
- Operating Temperature
- Working fluid and ambient temperature −60 °C to +80 °C
- Installation
- According to flow direction, port assignment and the diagram of the specific system
- Ordering Check
- Confirm KR-6 as the hydraulic-lock execution with 40 L/min capacity and 27 MPa thermal-valve setting. Do not confuse it with similarly named KR-series detachable line couplings.
- Documentation
- Product passport, illustrated parts catalogue, system diagram and available test records
- Hydraulic Resistance
- Not more than 1.5 MPa / 15 kgf/cm²
- Nominal Flow
- 40 L/min
- Mass
- 1.08 kg
- Approximate Dimensions
- 49 × 74 × 196 mm
