GA-198
adjustable safety valve
Description

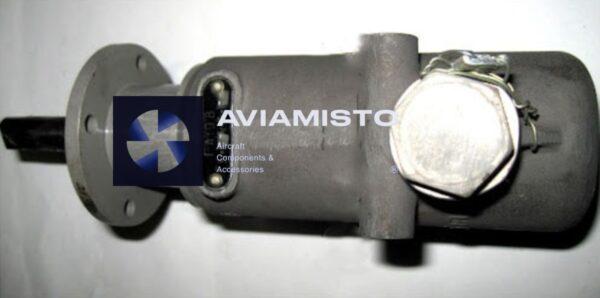

GA-198 Electrically controlled adjustable safety valve
GA-198 is a electrically controlled adjustable safety valve that maintains or limits the required hydraulic-system pressure within an adjustable 5–25 MPa range. The unit is an independent functional component of the applicable onboard system. Selection should be based on the complete designation, working medium, setting and installation diagram rather than appearance alone.
Full descriptionCollapse description
Operating principle of GA-198
The calibrated regulating element senses system pressure and opens a relief path when the selected level is reached. Electrical control provides the commanded operating mode, while the mechanical setting determines the pressure range. Reliable operation depends on clean working fluid, the moving element, seat, springs and seals. Contamination, reversed connections or an unsuitable pressure can prevent the intended response.
Role in the aircraft system
Aircraft or compatible special-equipment hydraulic systems requiring adjustable pressure protection. Exact aircraft, circuit and electrical logic require the passport and system diagram. The valve works with pipelines, a pressure source, downstream equipment and the control elements of its circuit. These products are functionally related but must not be described as interchangeable merely because they operate in the same system.
Installation and maintenance checks
Before installation, verify the nameplate, ports, flow direction, internal cleanliness and seal condition. Working pressure, temperature, fluid and the prescribed functional test must come from the passport and maintenance documentation. Adjustment without approved instructions is not permitted. Incoming-inspection results should remain with the product records.
Identifying GA-198 for ordering
Verify designation GA-198, required pressure setting, 27 V control circuit and AMG-10 compatibility. A fixed-pressure safety valve is not an automatic substitute. Other related products are listed in the valves category. An enquiry should state the complete designation, execution, condition, delivery set and required supporting documents.
Technical details
- Product Type
- Electrically controlled adjustable safety valve
- Designation
- GA-198
- Russian Designation
- ГА-198
- Function
- maintains or limits the required hydraulic-system pressure within an adjustable 5–25 MPa range
- Operating Principle
- The calibrated regulating element senses system pressure and opens a relief path when the selected level is reached. Electrical control provides the commanded operating mode, while the mechanical setting determines the pressure range.
All specificationsCollapse specifications
- System / Applicability
- Aircraft or compatible special-equipment hydraulic systems requiring adjustable pressure protection. Exact aircraft, circuit and electrical logic require the passport and system diagram.
- Working Medium
- AMG-10 hydraulic oil
- Operating Pressure
- Adjustable nominal pressure range 5–25 MPa / 50–250 kgf/cm²
- Operating Temperature
- Ambient temperature −60 °C to +60 °C; working fluid up to +70 °C
- Installation
- According to flow direction, port assignment and the diagram of the specific system
- Ordering Check
- Verify designation GA-198, required pressure setting, 27 V control circuit and AMG-10 compatibility. A fixed-pressure safety valve is not an automatic substitute.
- Documentation
- Product passport, illustrated parts catalogue, system diagram and available test records
- DC Power Supply
- 27 V
- Mass
- 1.2 kg
- Pressure Adjustment
- Provided within the specified range
