GA-165
two-position valve
Description

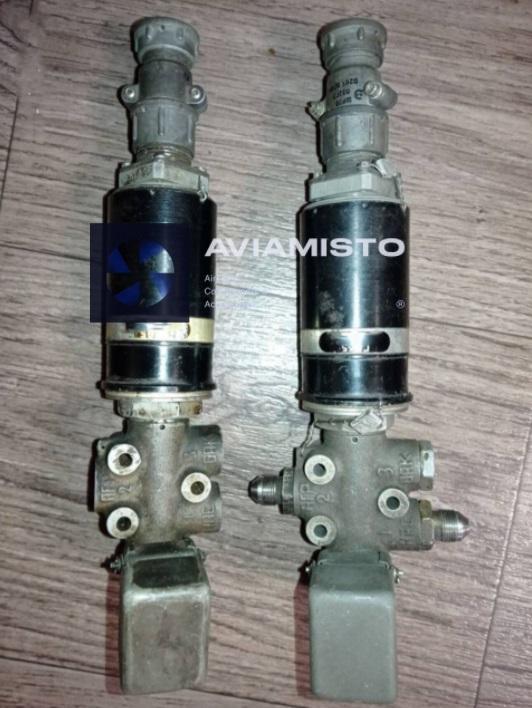

GA-165 Two-position solenoid hydraulic valve
GA-165 is a two-position solenoid hydraulic valve that connects or isolates hydraulic supply to aircraft actuators and can couple a standby pressure source to a working circuit. The unit is an independent functional component of the applicable onboard system. Selection should be based on the complete designation, working medium, setting and installation diagram rather than appearance alone.
Full descriptionCollapse description
Operating principle of GA-165
An electrical command energizes the solenoid and moves the pilot element. Hydraulic pressure then shifts the main valve member to connect or isolate the specified circuit; end-position control depends on the exact execution and aircraft wiring. Reliable operation depends on clean working fluid, the moving element, seat, springs and seals. Contamination, reversed connections or an unsuitable pressure can prevent the intended response.
Role in the aircraft system
Aircraft hydraulic systems. Confirmed applications include connecting flight-control actuators or another hydraulic source on Tu-154, Yak-42 and related installations; the exact role follows the aircraft diagram. The valve works with pipelines, a pressure source, downstream equipment and the control elements of its circuit. These products are functionally related but must not be described as interchangeable merely because they operate in the same system.
Installation and maintenance checks
Before installation, verify the nameplate, ports, flow direction, internal cleanliness and seal condition. Working pressure, temperature, fluid and the prescribed functional test must come from the passport and maintenance documentation. Adjustment without approved instructions is not permitted. Incoming-inspection results should remain with the product records.
Identifying GA-165 for ordering
Retain the complete suffix and verify the port arrangement, connector and de-energized position. GA-165, GA-165/1 and GA-165B are related but separate executions. Other related products are listed in the valves category. An enquiry should state the complete designation, execution, condition, delivery set and required supporting documents.
Technical details
- Product Type
- Two-position solenoid hydraulic valve
- Designation
- GA-165
- Russian Designation
- ГА-165
- Function
- connects or isolates hydraulic supply to aircraft actuators and can couple a standby pressure source to a working circuit
- Operating Principle
- An electrical command energizes the solenoid and moves the pilot element. Hydraulic pressure then shifts the main valve member to connect or isolate the specified circuit; end-position control depends on the exact execution and aircraft wiring.
All specificationsCollapse specifications
- System / Applicability
- Aircraft hydraulic systems. Confirmed applications include connecting flight-control actuators or another hydraulic source on Tu-154, Yak-42 and related installations; the exact role follows the aircraft diagram.
- Working Medium
- AMG-10 hydraulic oil
- Operating Pressure
- According to the exact product passport and hydraulic-system diagram
- Operating Temperature
- According to the product passport and aircraft documentation
- Installation
- According to flow direction, port assignment and the diagram of the specific system
- Ordering Check
- Retain the complete suffix and verify the port arrangement, connector and de-energized position. GA-165, GA-165/1 and GA-165B are related but separate executions.
- Documentation
- Product passport, illustrated parts catalogue, system diagram and available test records
- DC Power Supply
- 27 V
