Description

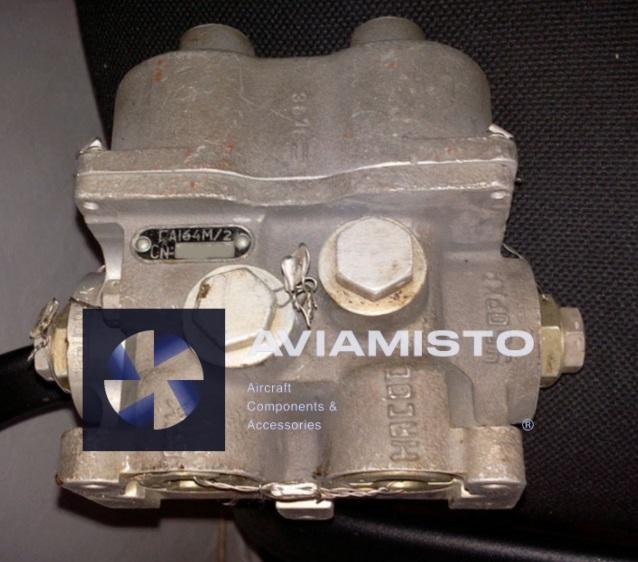

GA-164M/2 Electromagnetic hydraulic control valve
GA-164M/2 is a electromagnetic hydraulic control valve that switches working-fluid flow in the aircraft hydraulic circuit assigned to the GA-164M/2 execution. The unit is an independent functional component of the applicable onboard system. Selection should be based on the complete designation, working medium, setting and installation diagram rather than appearance alone.
Full descriptionCollapse description
Operating principle of GA-164M/2
The electromagnetic pilot changes the control pressure applied to the main hydraulic member, which then opens, closes or redirects the required passage. Exact port logic was not independently confirmed and must be taken from the passport. Reliable operation depends on clean working fluid, the moving element, seat, springs and seals. Contamination, reversed connections or an unsuitable pressure can prevent the intended response.
Role in the aircraft system
Aircraft hydraulic system; public technical lists confirm GA-164M/2 as an electromagnetic valve and associate the family with EMO-7/1 control equipment. Exact aircraft application requires documentary confirmation. The valve works with pipelines, a pressure source, downstream equipment and the control elements of its circuit. These products are functionally related but must not be described as interchangeable merely because they operate in the same system.
Installation and maintenance checks
Before installation, verify the nameplate, ports, flow direction, internal cleanliness and seal condition. Working pressure, temperature, fluid and the prescribed functional test must come from the passport and maintenance documentation. Adjustment without approved instructions is not permitted. Incoming-inspection results should remain with the product records.
Identifying GA-164M/2 for ordering
Retain the slash in GA-164M/2 and verify the paired electromagnetic unit, ports and connector. GA-164M/1 and GA-164M/3 are separate executions. Other related products are listed in the valves category. An enquiry should state the complete designation, execution, condition, delivery set and required supporting documents.
Technical details
- Product Type
- Electromagnetic hydraulic control valve
- Designation
- GA-164M/2
- Russian Designation
- ГА-164М/2
- Function
- switches working-fluid flow in the aircraft hydraulic circuit assigned to the GA-164M/2 execution
- Operating Principle
- The electromagnetic pilot changes the control pressure applied to the main hydraulic member, which then opens, closes or redirects the required passage. Exact port logic was not independently confirmed and must be taken from the passport.
All specificationsCollapse specifications
- System / Applicability
- Aircraft hydraulic system; public technical lists confirm GA-164M/2 as an electromagnetic valve and associate the family with EMO-7/1 control equipment. Exact aircraft application requires documentary confirmation.
- Working Medium
- AMG-10 hydraulic oil or the fluid specified by the aircraft documentation
- Operating Pressure
- According to the exact product passport and hydraulic-system diagram
- Operating Temperature
- According to the product passport and aircraft documentation
- Installation
- According to flow direction, port assignment and the diagram of the specific system
- Ordering Check
- Retain the slash in GA-164M/2 and verify the paired electromagnetic unit, ports and connector. GA-164M/1 and GA-164M/3 are separate executions.
- Documentation
- Product passport, illustrated parts catalogue, system diagram and available test records
- Related Control Unit
- EMO-7/1 is associated with the family in public technical lists
