GA-158
two-position valve
Description

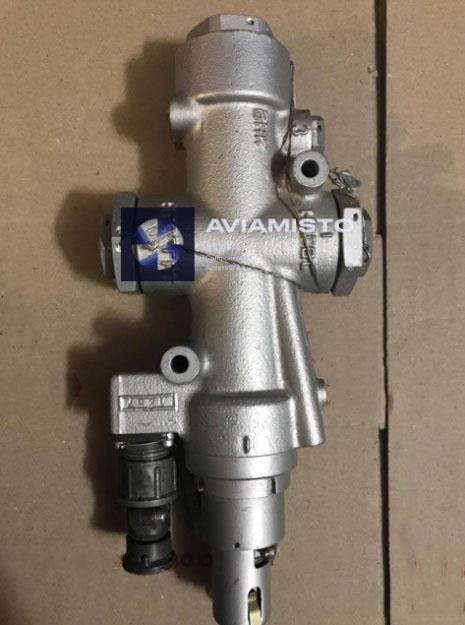

GA-158 Two-position electrohydraulic selector valve
GA-158 is a two-position electrohydraulic selector valve that switches hydraulic supply to the designated actuator circuit under an electrical command. The unit is an independent functional component of the applicable onboard system. Selection should be based on the complete designation, working medium, setting and installation diagram rather than appearance alone.
Full descriptionCollapse description
Operating principle of GA-158
A solenoid-operated ball pilot changes pressure acting on the main spool. The spool then moves and redirects the working-fluid flow between the connected lines, providing two defined hydraulic positions. Reliable operation depends on clean working fluid, the moving element, seat, springs and seals. Contamination, reversed connections or an unsuitable pressure can prevent the intended response.
Role in the aircraft system
Aircraft flight-control hydraulic system. Tu-154 technical material identifies GA-158 in circuits associated with RP-59 servo actuators and spoiler control; the exact position depends on aircraft modification. The valve works with pipelines, a pressure source, downstream equipment and the control elements of its circuit. These products are functionally related but must not be described as interchangeable merely because they operate in the same system.
Installation and maintenance checks
Before installation, verify the nameplate, ports, flow direction, internal cleanliness and seal condition. Working pressure, temperature, fluid and the prescribed functional test must come from the passport and maintenance documentation. Adjustment without approved instructions is not permitted. Incoming-inspection results should remain with the product records.
Identifying GA-158 for ordering
Verify designation GA-158, connector, pilot-valve supply and spool-port diagram. GA-158A and other suffixes must be checked as separate executions. Other related products are listed in the valves category. An enquiry should state the complete designation, execution, condition, delivery set and required supporting documents.
Technical details
- Product Type
- Two-position electrohydraulic selector valve
- Designation
- GA-158
- Russian Designation
- ГА-158
- Function
- switches hydraulic supply to the designated actuator circuit under an electrical command
- Operating Principle
- A solenoid-operated ball pilot changes pressure acting on the main spool. The spool then moves and redirects the working-fluid flow between the connected lines, providing two defined hydraulic positions.
All specificationsCollapse specifications
- System / Applicability
- Aircraft flight-control hydraulic system. Tu-154 technical material identifies GA-158 in circuits associated with RP-59 servo actuators and spoiler control; the exact position depends on aircraft modification.
- Working Medium
- AMG-10 hydraulic oil or the fluid specified by the aircraft documentation
- Operating Pressure
- According to the exact product passport and hydraulic-system diagram
- Operating Temperature
- According to the product passport and aircraft documentation
- Installation
- According to flow direction, port assignment and the diagram of the specific system
- Ordering Check
- Verify designation GA-158, connector, pilot-valve supply and spool-port diagram. GA-158A and other suffixes must be checked as separate executions.
- Documentation
- Product passport, illustrated parts catalogue, system diagram and available test records
- Related Equipment
- RP-59 servo actuators in confirmed Tu-154 documentation
