800600-1

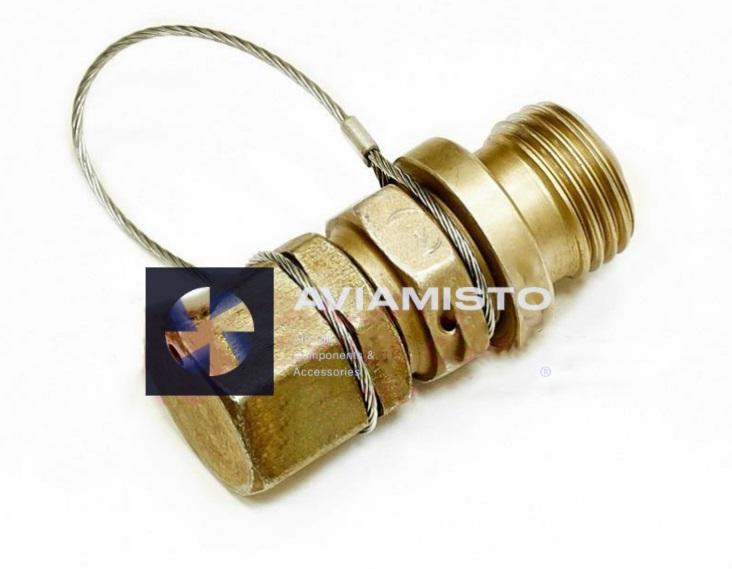

800600-1 Charging valve

800600-1 is a charging valve that provides a controlled connection for charging aircraft pneumatic chambers or accumulators with air or nitrogen. It is a functional part of the applicable hydraulic or pneumatic system and should be selected by exact designation and installation documentation rather than by appearance alone.

Operating function of 800600-1

The service fitting is connected during charging and the internal valve isolates the pressurized cavity after the charging device is removed. This compact unit is a charging interface rather than a continuous-flow regulator. Reliable operation depends on clean working media, serviceable seals, correctly connected lines and a calibrated configuration that matches the technical documentation.

Role in the aircraft system

Verified catalogue data gives a working pressure of 22 MPa and a permissible short-duration pressure of 66 MPa. The working medium is air or nitrogen; traces of AMG-10 hydraulic oil are permitted in the documented application. The charging connection corresponds to normal 4316A. Connected units form one operating circuit, but each performs a separate task and must not be presented as interchangeable merely because it is installed in the same system.

Installation and maintenance checks

The valve is used in aircraft pneumatic and accumulator servicing circuits. Its exact installation position and aircraft type depend on the charging line, accumulator or landing-gear chamber identified in the applicable maintenance documentation. Maintenance checks normally cover connection tightness, body condition, contamination and compliance with the specified test limits. Any calibration or adjustment must follow the product passport or approved repair documentation.

Identifying 800600-1 for ordering

Confirm the complete 800600-1 marking, 20 mm connection geometry, specified pressure class and passport before installation. Other 800600-family suffixes may have different media, set pressures or interfaces and are not automatically interchangeable. Other related items are listed in the valves category. An enquiry should identify the required execution, condition, delivery set and supporting documentation.

Verified configuration and traceability

The recorded technical data identifies 800600-1 as a charging valve. Confirmed function: Charging pneumatic chambers or accumulators with air or nitrogen. Working medium: Air or nitrogen; AMG-10 oil vapour permitted in the documented application. The recorded pressure data is 22 MPa / 220 kgf/cm². The documented temperature range is −60 °C to +100 °C. Recorded size or length: 44.5 × 20 × 20 mm. Recorded mass: 0.07 kg. These values belong to the stated execution and should be checked against the passport of the individual unit before installation.

The documented system context is Aircraft charging line according to the applicable pneumatic or hydraulic-system documentation. For a charging valve, the pressure class, charging gas and service-connection geometry must be confirmed. A mismatch in any of these parameters prevents selection by external appearance alone. Incoming inspection compares the complete marking, body execution, ports, threads, seals and indicated flow direction. Final verification is based on Product passport, charging procedure and aircraft maintenance documentation when available. The four related products shown on the page provide navigation to functionally close units and do not state that those products are interchangeable.

Search and quotation records should preserve the exact 800600-1 lettering and must not merge it with adjacent family suffixes. Confirmed search forms recorded for this item include 800600 1; charging valve 800600-1. An enquiry should also identify the installation system, required condition, delivery set and supporting documents. This information separates the requested unit from visually similar valves and preserves sourcing traceability.

Product Type: Charging valve

Designation: 800600-1

Alternative Designations: 800600 1; charging valve 800600-1

Function: Charging pneumatic chambers or accumulators with air or nitrogen

Working Medium: Air or nitrogen; AMG-10 oil vapour permitted in the documented application

Working Pressure: 22 MPa / 220 kgf/cm²

Permissible Short-Term Pressure: 66 MPa / 660 kgf/cm²

Operating Temperature: −60 °C to +100 °C

Charging Connection: According to normal 4316A

Overall Dimensions: 44.5 × 20 × 20 mm

Mass: 0.07 kg

Installation: Aircraft charging line according to the applicable pneumatic or hydraulic-system documentation

Documentation: Product passport, charging procedure and aircraft maintenance documentation when available

Related Products: 695000-1; GA-42-00; OK 12A; RD-14-00-1

Condition: New

Warranty: 6 Months

Stock Status: Pre-Order

Category: Valves
