Description

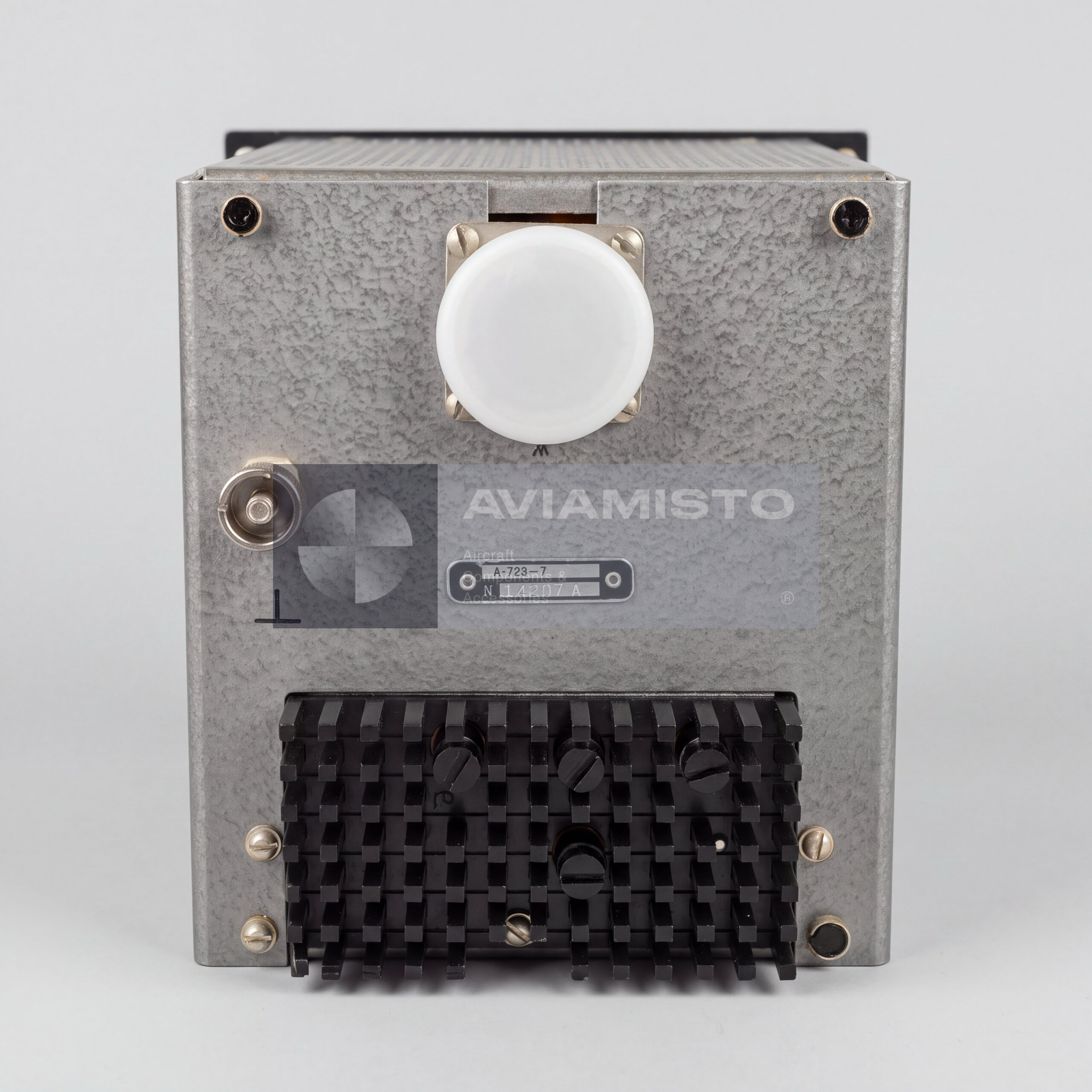

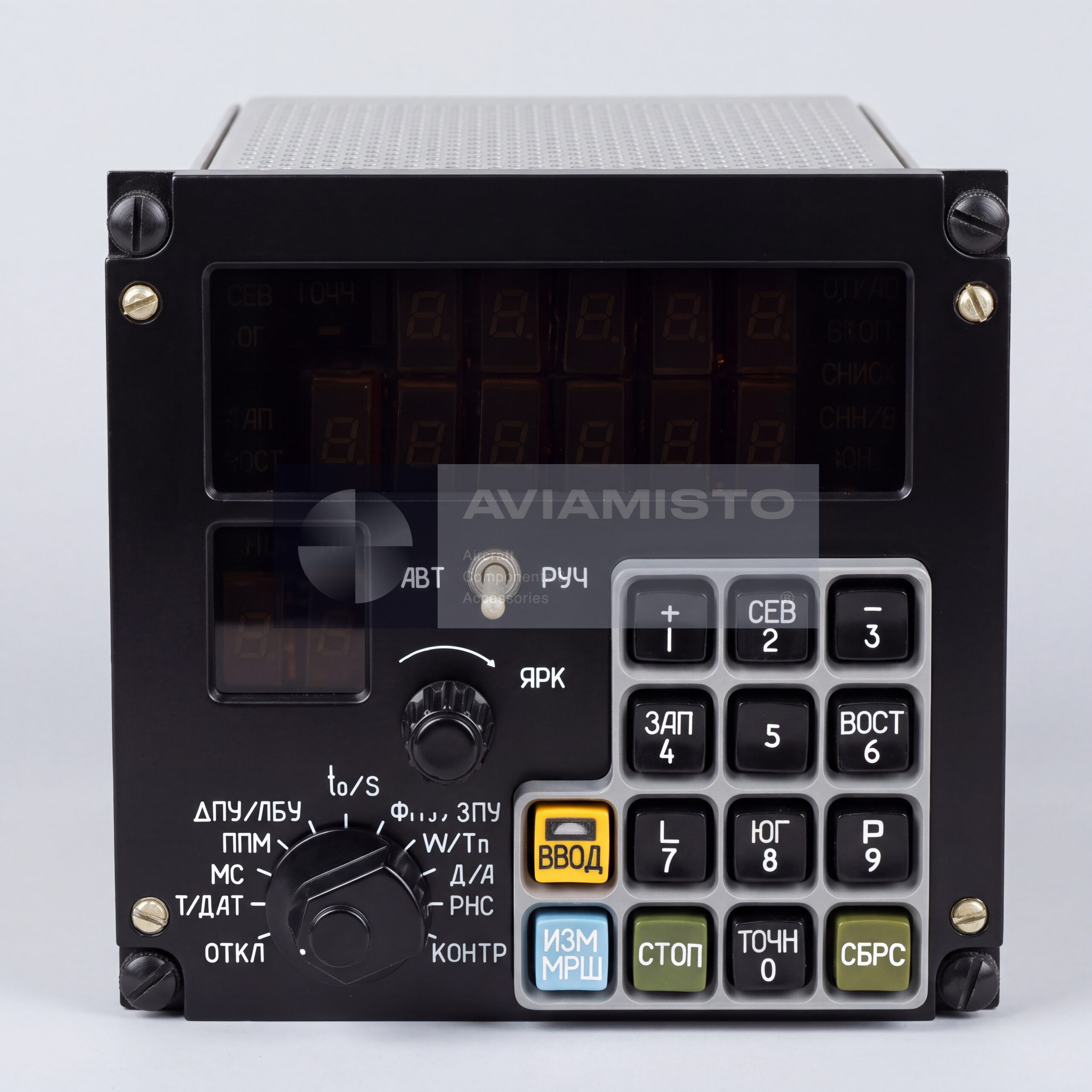

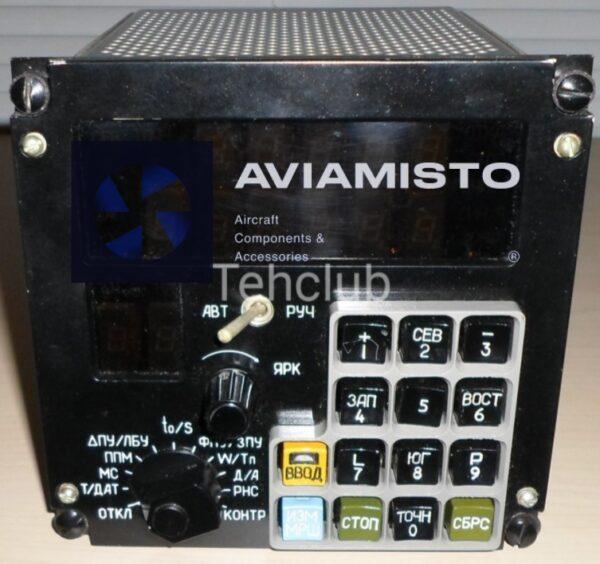

A-723-7 control and indication panel
A-723-7 is an airborne control and indication panel used in the A-723 Kvitok long-range radio navigation system. The panel provides the crew or navigator with an interface for entering route data, monitoring navigation information and controlling selected operating functions of the receiver-indicator equipment. It is installed in the cockpit or navigator’s workplace and works as part of the onboard radio navigation complex. The unit is also referred to as PUI A-723-7, meaning a control and indication panel.
Navigation information displayed by A-723-7
The A-723-7 panel displays navigation information processed by the A-723 Kvitok receiver-indicator system. The displayed data may include current aircraft geodetic coordinates, latitude and longitude, ground speed, current date, time and assigned track angle. The panel also supports indication of aircraft deviation from the desired track line. This allows the crew or navigator to monitor route progress and compare actual aircraft position with the planned route. The accuracy of displayed data depends on the radio navigation network used and the condition of the complete A-723 system.
Data input through the A-723-7 panel
The A-723-7 allows manual entry and correction of route waypoint coordinates. The front panel includes a numeric command keypad used to input data and verify its storage in system memory. The panel supports entry and storage of up to several intermediate route points, allowing the operator to prepare or adjust route information during operation. The unit also includes controls for brightness adjustment, automatic or manual operation selection and switching of operating modes. Correct button operation, display readability and interface communication should be checked during maintenance.
A-723-7 in the A-723 Kvitok system
The A-723-7 works with the receiver-indicator equipment of the A-723 Kvitok long-range navigation system. The system uses signals from ground-based reference stations of impulse-phase and phase long-range navigation networks, including Chaika, Loran-C, RSDN-20 Alpha and the Mars-75 multi-frequency system where applicable. The panel itself does not receive navigation radio signals directly; it provides control, data entry and display functions for the system. Navigation calculation, signal processing and coordinate determination are performed by the associated receiver-indicator and system equipment.
Aircraft application of A-723-7
The A-723 Kvitok system and its A-723-7 panel are used on aircraft equipped with compatible long-range radio navigation equipment. Application references include Tu-154M, Il-62M, Il-86, Il-76 variants, An-124 Ruslan, An-74, Tu-95MS, Tu-142 and Su-24M, depending on aircraft configuration and navigation complex documentation. Since onboard navigation equipment can differ by aircraft modification, modernization status and operator configuration, applicability should be confirmed through the aircraft equipment list, wiring documentation and maintenance manual before supply or installation.
Identification and ordering of A-723-7
Before ordering A-723-7, the aircraft type, installed A-723 Kvitok configuration, required condition and documentation set should be confirmed. The panel may be needed for operational replacement, cockpit restoration, navigation system repair or spare parts stock. For correct supply, it is useful to specify the full designation, panel condition, connector configuration, required documentation, test status and whether other A-723 system units are also needed. Since the panel works through a defined data exchange interface, compatibility with the receiver-indicator and aircraft wiring should be checked before installation.
Details
Product Type: Control and indication panel / navigation system control panel
Designation: A-723-7
Alternative Designations: А-723-7, PUI A-723-7, ПУИ А-723-7
Function: Control, data entry and indication for A-723 Kvitok long-range radio navigation system
Application / Where Used: A-723 Kvitok long-range radio navigation system / RSDN equipment
System / Installation Area: Cockpit instrument panel, crew control panel or navigator’s workplace
Compatible Aircraft / Equipment: Tu-154M, Il-62M, Il-86, Il-76, An-124, An-74, Tu-95MS, Tu-142, Su-24M and other aircraft with compatible A-723 equipment
Associated System: A-723 Kvitok radio system of long-range navigation
Displayed Data: Geodetic coordinates, latitude, longitude, ground speed, date, time, assigned track angle and deviation from desired track line
Data Input: Manual input and correction of intermediate route point coordinates
Route Memory: Up to 9 intermediate route points
Control Elements: 14-button numeric / command keypad; brightness selector; automatic-manual selector; operating mode switch
Display Elements: Main and additional illuminated annunciator / indication fields
Data Interface: Serial bipolar code, 32-bit words
Exchange Clock Frequency: 50 kHz with word pause 4FT
Power Consumption: Not more than 30 W
Power Supply: +27 V DC and 115 V / 400 Hz AC from aircraft onboard network through power supply units
Readiness Time: Up to 15 minutes after complete system activation, depending on system warm-up
Coordinate Accuracy: Depends on navigation network; approximately 23–30 m with Loran-C / Chaika, from 300 m to 2–5 km with Alpha / Omega-type phase systems
Dimensions: 144 × 146 × 130 mm
Weight: 2.1 kg; up to 3.7 kg with housing
Related Navigation Networks: Chaika, Loran-C, RSDN-20 Alpha, Mars-75 where applicable
Condition: New / As-Stored / Overhauled / Serviceable, depending on availability
Technical Documentation: Product passport, A-723 Kvitok system documentation, aircraft maintenance documentation, wiring diagram and test records if available
