AZK3-5
Aircraft Circuit Breaker
Description
AZK3-5: 5 A three-pole push-button circuit breaker
AZK3-5 is the 5 A execution of the AZK3 family of three-pole push-button aircraft circuit breakers. The original Cyrillic designation is АЗК3-5. It protects three-phase AC circuits against unacceptable overload and short-circuit current. The complete marking and current rating must match the approved electrical diagram and parts documentation.
Full descriptionCollapse description
Construction

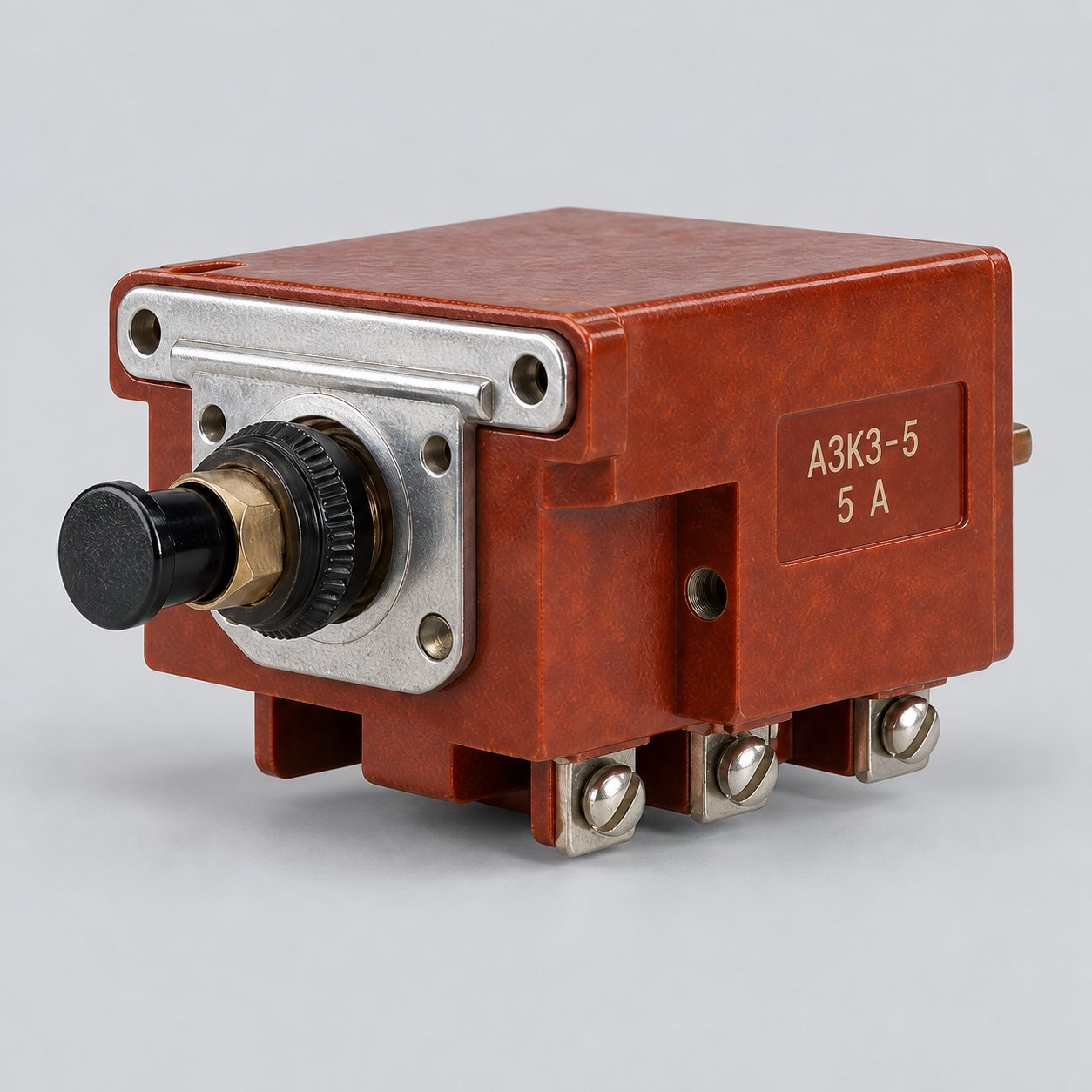

The catalog shows a compact brown phenolic case, front metal mounting bracket, black push-button actuator and three phase terminals. The button provides manual operation while the free-trip mechanism opens the protected circuit when the release operates. The family is electrically and mechanically distinct from single-pole AZK1M devices and lever-operated AZZ breakers.
Catalog drawing dimensions are 56 mm width, 60 mm body height and 23 mm depth; maximum mass is 140 g. Compare the body, mounting plate, actuator, terminal row and full AZK3-5 marking. Other current ratings: AZK3-10 and AZK3-15. Select each version by its full designation.
Electrical and trip data
The manufacturer catalog specifies 200 V line voltage with +7/−13 V tolerance, 115 V phase voltage with +4/−7 V tolerance, frequency 400 ±20 Hz and power factor not less than 0.5. For AZK3-5 at +20 ±5 °C, boundary current is no more than 2.0 Iном when one pole is loaded and 1.5 Iном when all three poles are loaded.
At −60 ±3 °C, the corresponding limits are 2.4 Iном for one pole and 1.9 Iном for three poles. Thermal-release operating time is up to 30 minutes. Family limits also include −60 to +60 °C and up to 98% relative humidity at +40 °C. Acceptance follows the unit passport and 8Ю3.619.272 ТУ.
Ordering information
Before installation, inspect the phenolic housing, metal bracket, push button, terminals and mounting points for cracks, overheating, corrosion and unspecified repair. Confirm the three-phase network, voltage, frequency, rated current and terminal order. Functional checks require an authorized test procedure and suitable three-pole connections.
Wikipedia gives general context on aircraft electrical systems. More positions are in Aviamisto’s Circuit Breakers category. State AZK3-5 / АЗК3-5, quantity and required documents in the inquiry.
Technical details
- Product Type
- Three-pole push-button aircraft circuit breaker
- Primary Designation
- AZK3-5
- Original Cyrillic Designation
- АЗК3-5
- Family
- AZK3
- Rated Current
- 5 A
All specificationsCollapse specifications
- Number of Protected Poles
- 3
- Current Type
- Three-phase AC
- Protection Function
- Overload and short-circuit protection
- Manual Control
- Push button
- Trip Mechanism
- Free-trip thermal release
- Housing
- Phenolic insulating body
- Mounting
- Front metal panel bracket
- Phase Terminals
- Three
- Nominal Line Voltage
- 200 V AC
- Line-Voltage Tolerance
- +7/−13 V
- Nominal Phase Voltage
- 115 V AC
- Phase-Voltage Tolerance
- +4/−7 V
- Frequency
- 400 ±20 Hz
- Minimum Power Factor
- cos φ ≥ 0.5
- Boundary Current at +20 °C, One Pole
- ≤ 2.0 × rated current
- Boundary Current at +20 °C, Three Poles
- ≤ 1.5 × rated current
- Boundary Current at −60 °C, One Pole
- ≤ 2.4 × rated current
- Boundary Current at −60 °C, Three Poles
- ≤ 1.9 × rated current
- Thermal-Release Time
- Up to 30 min
- Operating Temperature
- −60 to +60 °C
- Relative Humidity
- Up to 98% at +40 °C
- Maximum Mass
- 140 g
- Catalog Width
- 56 mm
- Catalog Body Height
- 60 mm
- Catalog Depth
- 23 mm
- Technical Specification
- 8Ю3.619.272 ТУ
- Alternative Designations
- AZK3 5; AZK35; АЗК3 5; АЗК35
