AGB-98R
attitude indicator
Description
AGB-98R System Overview

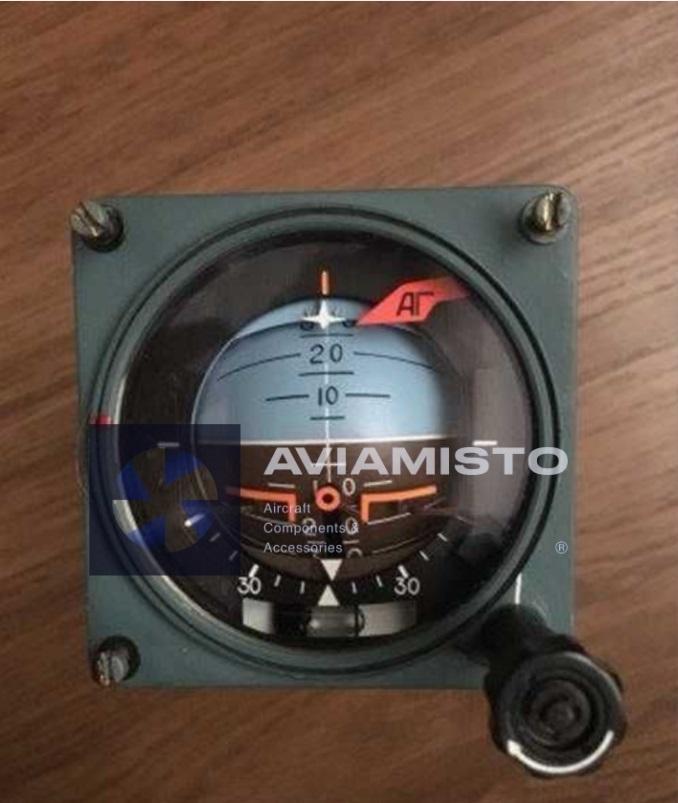

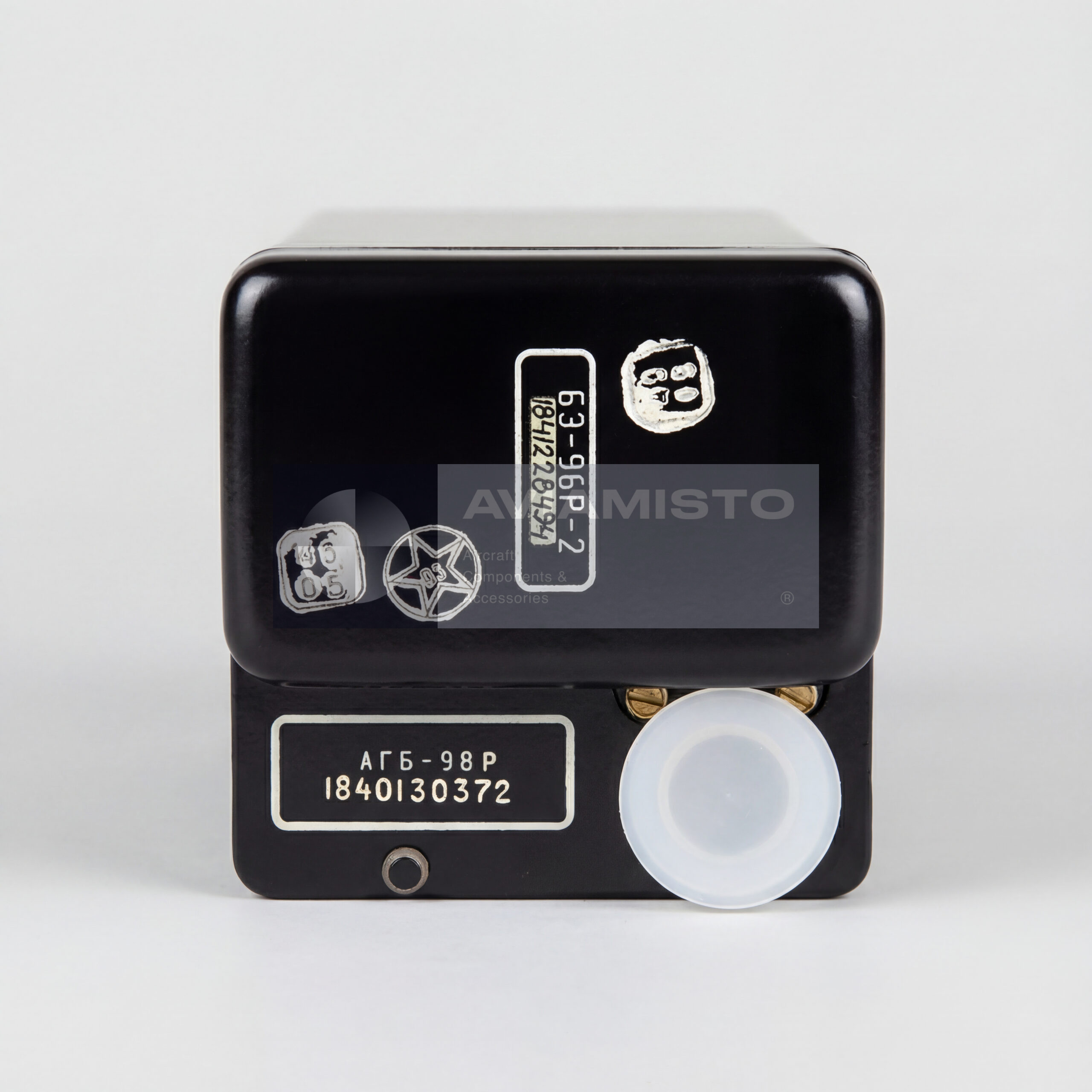

The AGB-98R is an autonomous gyroscopic attitude indicator designed to determine and display aircraft spatial position relative to the horizon using a “view from aircraft to ground” indication format within flight and navigation instrument systems.
Full descriptionCollapse description
AGB-98R Indication Function
The instrument provides indication of roll, pitch, and lateral slip angles, as well as deviations from localizer and glide path equal-signal zones and control commands generated by automatic control systems, ensuring comprehensive attitude and navigation reference.
AGB-98R Aircraft Application
The unit is used as part of aircraft flight and navigation systems and automatic control systems, providing pilots and onboard equipment with essential attitude and guidance information during various flight regimes.
AGB-98R System Integration
The instrument is designed as an autonomous unit with a built-in gyroscope and mechanical correction system, including correction disconnect and monitoring functions, and incorporates protection against tumbling. The product is also known under alternative designations AGB-98R and 6Sh2.511.022.
Technical details
- Product Type
- Autonomous gyroscopic attitude indicator
- Function
- Indication of roll, pitch, lateral slip, LOC/GS deviations; generation of control command signals
- Application / Where Used
- Flight and navigation instrument systems; automatic control systems
- Display Type
- View from aircraft to ground
- Roll Range
- ±360°
All specificationsCollapse specifications
- Pitch Range
- ±85°
- Power Supply (DC)
- 27 V DC
- Power Supply (AC)
- Single-phase AC 36 V, 400 Hz
- Additional AC Power Supply
- Single-phase AC 6 V, 400 Hz
- Gyroscope
- Built-in
- Correction System
- Mechanical correction with integrated correction disconnect
- Monitoring System
- Built-in
- Tumble Resistance
- Pitch stop protection scheme
- Illumination
- Built-in white backlight
- Weight
- 1.8 kg
- Standard Compliance
- ENLGS compliant
- Technical Documentation
- Technical documentation available upon request
- Russian designation
- АГБ-98Р
