UV-5M-1
Altitude indicator
Description

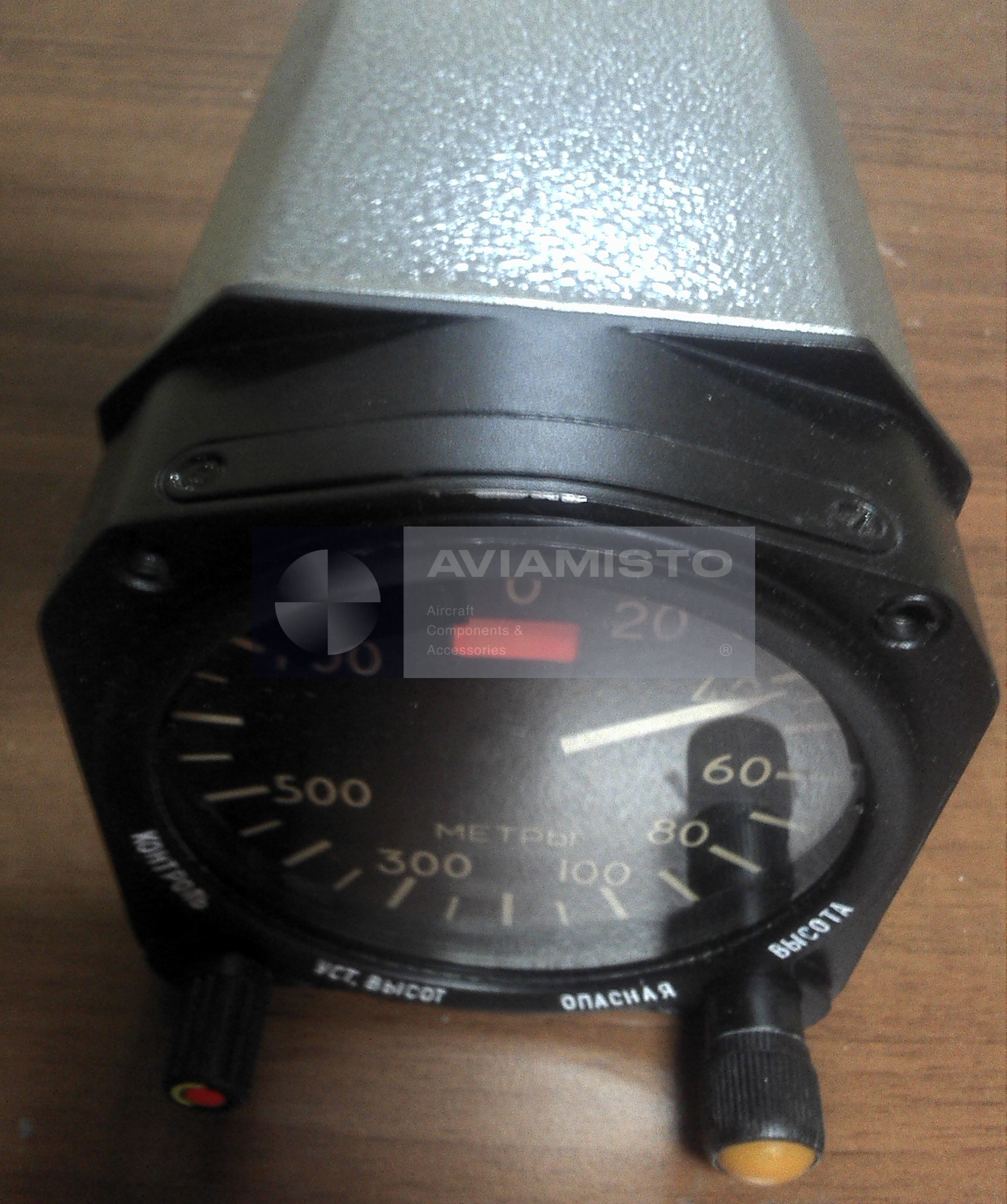

UV-5M-1 true-height indicator
UV-5M-1 is the pointer indicator used with the RV-5M radio altimeter. It displays true geometric height above land or water from the transceiver signal. The confirmed system range is 0–750 m and is intended mainly for takeoff, approach, landing and flight close to terrain.
The indicator does not measure height independently. The radio altimeter transmits a continuous microwave signal, receives the surface reflection and converts the frequency change into distance. UV-5M presents that value to the crew and participates in the preset dangerous-height warning function.
Full descriptionCollapse description
Dangerous-height warning and test function
The pilot positions a dangerous-height index on the scale. When the aircraft passes the selected threshold, the system provides a visual warning and the associated aircraft system can generate an aural alert. A drop-out flag indicates loss of a valid height signal or a radio-altimeter fault.
The built-in test is used before flight to check the indication channel. The documented test reading is 15 ±1.5 m. The result is evaluated together with the flag and warning state; pointer movement by itself does not prove serviceability of every block in the system.
UV-5M-1 in the RV-5M radio altimeter
The -1 suffix is part of the UV-5M-1 designation. It must be retained in an inquiry and matched to the RV-5M set documentation; a similar scale on UV-5M does not establish automatic interchangeability. The PP-5M transceiver, antennas, wiring and indicator form one measuring channel. A fault or mismatch in any element can result in missing indication or a displayed warning flag.
The unit is mounted on the pilot instrument panel. Before installation, verify the designation, scale, face, threshold-setting control, connector, mounting and housing condition. The complete check after installation follows the manual for the exact aircraft.
Identification and ordering of UV-5M-1
An inquiry should state the complete designation, RV-5M execution, aircraft type, required condition and passport requirement. UV-5M, UV-5M-1 and A-034-family indicators are separate positions; a similar function and range do not demonstrate direct replacement.
More radio-altimeter indicators are available in the Aviamisto Altimeters and Indicators category. Related products can help navigate system components, while delivery-set composition and compatibility still require confirmation from operating documentation.
Technical details
- Product Type
- Pointer-type radio altimeter height indicator
- Designation
- UV-5M-1
- Alternative Designations
- UV-5M-1; UV 5M 1; УВ-5М-1; УВ 5М 1
- Function
- Indication of true geometric height above land or water
- Associated System
- RV-5M low-altitude radio altimeter
All specificationsCollapse specifications
- Associated Transceiver
- PP-5M
- Altitude Range
- 0–750 m
- Dangerous Height Setting
- Movable threshold index on the indicator scale
- Fault Indication
- Drop-out warning flag
- Test Reading
- 15 ±1.5 m in the documented control procedure
- Installation
- Pilot instrument panel
- Interchangeability
- The -1 suffix must be matched to the exact RV-5M installation documentation
- Technical Documentation
- RV-5M operating documentation, aircraft manual and product passport
