Temperature indicator
2UT-6K
Price on request
Temperature indicator
Description
2UT-6K System Overview

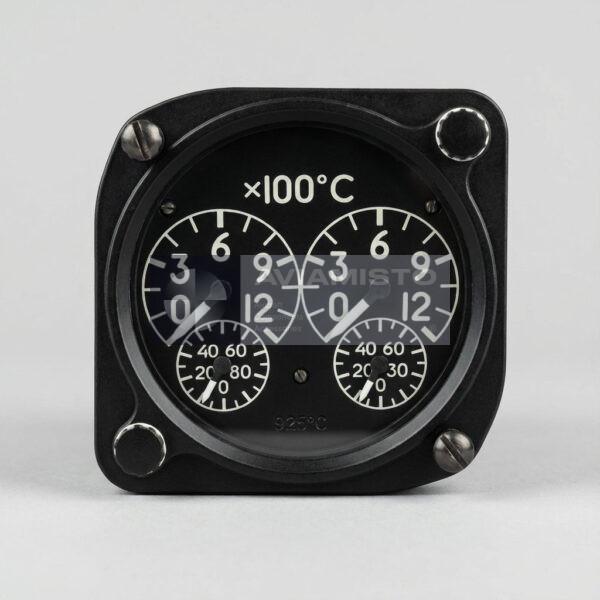

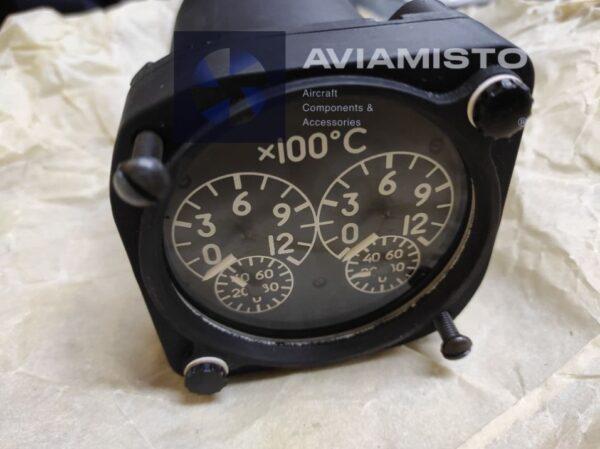

The 2UT-6K is an aircraft dual-channel temperature indicator designed for visual monitoring of engine exhaust gas temperature within onboard engine control systems.
2UT-6K Functional Role
The instrument operates with thermoelectric sensors and provides simultaneous indication of temperature parameters for two engines, enabling monitoring of engine operating conditions.
2UT-6K Aircraft Application
The unit is applied on helicopters of the Mi-8 family, including Mi-17, as part of engine monitoring and control systems.
2UT-6K System Integration
The instrument is implemented as a dual-pointer magnetoelectric indicator, operating from thermoelectric signals without external power for measurement, with integrated illumination for cockpit use. The product is also known under alternative designations 2UT-6K and 2УТ-6К.
Details
Product Type: Dual exhaust gas temperature indicator
Function: Visual indication of exhaust gas temperature for two engines
Application / Where Used: Aircraft engine monitoring systems
System / Installation Area: Instrument panel
Compatible Aircraft / Equipment: Mi-8, Mi-17 helicopters
Measurement Range: 0 to 1200 °C
Indication Type: Dual-pointer (two independent channels)
Measurement Principle: Magnetoelectric logometer with thermoelectric input
Scale Type: Dual-scale (coarse and fine indication)
Accuracy: ±10–15 °C (within operating range)
Operating Temperature Range: −60 to +60 °C
Power Supply (Measurement Circuit): Self-powered from thermocouple EMF
Power Supply (Illumination): 5.5 V or 27 V (depending on aircraft system)
Weight: Approximately 0.9–1.0 kg
Technical Documentation: Product passport and technical documentation
