465K

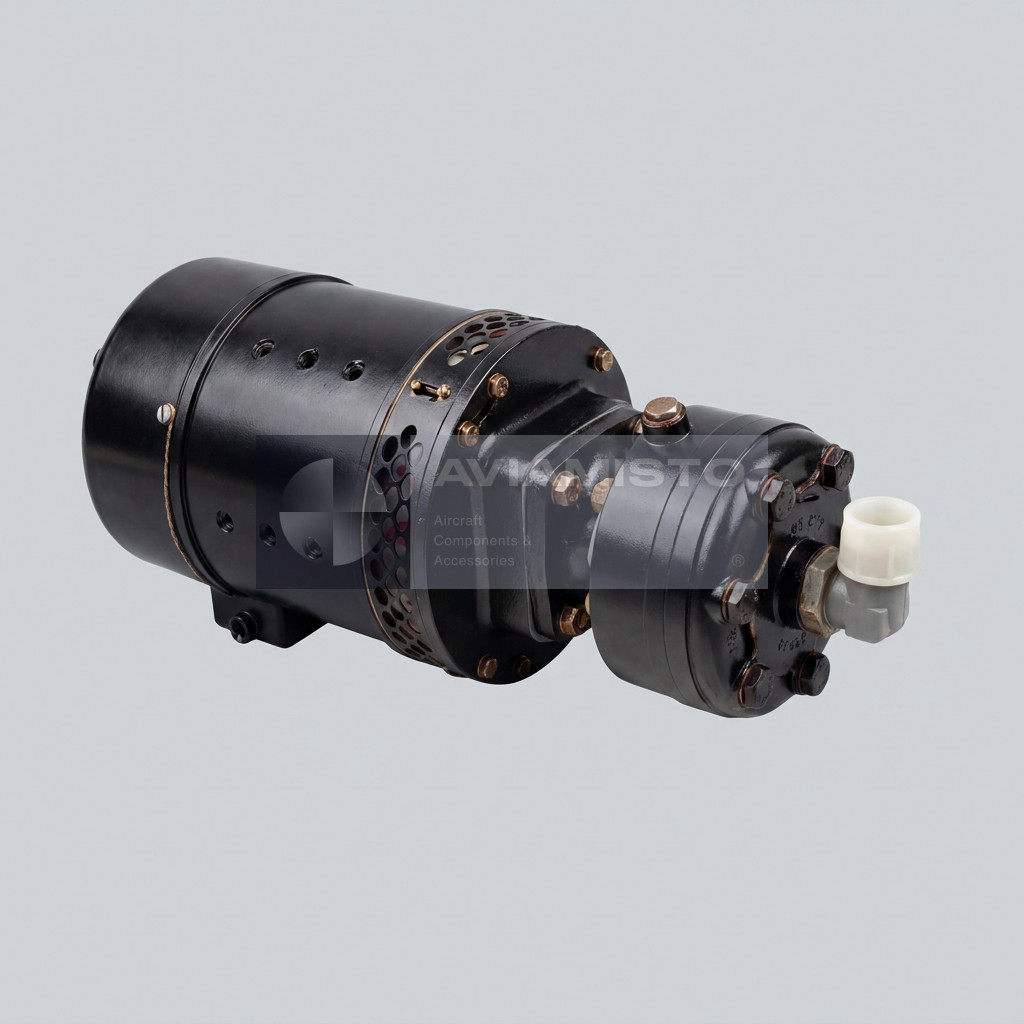

465K electric hydraulic pump in aircraft systems

The 465K is an electrically driven aircraft hydraulic pump used to create pressure in onboard hydraulic systems. It is an axial-plunger pump with a DC electric motor, designed to supply AMG-10 hydraulic fluid under pressure to connected hydraulic circuits. In aircraft systems, the pump is used where pressure must be available from the 27 V onboard electrical network rather than only from engine-driven hydraulic sources. This makes the 465K useful for auxiliary, emergency, brake, ground-service or special hydraulic circuits, depending on the aircraft layout.

Hydraulic pressure supply from the 465K pump

The main function of the 465K is to deliver hydraulic fluid at the required pressure and flow rate. The pump can feed hydraulic accumulators, brake circuits, emergency lines or other consumers depending on the aircraft system. It is not a simple transfer pump. The 465K is a pressure-generating assembly, so its condition directly affects whether the connected system can develop enough force for operation. If the pump loses performance, the system may still switch on electrically, but pressure build-up may be slow, unstable or insufficient under load.

465K with the D-4500K electric motor

The 465K is driven by a D-4500K DC motor with compound excitation. The motor operates from the aircraft 27 V DC network and provides the mechanical drive needed for the plunger pump section. Since the motor power is significant for a low-voltage aircraft system, the pump must be connected through proper contactors and protection devices. It should not be switched directly through low-current controls. During troubleshooting, the motor, contactor, wiring, protection circuit and hydraulic section must all be checked, because a fault in any of these areas can stop the pump from working correctly.

Aircraft application of the 465K pump

The 465K is used on several Soviet and Russian aircraft types, including Tu-134, An-12, An-24, An-26, Mi-6 and Mi-10, depending on aircraft configuration. In these systems, pumps of the 465 family may support emergency hydraulic pressure, brake operation, ground testing or service functions. Exact installation can differ by aircraft type and modification. The pump may be located in a hydraulic bay, service compartment or equipment area, connected to the relevant hydraulic reservoir, pressure line, accumulator and control units.

465K in ground and marine hydraulic installations

Besides aircraft use, the 465K can be used in specialized ground, field and marine hydraulic installations. Its 27 V DC power supply makes it practical where an industrial electrical network is not available, but a mobile DC source, aircraft battery system or generator can be used. This is why pumps of the 465 family are sometimes found in field hydraulic systems, including pipe-laying equipment and mobile hydraulic units. However, non-aircraft use should not be confused with aviation interchangeability. For aircraft installation, the pump still has to match the approved documentation.

Difference between 465K and other 465 versions

The 465 family includes several related models: 465A, 465D, 465K, 465MTV and 465P. They may look similar, but their pressure ratings, electric motors, flow rates, mounting requirements and system roles can differ. The 465K version uses the D-4500K motor and is rated for its own pressure and delivery range. The 465D is a higher-pressure version, while 465MTV uses another motor and has different output characteristics. The 465P version is supplied without an electric motor and is intended for an external mechanical drive. For replacement, the exact designation matters.

Inspection and supply of 465K

Before installation, the 465K should be checked as a complete electrohydraulic unit. The inspection should include the pump body, hydraulic ports, mounting surfaces, electric motor, terminals or connector, direction of rotation, leakage, pressure build-up and performance under load. Since the pump is installed vertically with the hydraulic block downward, mounting position also has to be respected. For supply, the condition should be stated clearly: new, from storage, repaired, overhauled or bench-tested. For aircraft use, passport, acceptance records and test documentation are important, not optional paperwork.

Product Type: Electrically driven aircraft hydraulic pump
Designation: 465K
Pump Type: Axial-plunger / plunger-type hydraulic pump
Function: Pressurization and delivery of hydraulic fluid in aircraft hydraulic systems
Application / Where Used: Auxiliary, emergency, brake, service and special hydraulic systems depending on aircraft configuration
System / Installation Area: Aircraft hydraulic circuits; ground hydraulic units; marine and field hydraulic installations depending on use
Compatible Aircraft / Equipment: Tu-134, An-12, An-24, An-26, Mi-6, Mi-10 and related applications depending on configuration
Additional Applications: Specialized ground, field and marine hydraulic installations
Working Fluid: AMG-10 aviation hydraulic oil, GOST 6794-75
Electric Motor Type: D-4500K DC motor
Motor Excitation: Compound excitation
Motor Power: 4.5 kW
Nominal Voltage: 27 V DC
Flow Rate: Not less than 8 L/min at the beginning of service life
Nominal Working Pressure: 150 kgf/cm²
Maximum Discharge Pressure: 180 kgf/cm²
Direction of Shaft Rotation: Left-hand rotation
Installation Position: Vertical installation, hydraulic block downward
Ambient Temperature Range: −60 to +60 °C
Total Unit Weight: 25 kg
Related Pump Versions: 465A, 465D, 465MTV, 465P
Note on 465P Version: Supplied without electric motor, intended for external mechanical drive
Technical Documentation: Product passport, acceptance documents, bench-test data and aircraft hydraulic system documentation as applicable

All shipments are carried out from our international warehouse in Dubai (UAE), as well as from our partners’ remote warehouses.

In Stock — items available in stock at the Dubai warehouse are dispatched within 5–10 business days after receiving 100% prepayment.

Remote Stock — items available at our partners’ remote warehouses are supplied within an average of 30–45 business days after receiving 100% prepayment.

Pre-Order — made-to-order products are manufactured and delivered within an average of 45–60 business days. Payment terms: 50% advance payment to start production, with the remaining 50% paid before dispatch from the Dubai warehouse after full readiness for shipment.

Returns & Changes (Restocking Fee)
For selected items, a RESTOCKING FEE of 10% may apply in case of return, order cancellation, or changes to the order specifications. This condition applies only to certain products and is confirmed at the order approval stage.

Warranty
All products are covered by a standard 6-month warranty.
Extended warranty is available upon request and is agreed individually; it may affect the final product price.
