P-39

Cabin and compartment lighting function of the P-39

The main task of the P-39 is to illuminate working and service areas inside the aircraft. It can be used in the cockpit, navigator’s workplace, flight engineer area, cargo cabin, entrance zones, wardrobe areas, emergency exit zones and remote tail compartments. In technical areas, the light helps crews and maintenance personnel inspect equipment, wiring, pipelines and underfloor spaces. Depending on aircraft wiring, the P-39 may be switched manually or connected to local switches for automatic activation when a hatch or service panel is opened.

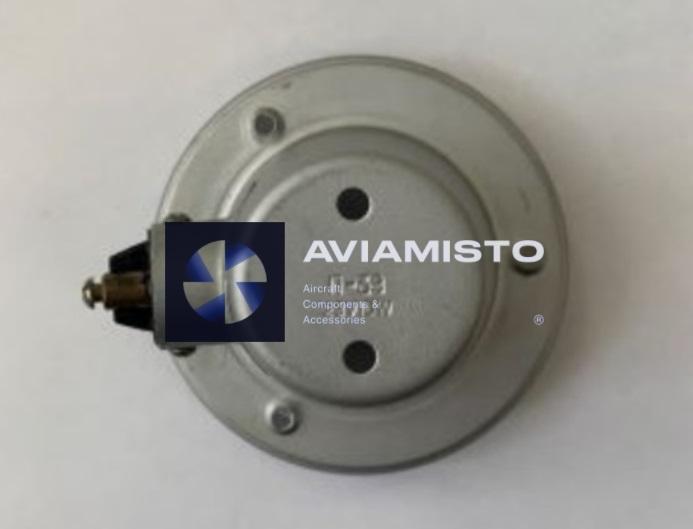

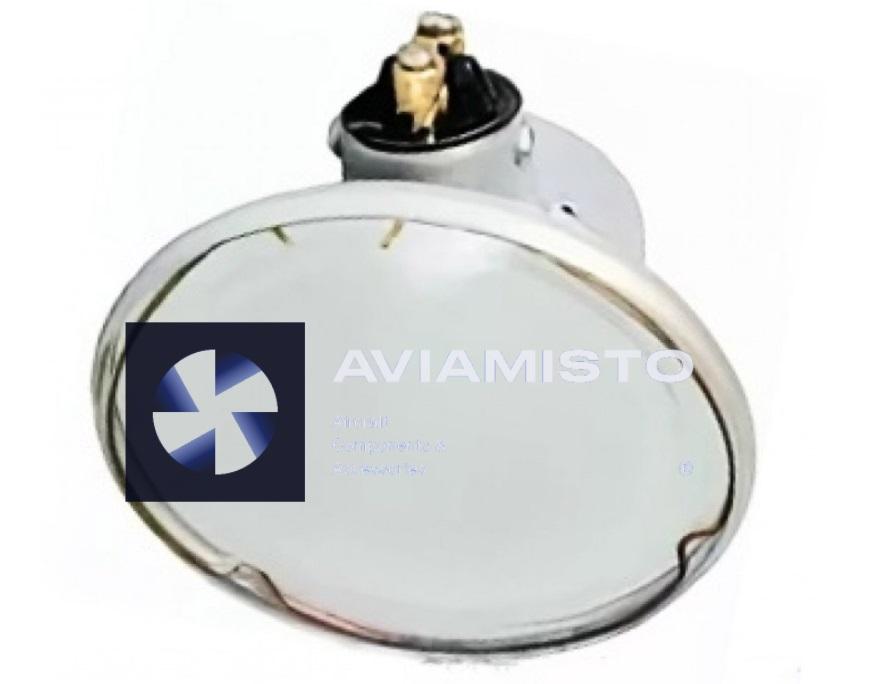

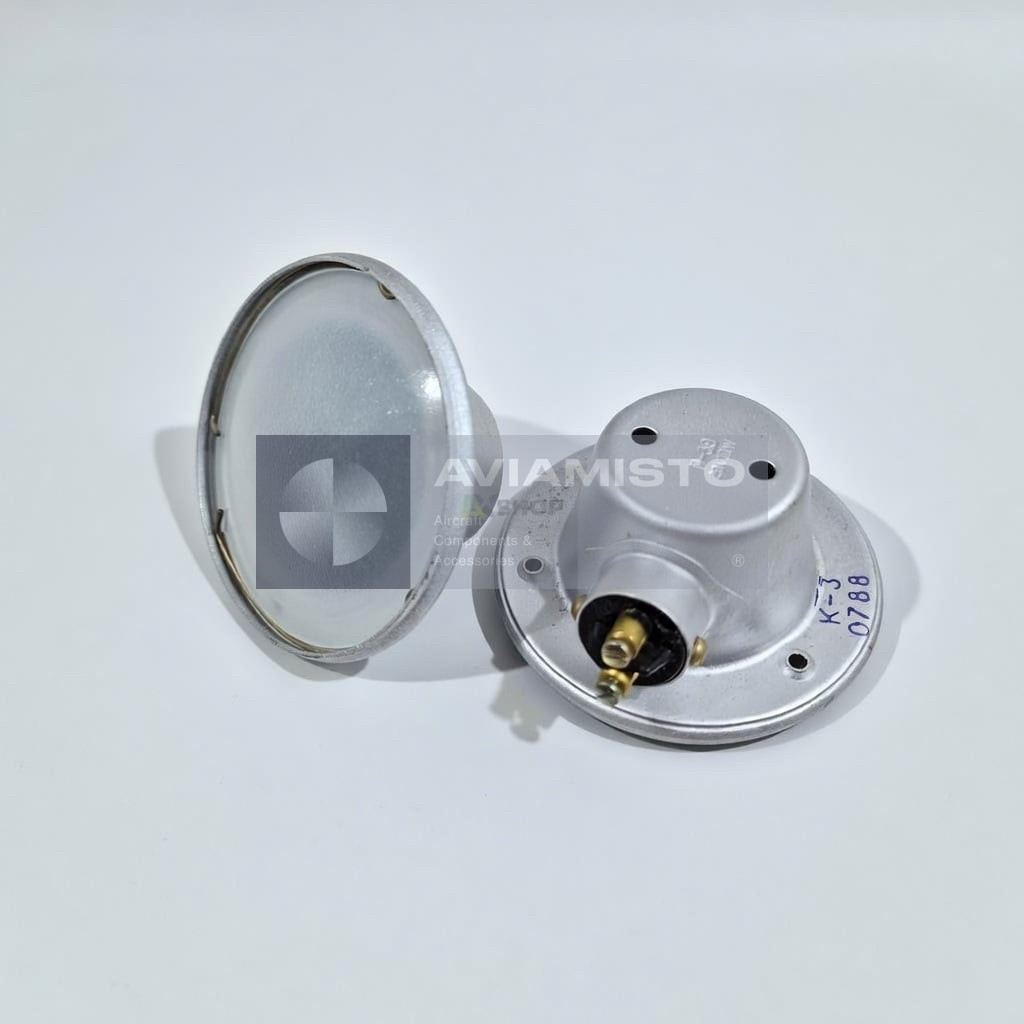

P-39 construction and light diffuser

The P-39 has a stamped metal housing, with the inner surface formed as a reflector. The light source is protected by a glass diffuser, which may be supplied in white matte or green versions depending on the installation purpose. The white diffuser is normally used for general illumination, while the green version may be used where softer, less disturbing cockpit or service lighting is required. During maintenance, the diffuser, lamp holder, reflector, contacts and housing condition should be checked.

Lamp holder and electrical design of the P-39

The P-39 uses a two-contact bayonet lamp holder fixed in the lamp-holder support. The light is designed for connection to the aircraft low-voltage DC electrical system, typically 24 V or 28 V depending on aircraft type. It is usually fitted with a small incandescent globe lamp. In modernized installations, LED replacement elements may be used only if they are allowed by the operator’s documentation and electrical compatibility requirements. Incorrect lamp power or poor contact can cause overheating, low light output or unstable operation.

P-39 in aircraft technical compartments

A common application of the P-39 is lighting of technical compartments and underfloor spaces. On some aircraft, lights of this type may be connected through a limit switch, such as VK-2-142G, so that the compartment is illuminated when a technical hatch is opened. This is practical for maintenance because technicians often work in narrow areas with limited natural light. In such applications, the reliability of the switch, wiring, lamp and mounting point is as important as the light unit itself.

Aircraft application of the P-39 interior light

The P-39 is used on many Soviet and Russian-designed aircraft and helicopters. It may be installed on transport, passenger and military aircraft, including An-12, An-24, An-26, An-30, An-72, An-74, Il-18, Il-76, Yak-40, Yak-42, Tu-134 and Tu-154. It is also used on helicopters such as Mi-8, Mi-14, Mi-24, Mi-26, Ka-27 and Ka-32 depending on configuration. Exact installation quantity and location should be checked by aircraft type and interior lighting documentation.

Supply and inspection of P-39

For procurement or replacement, the product should be specified as P-39 aircraft interior light, with diffuser color and lamp version confirmed in advance. The unit may be supplied new, from storage, repaired or serviceable depending on availability. Before installation, the housing, diffuser, lamp holder, contacts, mounting points and wiring connection should be checked. For aircraft use, passport, quality documents or acceptance documentation should be confirmed where required.
