landing light
LFL 27-450-5 (LFSM)
Price on request
landing light
Available on back-order
Description

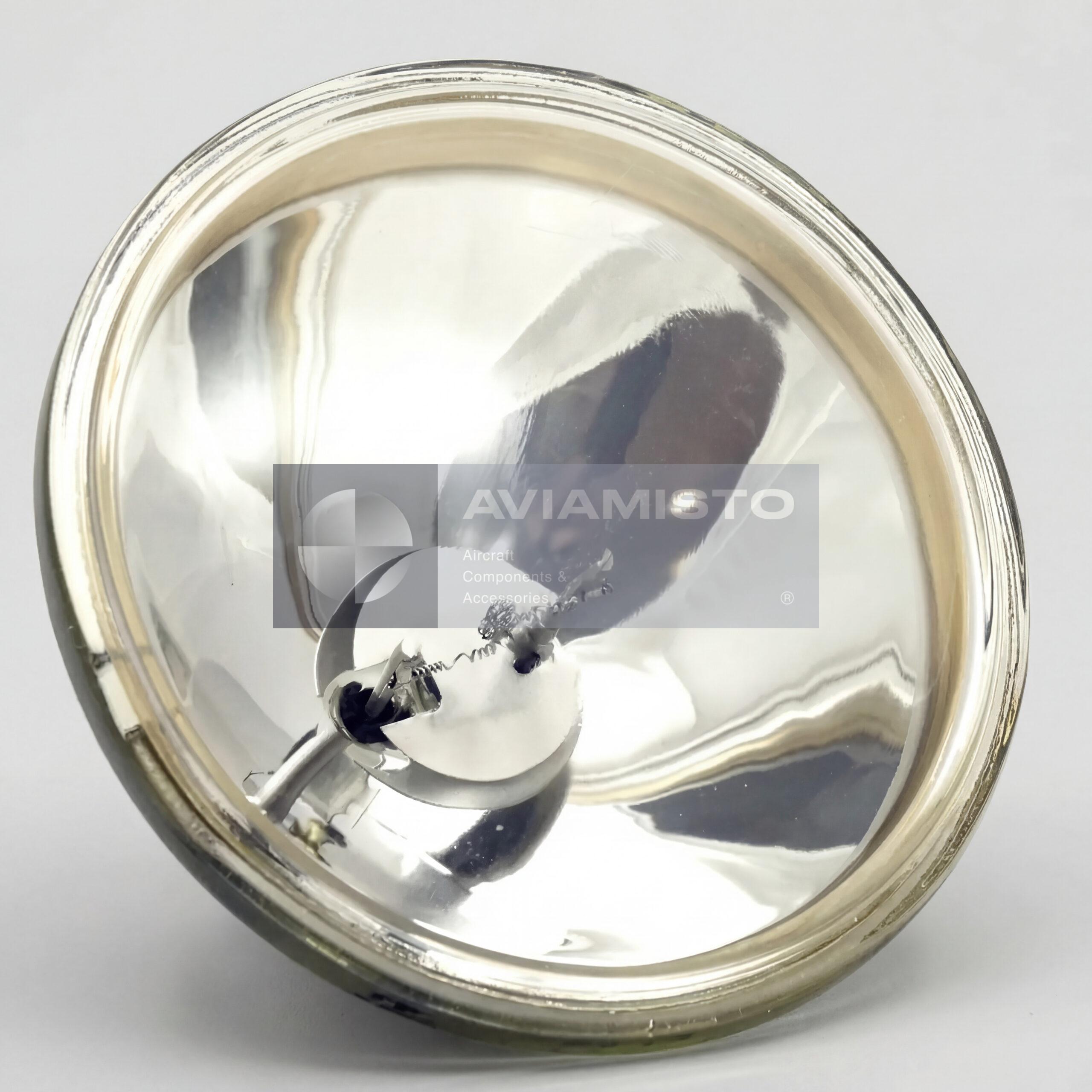

The LFL 27-450-5 is an aircraft landing light designed for use as a high-intensity forward illumination source during aircraft landing operations.
Within the aircraft external lighting system, the light provides concentrated forward illumination to ensure visibility of the runway and surrounding area during approach and landing, operating as a primary landing light.
The light is used on helicopters and aircraft equipped with landing light assemblies, including installations on rotorcraft and landing light housings of the FPP-7 FPP-7M series.
The product is also known under alternative designations LFSM 27-450-5, LFSM-P27-450, and LFS-PS27-450, which refer to a functionally equivalent product type.
Details
Product Type: Aircraft landing light
Function: Forward illumination during landing operations
Application / Where Used: Aircraft external lighting systems
System / Installation Area: Landing light assemblies
Operating Voltage: 27 V
Power Supply Type: DC or AC
Rated Power: 450 W
Maximum Power: Not more than 480 W
Luminous Intensity (Rated): 270 kcd
Luminous Intensity (Initial): Not less than 243 kcd
Beam Angle (Horizontal): 12°
Beam Angle (Vertical): 12°
Average Operating Life: 9 h
Maximum Continuous Operation: 1 h
Cooling Interval: Not less than 20 min
Assigned Resource: 300 flight hours
Storage Life: 10 years
Mounting Position: Any
Dimensions: Diameter 145 mm, length 95 mm
Weight: Not more than 0.45 kg
Technical Documentation: Manufacturer documentation / product datasheet
