AGR-74-15 series 2

AGR-74-15 Series 2 System Overview

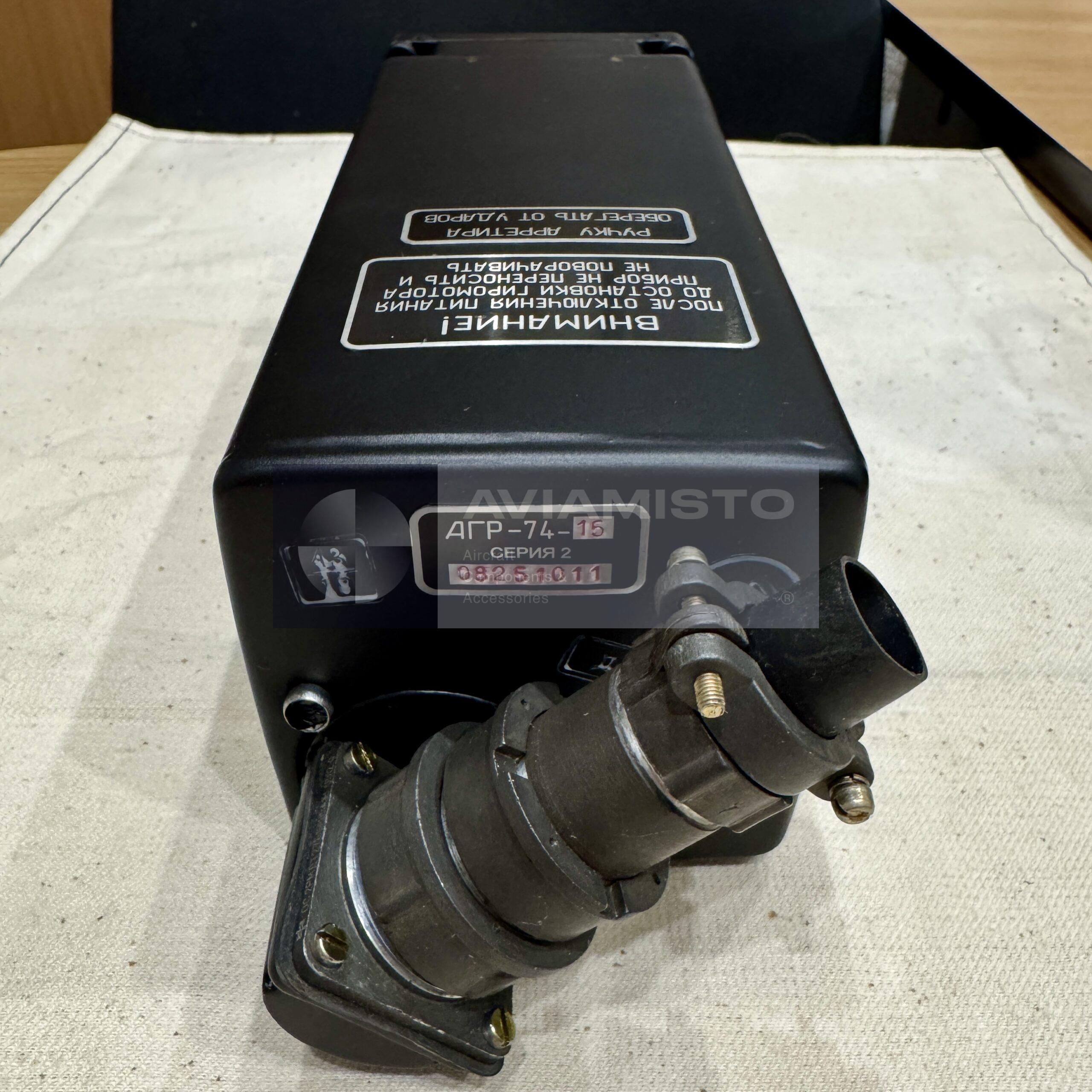

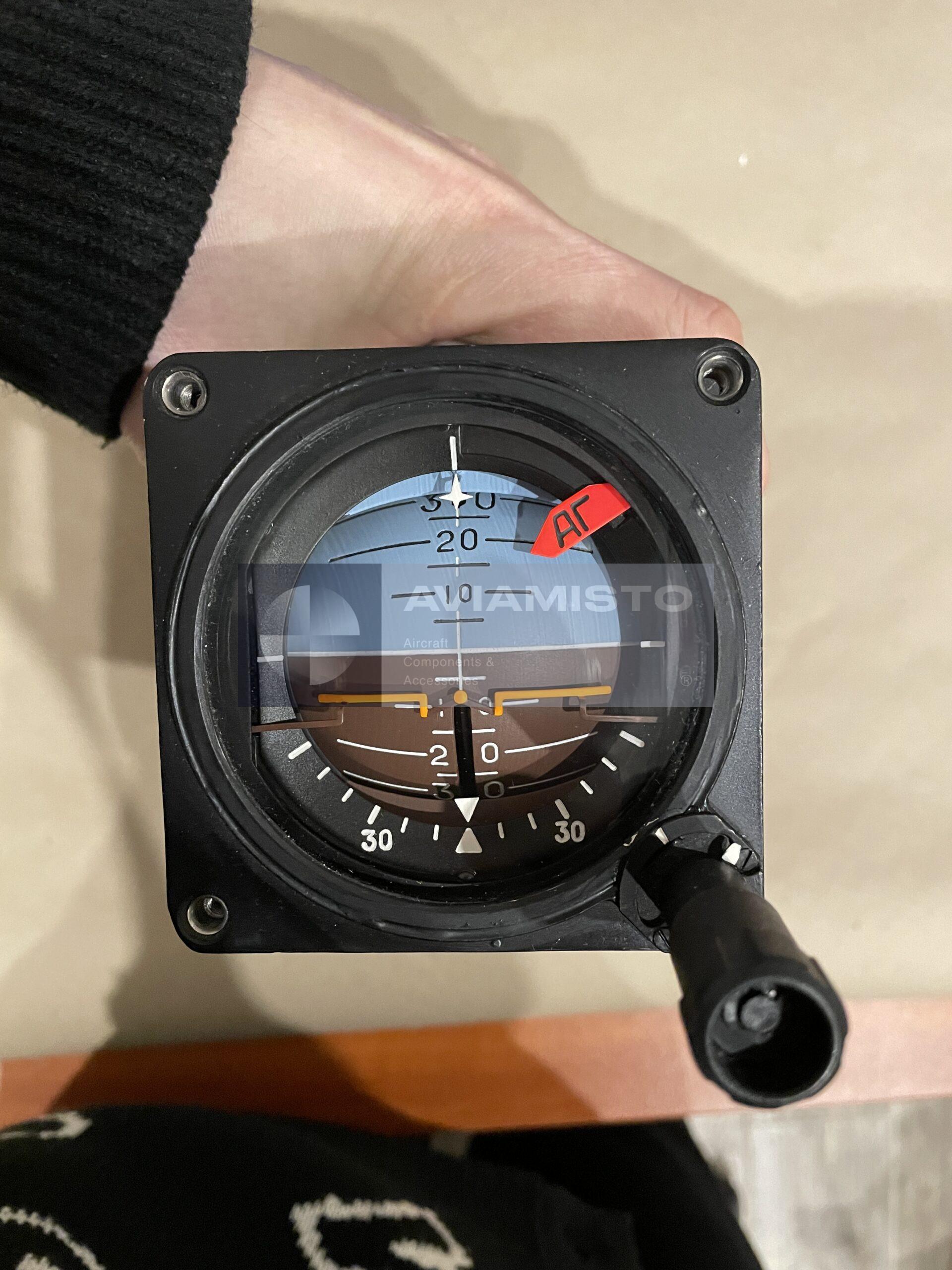

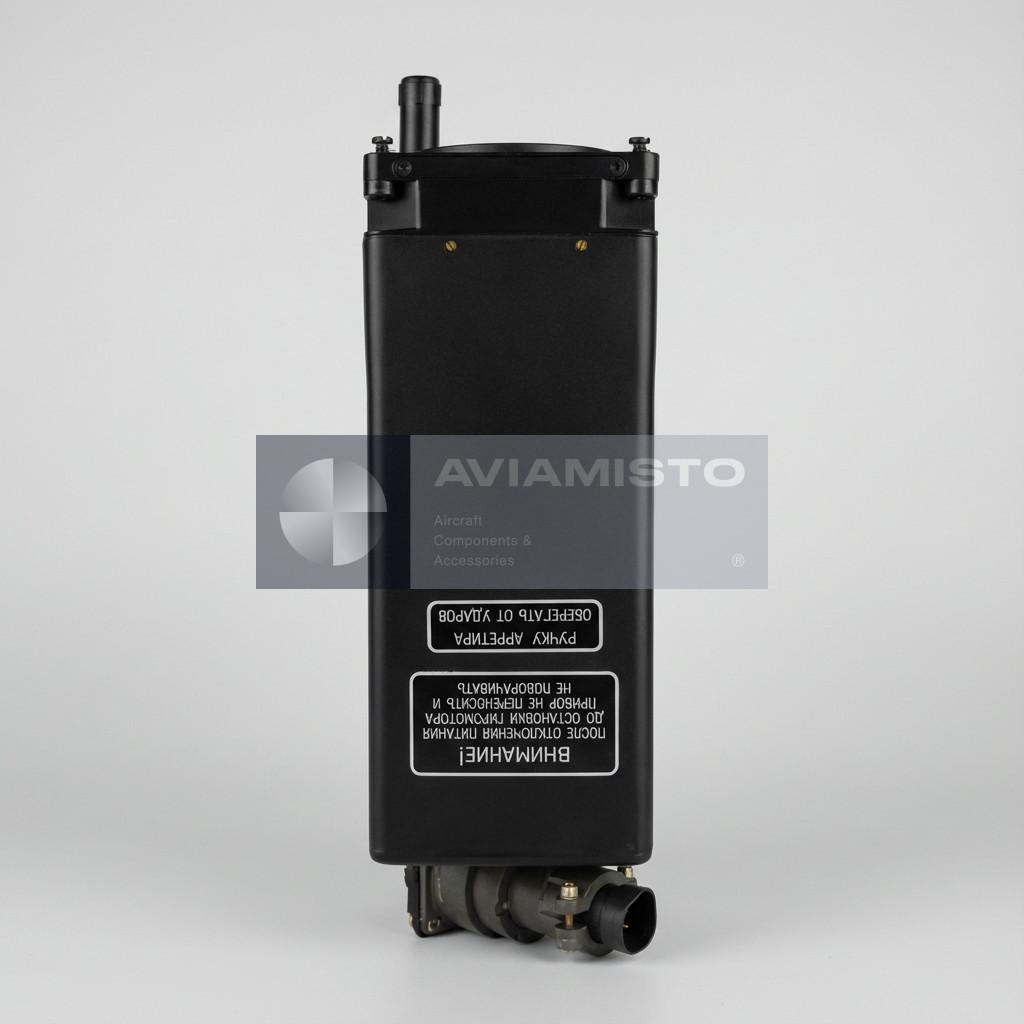

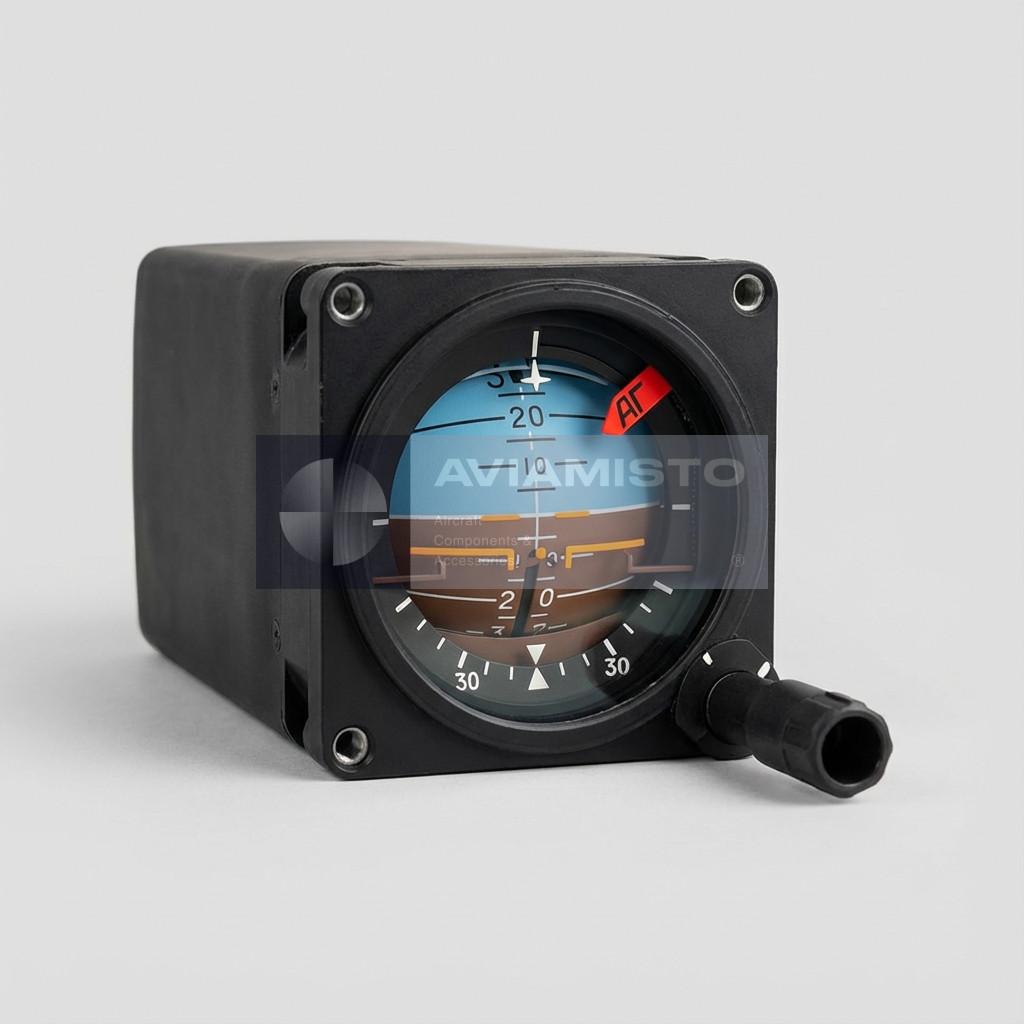

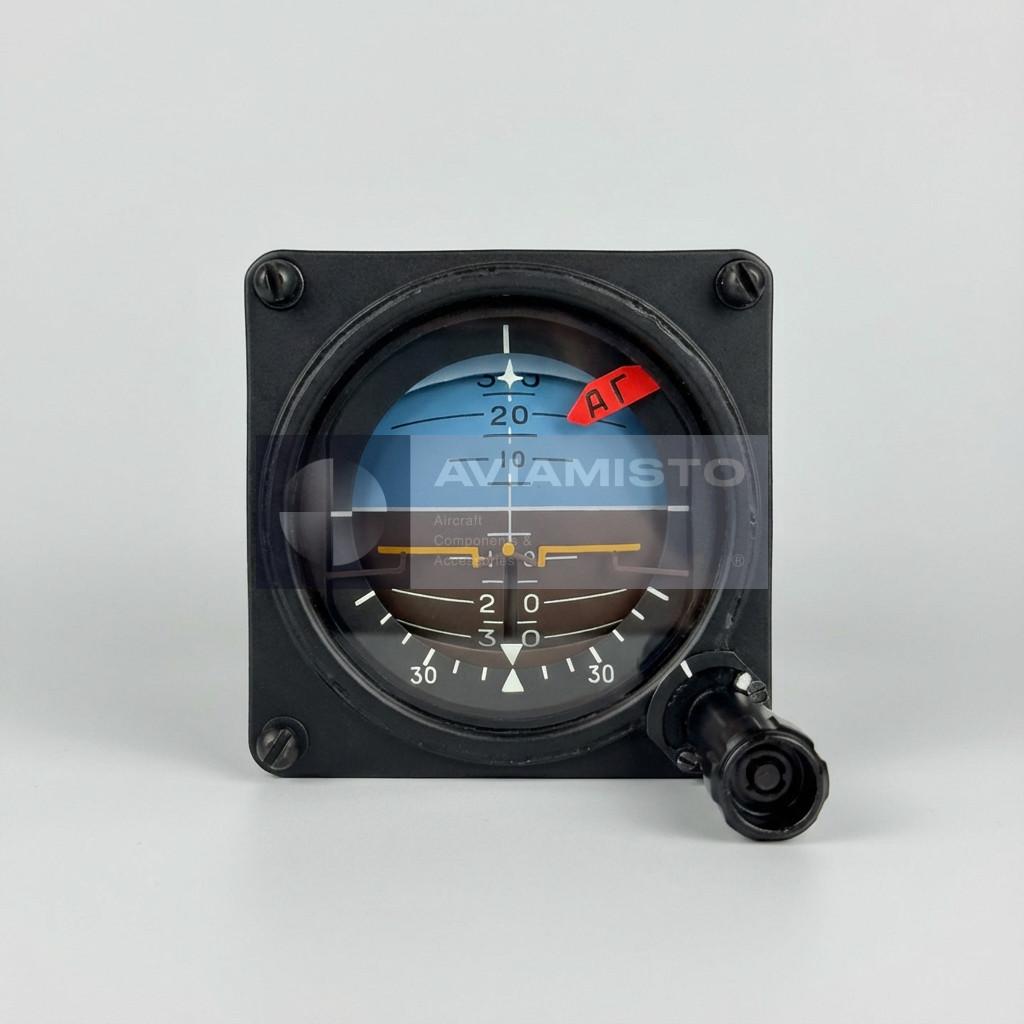

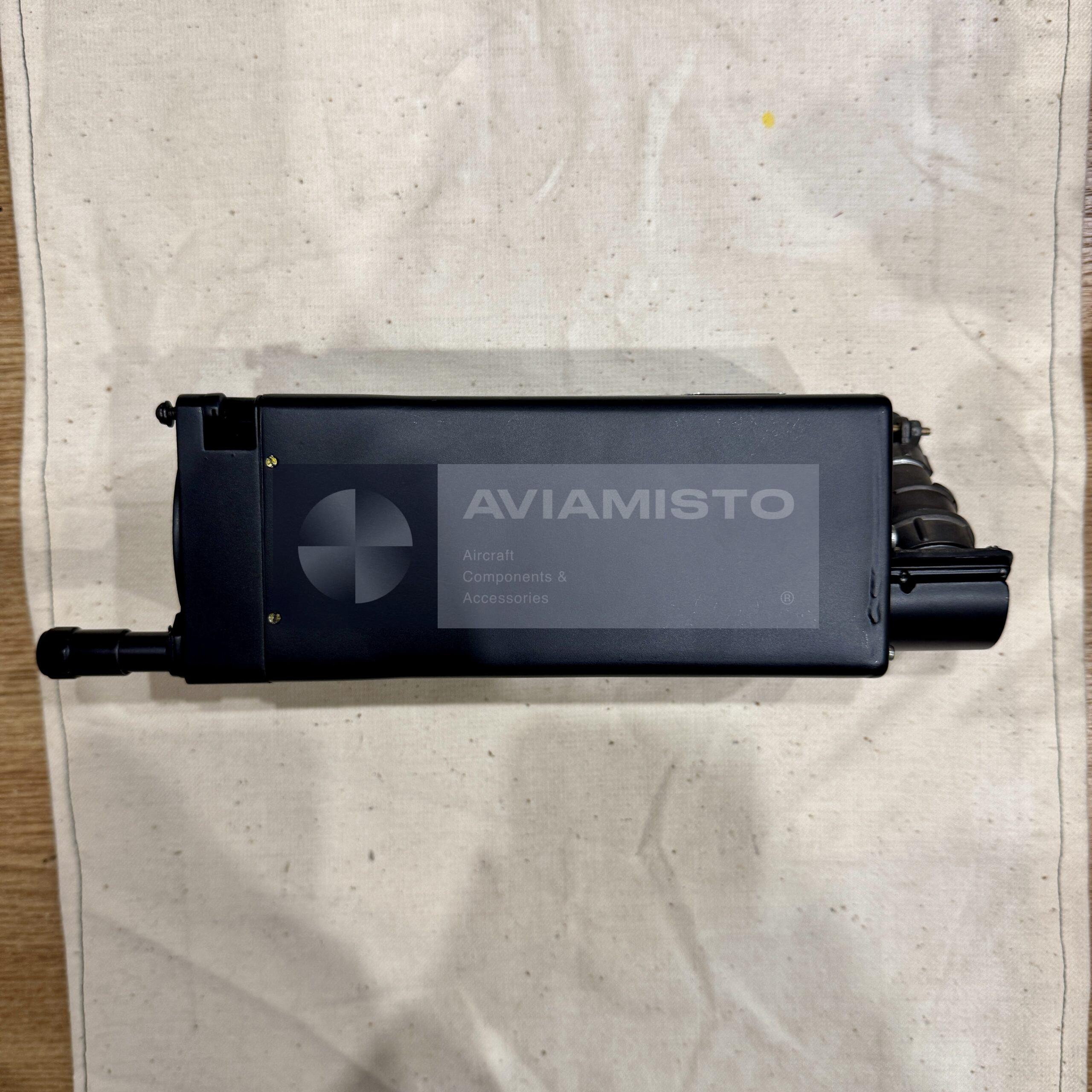

The AGR-74-15 Series 2 is a gyroscopic attitude indicator designed to provide visual information on aircraft position relative to the true horizon within flight and navigation instrument systems.

AGR-74-15 Series 2 Indication Function

The instrument provides indication of roll and pitch angles and generates AC electrical output signals proportional to roll angle for transmission to external onboard circuits, ensuring reliable attitude reference during various flight conditions.

AGR-74-15 Series 2 Aircraft Application

The unit is installed on fixed-wing aircraft and helicopters, including An-28, An-38, An-72, An-74, An-124, An-140, Tu-154M, Mi-17, and Mi-8AMT, as part of standard flight instrument systems.

AGR-74-15 Series 2 System Integration

The instrument operates on a gyroscopic assembly with an integrated failure warning system providing visual indication in case of malfunction and maintaining accuracy under dynamic flight conditions. The product is also known under alternative designation AGR-74-15 Series 2.

Product Type: Gyroscopic attitude indicator
Function: Visual indication of roll and pitch angles; generation of AC output signals proportional to roll
Application / Where Used: Flight and navigation instrument systems
System / Installation Area: Aircraft instrument panel and onboard avionics systems
Compatible Aircraft / Equipment: An-28, An-38, An-72, An-74, An-124, An-140, Tu-154M; Mi-17, Mi-8AMT
Roll Range: ±360°
Pitch Range: ±85° (excluding instrument panel inclination)
Power Supply: Three-phase AC 400 ±20 Hz, 36 V (+1.8 / −3.6)
Lighting Power Supply: AC or DC
Lighting Voltage: 2–6 V
Current Consumption (per phase): ≤ 0.4 A
Failure Warning Indication: Warning flag in pitch scale field of view
Failure Warning Time (< 8° bank): 1.6 s
Failure Warning Time (> 8° bank): 0–3 s
Indication Error on Rocking Base: ≤ ±1.5°
Weight: ≤ 2.5 kg
Instrument Weight: 4.5 kg
Supply Set Weight: 8.0 kg
Technical Documentation: Technical documentation available upon request
