GMK-1A

GMK-1A heading system for aircraft and helicopters

The GMK-1A is an aircraft heading system used to determine, stabilize and display aircraft course information. It can provide compass, magnetic or true heading data depending on the operating mode and system configuration. The system is used on light aircraft and helicopters, including Yak-18T, Yak-52, Mi-2 and Mi-8 applications. In the aircraft, GMK-1A is not only a cockpit indication set. It also supplies heading signals to other onboard equipment, such as autopilot channels, navigation instruments and signal distribution units.

How the GMK-1A forms heading information

The GMK-1A combines magnetic sensing with gyroscopic stabilization. The ID-3 induction detector senses the direction of the Earth’s magnetic field and gives the magnetic reference. The GA-6 gyro unit keeps the heading stable and reduces short-term fluctuations caused by maneuvers, yawing or turbulence. The correction mechanism removes magnetic deviation and instrument errors before heading information is sent further through the system. This combination gives the crew a more stable course indication than a simple magnetic compass could provide by itself.

Main units included in the GMK-1A set

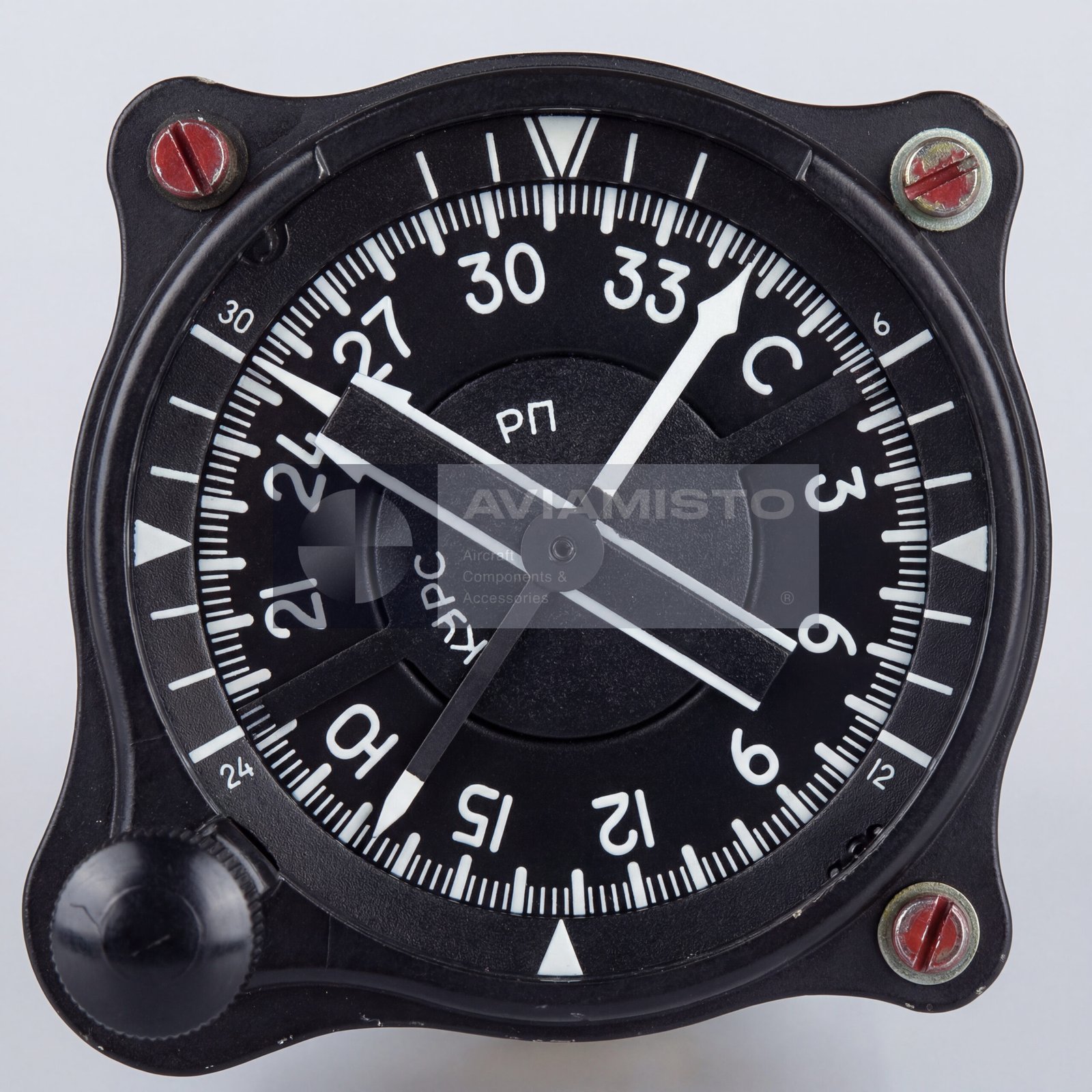

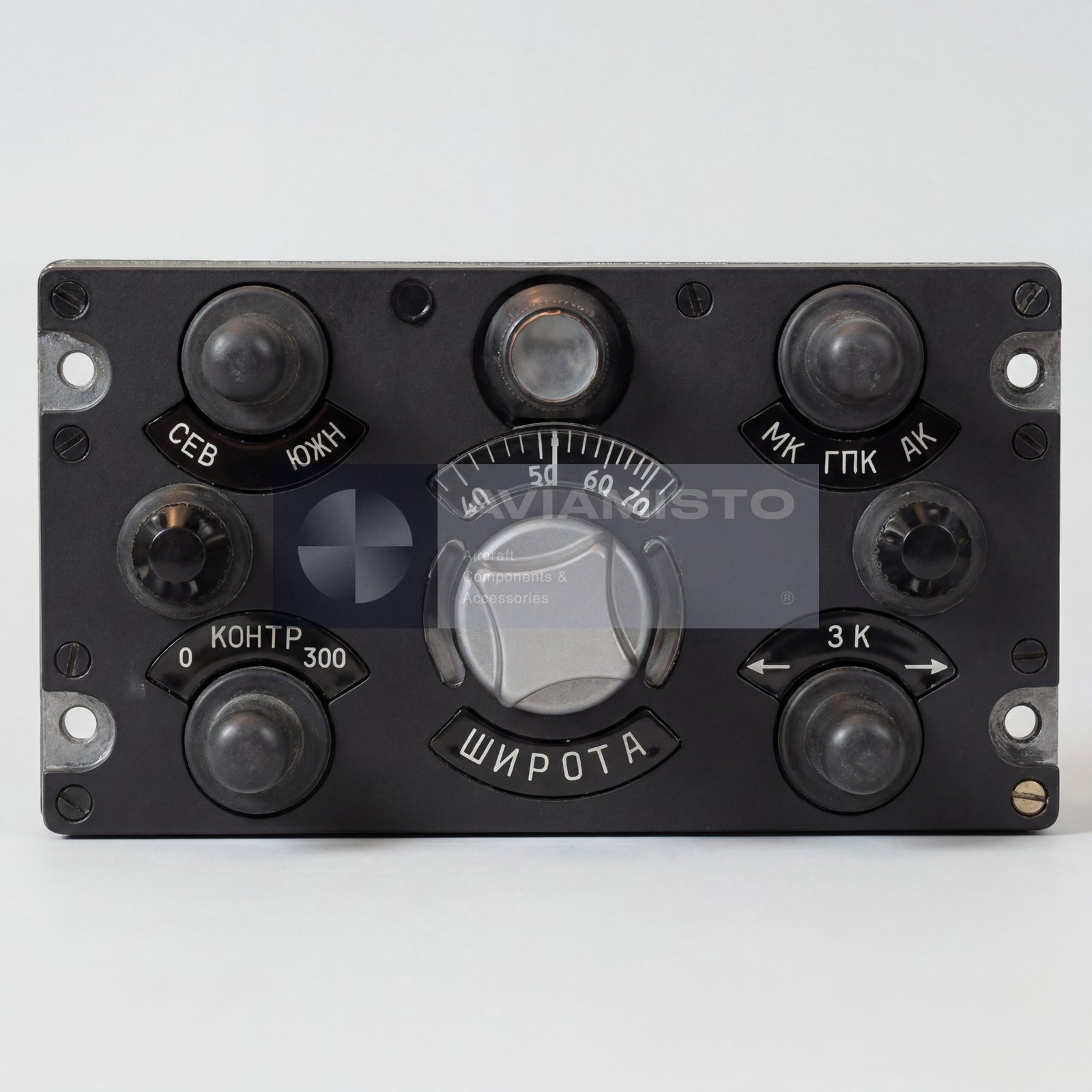

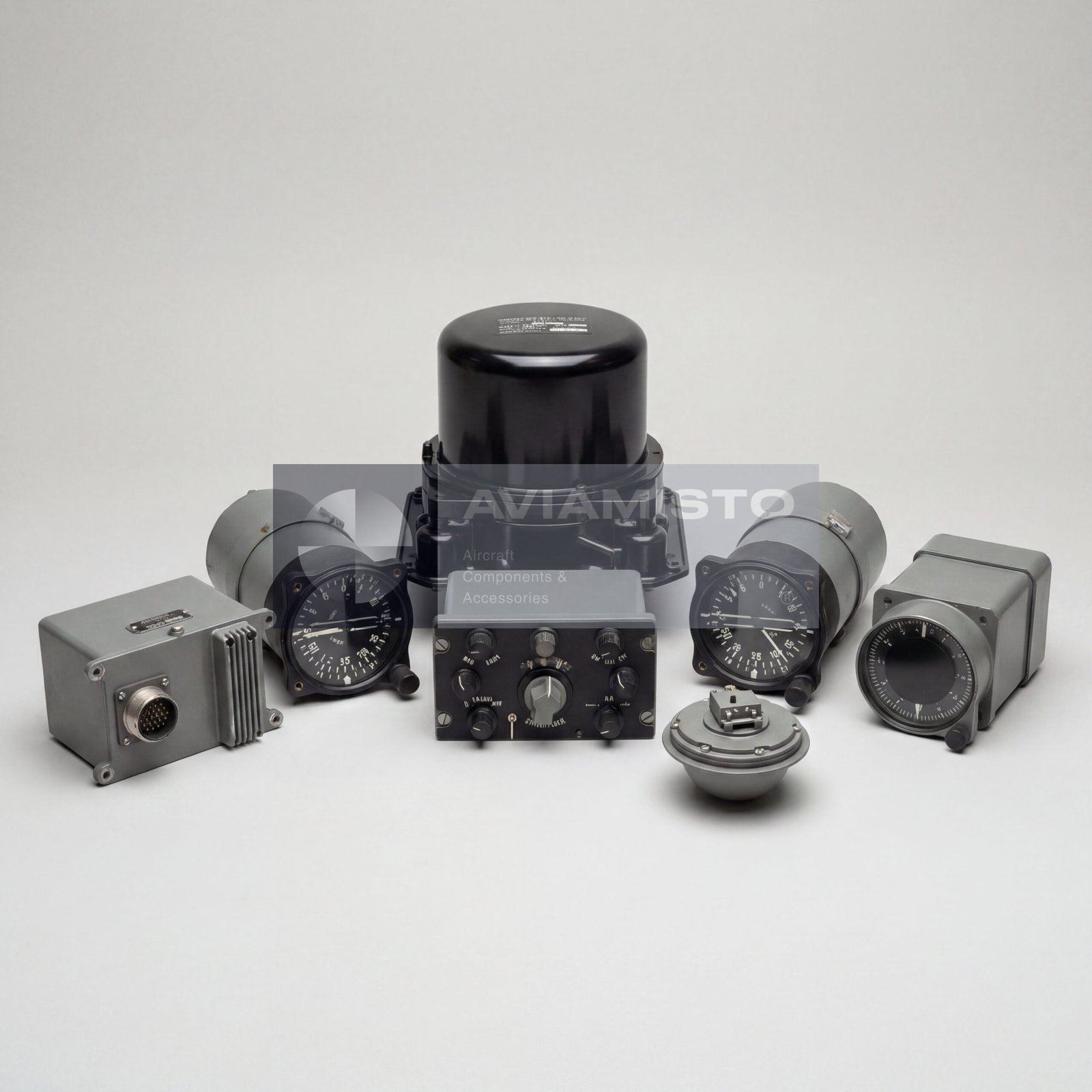

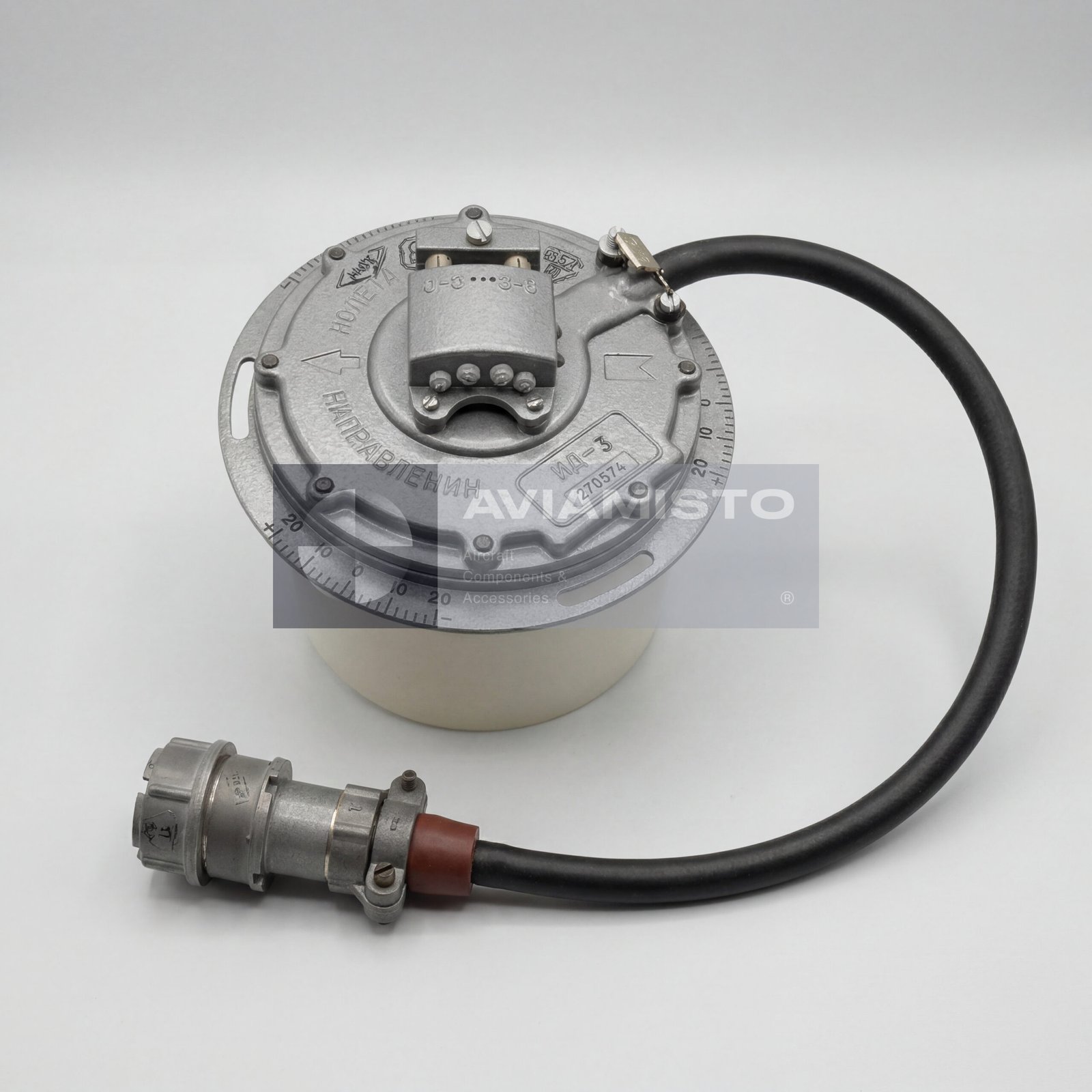

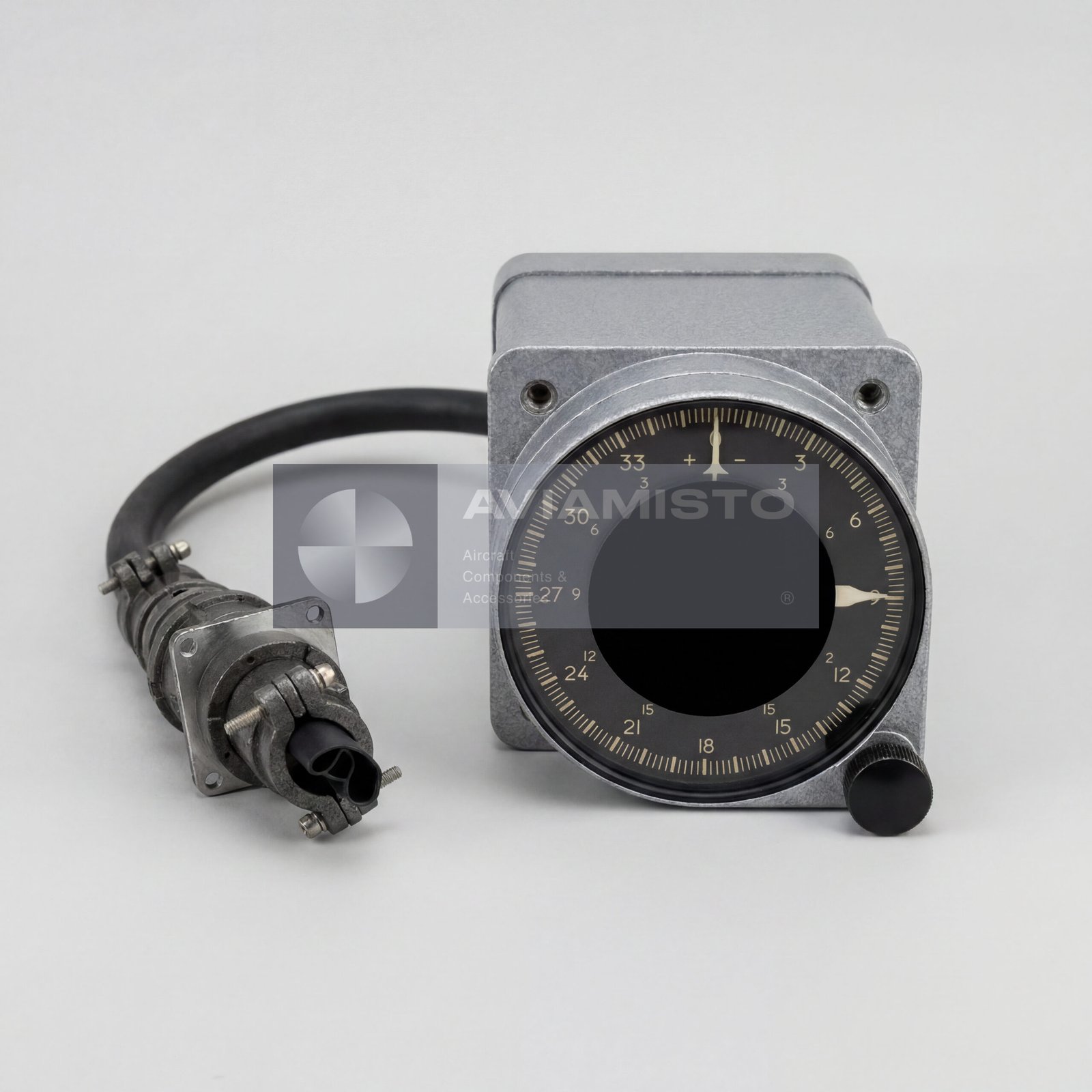

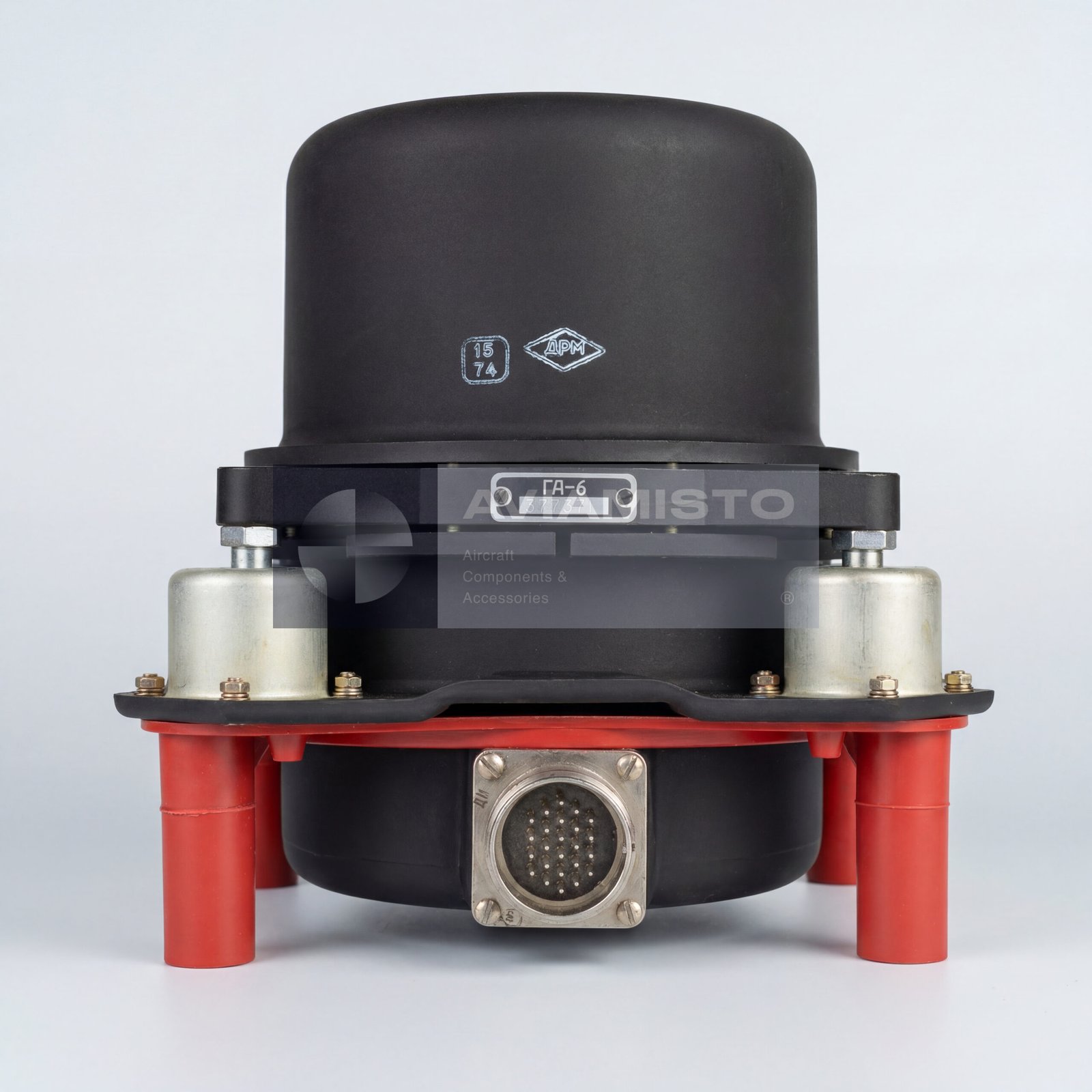

A typical GMK-1A set includes the ID-3 induction detector, GA-6 gyro unit, PU-26 control panel, KM-8 correction mechanism, UGR-4U course indicator and BR-40 signal distribution unit. Each component has its own place in the system. The ID-3 is installed away from magnetic interference, usually in the wing, tail or another remote aircraft area. The GA-6 works as the gyro reference. The KM-8 corrects magnetic deviation. The PU-26 is used for mode selection and manual settings, while the UGR-4U displays heading information to the pilot.

GMK-1A in gyro heading mode

Gyro heading mode is used when the aircraft should maintain course by the gyro reference without continuous magnetic correction. In this mode, the magnetic channel is disconnected and the system relies on the GA-6 gyro unit. This is useful during maneuvers, in strong turbulence, in areas with magnetic anomalies, or where magnetic information is not stable enough for direct use. The system also takes geographical latitude into account to compensate for the effect of Earth rotation. In practical operation, this mode gives a steadier heading reference during dynamic flight conditions.

GMK-1A in magnetic correction mode

Magnetic correction mode is used when the gyro needs to be aligned and smoothly corrected by the magnetic reference. In this mode, the ID-3 induction detector provides magnetic heading information, and the system gradually corrects the gyro heading. This mode is normally used during initial alignment and in long, straight, level flight where magnetic data are reliable. It keeps gyro drift from accumulating and helps maintain the system’s heading accuracy over time. Correct compensation of aircraft deviation is important here, because the magnetic channel must not introduce its own errors into the gyro reference.

Heading signal output from GMK-1A

The GMK-1A system sends course information not only to the pilot’s indicator, but also to external consumers. The BR-40 distribution unit can transmit heading data to autopilot equipment, navigation computers and other onboard systems. This makes the heading system part of the wider aircraft navigation and control architecture. If GMK-1A output is incorrect or unstable, the problem may appear not only on the UGR-4U indicator, but also in autopilot behavior, radio navigation display or other systems that use the same heading reference.

Supply and maintenance notes for GMK-1A

For procurement or repair, it is important to specify whether the requirement is for the complete GMK-1A set or for individual units such as GA-6, ID-3, KM-8, PU-26, UGR-4U or BR-40. These components are often supplied and repaired separately. Before installation, the system version, aircraft type, wiring, connector compatibility and documentation must be checked. During maintenance, technicians normally check gyro run-up time, magnetic correction, deviation compensation, course indication, power supply and agreement between indicators and connected heading-data consumers.

Product Type: Aircraft heading system
Designation: GMK-1A
Function: Determination, stabilization, indication and transmission of aircraft heading information
Application / Where Used: Aircraft and helicopter heading, navigation and autopilot systems
System / Installation Area: Onboard navigation equipment and cockpit heading indication system
Compatible Aircraft / Equipment: Yak-18T, Yak-52, Mi-2, Mi-8 and other aircraft depending on installed equipment
Displayed / Generated Data: Compass heading, magnetic heading, true heading and turn-angle information depending on operating mode
Main System Components: ID-3 induction detector, GA-6 gyro unit, PU-26 control panel, KM-8 correction mechanism, UGR-4U heading indicator, BR-40 signal distribution unit
Induction Detector Function: Sensing of the Earth’s magnetic field and generation of magnetic heading reference
Gyro Unit Function: Heading stabilization, smoothing of short-term fluctuations and storage of course reference
Correction Mechanism Function: Deviation compensation, instrument error correction and connection between ID-3 and GA-6
Control Panel Function: Mode selection, manual course setting and latitude input
Heading Indicator Function: Display of current heading and bearings to the pilot
Signal Distribution Function: Transmission of heading data to autopilot, navigation computers and other onboard consumers
Operating Modes: Gyro heading mode and magnetic correction mode
Readiness Time: Up to 5 minutes
Error in Magnetic Correction Mode: Not more than ±1° on stationary aircraft
Gyro Drift in Gyro Heading Mode: Not more than ±2.5° per hour after Earth-rotation compensation
DC Power Supply: 27 V DC
AC Power Supply: 36 V three-phase AC, 400 Hz
Technical Documentation: GMK-1A system documentation, aircraft maintenance manual, wiring diagrams and passports for individual units when available
