DUS-1209E

DUS-1209E pitch-rate sensor in the AP-34B system

The DUS-1209E is an aircraft pitch-rate gyro sensor used in automatic flight control systems of Mi-8 and Mi-17 family helicopters. In the AP-34B autopilot system, it measures angular velocity around the helicopter pitch axis and converts that motion into an electrical signal. This signal is then used by the autopilot electronics to stabilize the longitudinal attitude of the helicopter. The unit does not control the aircraft by itself; it provides the system with the pitch-rate information needed for damping and automatic correction.

Pitch damping function of the DUS-1209E

During flight, the helicopter can develop pitch oscillations from pilot input, turbulence, speed changes, power changes or transition between flight modes. The DUS-1209E gives the autopilot a continuous signal showing how quickly the helicopter is rotating in pitch. With this signal, the system can form a corrective response through the pitch stabilization channel. This is especially important during climb, descent, level flight, hover and transition modes, where smooth pitch behavior reduces pilot workload and helps the helicopter remain stable.

DUS-1209E in the longitudinal control loop

The DUS-1209E works inside the longitudinal dynamic control loop of the AP-34B system. Its output is used together with channel amplifiers, control units and executive elements that form the final stabilization response. In this chain, the rate sensor is one of the feedback sources. If the sensor signal is weak, noisy or outside tolerance, the autopilot may react incorrectly or fail a system check. For this reason, the DUS-1209E is normally checked as part of the full pitch channel, not only as a standalone gyro unit.

Electrical output from the DUS-1209E sensor

The DUS-1209E produces an electrical output signal proportional to pitch angular velocity within the specified operating range. In the neutral condition, residual output must remain within the allowed limit. When angular rate is applied, the signal increases according to the sensor response. These parameters are used during bench testing and troubleshooting, because the outside condition of the sensor does not always show whether the gyro element and output circuits are working correctly. Proper power supply and stable frequency are also necessary for correct sensor operation.

Installation and use on Mi-8 / Mi-17 helicopters

The DUS-1209E is used on Mi-8, Mi-8T, Mi-8MT, Mi-8AMT, Mi-8MTV-1, Mi-17 and related helicopter variants equipped with the AP-34B autopilot. It is installed as part of the automatic flight control equipment and works with the pitch stabilization channel. Since helicopter configurations may differ by modification and upgrade package, the exact sensor version must be checked against the aircraft parts catalog and AP-34B documentation. Similar DUS-1209 sensors may have different channel assignments, so the suffix letter is important.

Inspection and identification of DUS-1209E

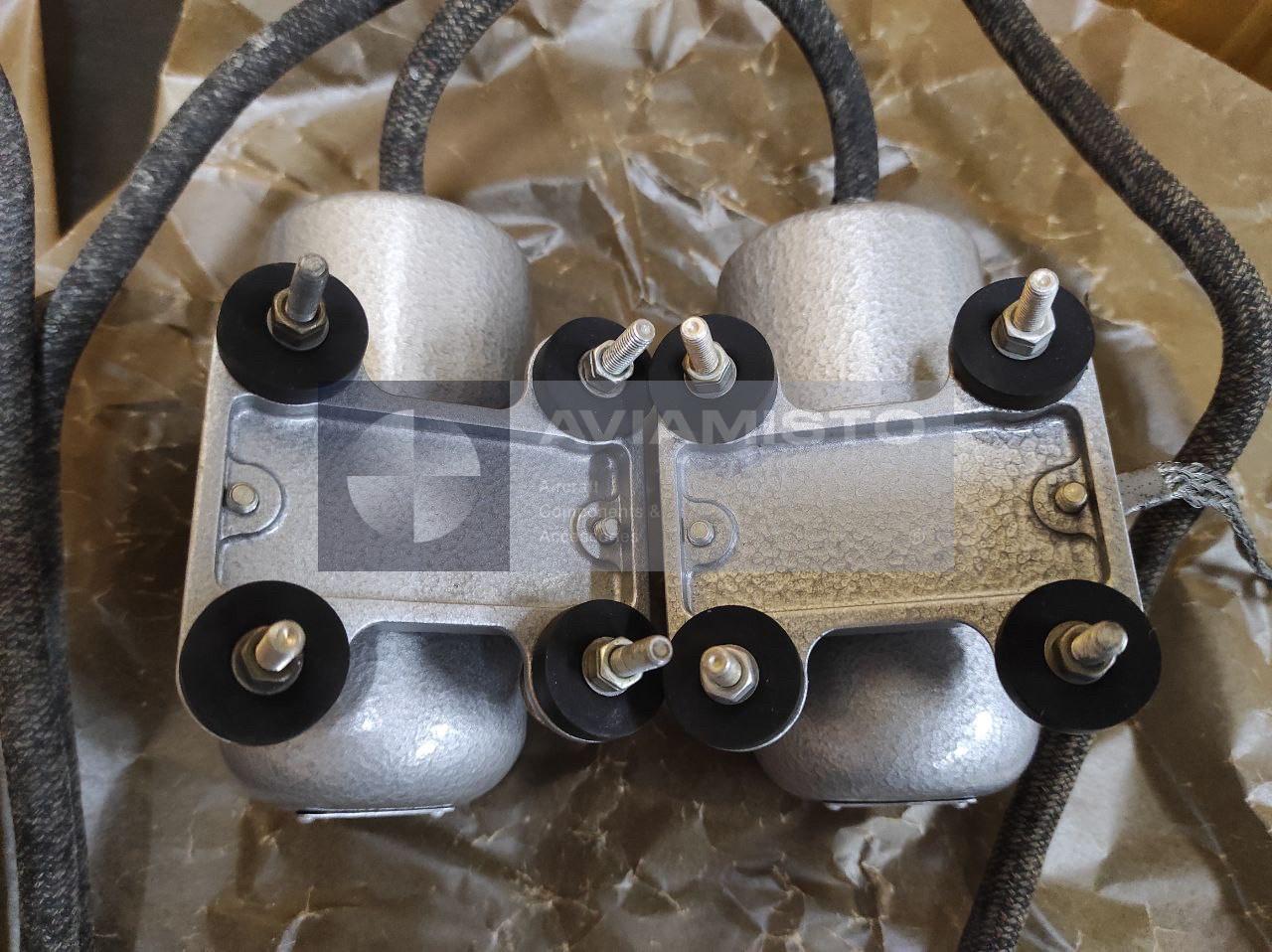

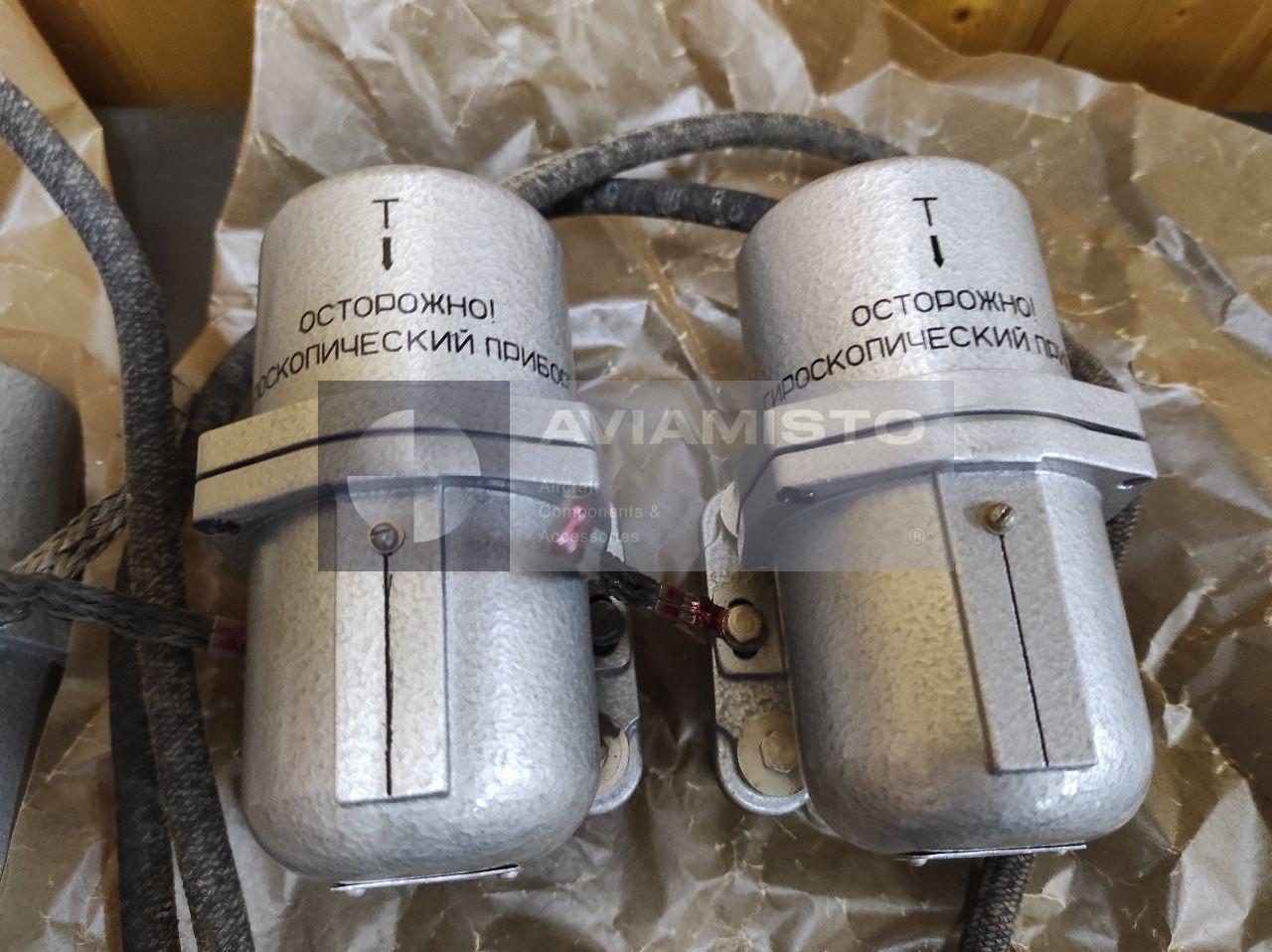

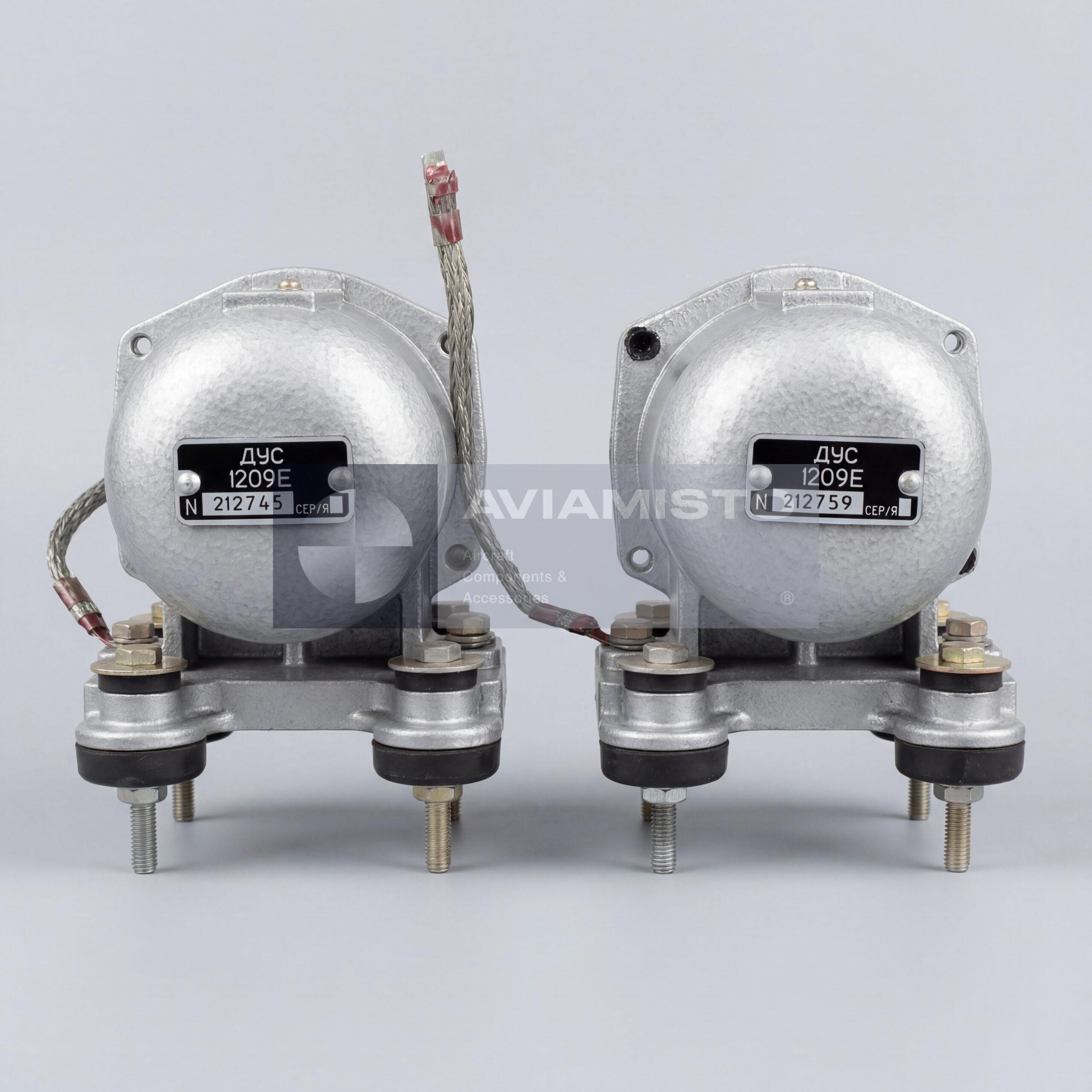

During maintenance, the DUS-1209E should be inspected for housing condition, connector integrity, mounting security, wiring condition and signs of corrosion or previous repair. Electrical checks are usually more important than appearance, because the main question is whether the gyro produces the required output under defined angular-rate input. In requests and documents, the sensor may appear as DUS-1209E, DUS1209E, DUS-1209-E, ДУС-1209Е or ДУС1209Е. These formats normally refer to the same pitch-rate sensor, but the exact marking should still be confirmed by passport and nameplate.

Supply and documentation for DUS-1209E

The DUS-1209E is aviation technical equipment and may be supplied as new, from storage, repaired, overhauled or serviceable depending on stock condition. For installation in an autopilot system, documentation is important: the manufacturer passport, serviceability confirmation, storage or repair records and test results should be checked when available. If the sensor is ordered separately, the request should specify that the required item is the pitch-rate sensor for the AP-34B system, not another DUS-1209 variant used in a different channel.

Product Type: Pitch-rate gyro sensor
Designation: DUS-1209E
Cyrillic Designation: ДУС-1209Е
Alternative Designations: DUS1209E; DUS-1209-E; ДУС1209Е
Function: Conversion of pitch angular velocity into an electrical autopilot signal
Application / Where Used: AP-34B automatic flight control system, pitch stabilization channel
System / Installation Area: Automatic flight control equipment of Mi-8 / Mi-17 family helicopters
Compatible Aircraft / Equipment: Mi-8, Mi-8T, Mi-8MT, Mi-8AMT, Mi-8MTV-1, Mi-17 and related variants depending on AP-34B installation
System Role: Pitch-rate feedback for longitudinal stabilization and damping of pitch oscillations
Associated Equipment: AP-34B autopilot, channel amplifiers, control units and executive units
Power Supply: 36–40.5 V AC, 400 ±8 Hz
Residual Output Signal, Neutral: Not more than 300 mV
Output Signal Range: Up to 500 mV with pitch-rate input
Linear Output Range, ±5°/s: Not more than 8.3 ±4.6 mV
Linear Output Range, ±12°/s: Not more than 20 ±2 mV
Sensitivity: Not less than 0.1 mV per °/s
Weight: Not more than 1.0 kg
Category: Aviation technical equipment / autopilot gyro sensor
Precious Metals Content: Gold and silver according to manufacturer passport
Condition: As applicable
Technical Documentation: Manufacturer passport included when available
