610200A

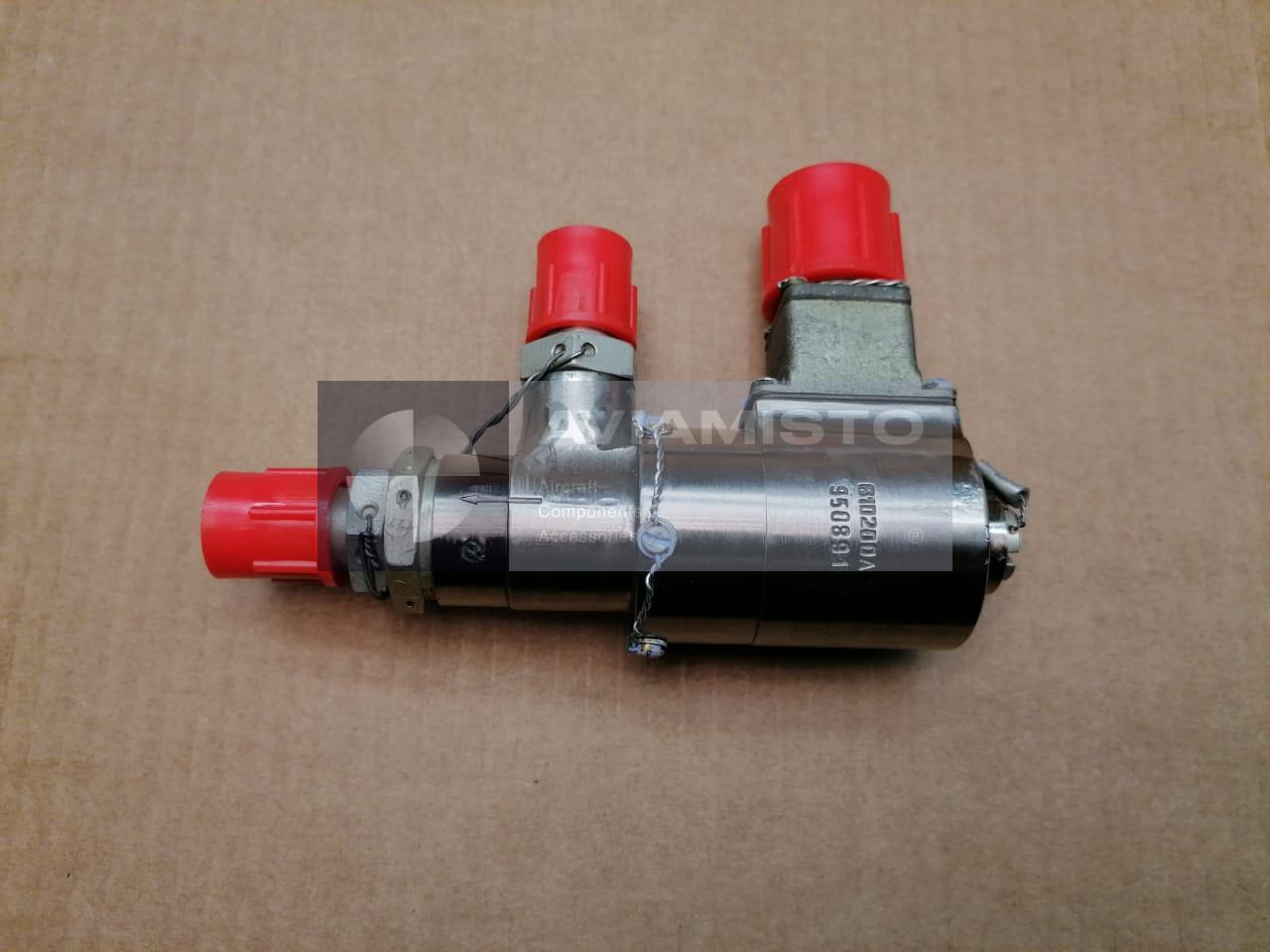

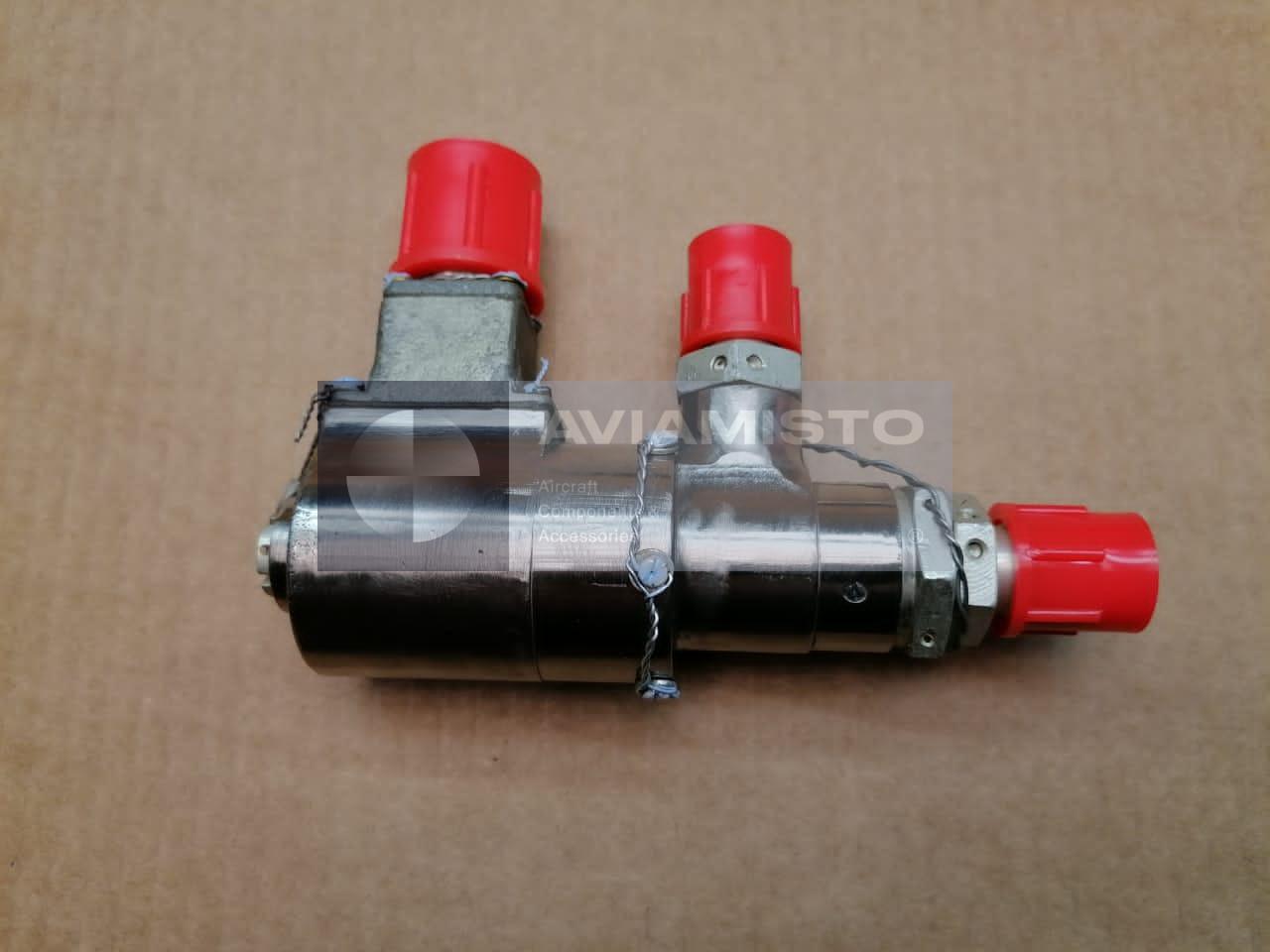

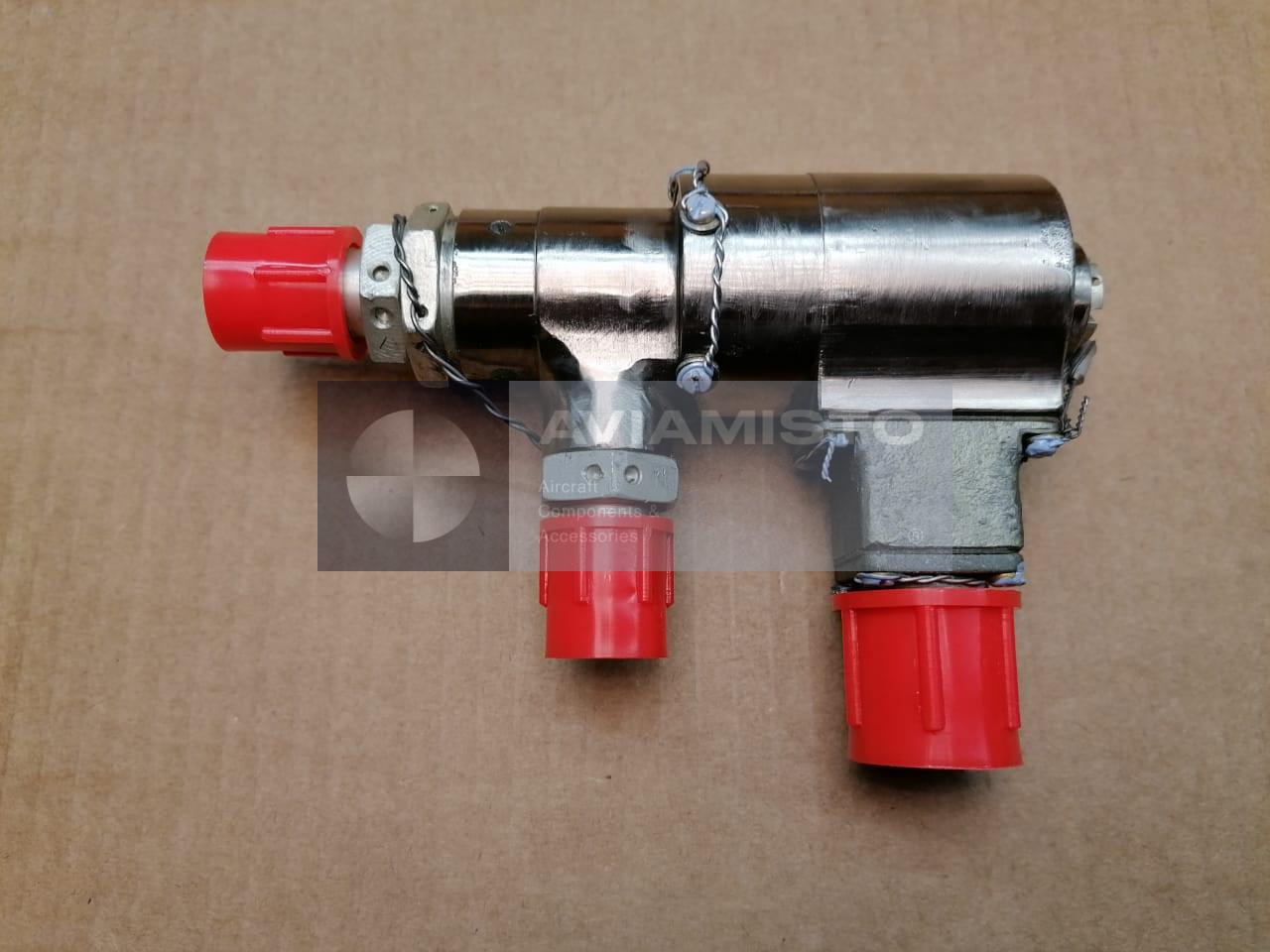

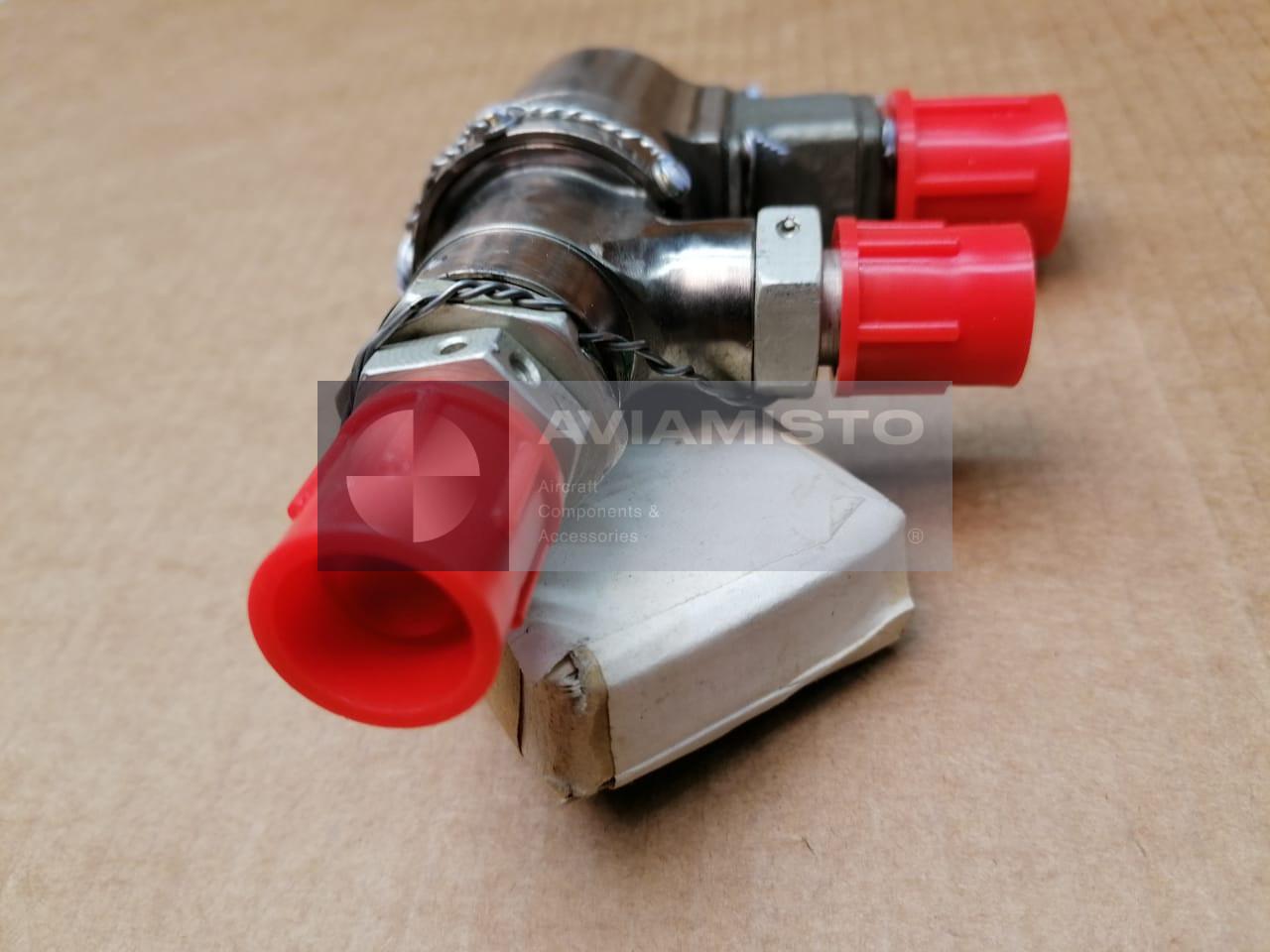

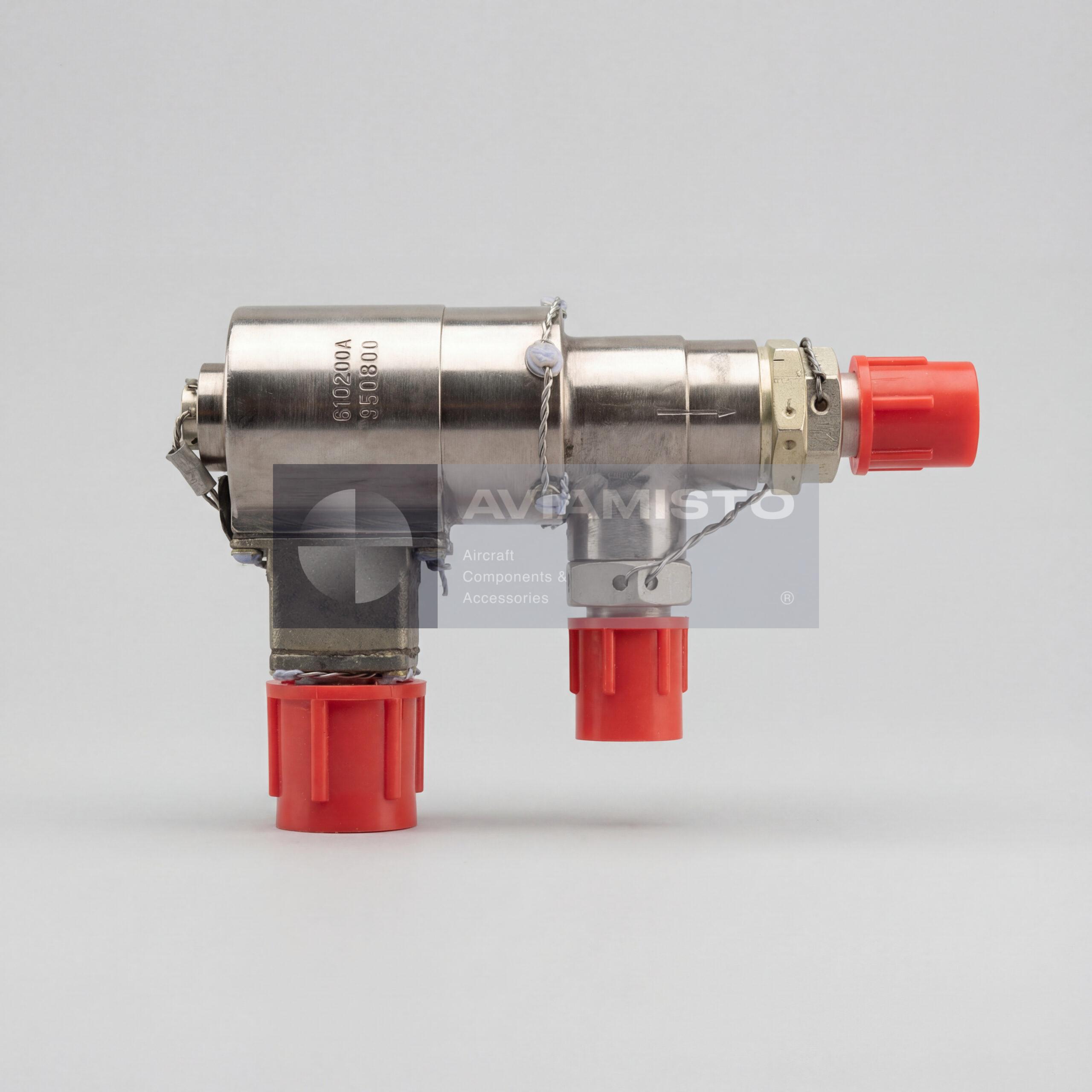

610200A Fuel Valve Overview

The 610200A is an aircraft electromagnetic fuel valve designed to control and shut off fuel supply in aircraft fuel and auxiliary systems. The unit operates as part of onboard fuel control architecture and ensures automatic fuel flow management without manual intervention.

610200A Control Function

The valve performs automatic opening and closing of the fuel line in response to control commands. It обеспечивает надежное перекрытие подачи топлива, поддерживая безопасную эксплуатацию систем и предотвращая неконтролируемый расход топлива.

610200A Aircraft Application

The valve is used in aircraft fuel and heating systems, including fuel supply circuits for auxiliary power units and onboard heaters. It is applied in systems where automatic fuel control and emergency shut-off functions are required.

610200A System Integration

The unit operates with aviation kerosene and is controlled by electrical signals from onboard systems. It is installed in fuel supply lines and operates as part of automated fuel control systems. The product is also known under alternative designations 610200A, which refer to the same product type.

Product Type: Electromagnetic fuel valve
Function: Control and shut-off of fuel supply
Application / Where Used: Aircraft fuel and heating systems
System / Installation Area: Fuel supply lines; auxiliary power unit installation area
Compatible Aircraft / Equipment: AI-9V auxiliary power unit, KO-50 heater
Working Medium: Aviation kerosene
Operating Principle: Electromagnetic actuation
Control Mode: Automatic
Operating Voltage: 27 V DC
Function on Start: Automatic opening on start command
Function on Shutdown: Automatic closing on shutdown command
Technical Documentation: Technical and operational documentation
