VU-6B

Power conversion through VU-6B

In operation, the VU-6B receives three-phase AC power and produces DC output for onboard consumers. The output voltage depends on the input supply, because the unit does not have its own built-in voltage stabilization system. That point matters during troubleshooting. If the DC output is low or unstable, the cause may be the rectifier unit, but it may also come from the AC input line, phase sequence, cooling condition, connectors, or downstream load. The unit is designed for continuous operation and uses forced air cooling, so airflow direction and cooling condition should not be ignored during inspection.

VU-6B in aircraft electrical systems

The VU-6B is used as a secondary DC source in aircraft and helicopter electrical systems. It is known from applications such as Mi-26 helicopters and Tu-154M aircraft, where DC power is required for onboard equipment supplied from the main AC network. The unit works together with AC buses, feeder lines, protection devices, rectifier control circuits, DC busbars, contactors, and load distribution equipment. In many systems it may work with differential-minimum relays or protection circuits that connect or disconnect the rectifier output from the DC network.

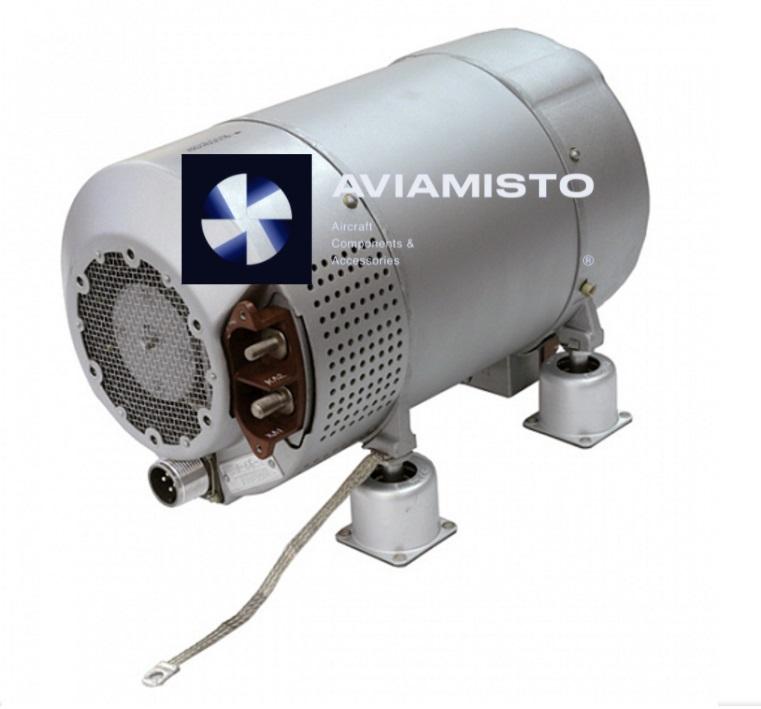

Construction and cooling of rectifier VU-6B

The unit is a static converter. Its internal layout typically includes a step-down transformer, semiconductor rectifier assemblies, smoothing and radio-noise suppression elements, and a cooling fan. The transformer reduces the incoming AC voltage to the level required by the rectifier section. The rectifier section then converts AC into DC. The fan provides forced cooling during operation. If cooling is restricted, the unit may overheat under load. For maintenance, the usual checks include input voltage, phase sequence, output voltage, load current, cooling airflow, connectors, and external condition.

Identification and ordering checks for VU-6B

Before ordering, the marking on the installed unit should be checked against the aircraft electrical system documentation, parts catalog, or acceptance label. In English requests the designation is usually written as VU-6B. In Russian documentation it appears as ВУ-6Б. For a correct supply request, it is useful to specify the aircraft type, installation location, required documentation, and whether the unit is needed as new-old-stock, overhauled, or serviceable. The product is also known under alternative designation ВУ-6Б.

Related equipment in this system: VU-6A, DMR-200VU, RN-120U. These positions are linked by system function and are not presented as interchangeable.
