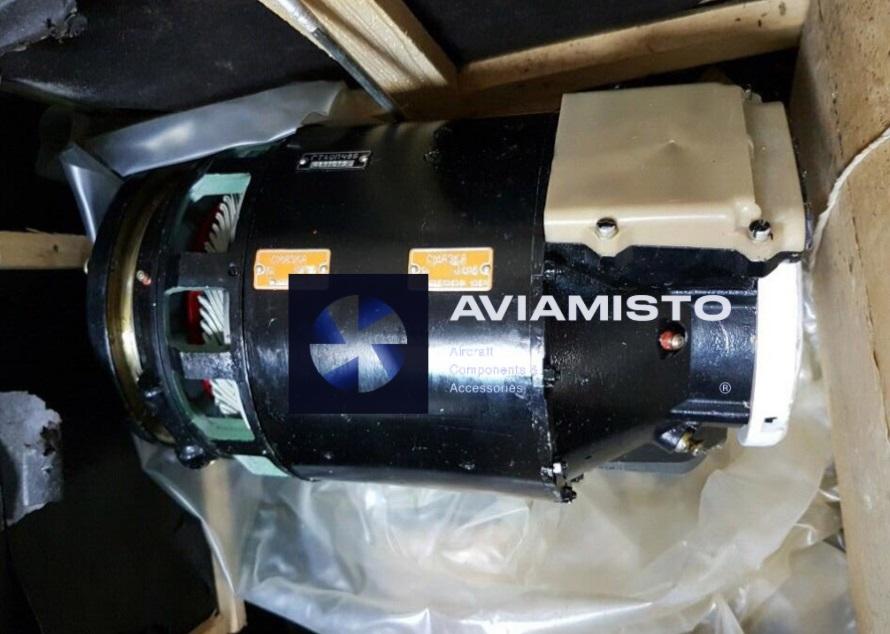

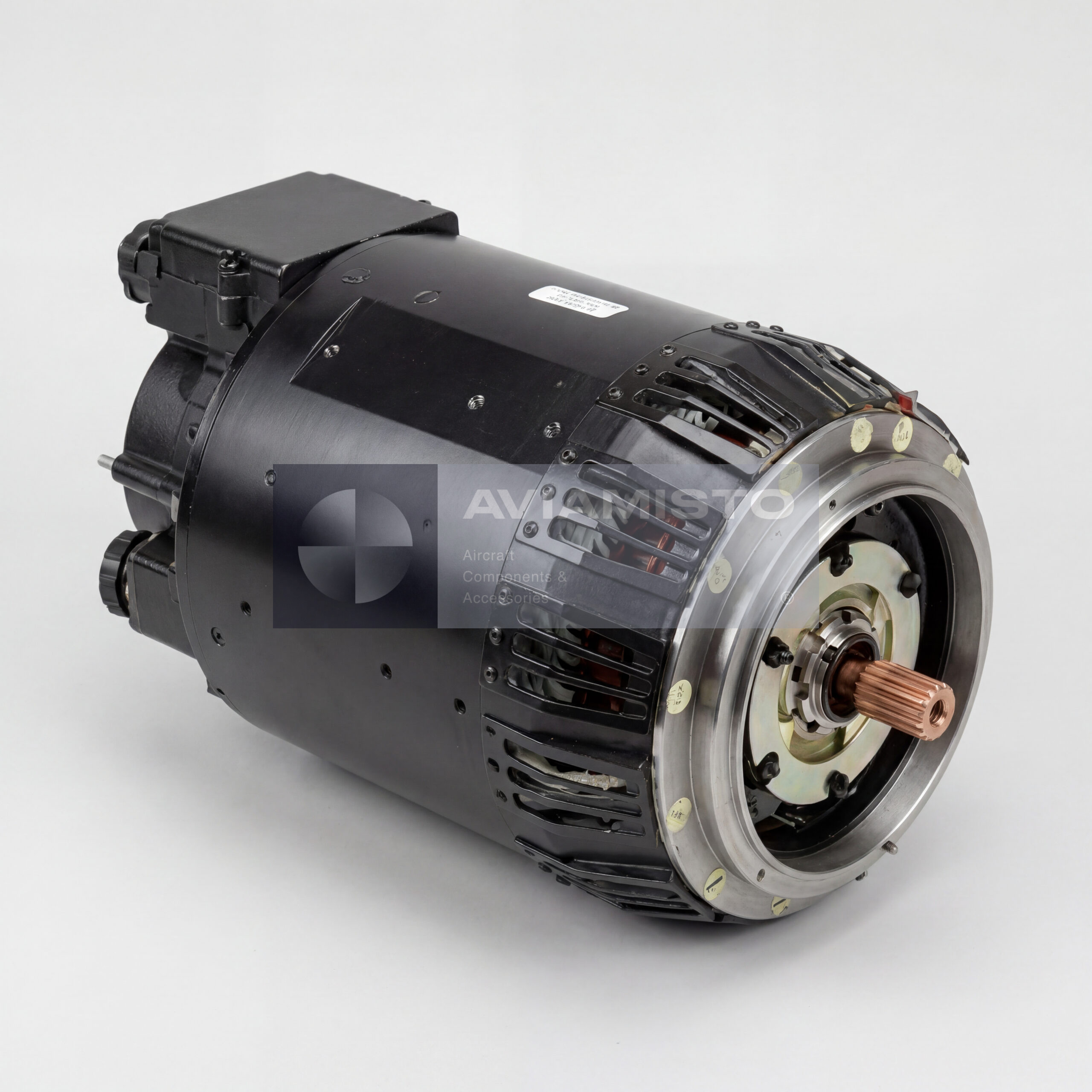

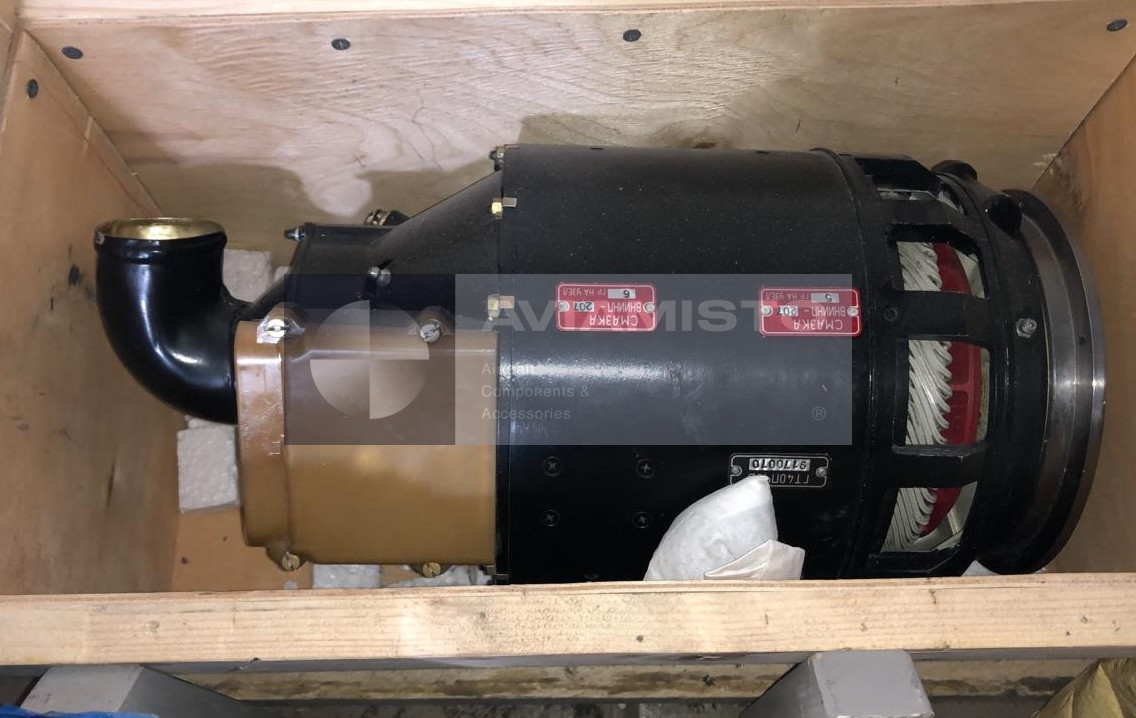

GT40PCH8V

Power generation function of the GT40PCH8V

The GT40PCH8V generates three-phase AC power with a neutral point brought out for aircraft distribution circuits. The generator output is intended for the main AC bus and connected consumers requiring stable aviation-frequency power. The unit itself does not regulate the network alone. Voltage stabilization and protection are handled through external control equipment connected to the generator system. This is why troubleshooting normally includes the generator, regulator, feeder wiring, protection relays, current sensing circuits, and load-side switching equipment.

GT40PCH8V exciter and internal construction

The generator combines several electrical machines on one shaft. The main generator produces the output power, the exciter supplies the rotating field system, and the permanent-magnet sub-exciter provides independent power for regulation, control, and protection circuits. The rotating rectifier block eliminates the need for a brush and slip-ring excitation system. This construction is typical for aircraft brushless AC generators, where reliability of excitation and reduced brush maintenance are important for continuous operation in flight.

System links around GT40PCH8V

In an aircraft installation, the GT40PCH8V works with voltage regulation and protection equipment. Voltage stabilization may be performed through BRN-208MA type regulation blocks, while generator protection can be handled by BZU-376SB or integrated BRZU-115VO type modules, depending on the aircraft configuration. In related helicopter AC systems, the generator circuit may also interface with current transformer blocks and protection-control units such as BZUNP355G where the aircraft documentation specifies such equipment. The exact combination must be checked by airframe and electrical system documentation.

Identification and ordering of GT40PCH8V

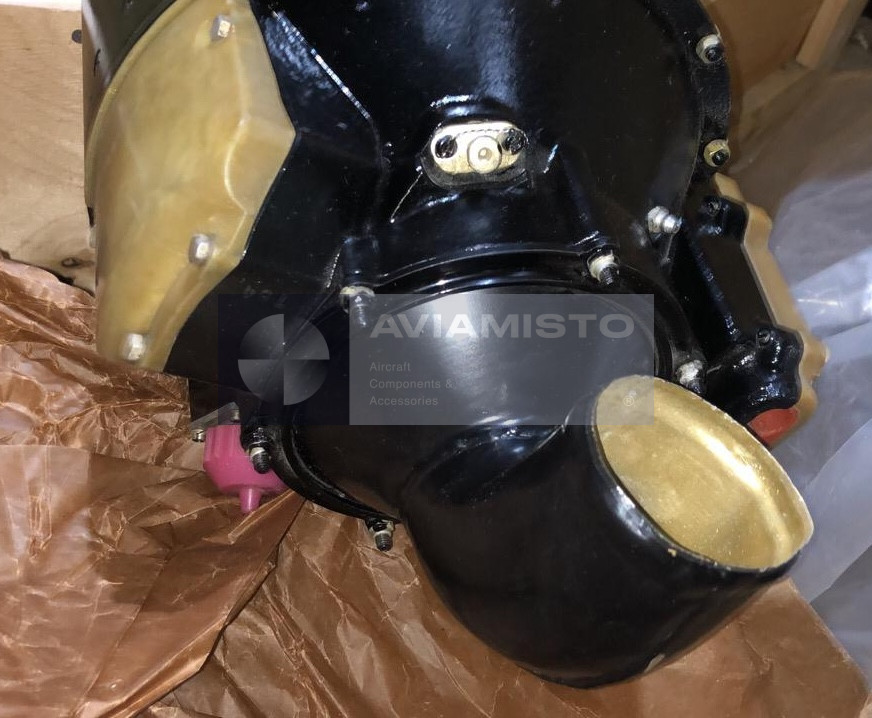

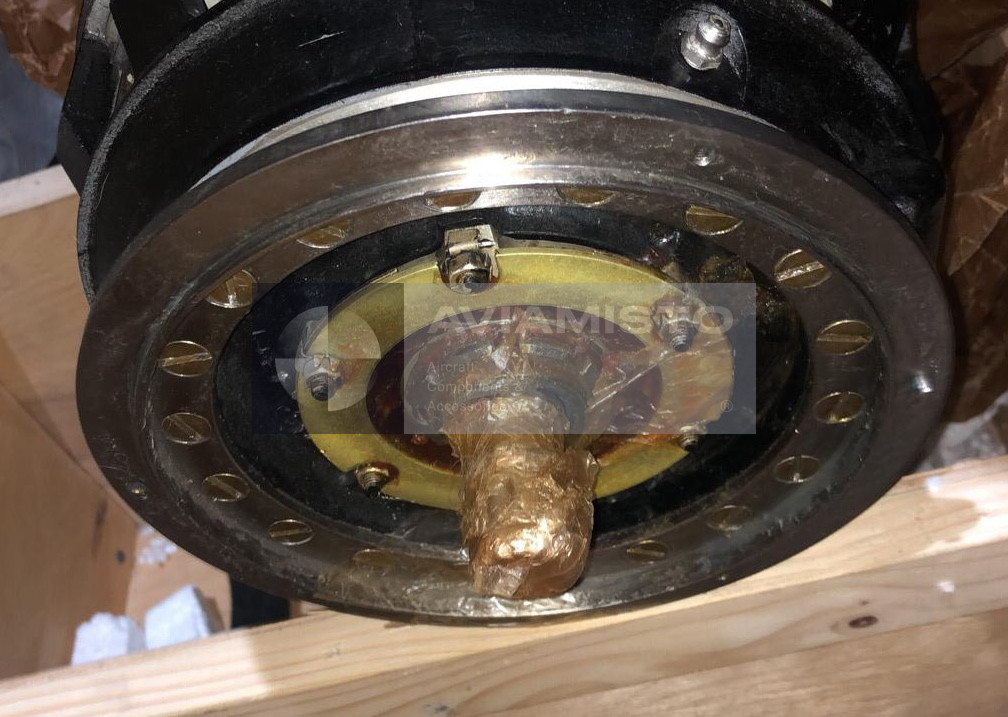

Before ordering a GT40PCH8V generator, the marking on the data plate should be checked against the aircraft parts catalog, generator documentation, and installation drawing. The “V” modification differs from some earlier versions by the geometry of the mounting flange and by the cooling outlet arrangement, so visual similarity is not enough for selection. For repaired aircraft or mixed fleets, it is better to confirm the flange version, rotation direction, connector layout, and associated regulator/protection blocks. The product is also known under alternative designations GT40PCH8V and ГТ40ПЧ8В.

Related equipment in this system: BRN120T5A-3S, BZUNP355G, BTT-40BT. These positions are linked by system function and are not presented as interchangeable.

Confirmed installation context includes Mi-8 / Mi-17 family helicopters. Exact applicability of the specific execution must be verified against the aircraft technical documentation.
