RELAYS ELECTROMAGNETIC LOW-CURRENT
RPS32B RS4.520.216
RPS32B RS4.520.216
RELAYS ELECTROMAGNETIC LOW-CURRENT
Available on back-order
Description

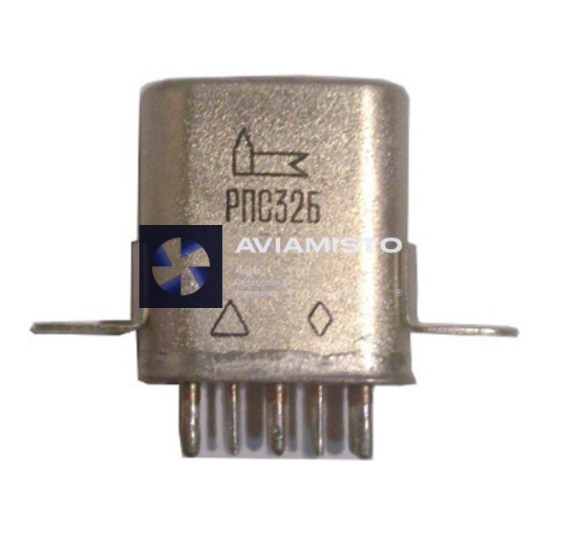

Relay RPS32B RS4.520.216 is sealed, polarized, two-position, two-stable, with two changeover contacts, designed for switching DC and AC electrical circuits with a frequency of up to 10 kHz.
Details
1. The supply current of the winding is constant.
2. Insulation resistance between current-carrying elements, between current-carrying elements and the case, not less than:
– in normal climatic conditions (windings de-energized) – 200 MΩ.
– at maximum temperature (after exposure under operating voltage) – 20 MΩ.
– in conditions of high humidity – 10 MΩ.
3. Test alternating voltage between current-carrying elements, between current-carrying elements and the case:
– in normal climatic conditions – 500 V.
– in conditions of high humidity – 300 V.
– in conditions of low atmospheric pressure – 180 V.
4. The time of the total stay of the winding under voltage at a maximum temperature of 100 hours.
5. Switching duty cycle not less than 5.
6. The duration of the pulse applied to the winding is at least 0.025 s.
7. The response time at the minimum operating voltage is not more than 5 ms.
8. Relay weight, no more than 20 g.
