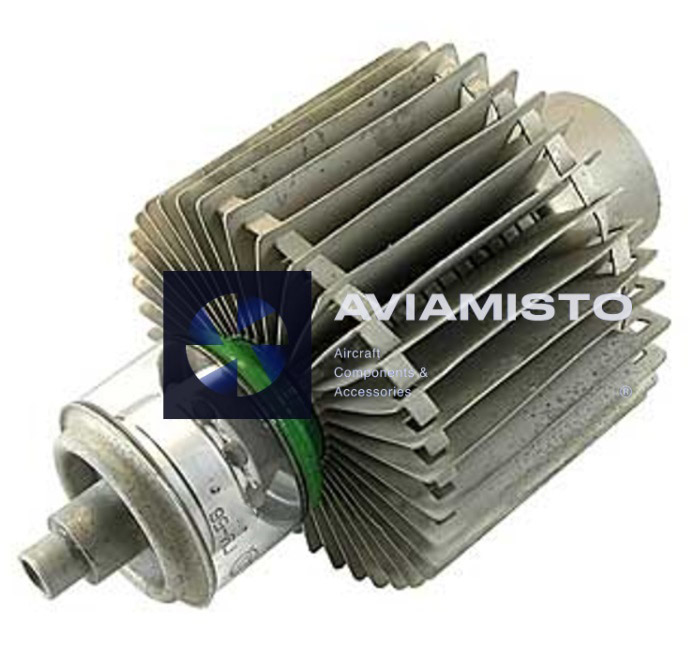

Generator triode GU-56 is designed to generate oscillations and amplify power in stationary industrial generators for high-frequency heating and other radio engineering devices at frequencies up to 45 MHz.
The design is glass-to-metal with annular mesh and cathode leads.
Cathode - tungsten thoriated carbide direct heating.
Working position - vertical, anode down.
Cooling - forced air.
Details
1. Filament current 24 ± 2.5 A.
2. Anode current (at Uc=200 V), not less than 1.5 A.
3. Anode current (at Ua=3 kV, Uc1=0), not less than 0.8 A.
4. The steepness of the characteristic (at Ia=1.5 and 1 A) 8 ± 2 mA/V.
5. Gain (at Ua=0.3 and 1 kV and Ia=1 A) 15 ± 4.
6. The closing voltage is negative (at Ua=3 kV), not more than 150 V.
7. Vibrational power at a frequency of 40 MHz in the self-excitation mode, not less than 1 kW.
8. Weight no more than 4 kg.
9. Interelectrode capacitances:
– input, no more than 30 pF,
– output, no more than 0.8 pF,
– pass-through, no more than 20 pF.
10. Durability, not less than 1000 hours.
11. Heating voltage 6.0 – 6.6 V.
12. Power dissipated by the anode 700 W.
13. Operating ambient temperature range from -60 to +70 C.
