ELECTRONIC BEAM TUBE
6N-17B-V
Price on request
ELECTRONIC BEAM TUBE
Available on back-order
Description

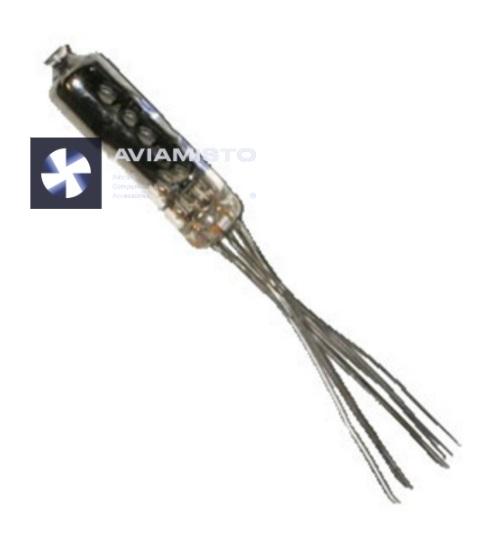

Lamp 6N-17B-V is a double subminiature triode of increased reliability and mechanical strength. Designed to amplify low frequency voltage. Indirectly heated oxide cathode. Works in any position. Produced in miniature glass design. Durability not less than 750 hours. Weight not more than 4 g.
Details
1. Heater voltage 6.3 ± 0.6 V.
2. Filament current 400 ± 40 mA.
3. Voltage at the anode 200 V.
4. The current in the anode circuit is 3.3 ± 1.0 mA.
5. The slope of the characteristic is 3.8 ± 1.0 mA / V.
6. Resistance in the cathode circuit 325 Ohm.
7. Reverse grid current 0.2 μA.
8. The gain is 75 ± 15.
9. The highest current in the cathode circuit is 10 mA.
10. The highest power dissipated at the anode is 0.9 watts.
11. The highest voltage of the cathode-heater is 150 V.
12. Design – miniature glass.
